Model Electrolux FEF450WFDB RANGE – Common Parts & Diagrams

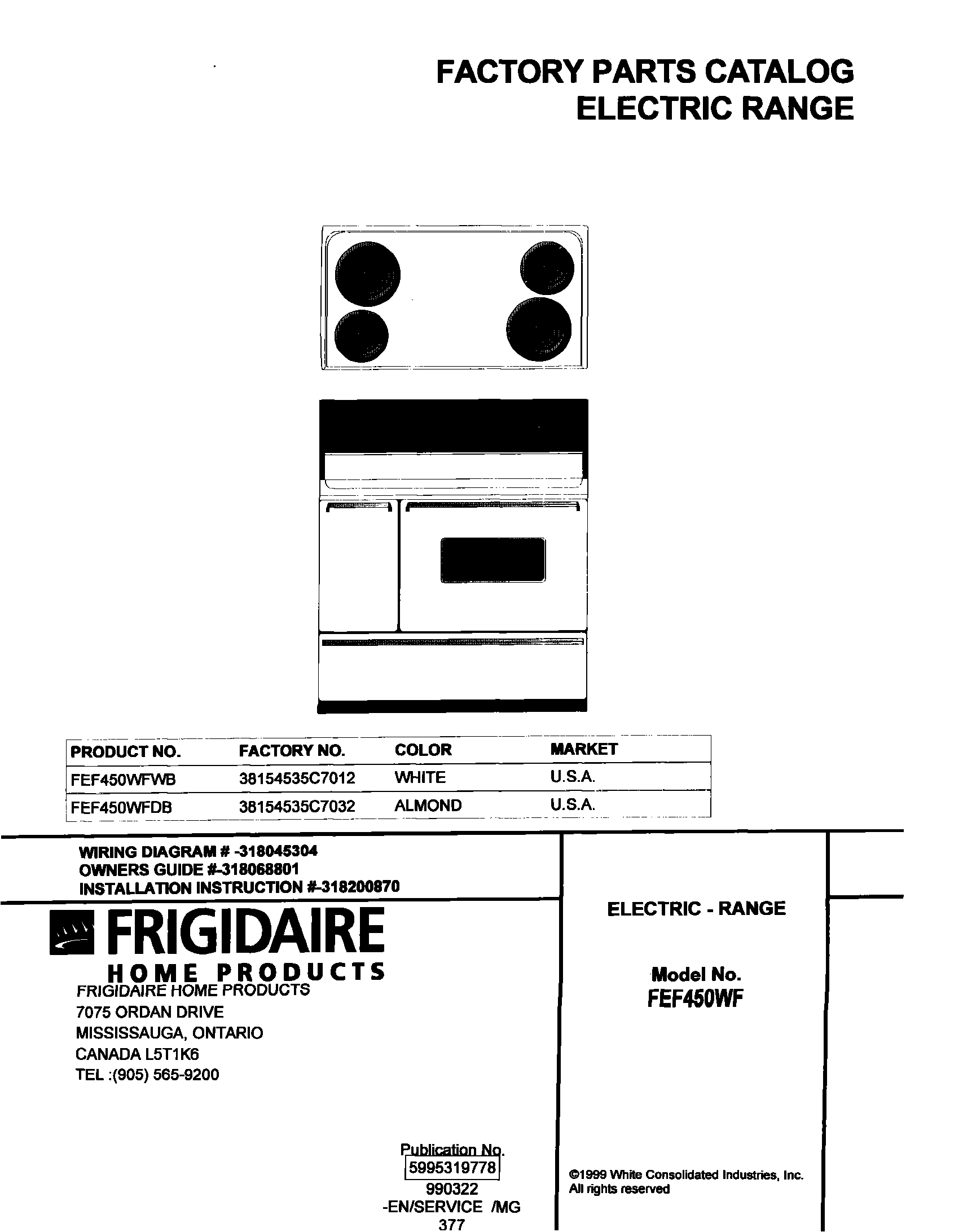

01 - COVER

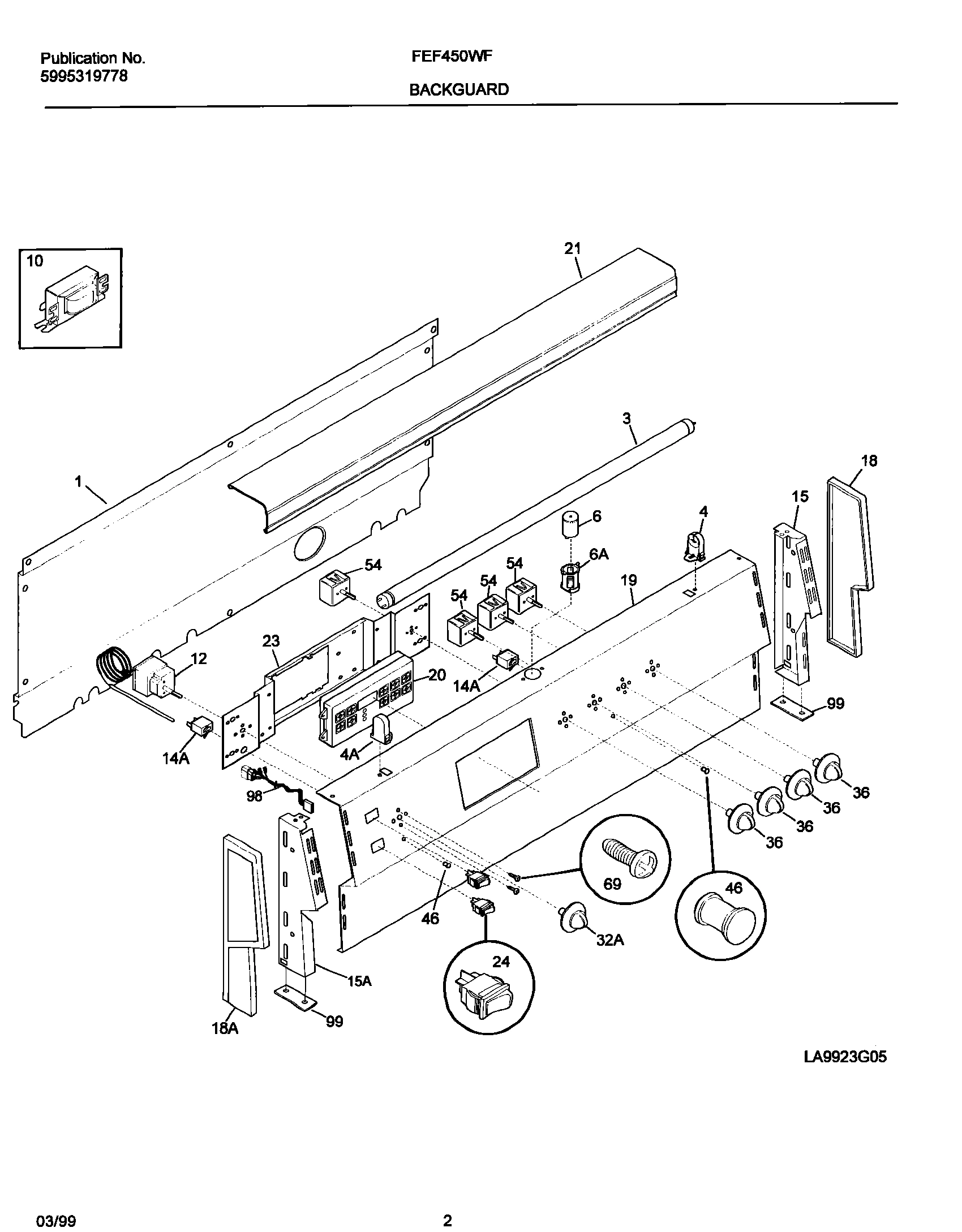

03 - BACKGUARD

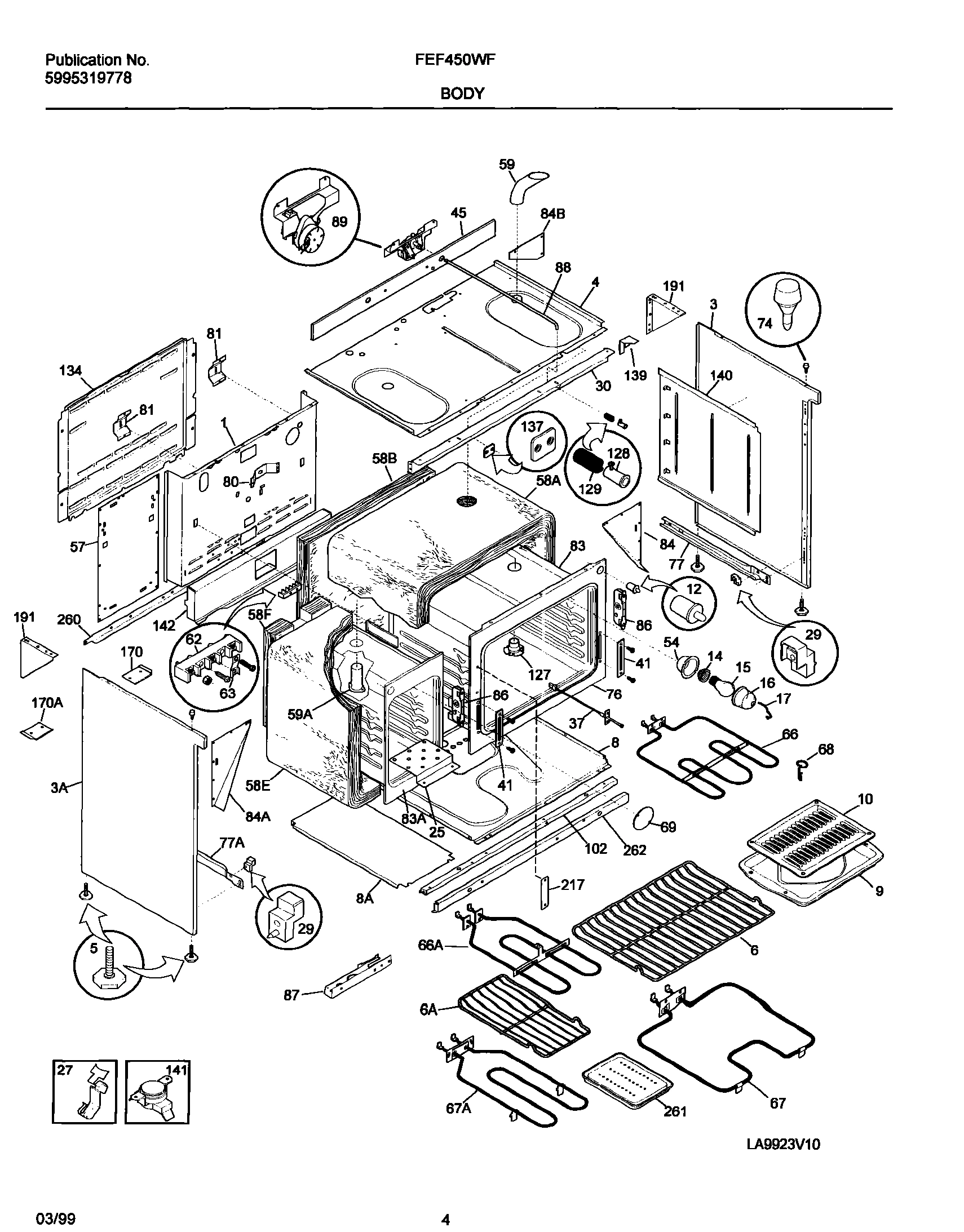

05 - BODY

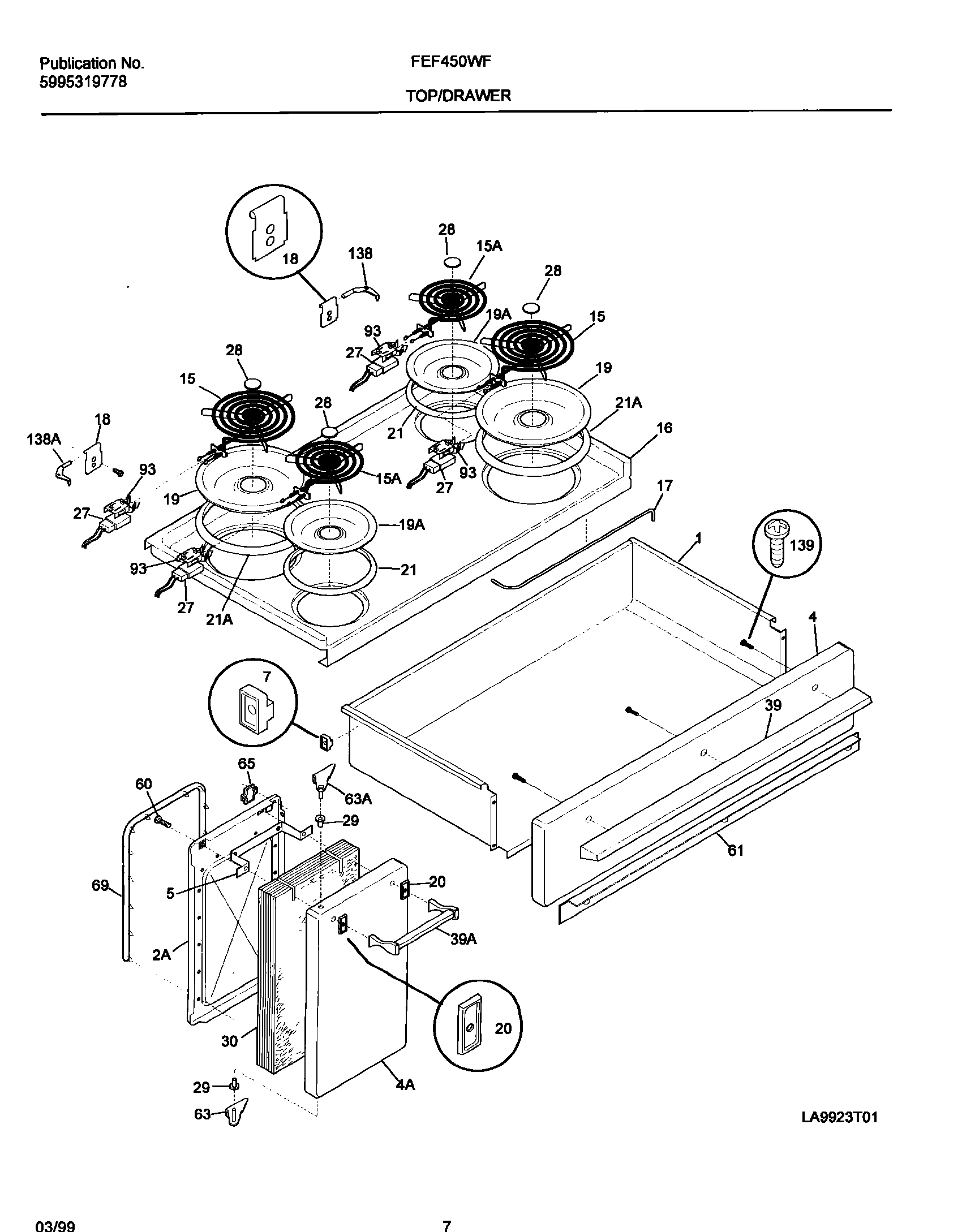

08 - TOP / DRAWER

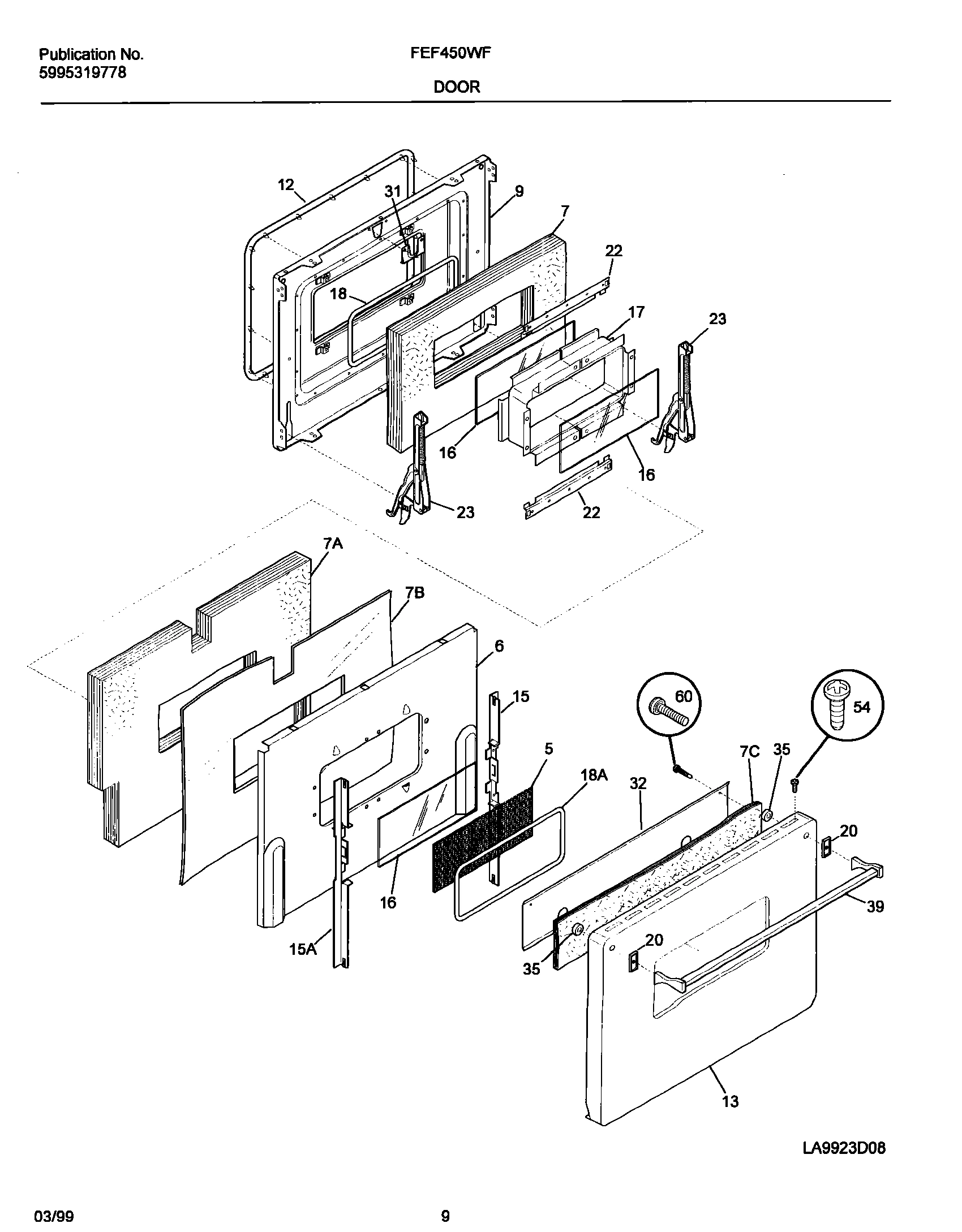

10 - DOOR

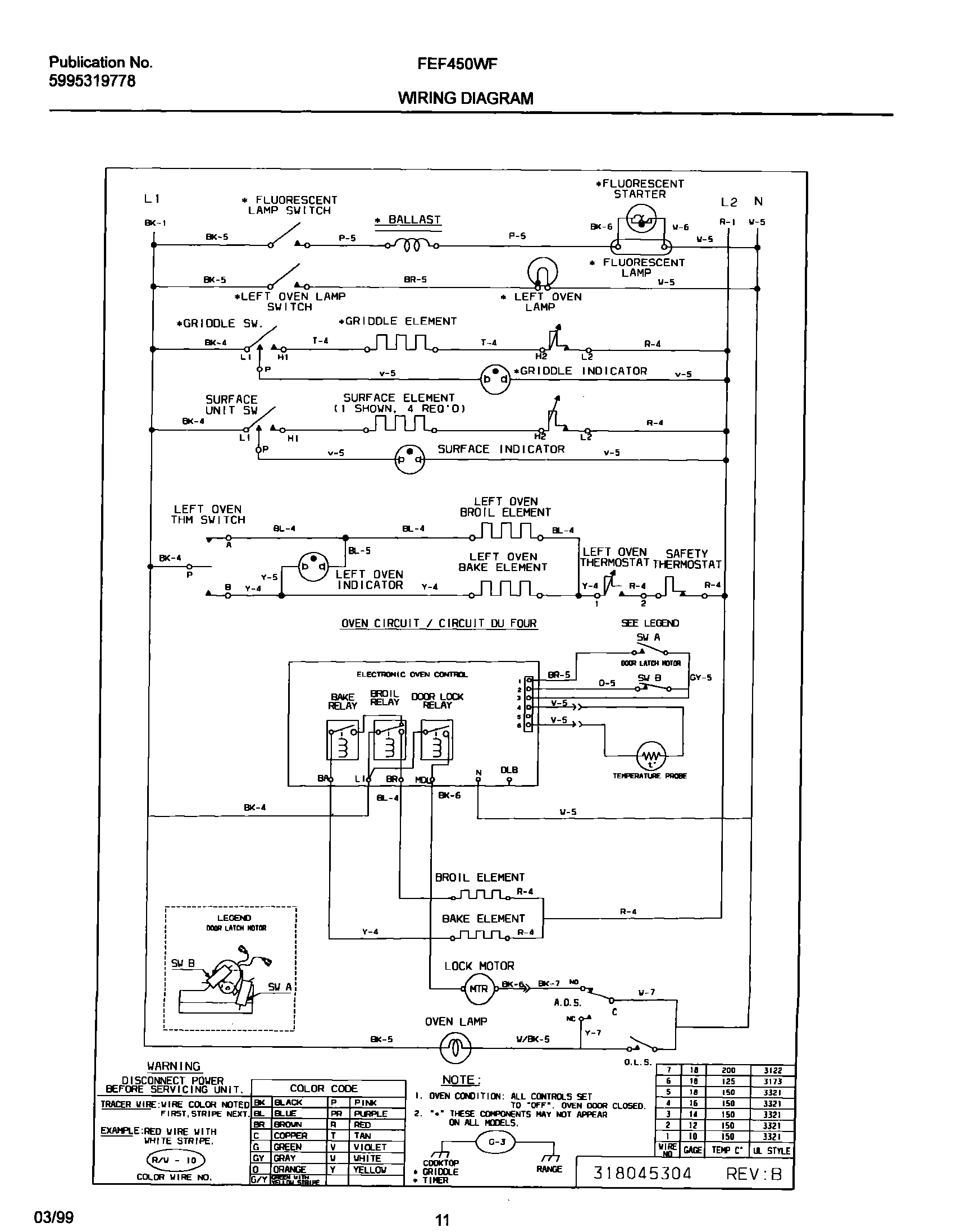

11 - WIRING DIAGRAM
Common parts from model Electrolux FEF450WFDB RANGE
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
2A
WCI 318048204 WCI 318048204 Contact Us For Availability
4
WCI 318073704 WCI 318073704 Contact Us For Availability
4
WCI 5303326191 WCI 5303326191 Contact Us For Availability
4A
WCI 318009309 WCI 318009309 Contact Us For Availability
5
SPACER-HANDLE WCI 318014500 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303310508 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
BAFFLE-DOOR WCI 318057000 Contact Us For Availability
6A
RACK-OVEN, SMALL WCI 318119700 Contact Us For Availability
7
GLIDE-DRAWER WCI 5301315217 Contact Us For Availability
7
WCI 5303310532 WCI 5303310532 Contact Us For Availability
7A
WCI 318106000 WCI 318106000 Contact Us For Availability
7B
WCI 5304400472 WCI 5304400472 Contact Us For Availability
7C
INSULATION-DOOR WCI 3204813 Contact Us For Availability
8
WCI 318179100 WCI 318179100 Contact Us For Availability
8A
PANEL-OVEN BOTTOM WCI 318071900 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048702 WCI 318048702 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
13
WCI 318009102 WCI 318009102 Contact Us For Availability
15
WCI 318024000 WCI 318024000 Contact Us For Availability
15A
WCI 318024001 WCI 318024001 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303310533 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 08011984 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
17
SPACER-GLASS WCI 318139000 Contact Us For Availability
18
WCI 3051745 WCI 3051745 Contact Us For Availability
18
SEAL-ROPE WCI 5303310531 Contact Us For Availability
18A
SEAL (GLASS EXT. DOOR) WCI 5303310505 Contact Us For Availability
19
WCI 318138500 WCI 318138500 Contact Us For Availability
19A
WCI 318138501 WCI 318138501 Contact Us For Availability
20
WCI 5303304833 WCI 5303304833 Contact Us For Availability
21
TRIM RING-SMALL WCI 5308003113 Contact Us For Availability
21A
TRIM RING-LARGE WCI 5308003114 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 318024700 WCI 318024700 Contact Us For Availability
25
SHIELD-HEAT, LOWER WCI 318133000 Contact Us For Availability
27
WCI 5303323704 WCI 5303323704 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
29
SPACER-HINGE PIN WCI 318141800 Contact Us For Availability
30
WCI 318023909 WCI 318023909 Contact Us For Availability
30
INSULATION-DOOR, SMALL OVEN WCI 5301311649 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
32
WCI 318057200 WCI 318057200 Contact Us For Availability
35
SPACER-DOOR HANDLE,(2) WCI 5303310504 Contact Us For Availability
39
WCI 3201576 WCI 3201576 Contact Us For Availability
39
WCI 5303304947 WCI 5303304947 Contact Us For Availability
39A
WCI 5303304832 WCI 5303304832 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
SHIELD-WIRE WCI 318057401 Contact Us For Availability
46
WCI 5308006417 WCI 5308006417 Contact Us For Availability
54
WCI 318120501 WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318055700 WCI 318055700 Contact Us For Availability
58A
INSULATION,OVEN WRAPPER WCI 5303310539 Contact Us For Availability
58B
WCI 5303310538 WCI 5303310538 Contact Us For Availability
58E
WCI 5301305817 WCI 5301305817 Contact Us For Availability
58F
INSULATION, OVEN BACK WCI 5301167905 Contact Us For Availability
59
WCI 318072501 WCI 318072501 Contact Us For Availability
59A
WCI 3017402 WCI 3017402 Contact Us For Availability
60
SCREW-HANDLE WCI 5303317085 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
63
WCI 318024505 WCI 318024505 Contact Us For Availability
63A
WCI 318024507 WCI 318024507 Contact Us For Availability
65
LATCH-DOOR, SMALL WCI 3204306 Contact Us For Availability
66A
WCI 318110100 WCI 318110100 Contact Us For Availability
69
SEAL-OVEN DOOR WCI 318053300 Contact Us For Availability
69
WCI 318036400 WCI 318036400 Contact Us For Availability
74
BUMPER DOOR STOP WCI 5308003107 Contact Us For Availability
76
FRAME-FRONT WCI 318056004 Contact Us For Availability
77
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77A
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
83A
LINER-OVEN ASSY, SMALL WCI 318089200 Contact Us For Availability
84
WCI 3204822 WCI 3204822 Contact Us For Availability
84A
WCI 3204823 WCI 3204823 Contact Us For Availability
84B
WCI 318055901 WCI 318055901 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING,CORD SET WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
WCI 318120701 WCI 318120701 Contact Us For Availability
89
WCI 5303324863 WCI 5303324863 Contact Us For Availability
93
SUPPORT TERMINAL BLOCK WCI 318122500 Contact Us For Availability
102
SUPPORT OVEN FRONT WCI 318111901 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
134
COVER-WIRING WCI 5303310515 Contact Us For Availability
137
WCI 3204318 WCI 3204318 Contact Us For Availability
138
BRACKET, HINGE MAIN TOP WCI 5301315631 Contact Us For Availability
138A
BRACKET, HINGE MAIN TOP WCI 3051658 Contact Us For Availability
139
WCI 318042900 WCI 318042900 Contact Us For Availability
140
RETAINER-INSULATION WCI 318071300 Contact Us For Availability
141
THERMOSTAT-SAFETY WCI 5303299721 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170
ANTI-TIP BRACKET WCI 3203575 Contact Us For Availability
170A
ANTI-TIP BRACKET WCI 3203576 Contact Us For Availability
191
BRACKET CORNER WCI 5303304030 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
260
SUPPORT-GUSSET WCI 318055500 Contact Us For Availability
261
GRILL-BROILER, SMALL OVEN WCI 08014183 Contact Us For Availability
262
CHANNEL, OVEN SUPPORT WCI 08011954 Contact Us For Availability
NI
BUTTON-PLUG WCI 3204817 Contact Us For Availability
NI
NUT WCI 5305151612 Contact Us For Availability
NI
FLAT WASHER WCI 318086002 Contact Us For Availability
NI
WCI 5303317975 WCI 5303317975 Contact Us For Availability
NI
WCI 5303321106 WCI 5303321106 Contact Us For Availability
NI
Rivet,pop WCI 3203618 Contact Us For Availability
× ![]()
