Model Electrolux FEF450WCDB RANGE – Common Parts & Diagrams

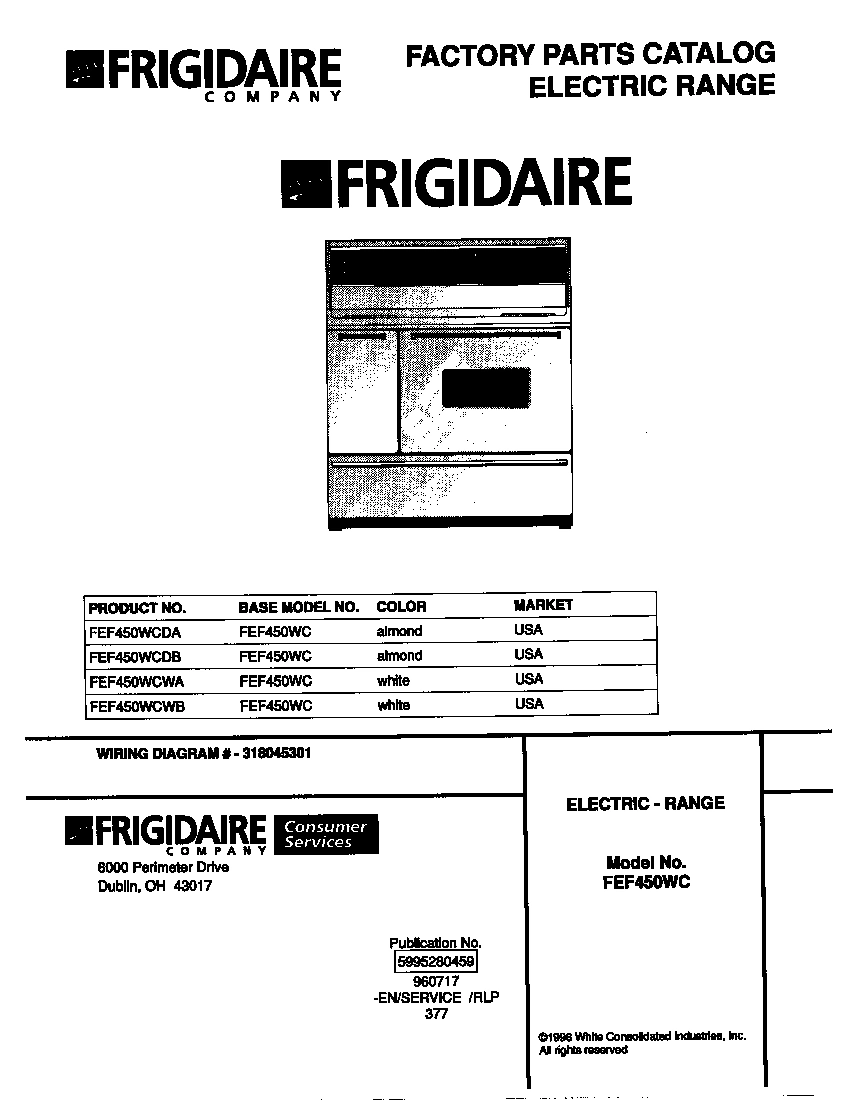

01 - COVER

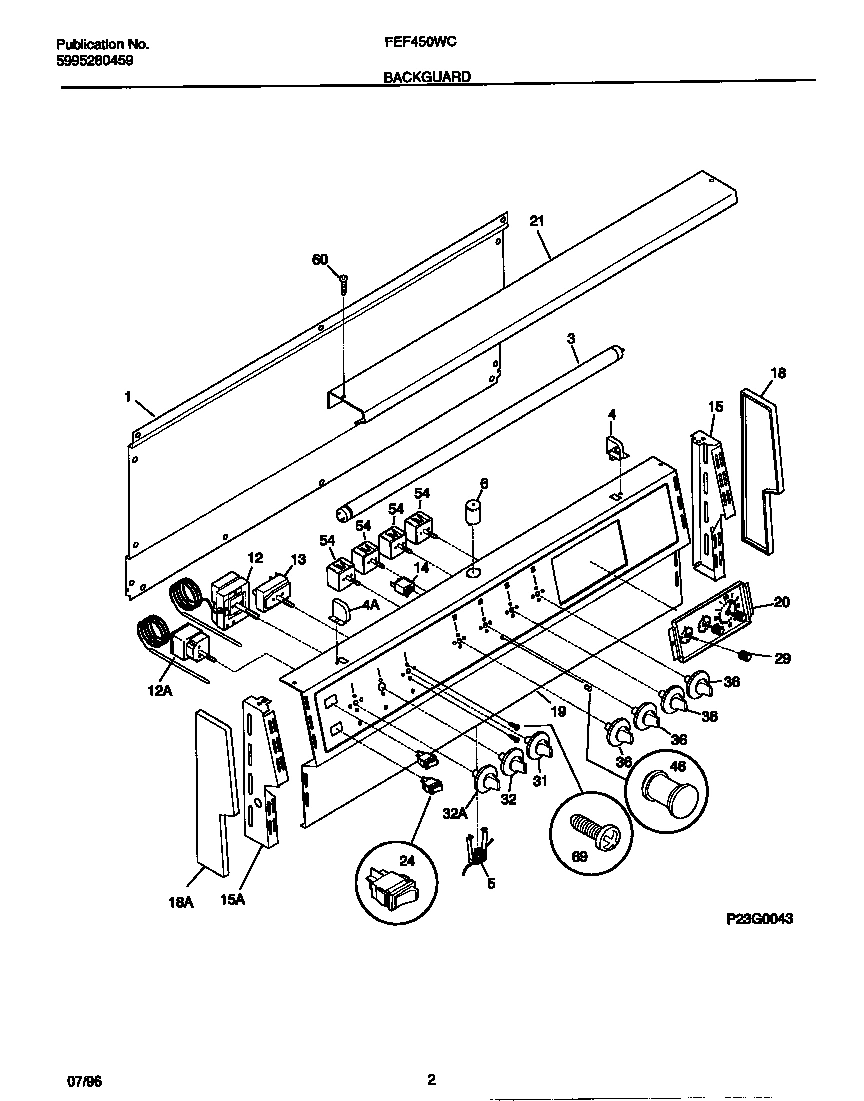

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux FEF450WCDB RANGE
*21800
RETAINER-DOOR WCI 3051810 Contact Us For Availability
*21801
GRILL-BROILER WCI 08014183 Contact Us For Availability
*21802
BRACKET-BACKSPLASH WCI 5303304030 Contact Us For Availability
*21803
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
2
WCI 318048204 WCI 318048204 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, RH WCI 5308012529 Contact Us For Availability
3
PANEL-BODYSIDE, ALMOND, LH WCI 5308012530 Contact Us For Availability
4
WCI 318073704 WCI 318073704 Contact Us For Availability
4
WCI 318009303 WCI 318009303 Contact Us For Availability
4
PANEL-DRAWER, ALMOND WCI 5301322709 Contact Us For Availability
5
SPACER-HANDLE WCI 318014500 Contact Us For Availability
5A
SCREW-LEVELING WCI 318175510 No Longer Available
5B
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203575 Contact Us For Availability
5C
ANTI-TIP BRACKET (NOT ILLUSTRATED) WCI 3203576 Contact Us For Availability
6
Starter,lamp WCI 5308068062 Contact Us For Availability
6
RACK-OVEN, SMALL WCI 08014191 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
6
BAFFLE-DOOR WCI 318057000 Contact Us For Availability
7
GLIDE-DRAWER WCI 5301315217 Contact Us For Availability
7
WCI 318106000 WCI 318106000 Contact Us For Availability
7
WCI 5303310532 WCI 5303310532 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 318071900 Contact Us For Availability
8
WCI 318121301 WCI 318121301 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048702 WCI 318048702 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
12
WCI 08003081 WCI 08003081 Contact Us For Availability
13
WCI 5303300189 WCI 5303300189 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 5303305163 Contact Us For Availability
13
WCI 318009102 WCI 318009102 Contact Us For Availability
14B
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
WCI 318024000 WCI 318024000 Contact Us For Availability
15
WCI 318024001 WCI 318024001 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 08011984 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, INNER, (2) WCI 5303310508 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 3051554 Contact Us For Availability
17
WCI 5303310534 WCI 5303310534 Contact Us For Availability
18A
BRACKET-HINGE, MAIN TOP LH WCI 3051658 Contact Us For Availability
18A
WCI 5303310505 WCI 5303310505 Contact Us For Availability
18B
BRACKET-HINGE, MAIN TOP RH WCI 5301315631 Contact Us For Availability
18B
SEAL-ROPE (NOT ILLUSTRATED) WCI 5303310531 Contact Us For Availability
19
WCI 318138501 WCI 318138501 Contact Us For Availability
19
WCI 318138500 WCI 318138500 Contact Us For Availability
20
SPACER-HANDLE, (2) WCI 5303310504 Contact Us For Availability
21
TRIM RING-LARGE WCI 5308003114 Contact Us For Availability
21
TRIM RING-SMALL WCI 5308003113 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 318024700 WCI 318024700 Contact Us For Availability
25
SHIELD-HEAT, LOWER WCI 318133000 Contact Us For Availability
27
CLIP-THERMO BULB WCI 3051552 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
GUIDE-DRAWER, FRONT WCI 3051654 Contact Us For Availability
29
WCI 5301306686 WCI 5301306686 Contact Us For Availability
29
SPACER-DOOR WCI 5303310535 Contact Us For Availability
30
WCI 318023904 WCI 318023904 Contact Us For Availability
30
INSULATION-DOOR, SMALL OVEN WCI 5301311649 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
31
WCI 5303300191 WCI 5303300191 Contact Us For Availability
32
WCI 5303300190 WCI 5303300190 Contact Us For Availability
32
WCI 318057200 WCI 318057200 Contact Us For Availability
36
KNOB-SURFACE UNIT, BLACK, (4) WCI 5303299751 Contact Us For Availability
39
WCI 318040603 WCI 318040603 Contact Us For Availability
39
WCI 3201576 WCI 3201576 Contact Us For Availability
39A
WCI 318040602 WCI 318040602 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
45
WCI 318057400 WCI 318057400 Contact Us For Availability
46
WCI 5303271239 WCI 5303271239 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318055700 WCI 318055700 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5301167905 Contact Us For Availability
58
WCI 5301305817 WCI 5301305817 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
59
WCI 3017402 WCI 3017402 Contact Us For Availability
59
WCI 318072501 WCI 318072501 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
62C
PLATE-GROUND STRAP (NOT ILLUSTRATED) WCI 5303310517 Contact Us For Availability
63A
WCI 318024501 WCI 318024501 Contact Us For Availability
63B
WCI 318024503 WCI 318024503 Contact Us For Availability
65
LATCH-DOOR, SMALL WCI 3204306 Contact Us For Availability
66
ELEMENT, BROIL, SMALL OVEN WCI 08014184 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SEAL-OVEN DOOR WCI 318053300 Contact Us For Availability
69
PLATE-OVEN LIGHT WCI 318036400 Contact Us For Availability
72
COVER-ROD END WCI 08007444 Contact Us For Availability
74
WCI 08003107 WCI 08003107 Contact Us For Availability
76
WCI 318056002 WCI 318056002 Contact Us For Availability
77A
RAIL-DRAWER RH WCI 318018000 Contact Us For Availability
77B
RAIL-DRAWER LH WCI 318018001 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN ASSY, SMALL WCI 318089200 Contact Us For Availability
83
WCI 318089600 WCI 318089600 Contact Us For Availability
84A
WCI 3204822 WCI 3204822 Contact Us For Availability
84B
WCI 3204823 WCI 3204823 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
WCI 5303310540 WCI 5303310540 Contact Us For Availability
102
SUPPORT-OVEN FRONT WCI 08011954 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
134
COVER-WIRING WCI 5303310515 Contact Us For Availability
137
WCI 3204318 WCI 3204318 Contact Us For Availability
138
BALLAST-LAMP WCI 5301308270 Contact Us For Availability
139
WCI 318042900 WCI 318042900 Contact Us For Availability
140
RETAINER-INSULATION WCI 318071300 Contact Us For Availability
141
THERMOSTAT-SAFETY WCI 5303299721 Contact Us For Availability
142
WCI 5303310541 WCI 5303310541 Contact Us For Availability
× ![]()
