Model Electrolux FEF402BWD RANGE – Common Parts & Diagrams

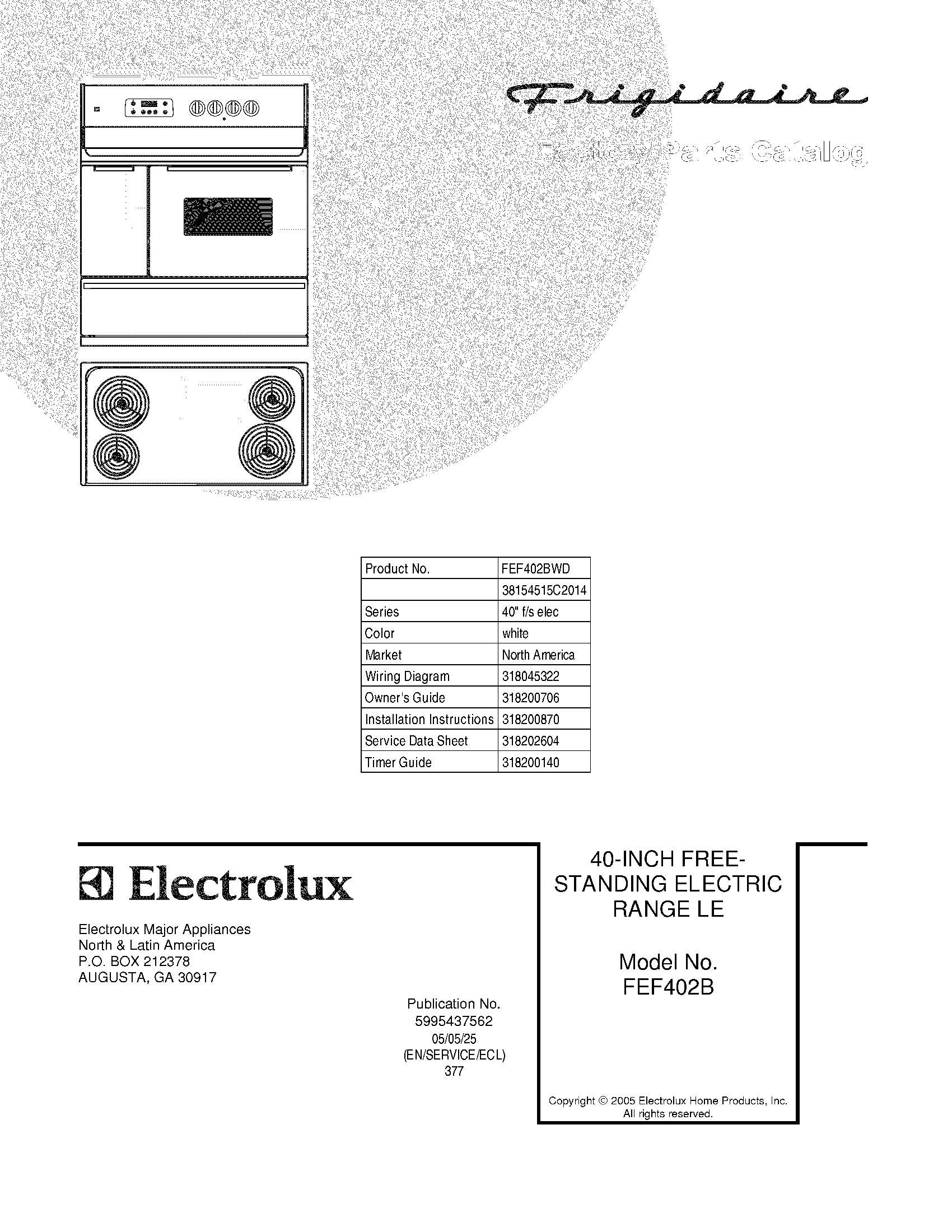

01 - COVER

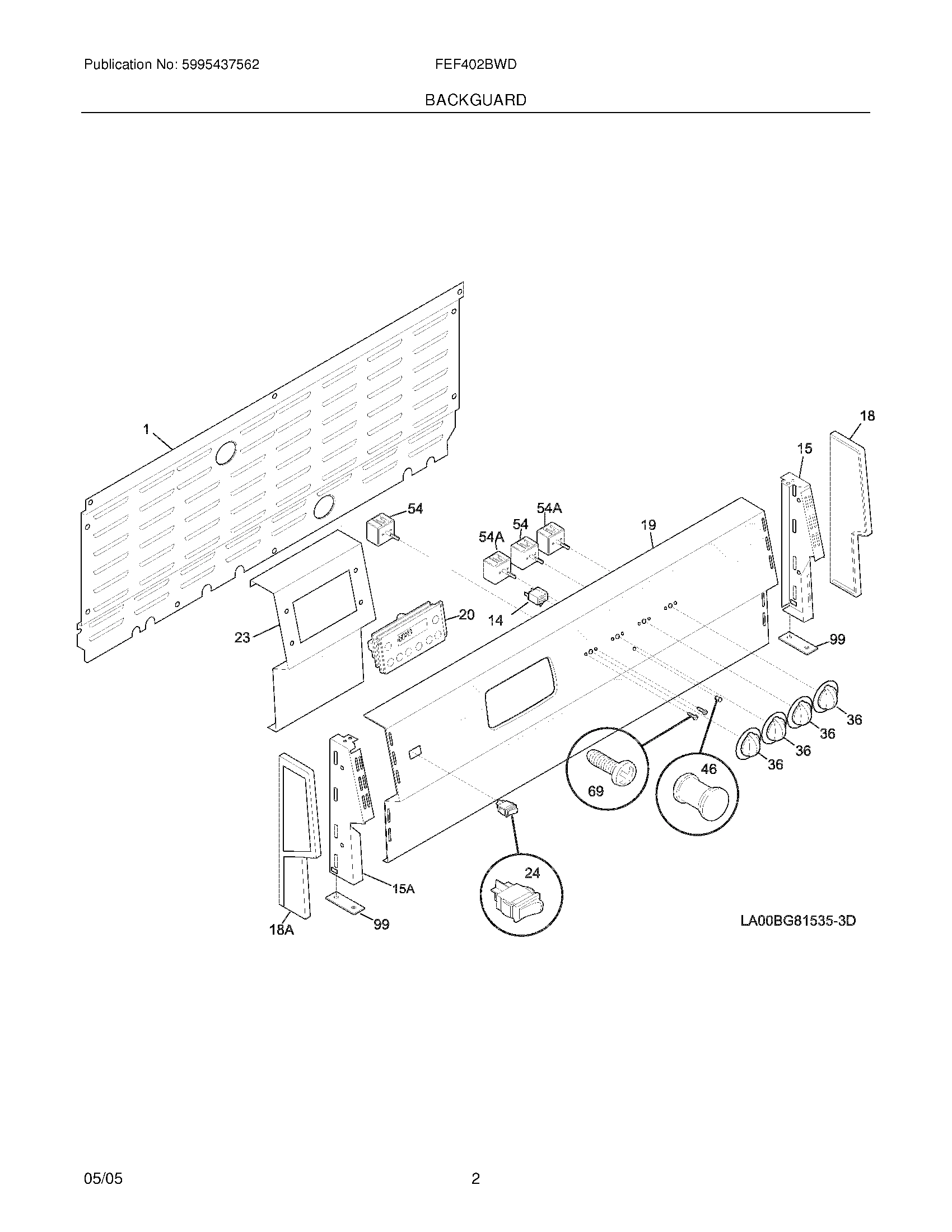

03 - BACKGUARD

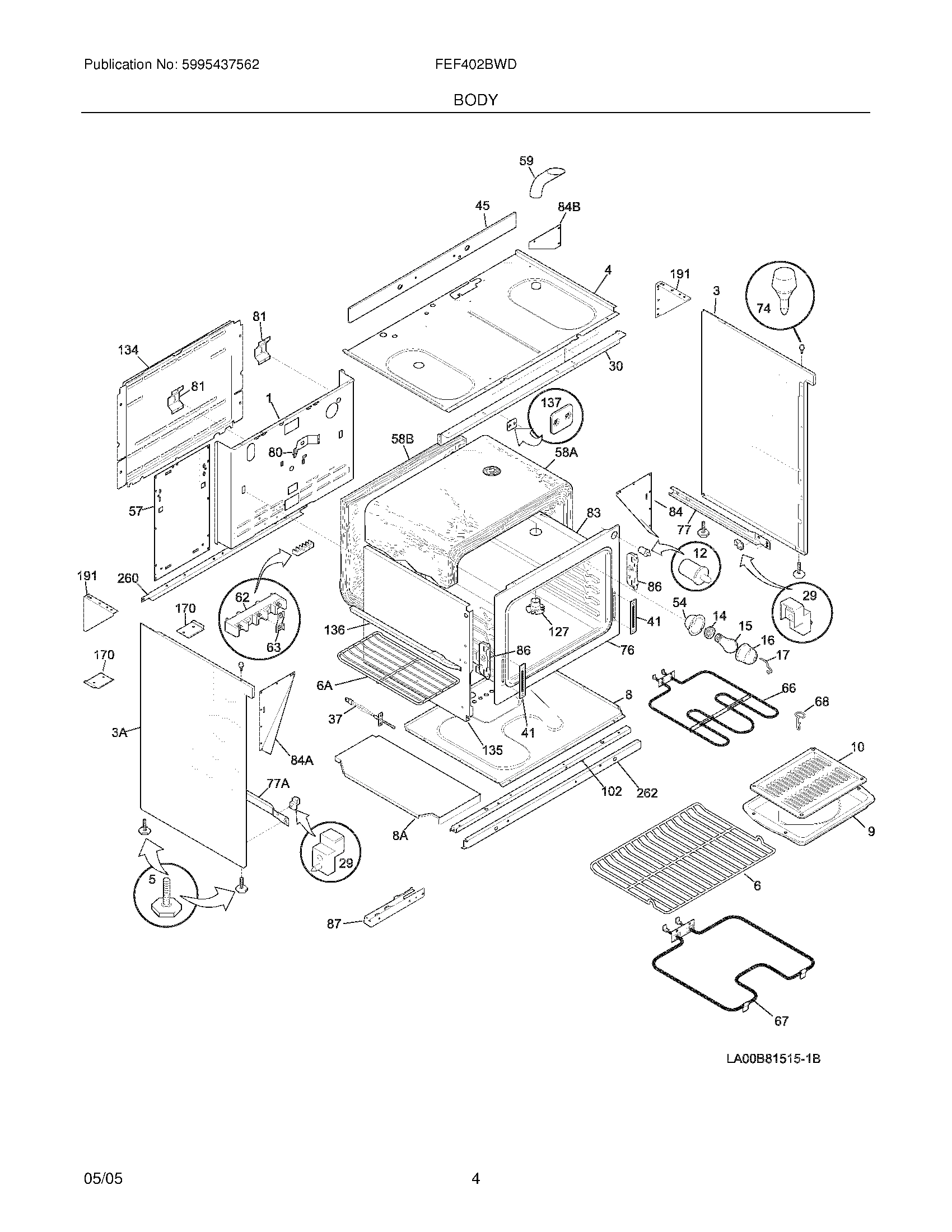

05 - BODY

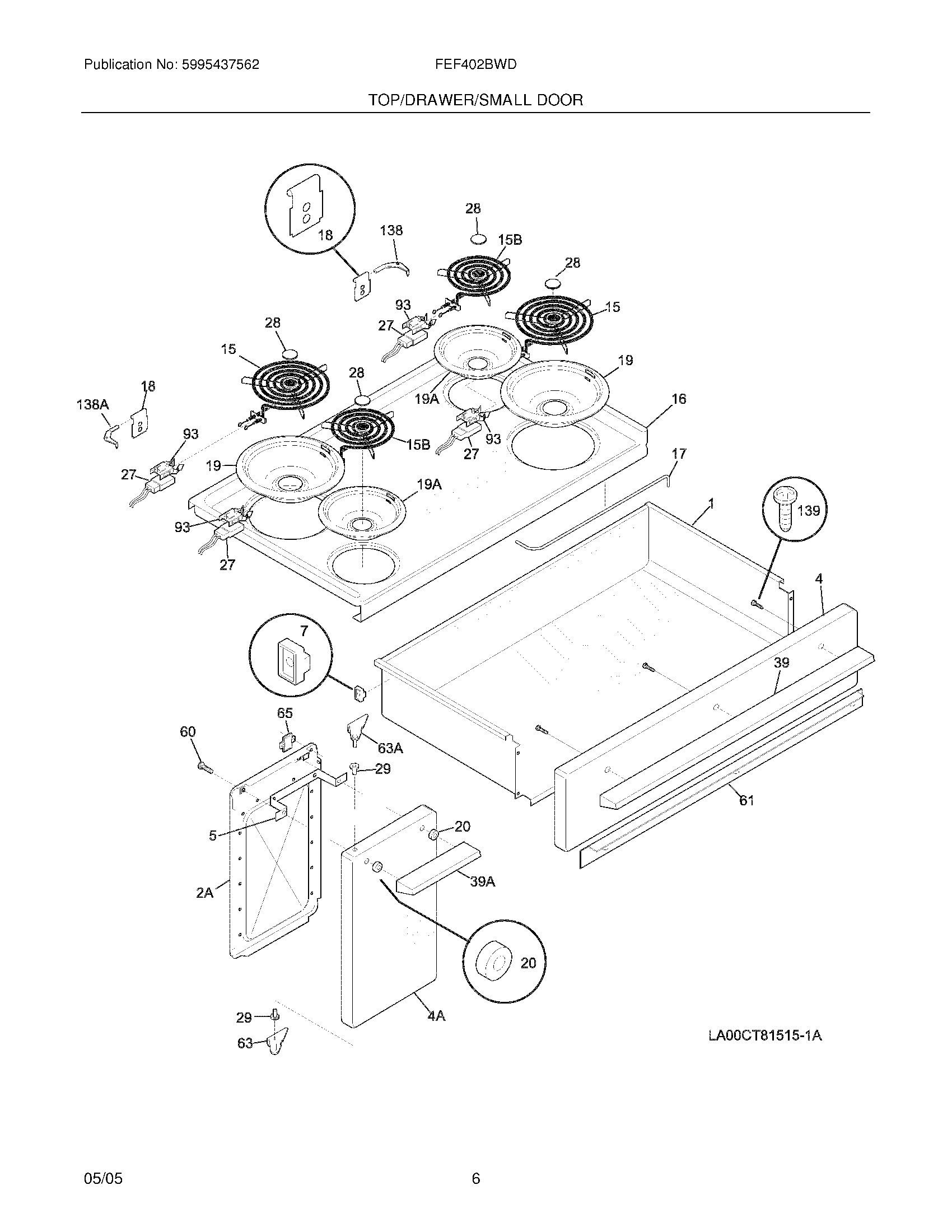

07 - TOP/DRAWER/SMALL DOOR

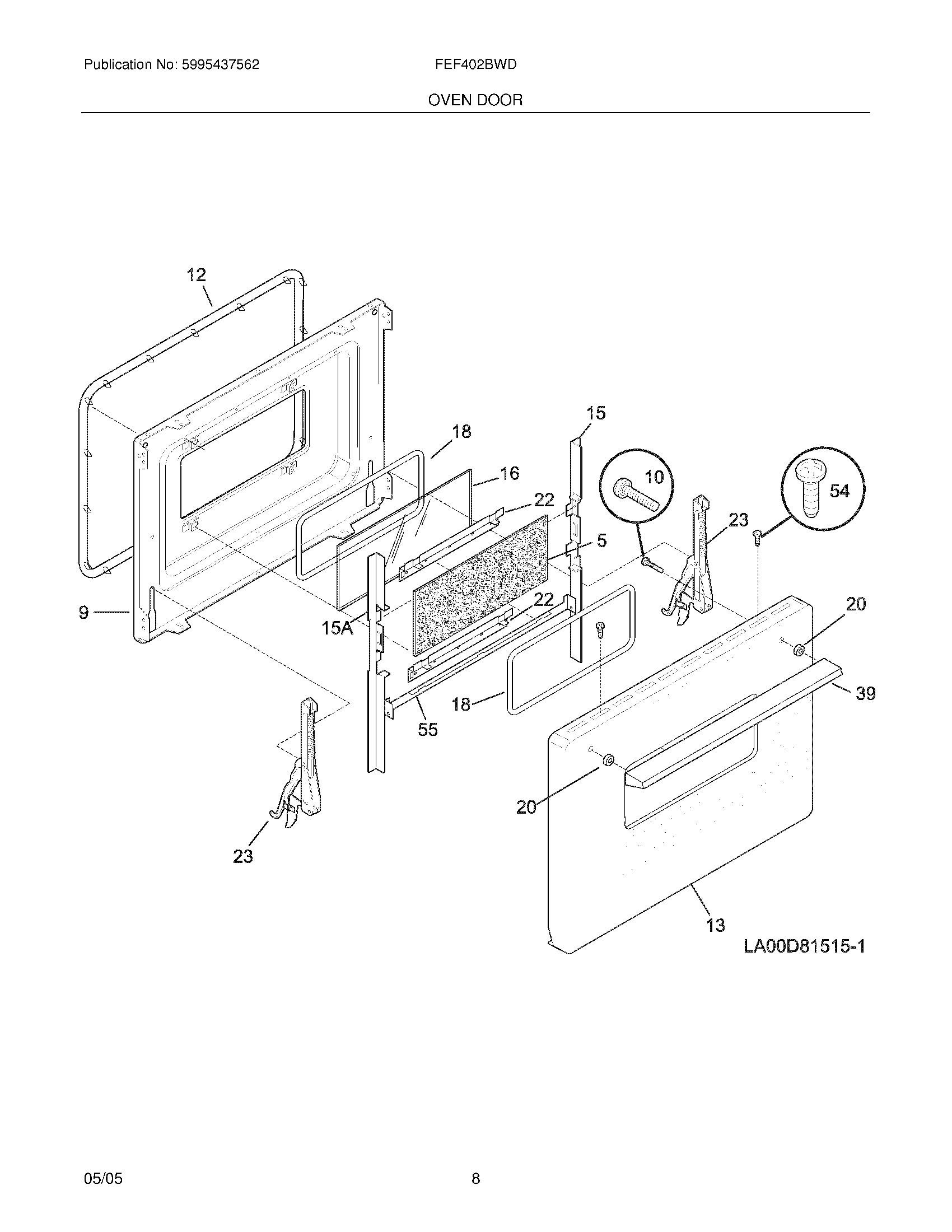

09 - OVEN DOOR

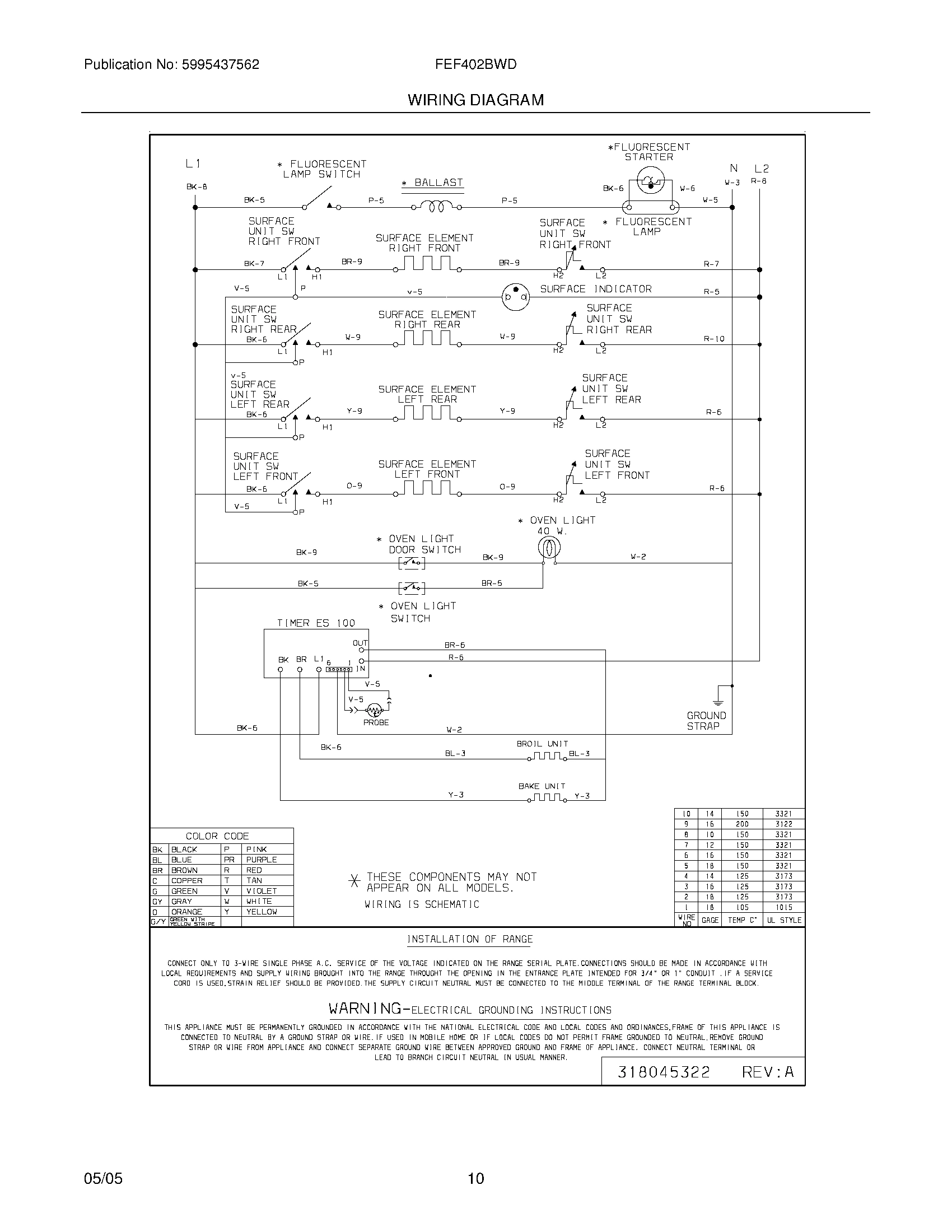

10 - WIRING DIAGRAM
Common parts from model Electrolux FEF402BWD RANGE
1
DRAWER-UTILITY WCI 3202108 Contact Us For Availability
2A
WCI 318048213 WCI 318048213 Contact Us For Availability
4
Panel,drawer ,white ,front WCI 08011980 Contact Us For Availability
4A
WCI 318009308 WCI 318009308 Contact Us For Availability
5
WCI 318175503 WCI 318175503 Contact Us For Availability
5
Spacer,door handle WCI 318014500 Contact Us For Availability
5
WCI 5303310508 WCI 5303310508 Contact Us For Availability
6
WCI 318025314 WCI 318025314 Contact Us For Availability
7
WCI 5303326236 WCI 5303326236 Contact Us For Availability
9
WCI 318048708 WCI 318048708 Contact Us For Availability
12
WCI 318053301 WCI 318053301 Contact Us For Availability
13
WCI 318009107 WCI 318009107 Contact Us For Availability
15
WCI 318024010 WCI 318024010 Contact Us For Availability
15A
WCI 318161903 WCI 318161903 Contact Us For Availability
15A
WCI 318024011 WCI 318024011 Contact Us For Availability
16
Panel,main top ,white WCI 08011961 Contact Us For Availability
16
WCI 318041620 WCI 318041620 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
Rod,support ,main top panel WCI 3051554 Contact Us For Availability
18
WCI 318053203 WCI 318053203 Contact Us For Availability
18
WCI 318186400 WCI 318186400 Contact Us For Availability
20
WCI 5303310504 WCI 5303310504 Contact Us For Availability
22
WCI 5303310511 WCI 5303310511 Contact Us For Availability
23
WCI 5303325091 WCI 5303325091 Contact Us For Availability
27
WCI 318223416 WCI 318223416 Contact Us For Availability
27
WCI 318223417 WCI 318223417 Contact Us For Availability
27
WCI 318223419 WCI 318223419 Contact Us For Availability
27
WCI 318223420 WCI 318223420 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
29
WCI 318141800 WCI 318141800 Contact Us For Availability
39
WCI 318185901 WCI 318185901 Contact Us For Availability
39
WCI 318185902 WCI 318185902 Contact Us For Availability
39A
WCI 318185903 WCI 318185903 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
46
Lens,indicator lamp ,red ,(2) WCI 5308006417 Contact Us For Availability
54
WCI 318222400 WCI 318222400 Contact Us For Availability
54
WCI 5303317975 WCI 5303317975 Contact Us For Availability
55
WCI 318122300 WCI 318122300 Contact Us For Availability
61
WCI 318107700 WCI 318107700 Contact Us For Availability
63
WCI 318024508 WCI 318024508 Contact Us For Availability
63A
WCI 318024509 WCI 318024509 Contact Us For Availability
65
WCI 318090220 WCI 318090220 Contact Us For Availability
74
WCI 318147420 WCI 318147420 Contact Us For Availability
76
WCI 318056006 WCI 318056006 Contact Us For Availability
77
WCI 318018000 WCI 318018000 Contact Us For Availability
77A
WCI 318018001 WCI 318018001 Contact Us For Availability
81
WCI 318192400 WCI 318192400 Contact Us For Availability
83
WCI 318089613 WCI 318089613 Contact Us For Availability
84
WCI 5303326184 WCI 5303326184 Contact Us For Availability
84A
WCI 5303326185 WCI 5303326185 Contact Us For Availability
84B
WCI 318055902 WCI 318055902 Contact Us For Availability
86
WCI 5303310524 WCI 5303310524 Contact Us For Availability
87
WCI 318111800 WCI 318111800 Contact Us For Availability
93
WCI 318122500 WCI 318122500 Contact Us For Availability
102
WCI 318111901 WCI 318111901 Contact Us For Availability
127
WCI 318317000 WCI 318317000 Contact Us For Availability
134
WCI 5303310515 WCI 5303310515 Contact Us For Availability
135
WCI 318072401 WCI 318072401 Contact Us For Availability
136
WCI 5301315199 WCI 5301315199 Contact Us For Availability
138
Pin,hinge ,LS cooktop WCI 3051658 Contact Us For Availability
138
Pin,hinge ,RS cooktop WCI 5301315631 Contact Us For Availability
170
WCI 5304405241 WCI 5304405241 Contact Us For Availability
191
WCI 5303304030 WCI 5303304030 Contact Us For Availability
260
WCI 318055500 WCI 318055500 Contact Us For Availability
262
Channel,oven support ,front WCI 08011954 Contact Us For Availability
NI
Screw,10-24 x 0.500 ,probe,thrm brkt ,shield, WCI 08002868 Contact Us For Availability
NI
WCI 5305151612 WCI 5305151612 Contact Us For Availability
NI
WCI 318086002 WCI 318086002 Contact Us For Availability
NI
WCI 316221001 WCI 316221001 Contact Us For Availability
× ![]()
