Model Electrolux FEF389WFSD RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

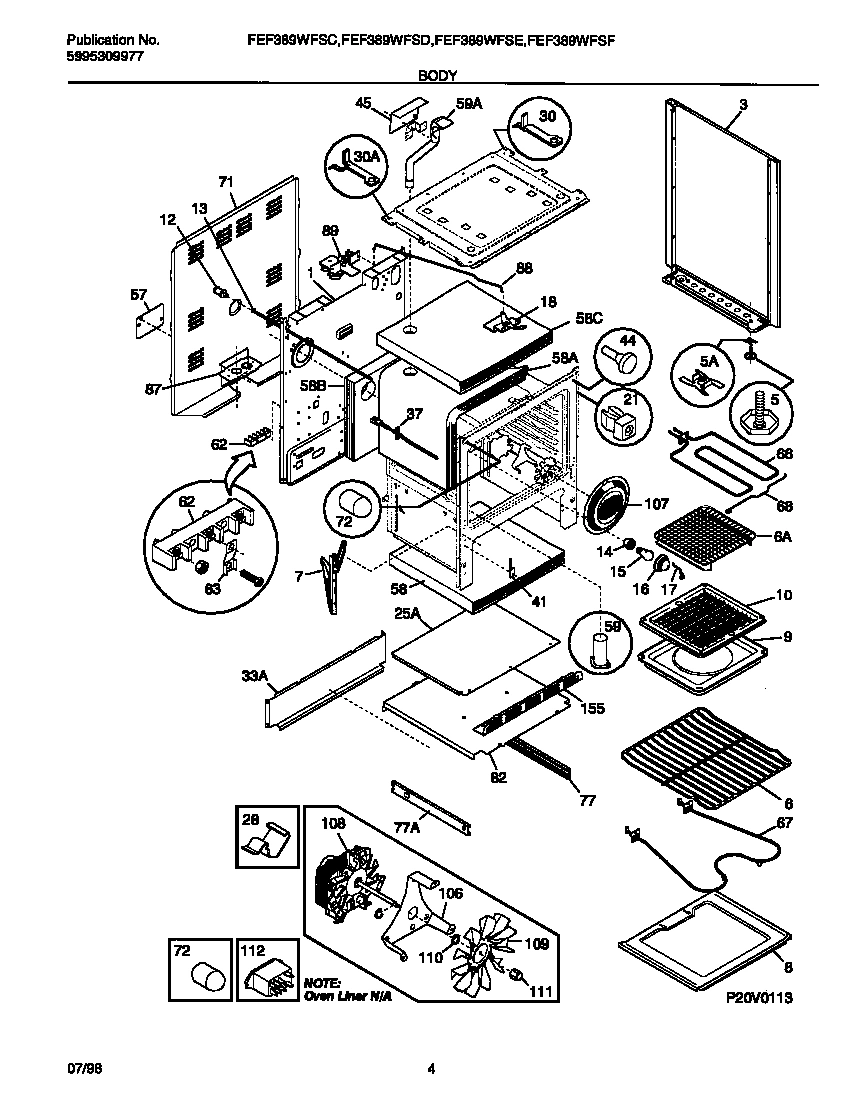

03 - BODY

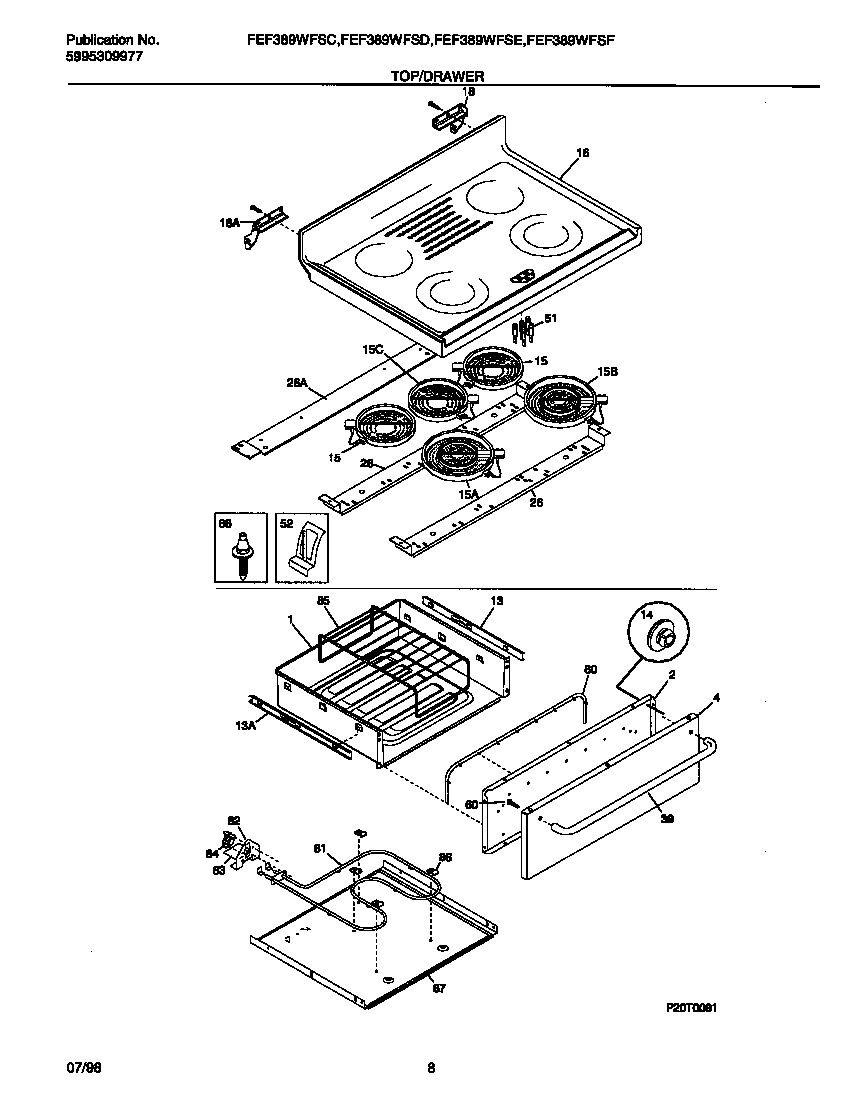

04 - TOP/DRAWER

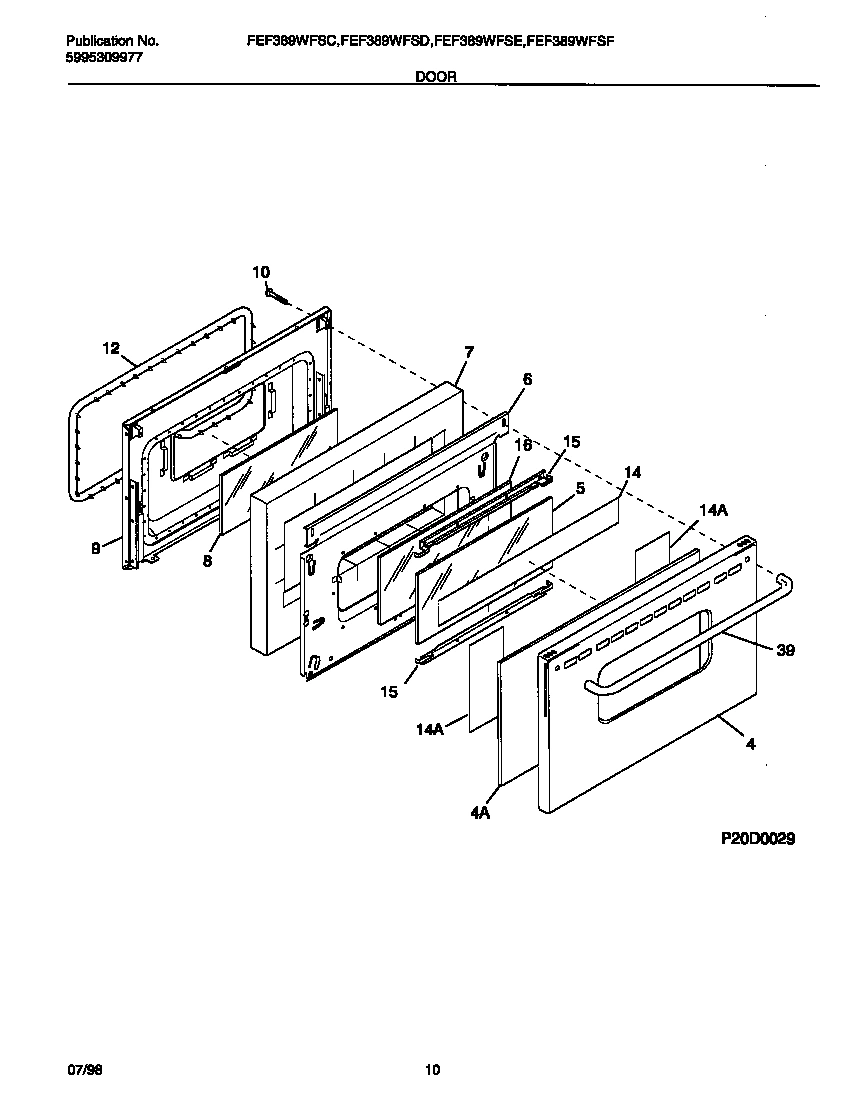

05 - DOOR

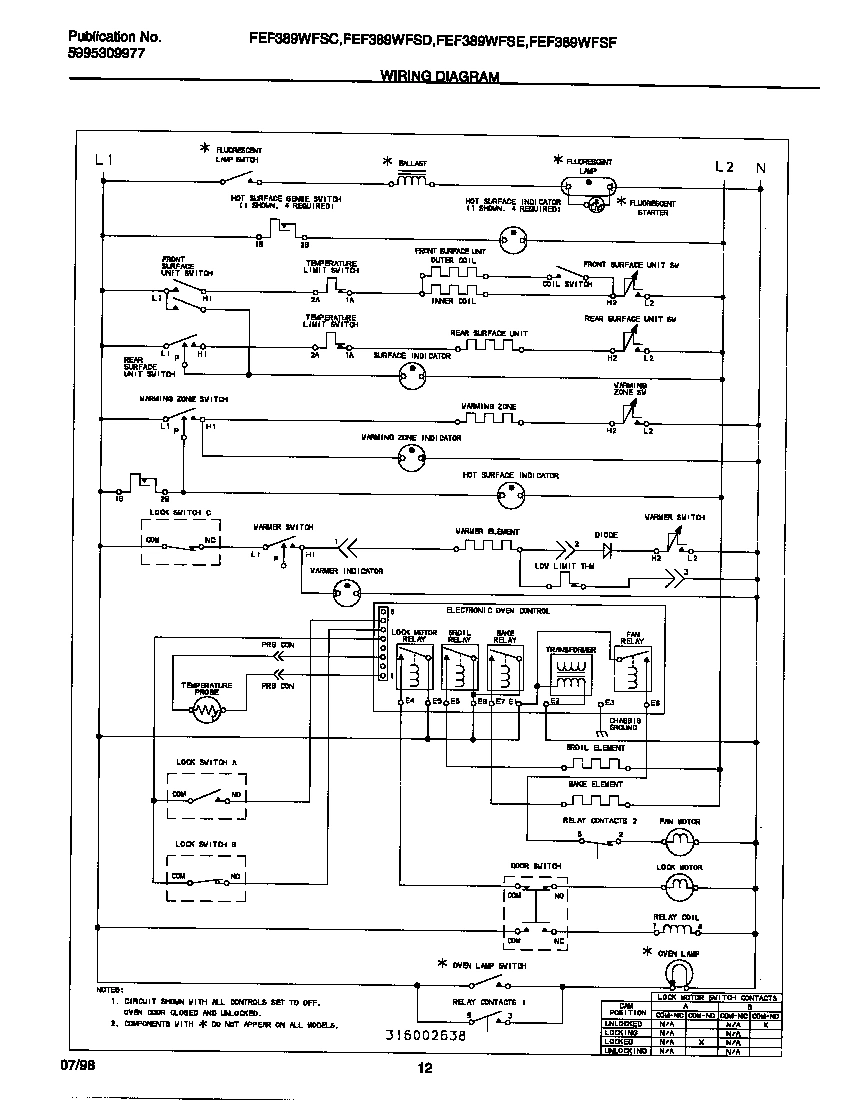

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF389WFSD RANGE
*26561
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*26569
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
*26570
WCI 316001382 WCI 316001382 Contact Us For Availability
*26571
PANEL-BODYSIDE,WHITE ,LH WCI 316081029 Contact Us For Availability
*26572
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*26575
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
*26576
WCI 316072400 WCI 316072400 Contact Us For Availability
*26577
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*26579
WCI 316001743 WCI 316001743 Contact Us For Availability
*26581
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
*26583
WCI 5309951550 WCI 5309951550 Contact Us For Availability
*26584
WCI 218490900 WCI 218490900 Contact Us For Availability
*26585
WCI 316065301 WCI 316065301 Contact Us For Availability
*26586
WCI 316085500 WCI 316085500 Contact Us For Availability
*26587
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*26589
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
WCI 316080804 WCI 316080804 Contact Us For Availability
1
WCI 316094601 WCI 316094601 Contact Us For Availability
2
WCI 316092901 WCI 316092901 Contact Us For Availability
3
WCI 316081028 WCI 316081028 Contact Us For Availability
4
WCI 316079401 WCI 316079401 Contact Us For Availability
4
WCI 316079300 WCI 316079300 Contact Us For Availability
4
WCI 316083900 WCI 316083900 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
WCI 316088601 WCI 316088601 Contact Us For Availability
5
NUT,T-TYPE,LEVELING SCREW WCI 5303288460 Contact Us For Availability
6
WCI 316085400 WCI 316085400 Contact Us For Availability
6
WCI 316088405 WCI 316088405 Contact Us For Availability
7
WCI 316007005 WCI 316007005 Contact Us For Availability
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
8
WCI 316088701 WCI 316088701 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
10
SCREW-HANDLE MTG, 10-32 WCI 316001006 Contact Us For Availability
12
SWITCH-OVEN LIGHT WCI 316027701 Contact Us For Availability
13
WCI 316105600 WCI 316105600 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316098200 WCI 316098200 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
15A
ELEMENT-SURFACE, RADIANT, 9``, DUAL, 2100W/70 WCI 316049702 Contact Us For Availability
16
WCI 316098120 WCI 316098120 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
24
SWITCH-ROCKER, DUAL ELEMENT, WHITE, LH, (2) WCI 316083102 Contact Us For Availability
25
WCI 316092400 WCI 316092400 Contact Us For Availability
26
WCI 316099101 WCI 316099101 Contact Us For Availability
26
WCI 316099201 WCI 316099201 Contact Us For Availability
28
SHAFT-PUSH BUTTON, CLOCK/TIMER/EOC, BLACK WCI 316080600 Contact Us For Availability
28
PUSH BUTTON, CLOCK/TIMER/EOC, GRAY WCI 316015103 Contact Us For Availability
28
Clip,wire ,bodyside WCI 3011813 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
33
WCI 316095301 WCI 316095301 Contact Us For Availability
39
WCI 316079500 WCI 316079500 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 316066100 WCI 316066100 Contact Us For Availability
51
WCI 316105200 WCI 316105200 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 316047708 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
58
WCI 316054201 WCI 316054201 Contact Us For Availability
59
WCI 316023600 WCI 316023600 Contact Us For Availability
59
WCI 316073602 WCI 316073602 Contact Us For Availability
60B
SCREW, TRUSS HEAD, 8-10 X 0.375, HANDLE, (3) WCI 5303288574 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
80
WCI 316109700 WCI 316109700 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
83
SHIELD-TERMINAL, WARMER WCI 316093300 Contact Us For Availability
84
WCI 316093500 WCI 316093500 Contact Us For Availability
87
BASE-WARMER WCI 316091900 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028103 WCI 316028103 Contact Us For Availability
105
WCI 316071901 WCI 316071901 Contact Us For Availability
106
WCI 316026600 WCI 316026600 Contact Us For Availability
108A
SCREW,8-18 X 1.500 WCI 316021111 Contact Us For Availability
108B
WCI 316090500 WCI 316090500 Contact Us For Availability
109
WCI 316090600 WCI 316090600 Contact Us For Availability
110
WCI 316090700 WCI 316090700 Contact Us For Availability
111
WCI 316090800 WCI 316090800 Contact Us For Availability
112
WCI 316082700 WCI 316082700 Contact Us For Availability
155
WCI 316095201 WCI 316095201 Contact Us For Availability
× ![]()
