Model Electrolux FEF389CFTJ RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

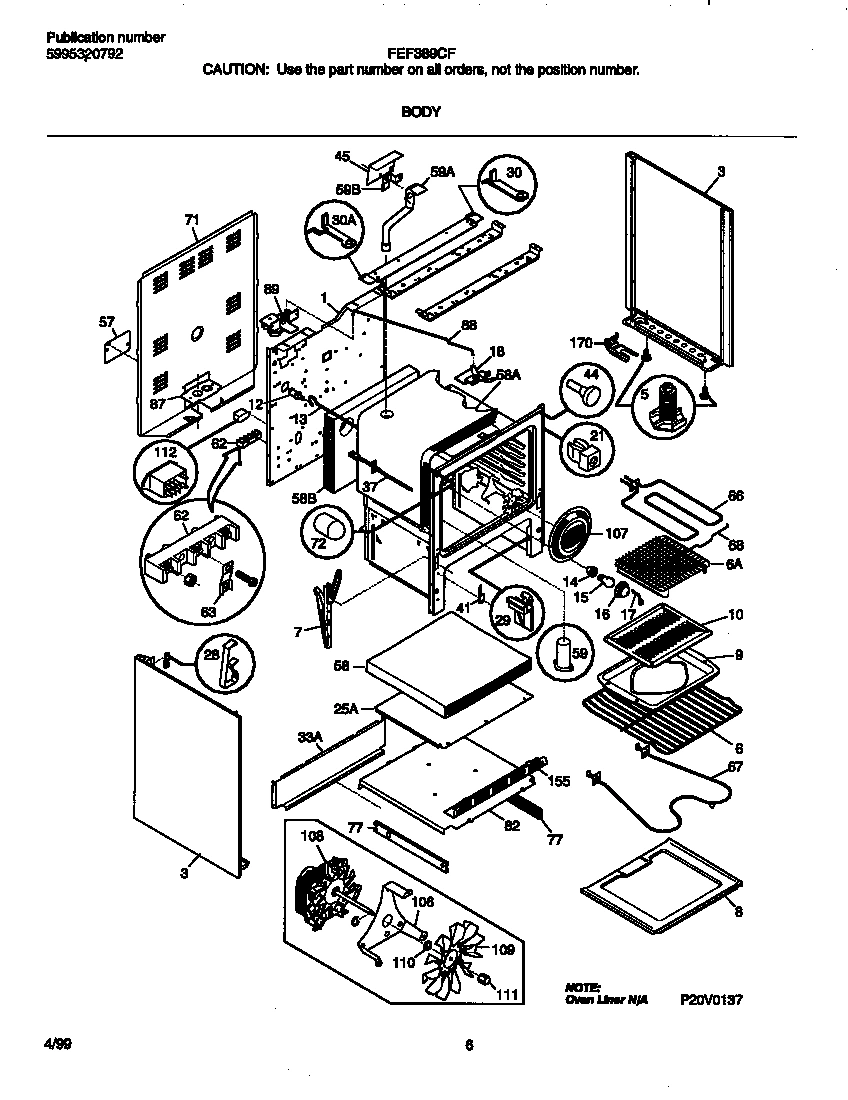

03 - BODY

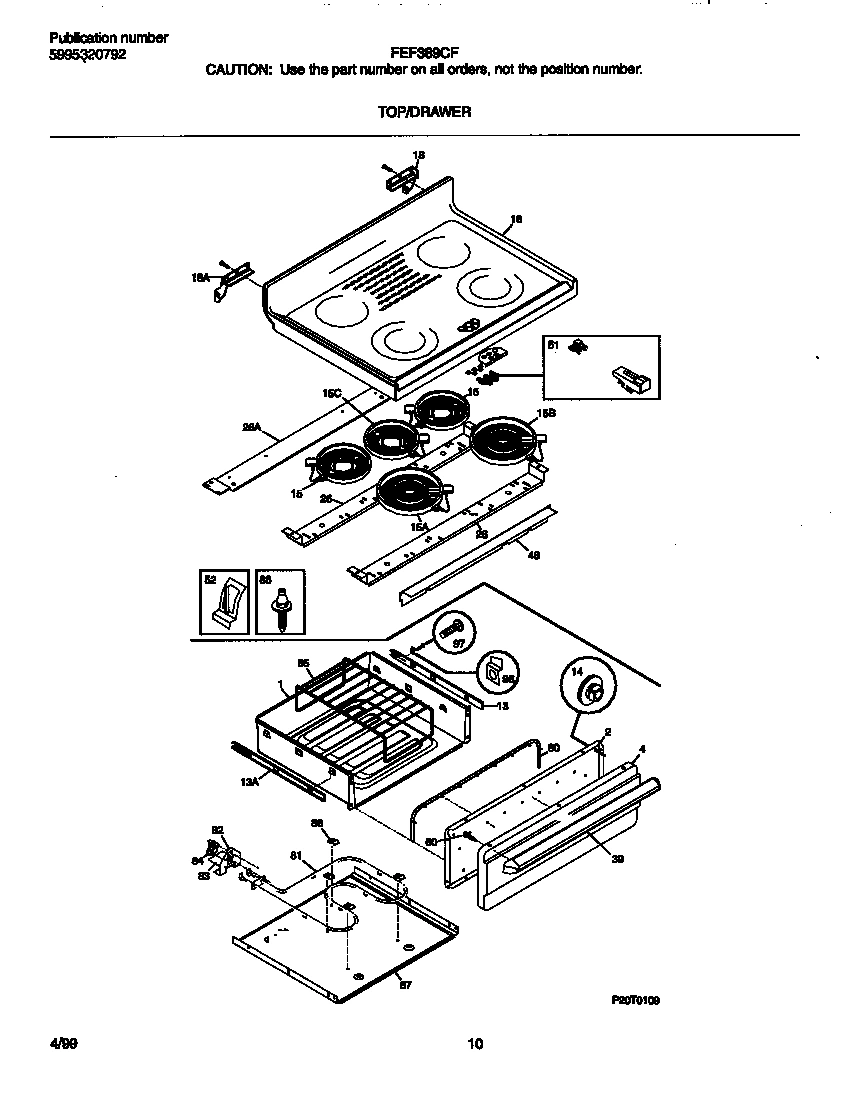

04 - TOP/DRAWER

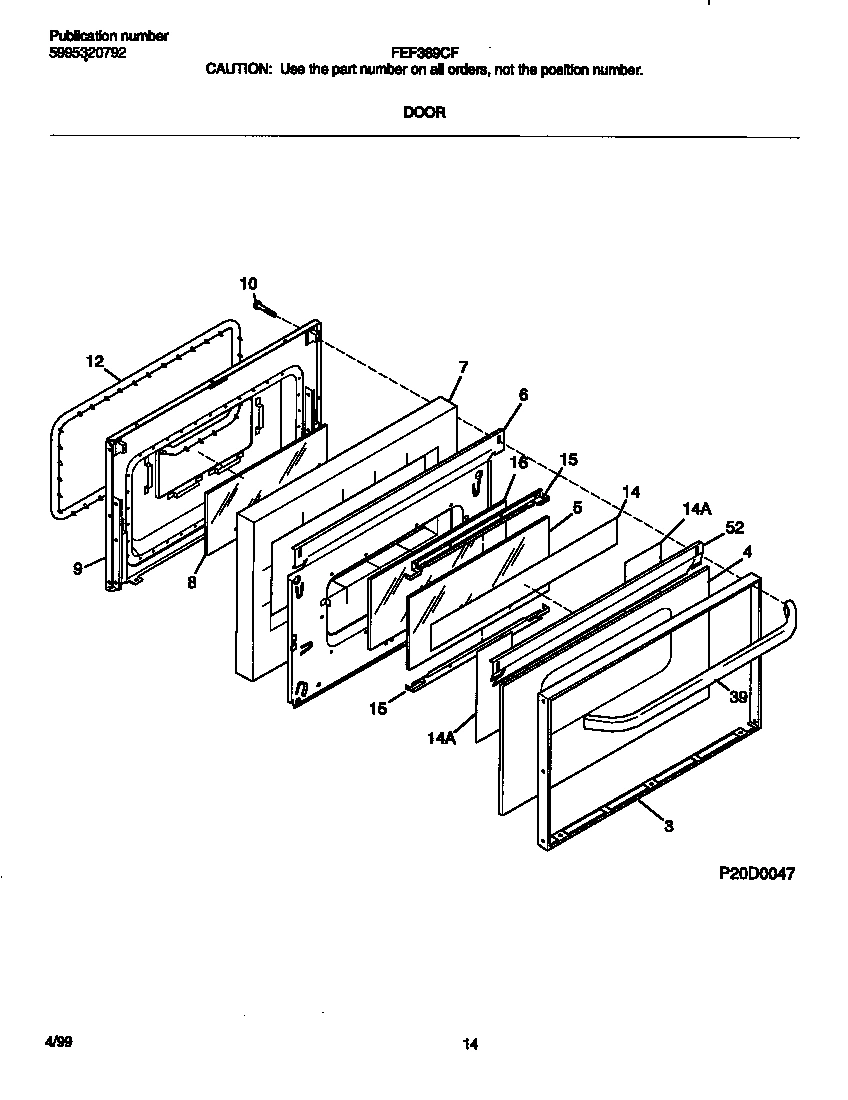

05 - DOOR

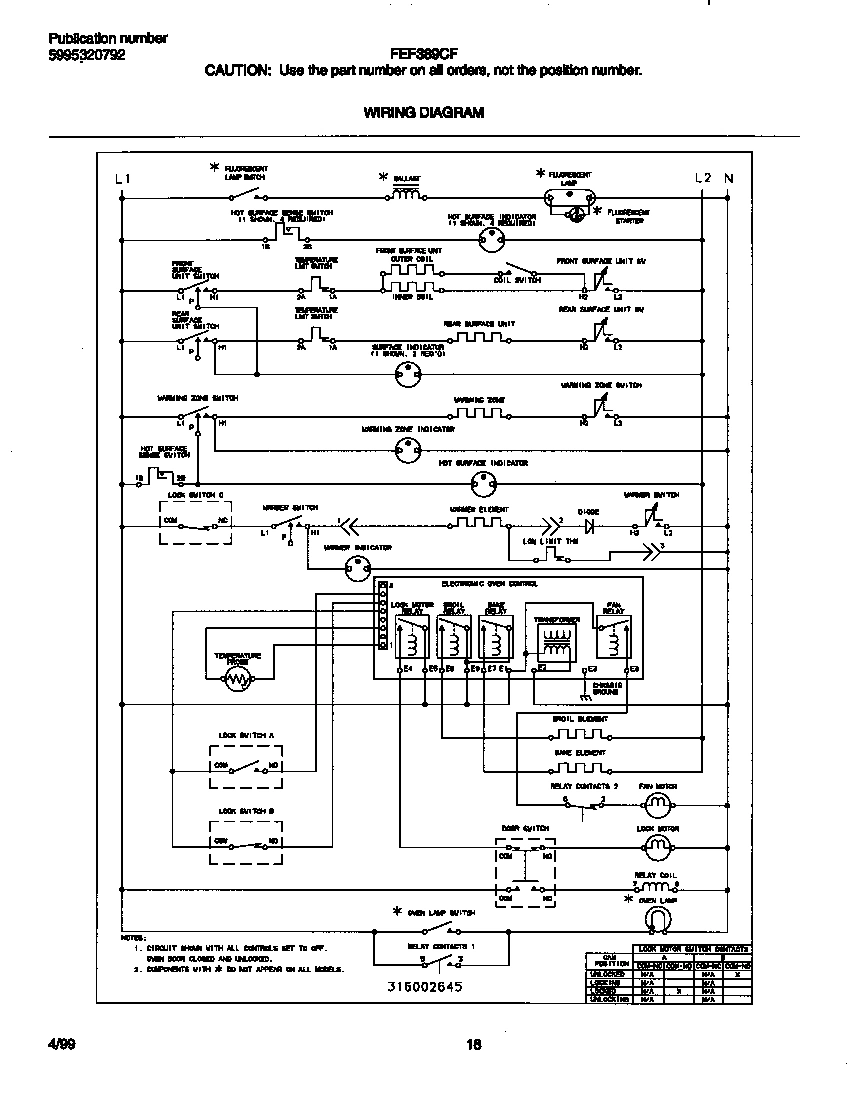

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF389CFTJ RANGE
*91722
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*91733
WCI 316001917 WCI 316001917 Contact Us For Availability
*91734
WCI 316001918 WCI 316001918 Contact Us For Availability
*91739
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
*91740
WCI 316112101 WCI 316112101 Contact Us For Availability
*91742
WCI 316001745 WCI 316001745 Contact Us For Availability
*91743
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*91745
WCI 316065301 WCI 316065301 Contact Us For Availability
*91747
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
WCI 316115901 WCI 316115901 Contact Us For Availability
2
WCI 316092901 WCI 316092901 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316067803 WCI 316067803 Contact Us For Availability
4
WCI 316056202 WCI 316056202 Contact Us For Availability
4
WCI 316089004 WCI 316089004 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
STARTER-LAMP WCI 3206218 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 316099800 WCI 316099800 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10A
WCI 3205234 WCI 3205234 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316098200 WCI 316098200 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
15B
ELEMENT-SURFACE,RADIANT ,9`` ,DUAL ,2100W/700 WCI 316049702 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 316098121 WCI 316098121 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 316092400 WCI 316092400 Contact Us For Availability
26
WCI 316099101 WCI 316099101 Contact Us For Availability
26
WCI 316099201 WCI 316099201 Contact Us For Availability
28
Clip,wire ,bodyside WCI 3011813 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
33
WCI 316095301 WCI 316095301 Contact Us For Availability
36
KNOB-CONTROL, INFINITE SW, ALMOND, (4) WCI 316025107 Contact Us For Availability
39
WCI 316091116 WCI 316091116 Contact Us For Availability
39
WCI 316026107 WCI 316026107 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 316066100 WCI 316066100 Contact Us For Availability
48
WCI 316100200 WCI 316100200 Contact Us For Availability
51
WCI 316105200 WCI 316105200 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
52
WCI 316081302 WCI 316081302 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
58
WCI 316054201 WCI 316054201 Contact Us For Availability
59
WCI 316023601 WCI 316023601 Contact Us For Availability
59
BRACKET-MOUNTING,VENT TUBE WCI 316040100 Contact Us For Availability
59
WCI 316073602 WCI 316073602 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
69
SCREW-SWITCH/HANDLE,8-32 X 5/32 WCI 5303292005 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
80
WCI 316109700 WCI 316109700 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
83
WCI 316093300 WCI 316093300 Contact Us For Availability
84
Thermo disc,warmer drawer WCI 316093500 Contact Us For Availability
87
BASE-WARMER WCI 316091900 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028107 WCI 316028107 Contact Us For Availability
96
WCI 316122000 WCI 316122000 Contact Us For Availability
97
WCI 316003802 WCI 316003802 Contact Us For Availability
106
WCI 316026600 WCI 316026600 Contact Us For Availability
108A
SCREW,8-18 X 1.500 WCI 316021111 Contact Us For Availability
108B
WCI 316090500 WCI 316090500 Contact Us For Availability
109
WCI 316090600 WCI 316090600 Contact Us For Availability
110
WCI 316090700 WCI 316090700 Contact Us For Availability
111
WCI 316090800 WCI 316090800 Contact Us For Availability
112
WCI 316082700 WCI 316082700 Contact Us For Availability
155
WCI 316095201 WCI 316095201 Contact Us For Availability
× ![]()
