Model Electrolux FEF378CESB RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

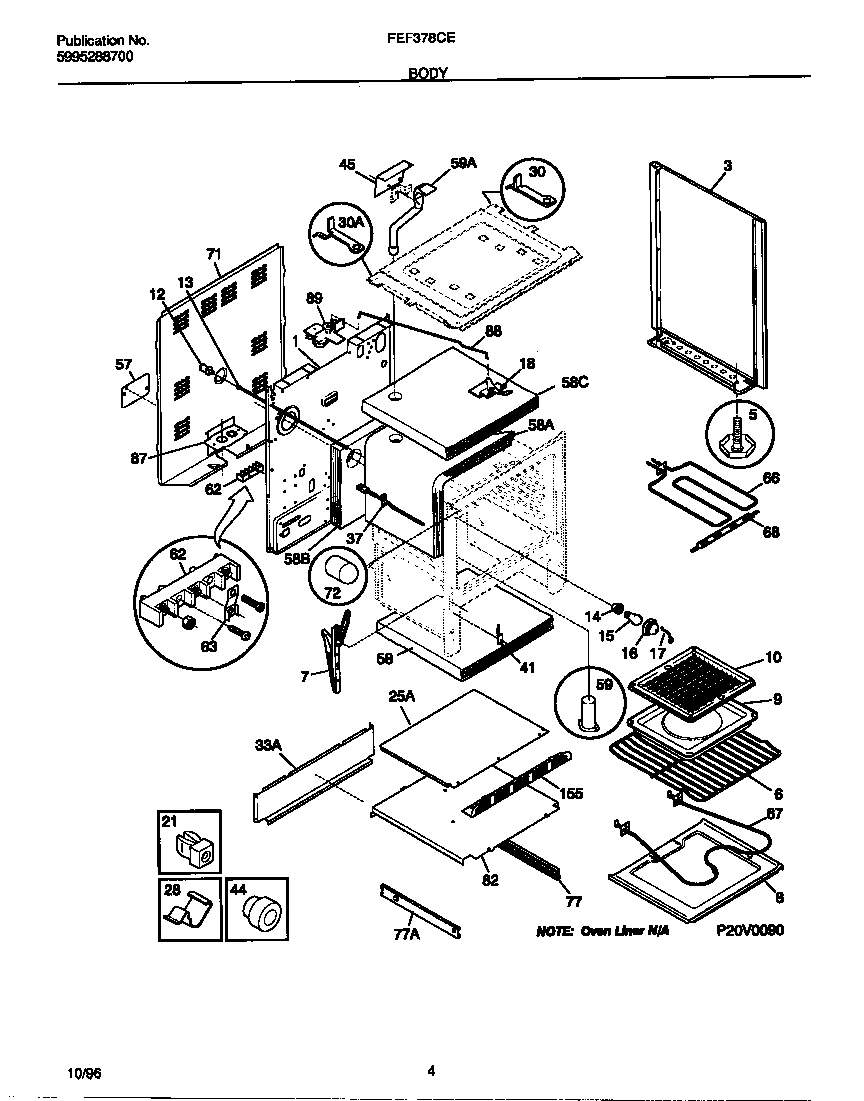

03 - BODY

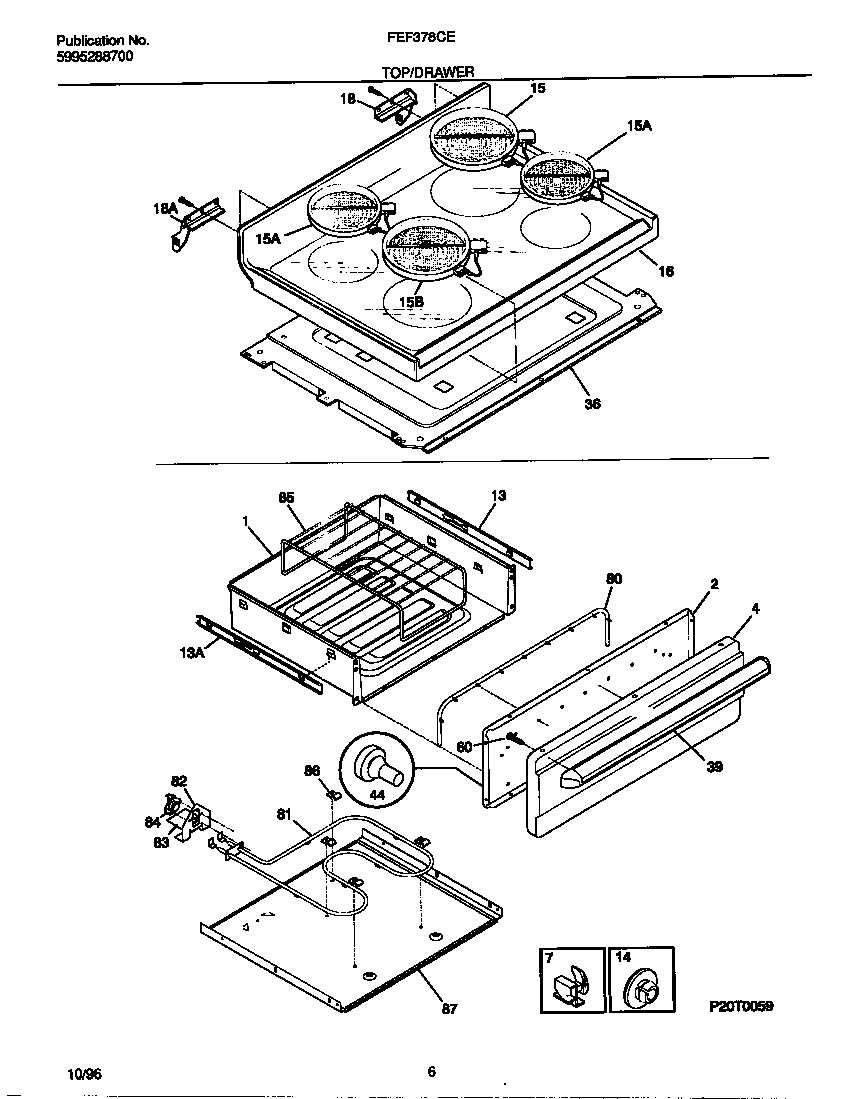

04 - TOP/DRAWER

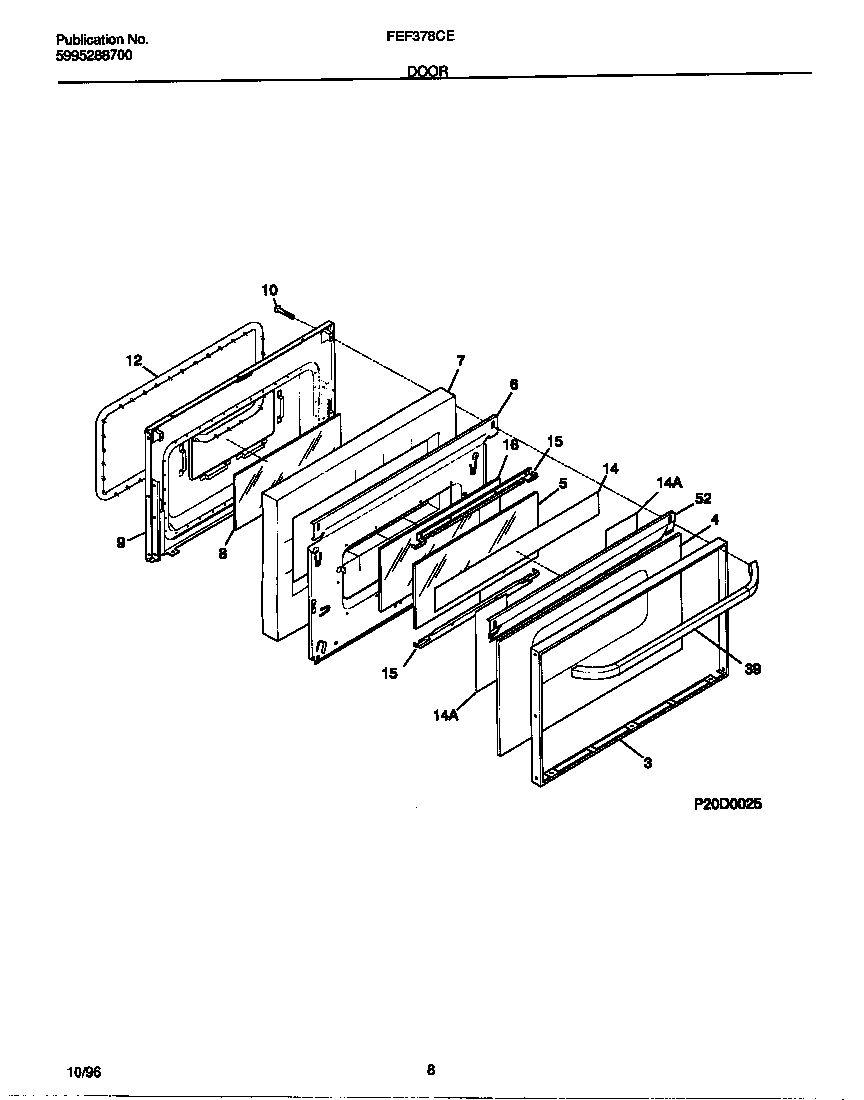

05 - DOOR
Common parts from model Electrolux FEF378CESB RANGE
*25846
WCI 5303280311 WCI 5303280311 Contact Us For Availability
*25848
WCI 316021108 WCI 316021108 Contact Us For Availability
*25849
SCREW, TRUSS HEAD, 8-10 X 0.375 WCI 5303288574 Contact Us For Availability
*25850
WCI 5309951550 WCI 5309951550 Contact Us For Availability
*25851
WCI 316065301 WCI 316065301 Contact Us For Availability
*25852
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
WCI 316094601 WCI 316094601 Contact Us For Availability
2
WCI 316092901 WCI 316092901 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) WCI 3200834 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
WCI 316089005 WCI 316089005 Contact Us For Availability
5
WCI 316088700 WCI 316088700 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
STARTER-LAMP WCI 3206218 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
13
WCI 316096500 WCI 316096500 Contact Us For Availability
13
WCI 316096501 WCI 316096501 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316049701 WCI 316049701 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 316035531 WCI 316035531 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
18A
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18B
RIVET-POP, WARNING-PLATE (NOT ILLUSTRATED) WCI 3203618 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 316092401 WCI 316092401 Contact Us For Availability
28
WCI 316045000 WCI 316045000 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
33
WCI 316095301 WCI 316095301 Contact Us For Availability
36A
WCI 316033610 WCI 316033610 Contact Us For Availability
36B
WCI 316023301 WCI 316023301 Contact Us For Availability
36C
WCI 316041001 WCI 316041001 Contact Us For Availability
39
WCI 316026103 WCI 316026103 Contact Us For Availability
39
SPACER-HANDLE, (2) (NOT ILLUSTRATED) WCI 316055102 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 316066101 WCI 316066101 Contact Us For Availability
52
WCI 316081301 WCI 316081301 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 316023601 WCI 316023601 Contact Us For Availability
59A
WCI 316073602 WCI 316073602 Contact Us For Availability
59B
BRACKET-MOUNTING, VENT TUBE (NOT ILLUSTRATED) WCI 316040100 Contact Us For Availability
60
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
77
WCI 316094900 WCI 316094900 Contact Us For Availability
77
WCI 316094901 WCI 316094901 Contact Us For Availability
80
WCI 316093000 WCI 316093000 Contact Us For Availability
81
WCI 316093100 WCI 316093100 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
83
SHIELD-TERMINAL, WARMER WCI 316093300 Contact Us For Availability
84
WCI 316093500 WCI 316093500 Contact Us For Availability
87
WCI 316081201 WCI 316081201 Contact Us For Availability
87
WCI 316091902 WCI 316091902 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89A
WCI 316028102 WCI 316028102 Contact Us For Availability
89B
INSULATOR, LATCH MOTOR (NOT ILLUSTRATED) WCI 316097000 Contact Us For Availability
155
WCI 316095201 WCI 316095201 Contact Us For Availability
× ![]()
