Model Electrolux FEF377CFTE RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

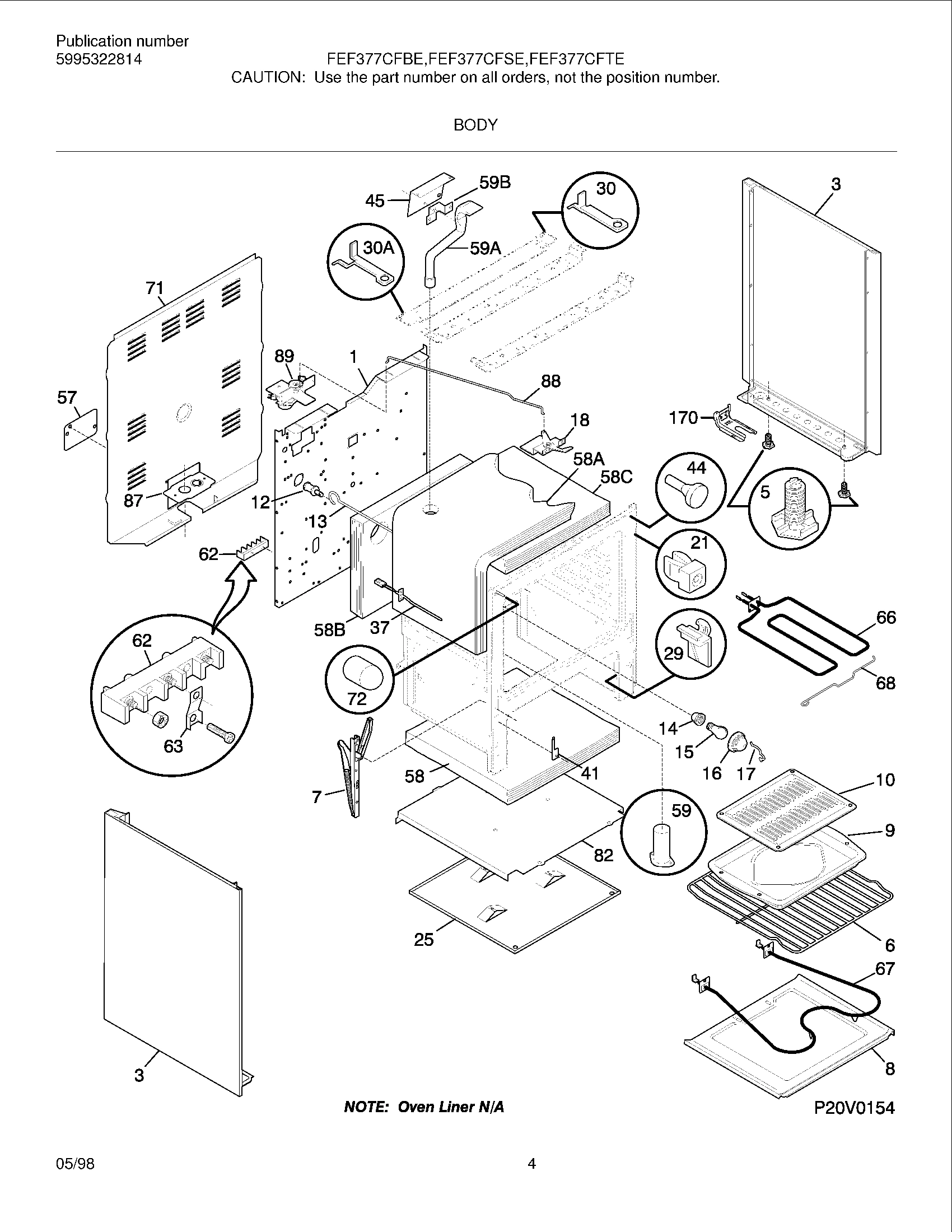

05 - BODY

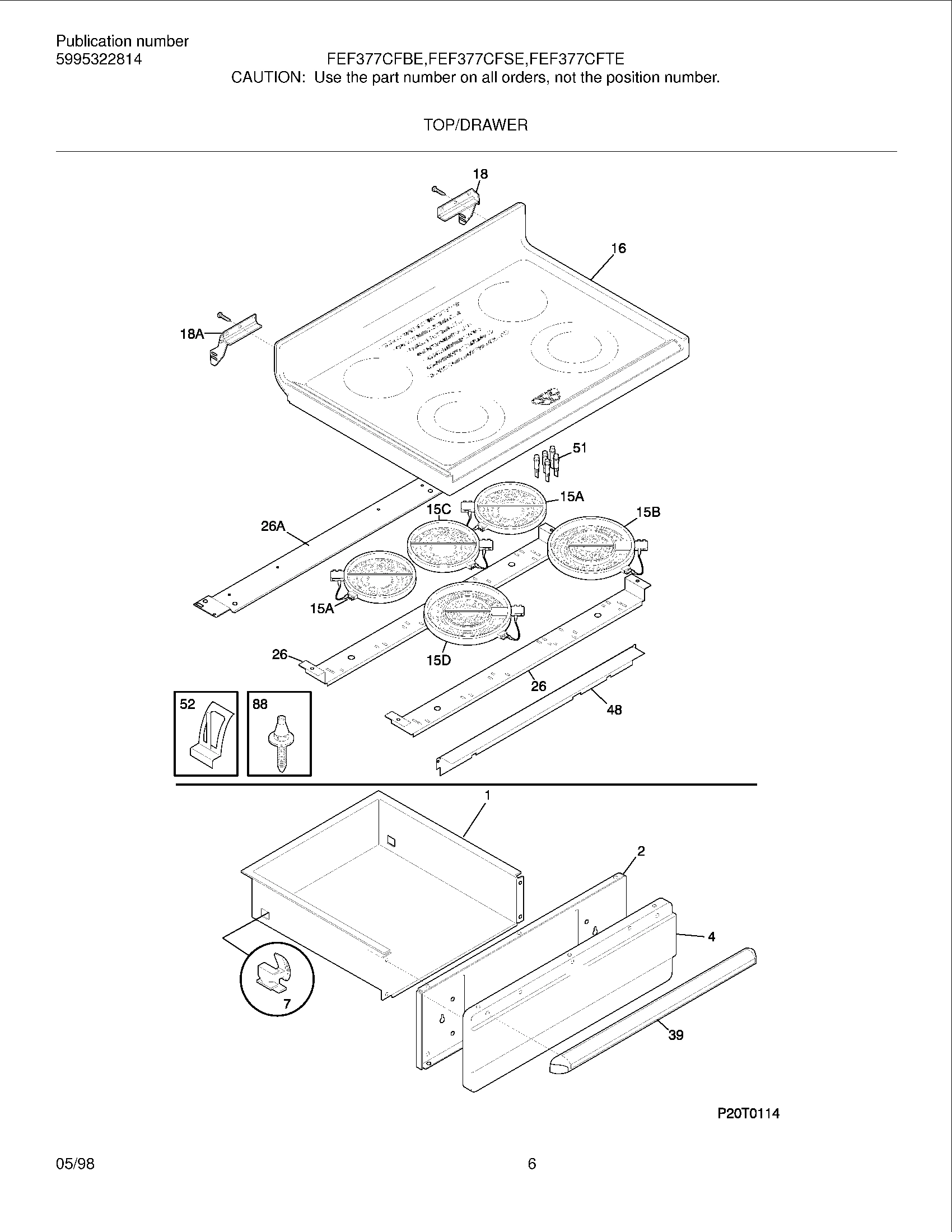

07 - TOP/DRAWER

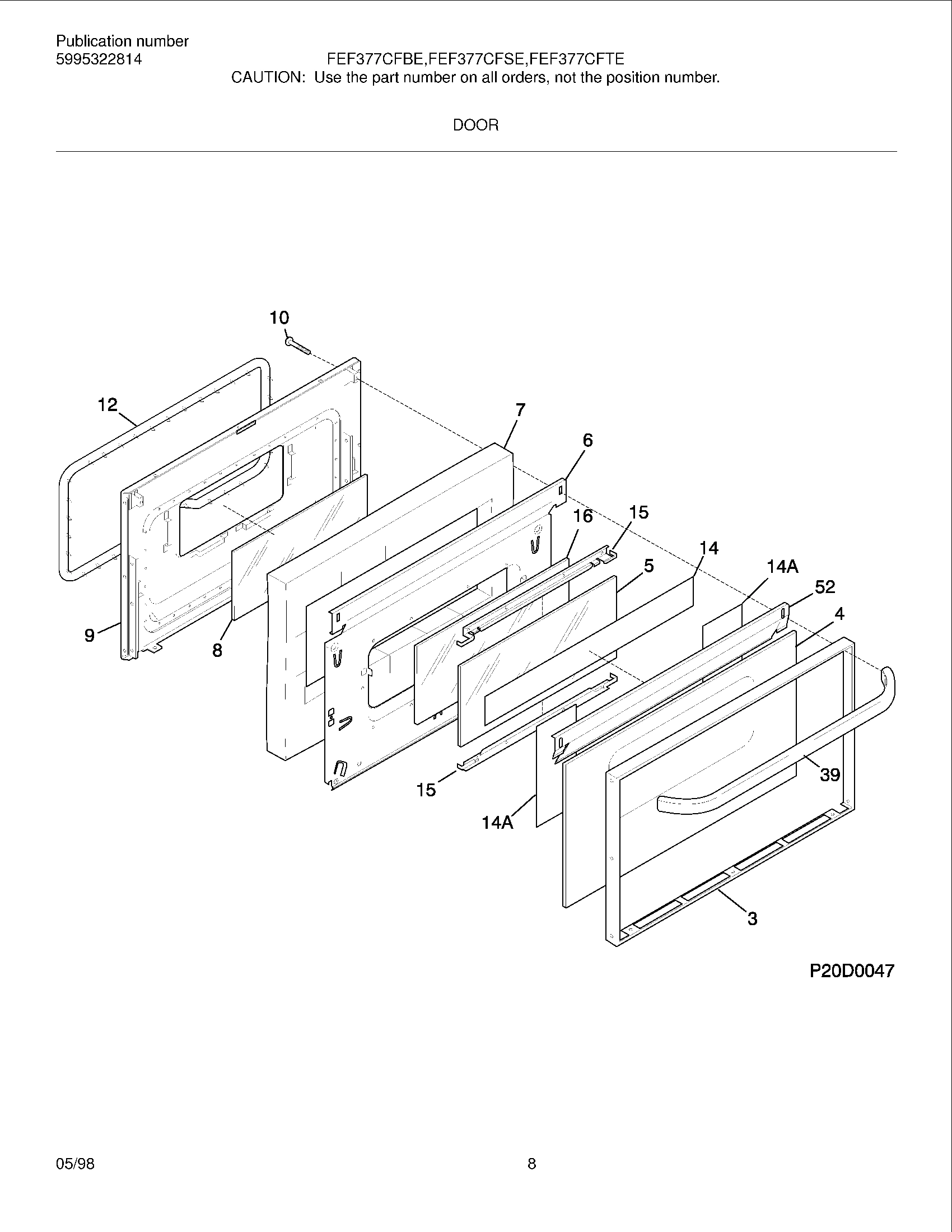

09 - DOOR

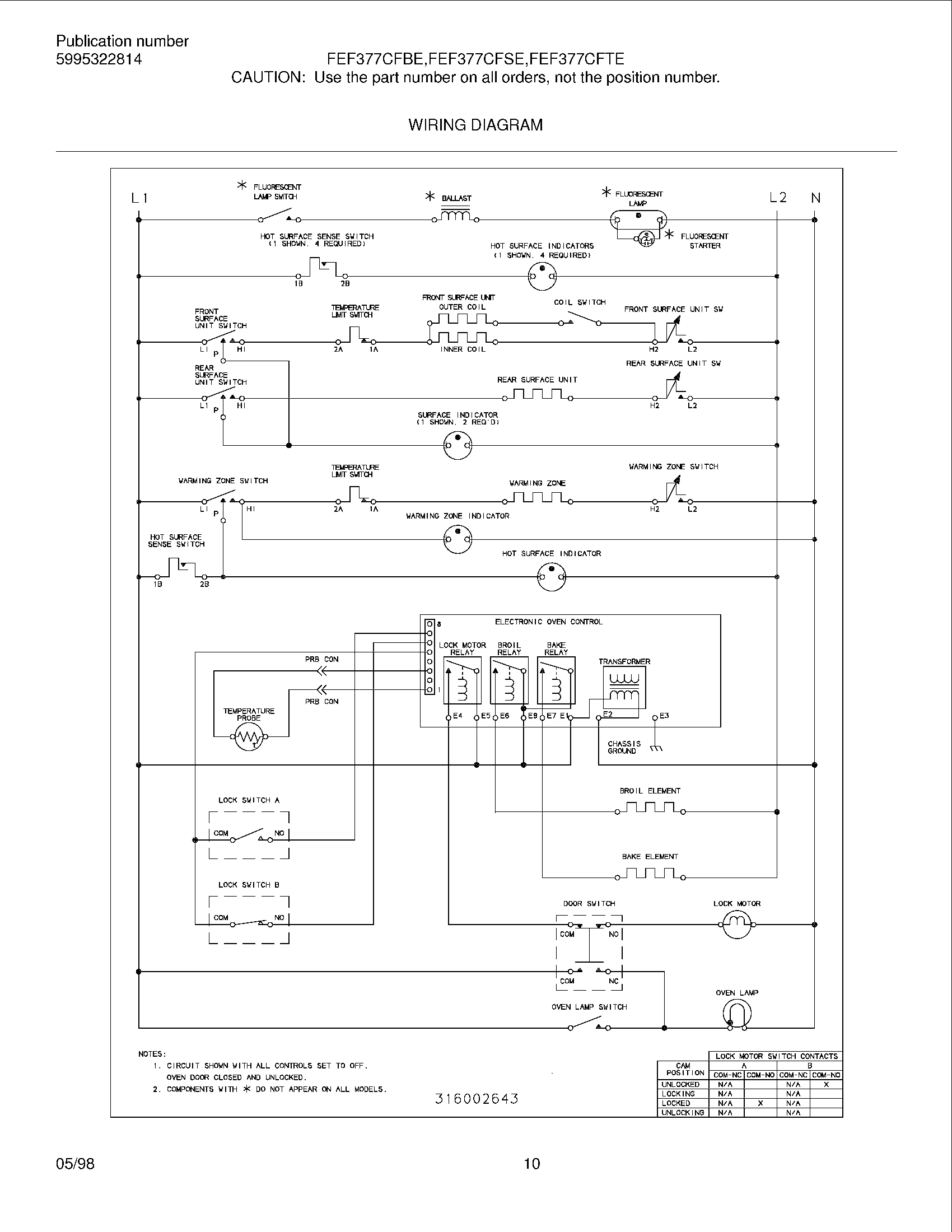

10 - WIRING DIAGRAM
Common parts from model Electrolux FEF377CFTE RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316067803 WCI 316067803 Contact Us For Availability
4
WCI 316056202 WCI 316056202 Contact Us For Availability
4
WCI 316089004 WCI 316089004 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
6
STARTER-LAMP WCI 3206218 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
WCI 316099800 WCI 316099800 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081403 WCI 316081403 Contact Us For Availability
15C
ELEMENT-WARMER,120V/100W WCI 316098201 Contact Us For Availability
15D
ELEMENT-SURFACE, RADIANT, 9``, DUAL, 2100W/70 WCI 316049702 Contact Us For Availability
16
WCI 316085701 WCI 316085701 Contact Us For Availability
16
WCI 316098121 WCI 316098121 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
24
SWITCH-ROCKER, OVEN LIGHT, ALMOND WCI 316118102 Contact Us For Availability
26
WCI 316099101 WCI 316099101 Contact Us For Availability
26A
WCI 316099201 WCI 316099201 Contact Us For Availability
36
KNOB-CONTROL, INFINITE SW, ALMOND, (4) WCI 316025107 Contact Us For Availability
39
WCI 316091116 WCI 316091116 Contact Us For Availability
39
WCI 316026107 WCI 316026107 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
WCI 316100200 WCI 316100200 Contact Us For Availability
51
WCI 316105200 WCI 316105200 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
52
WCI 316081302 WCI 316081302 Contact Us For Availability
58B
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
59
WCI 316073602 WCI 316073602 Contact Us For Availability
59A
WCI 316023601 WCI 316023601 Contact Us For Availability
59B
BRACKET-MOUNTING,VENT TUBE WCI 316040100 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
NI
WCI 316047708 WCI 316047708 Contact Us For Availability
NI
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
NI
WCI 316001353 WCI 316001353 Contact Us For Availability
NI
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
NI
WCI 316081037 WCI 316081037 Contact Us For Availability
NI
WCI 316001760 WCI 316001760 Contact Us For Availability
NI
WCI 316112101 WCI 316112101 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
NI
SCREW-SWITCH/HANDLE,8-32 X 5/32 WCI 5303292005 Contact Us For Availability
× ![]()
