Model Electrolux FEF366CASA RANGE – Common Parts & Diagrams

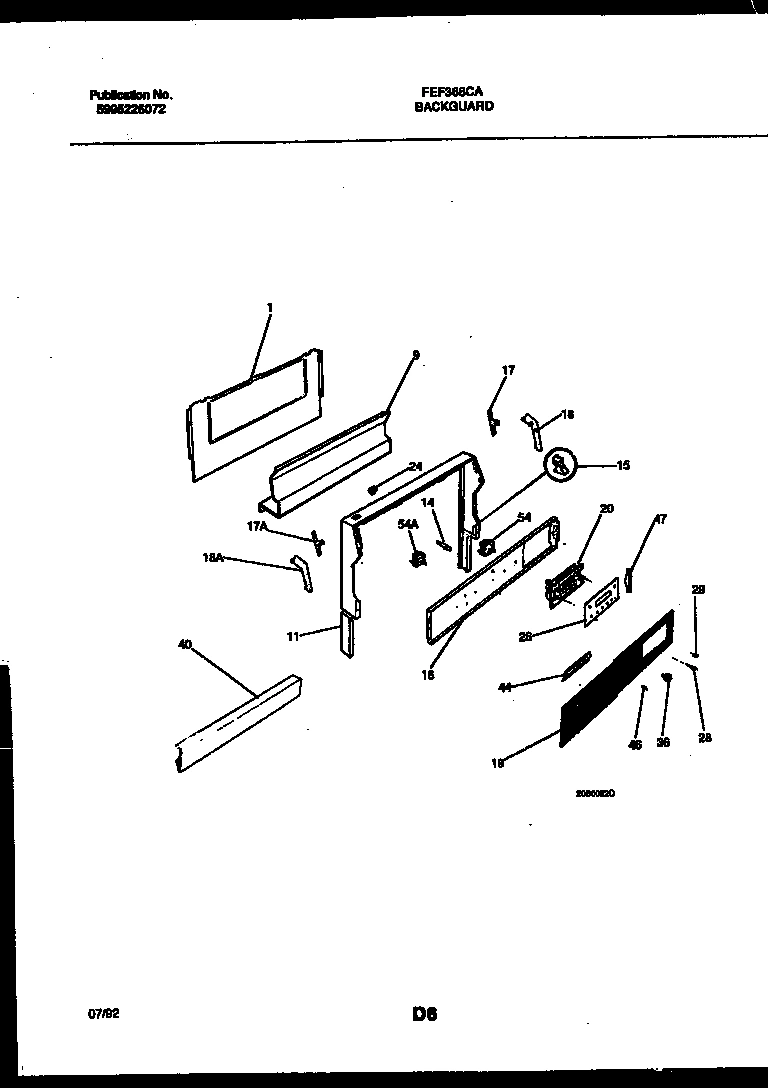

02 - BACKGUARD

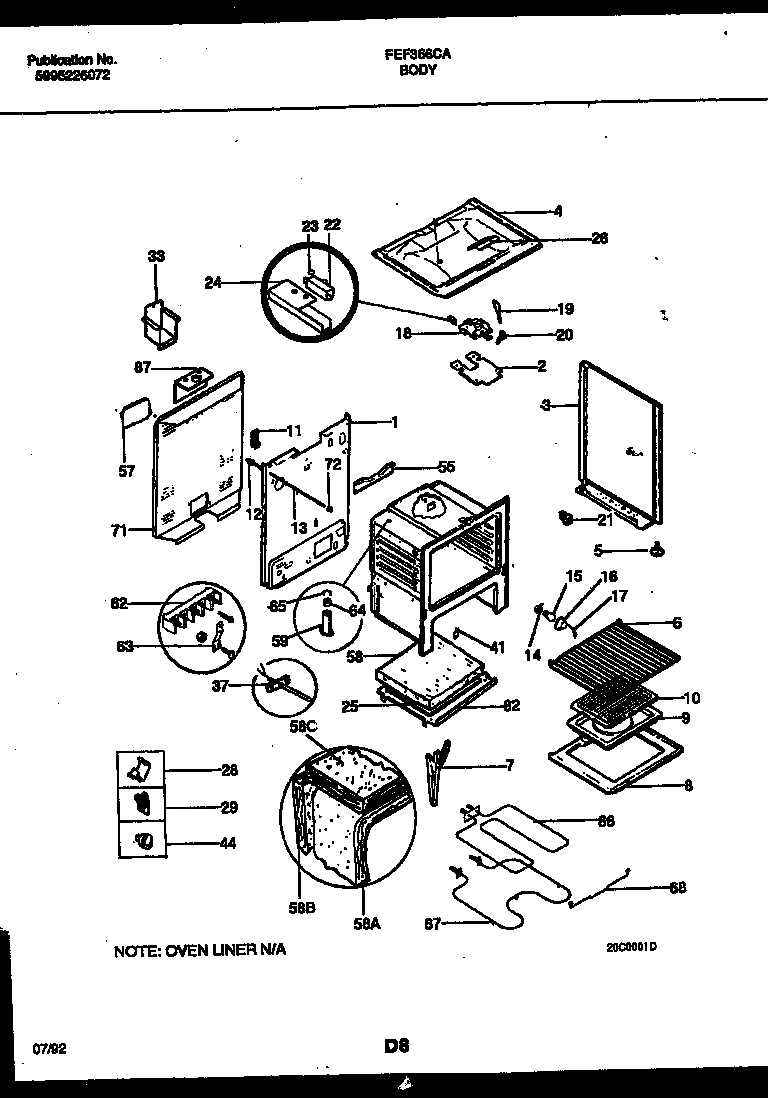

03 - BODY PARTS

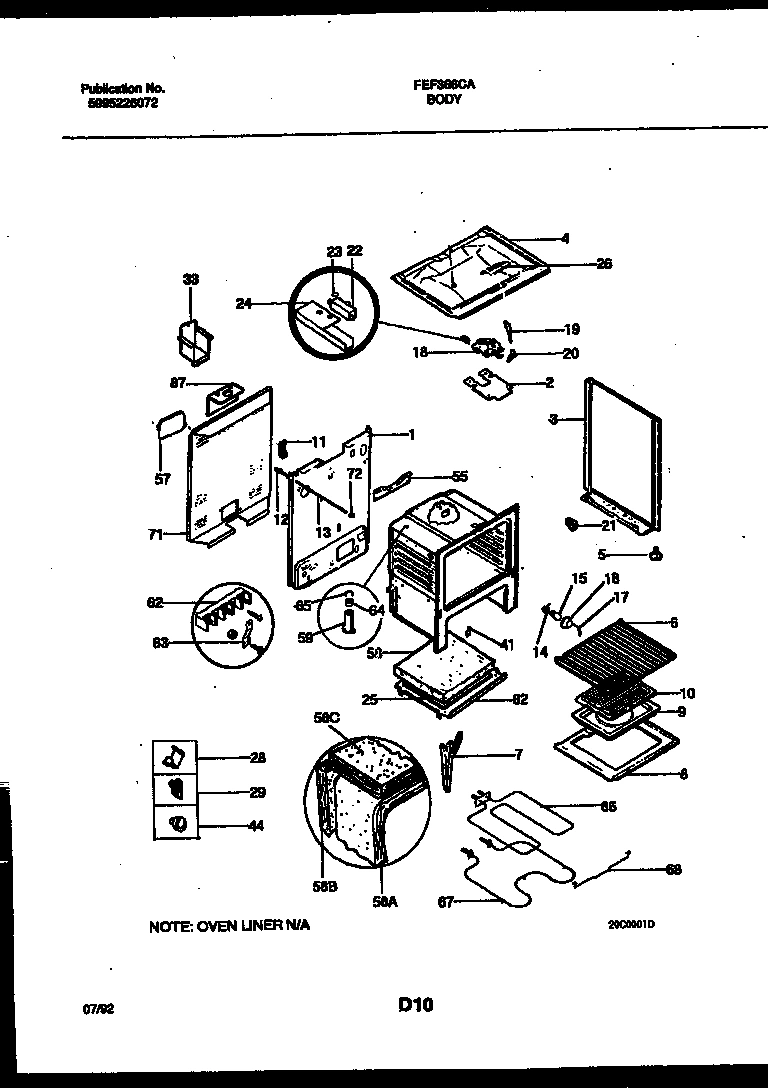

04 - BODY PARTS

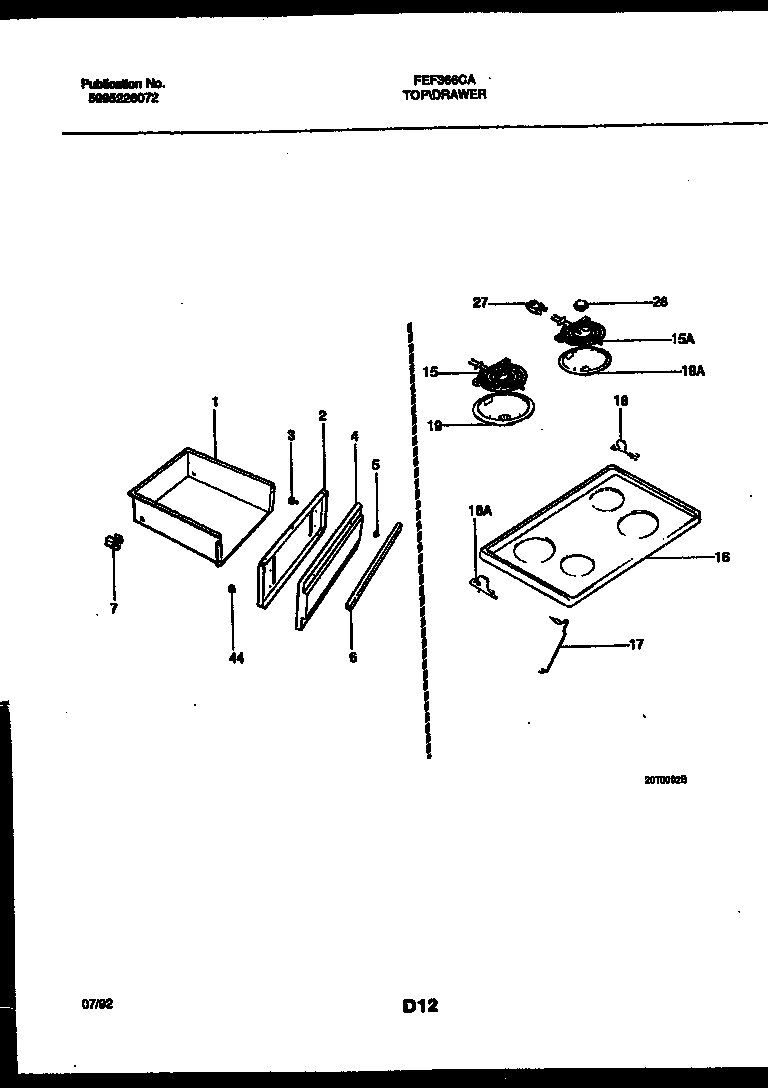

05 - COOKTOP AND DRAWER PARTS

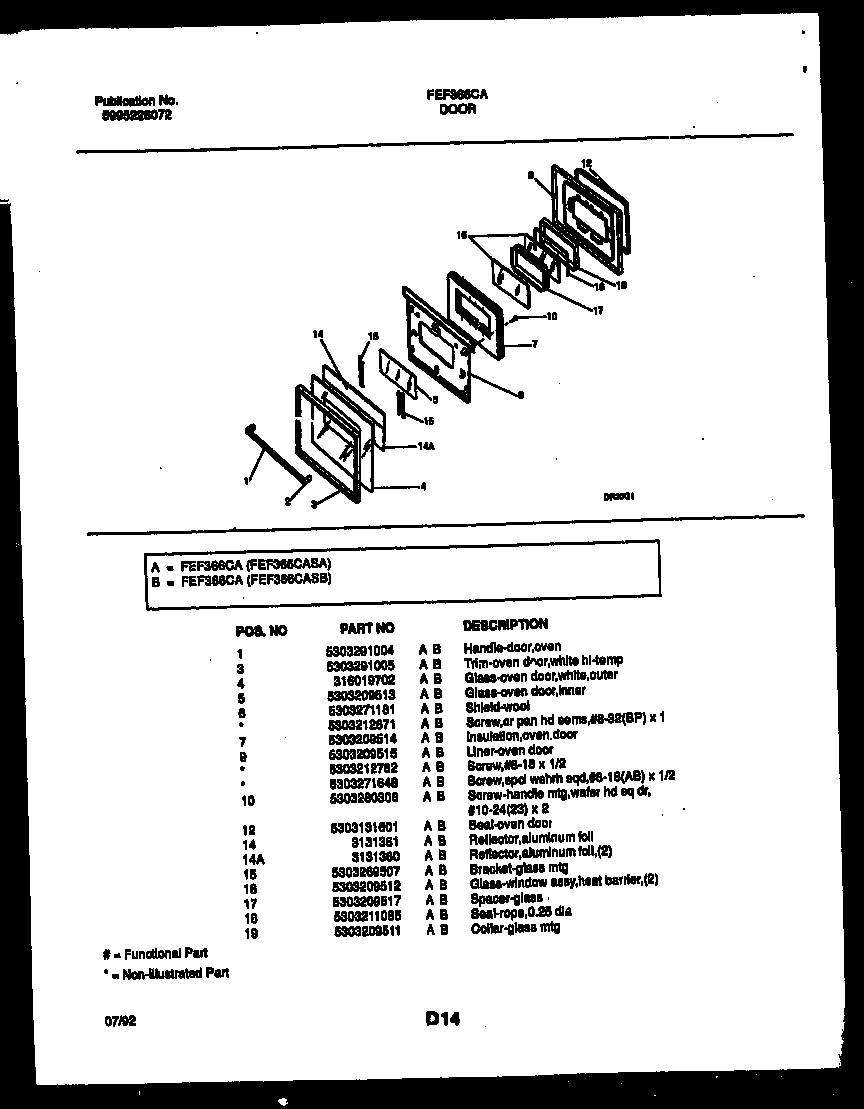

06 - DOOR PARTS
Common parts from model Electrolux FEF366CASA RANGE
1
WCI 3203082 WCI 3203082 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 5303291004 WCI 5303291004 Contact Us For Availability
1A
FASTENER-EDGE MTG (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
2
SHIELD-LATCH, TOP WCI 3131593 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
WCI 5303291005 WCI 5303291005 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3B
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 3131117 WCI 3131117 Contact Us For Availability
4
WCI 316019702 WCI 316019702 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
HANDLE-DRAWER, WHITE WCI 316019501 Contact Us For Availability
6
WCI 5303271181 WCI 5303271181 Contact Us For Availability
6A
SCREW, CR PAN HD SEMS, 8-32(BP) X 1 (NON-ILLU WCI 5303212671 Contact Us For Availability
7
HINGE-OVEN DOOR WCI 316007001 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HD SQ DR, 10-24(23) X WCI 5303280308 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR MOUNT WCI 5303202622 Contact Us For Availability
13
WCI 5303269501 WCI 5303269501 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 5303269507 WCI 5303269507 Contact Us For Availability
16
GLASS-WINDOW ASSY, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 5303013511 WCI 5303013511 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
ROD-MAINTOP SUPPORT WCI 5303271609 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
LATCH-DOOR, BIMETAL WCI 5303015361 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
19
WCI 5303131357 WCI 5303131357 Contact Us For Availability
19
COLLAR-GLASS MTG WCI 5303209511 Contact Us For Availability
20
WCI 316029200 WCI 316029200 Contact Us For Availability
20A
WCI 08013188 WCI 08013188 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
22
WCI 5303269499 WCI 5303269499 Contact Us For Availability
22A
WCI 08067978 WCI 08067978 Contact Us For Availability
23
WCI 08067776 WCI 08067776 Contact Us For Availability
24
SHIELD-LATCH WCI 3051413 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
WCI 3051367 WCI 3051367 Contact Us For Availability
33
WCI 3203582 WCI 3203582 Contact Us For Availability
36
WCI 316050002 WCI 316050002 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131468 WCI 3131468 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, AMBER WCI 5308037703 Contact Us For Availability
46A
RETAINER-LENS (NON-ILLUSTRATED) WCI 3051224 Contact Us For Availability
47
RETAINER, EOC GLASS WCI 3204868 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 3051344 WCI 3051344 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
64
FILTER WCI 08067810 Contact Us For Availability
65
WCI 08010606 WCI 08010606 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 3203549 Contact Us For Availability
71A
WCI 08067961 WCI 08067961 Contact Us For Availability
72
WCI 5303285692 WCI 5303285692 Contact Us For Availability
82
WCI 3200825 WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
× ![]()
