Model Electrolux FEF358CFSB RANGE – Common Parts & Diagrams

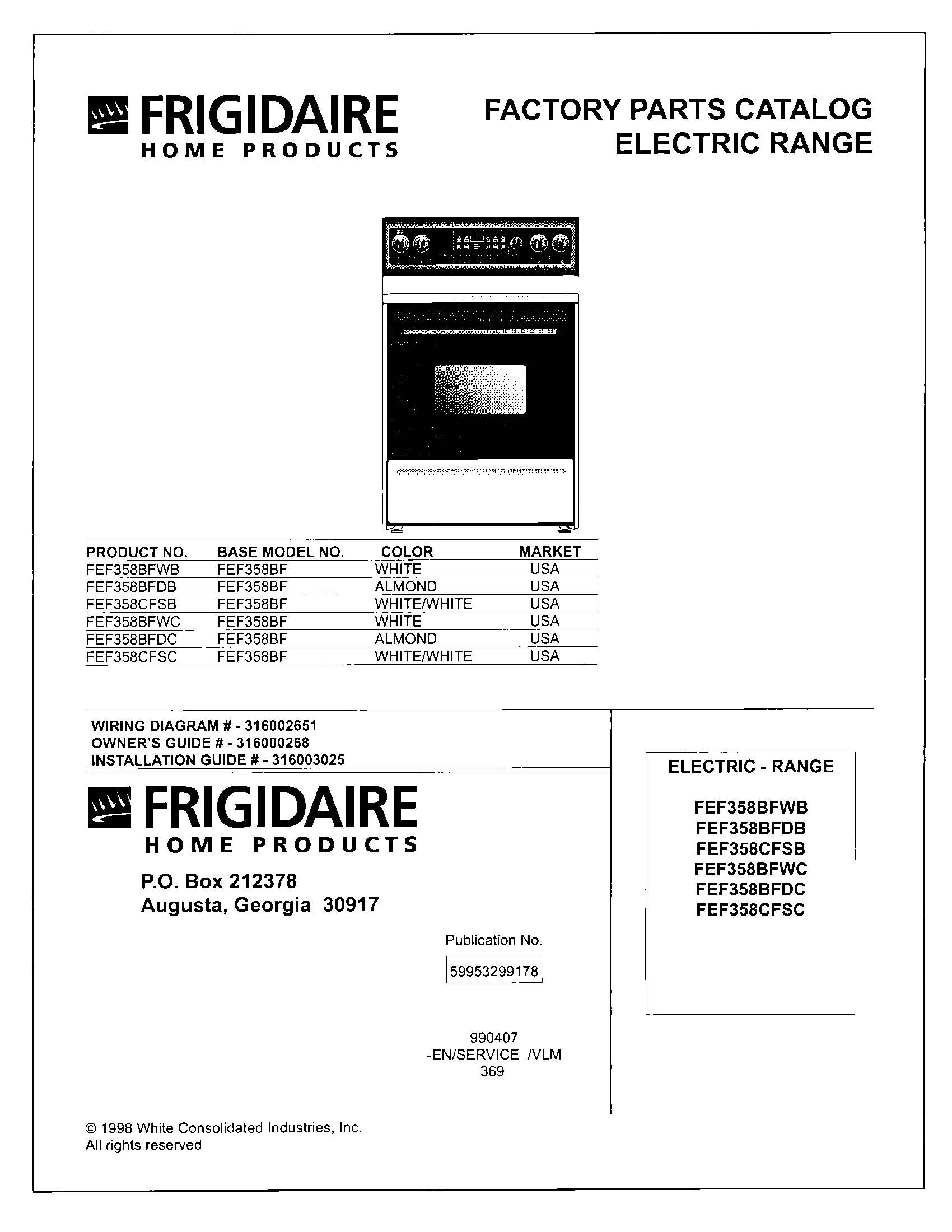

01 - COVER

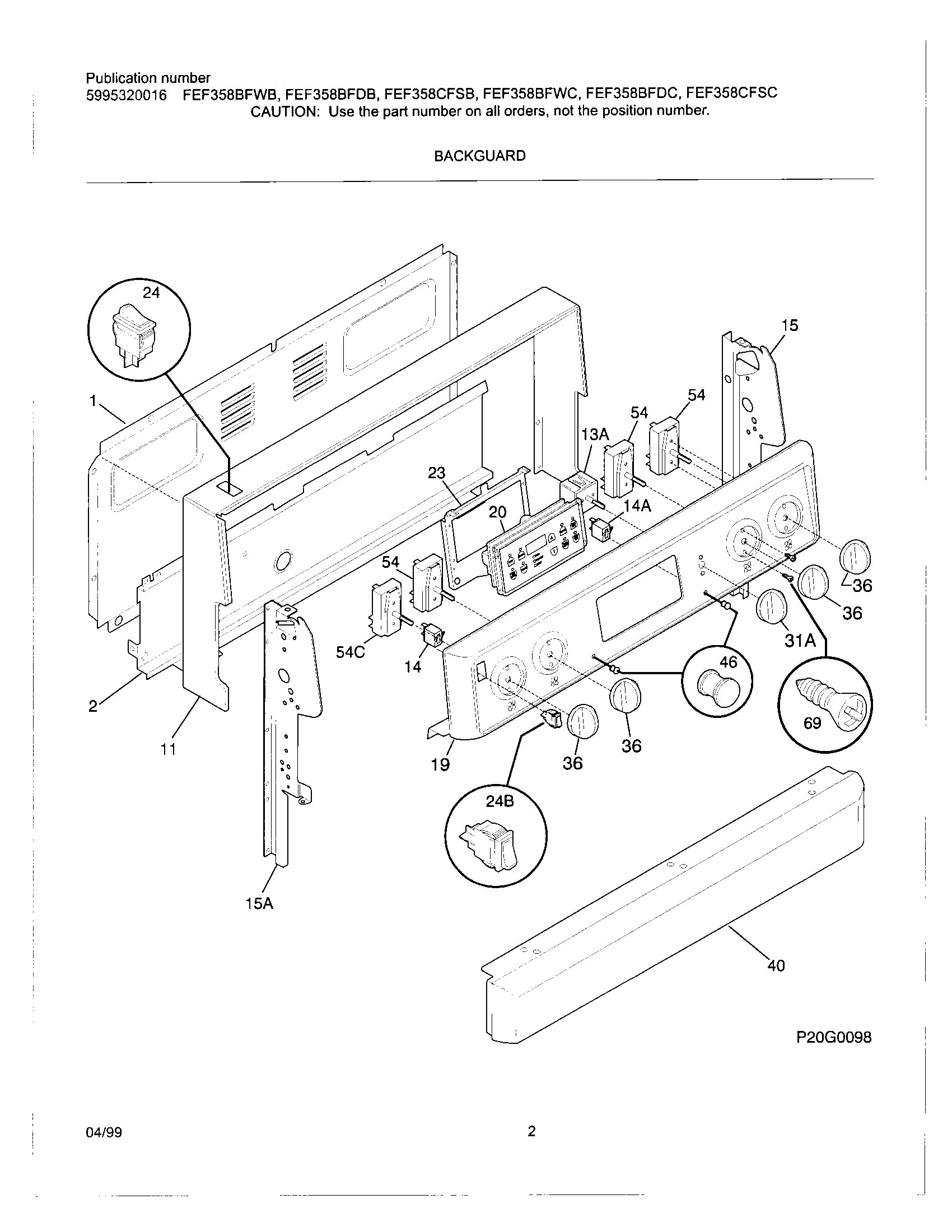

03 - BACKGUARD

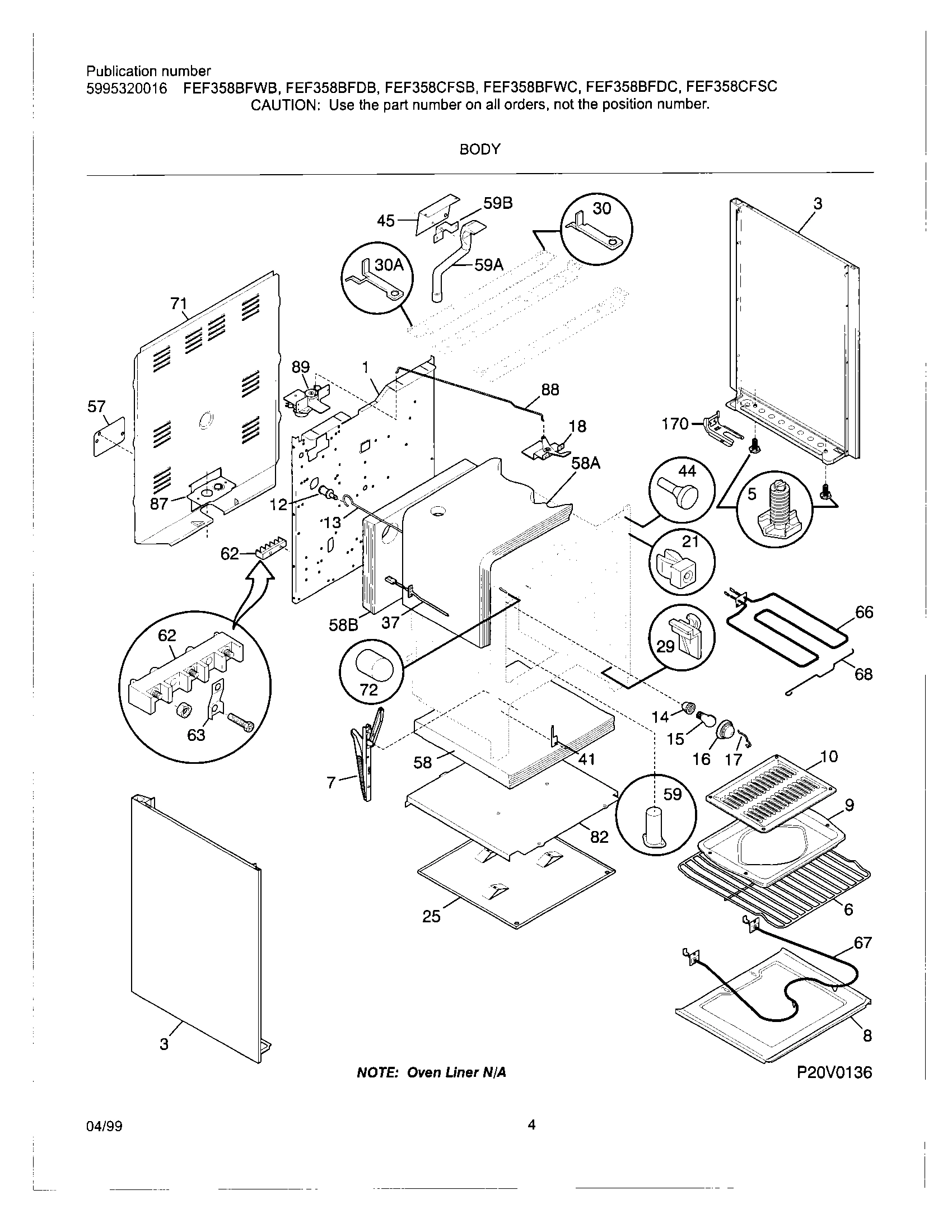

05 - BODY

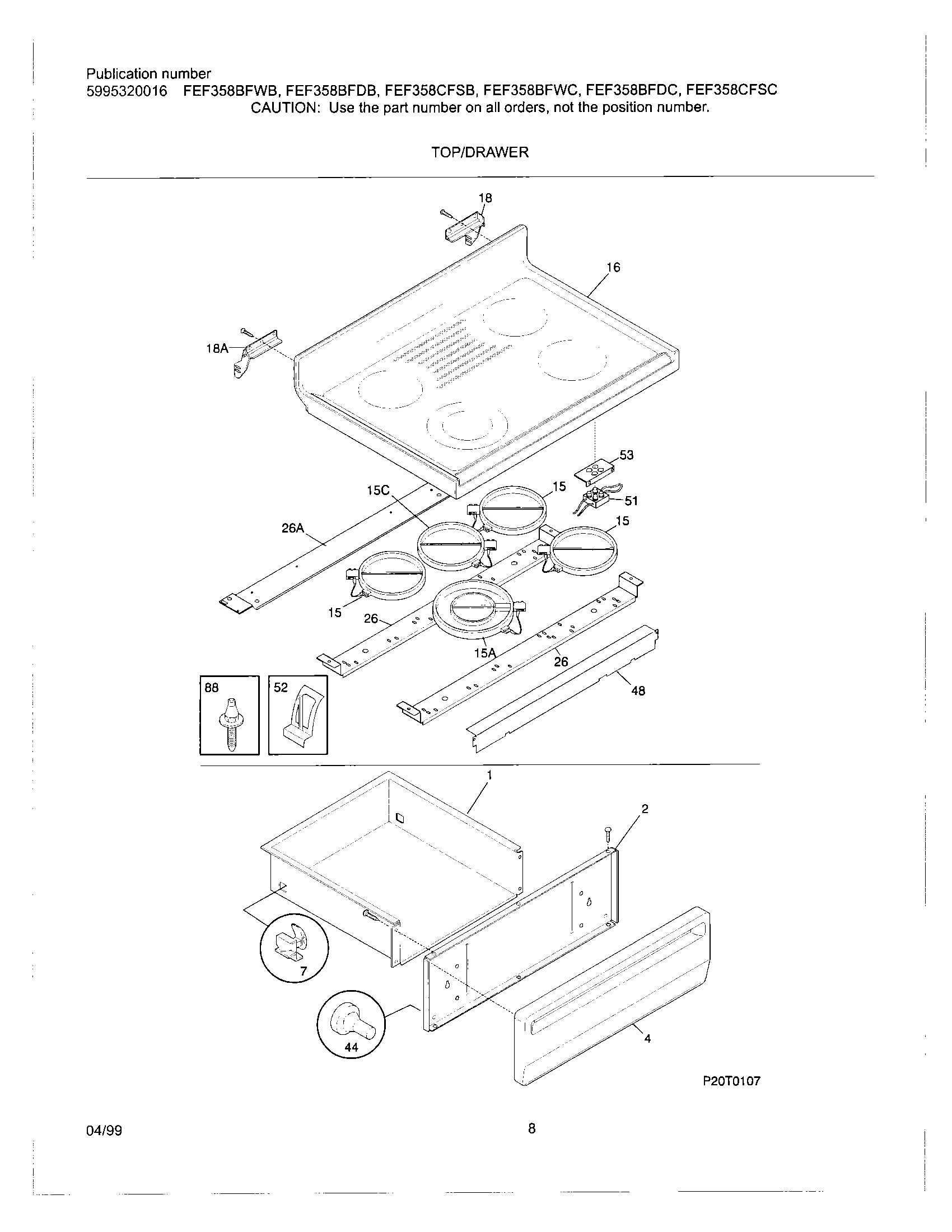

07 - TOP/DRAWER

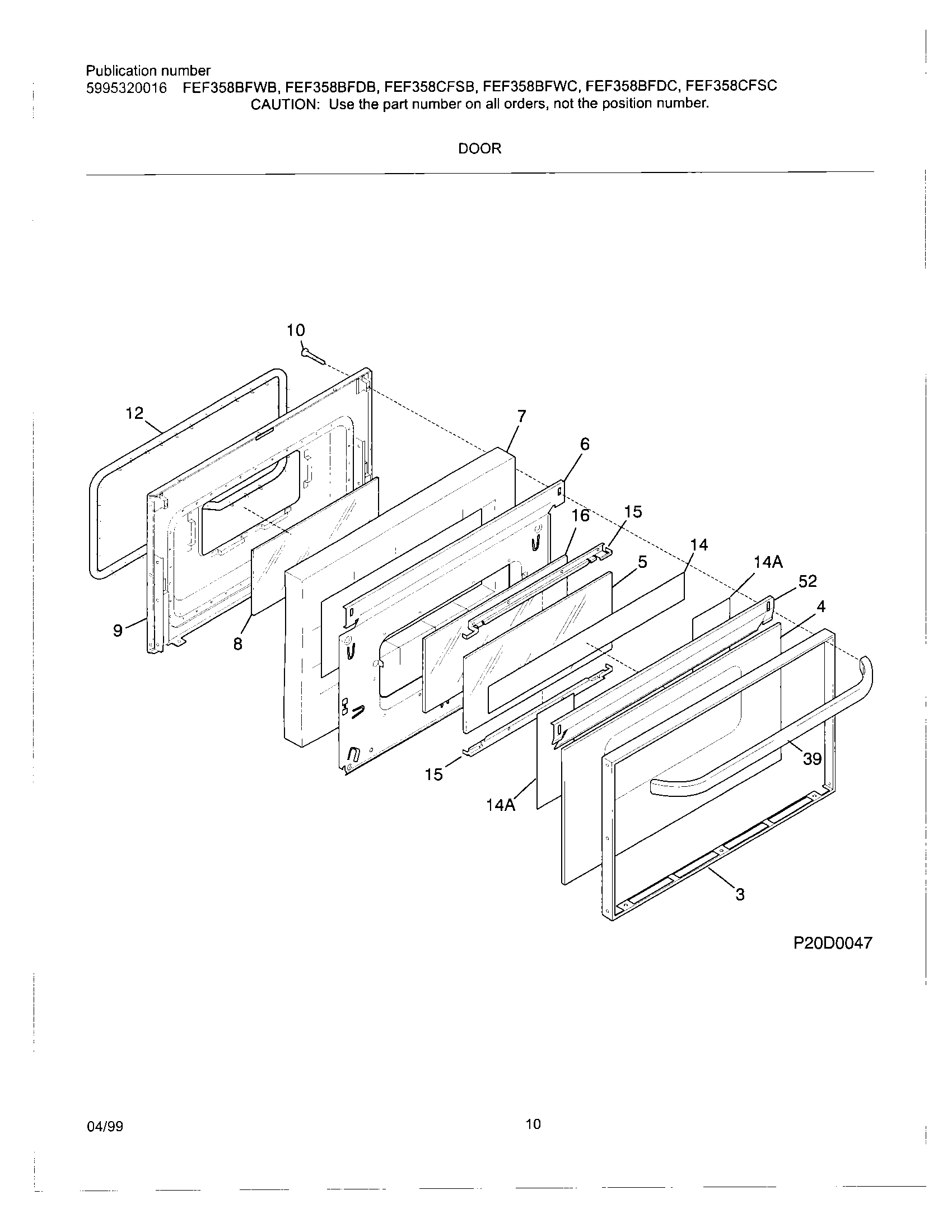

09 - DOOR

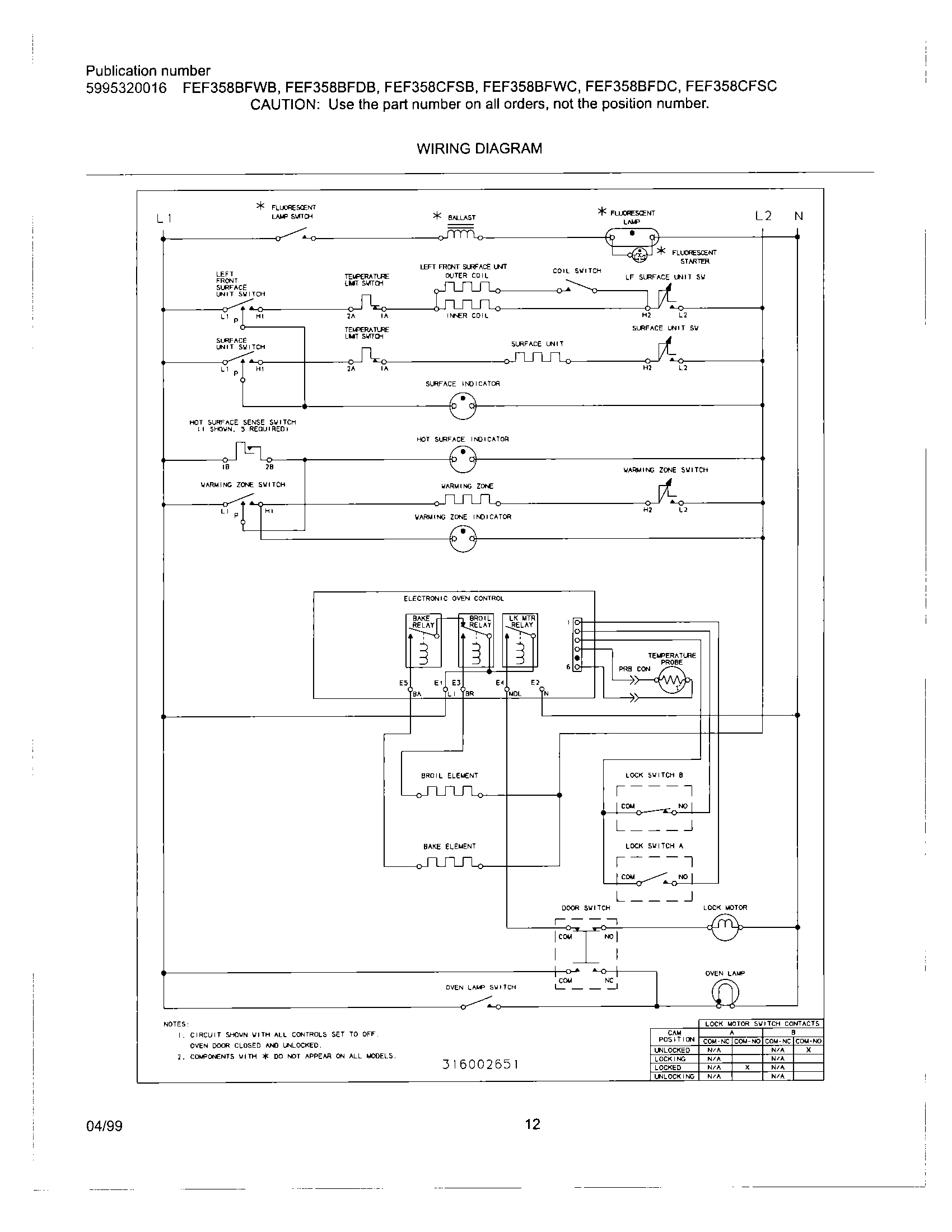

12 - WIRING DIAGRAM
Common parts from model Electrolux FEF358CFSB RANGE
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
WCI 316001748 WCI 316001748 Contact Us For Availability
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
SPACER-HANDLE, (2) WCI 316089600 Contact Us For Availability
RIVET-POP, WARING-PLATE WCI 3203618 Contact Us For Availability
WCI 5309951550 WCI 5309951550 Contact Us For Availability
WCI 316065301 WCI 316065301 Contact Us For Availability
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
4
SCREW,HEX WASHER HEAD, 8-18(AB) X 1/2 WCI 08067785 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
WCI 316089005 WCI 316089005 Contact Us For Availability
5
Glass,oven door ,airwash WCI 316088700 Contact Us For Availability
5
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
WCI 316076403 WCI 316076403 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
15C
WCI 316098200 WCI 316098200 Contact Us For Availability
16
WCI 316098129 WCI 316098129 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
WCI 316101502 WCI 316101502 Contact Us For Availability
20
WCI 316101001 WCI 316101001 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
26
WCI 316099101 WCI 316099101 Contact Us For Availability
26A
WCI 316099201 WCI 316099201 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
48
WCI 316100200 WCI 316100200 Contact Us For Availability
51
WCI 316105103 WCI 316105103 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
53
WCI 316099300 WCI 316099300 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 316047708 Contact Us For Availability
58B
Insulation, 2`` ,oven back WCI 316054200 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
BRACKET-MOUNTING,VENT TUBE WCI 316040100 Contact Us For Availability
59
WCI 316073602 WCI 316073602 Contact Us For Availability
59A
WCI 316023601 WCI 316023601 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
WCI 5303289913 WCI 5303289913 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
