Model Electrolux FEF357CESE RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

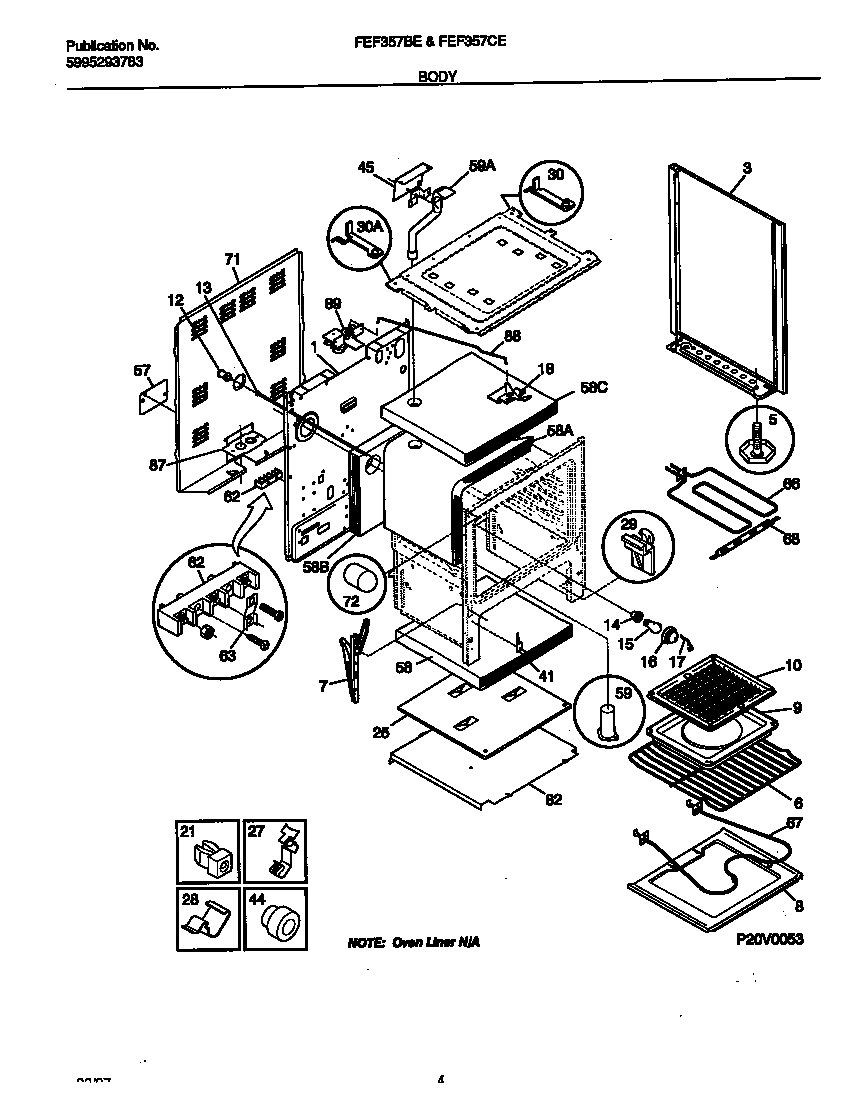

03 - BODY

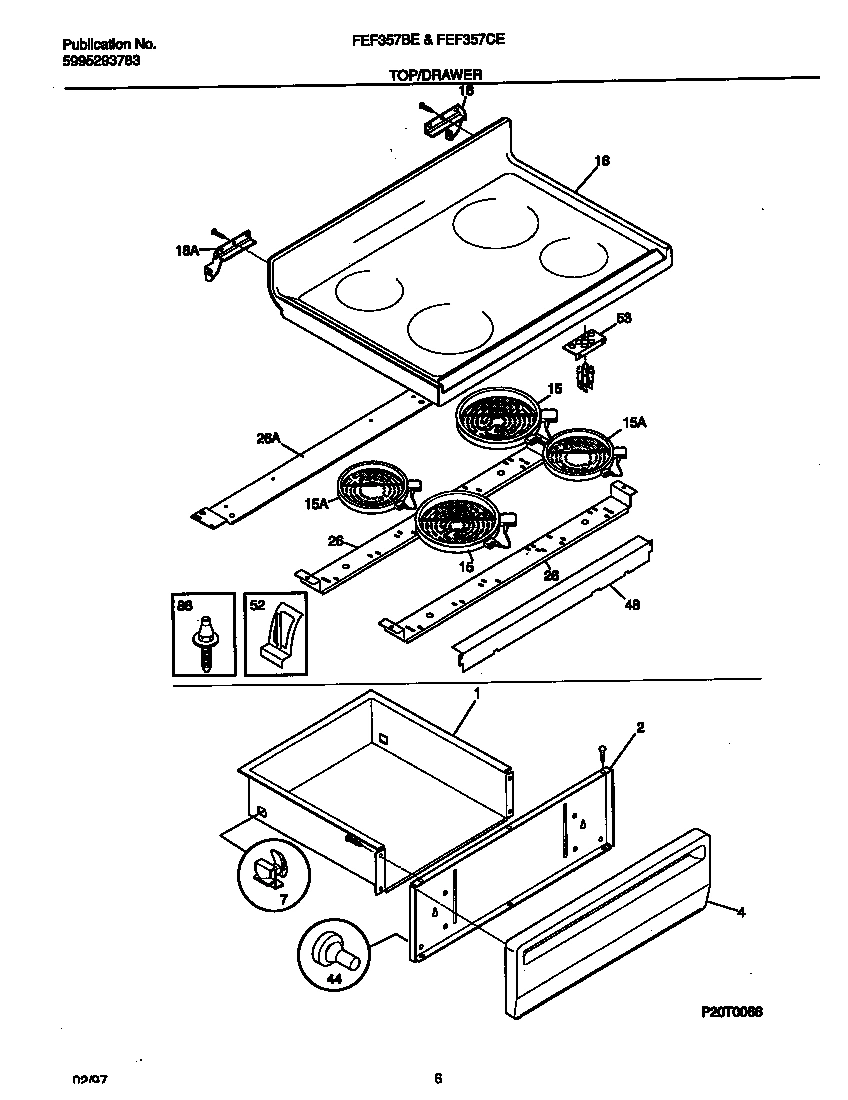

04 - TOP/DRAWER

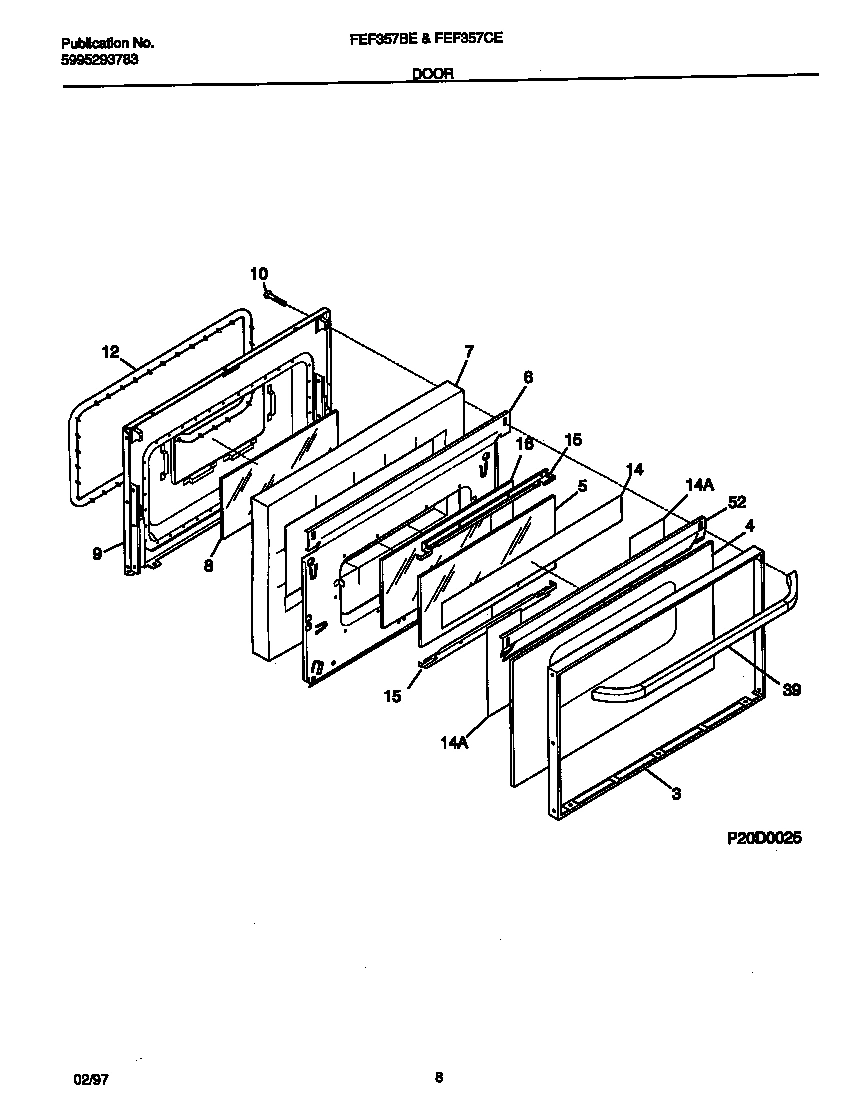

05 - DOOR

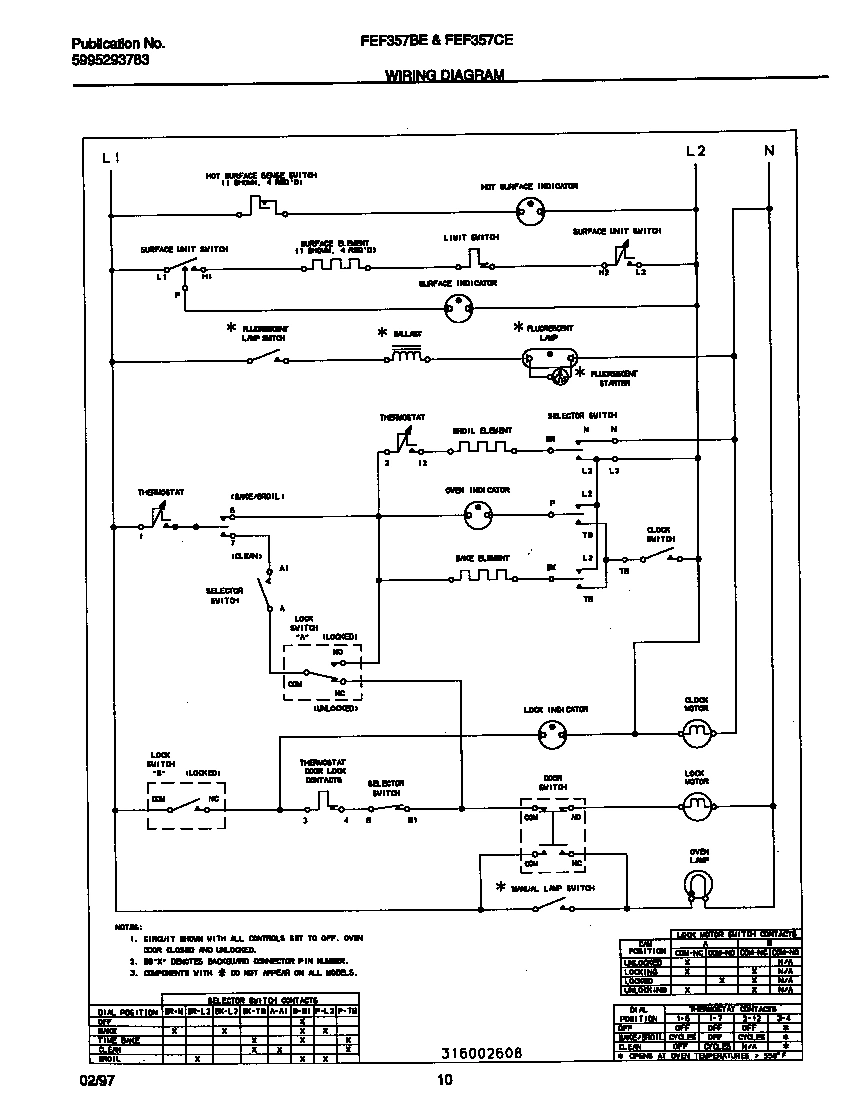

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF357CESE RANGE
*60045
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
*60046
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
*60047
CLIP-WIRE, HARNESS, MAIN TOP WCI 316045000 Contact Us For Availability
*60048
WCI 316089600 WCI 316089600 Contact Us For Availability
*60050
WCI 5309951550 WCI 5309951550 Contact Us For Availability
*60051
WCI 316001738 WCI 316001738 Contact Us For Availability
*60052
WCI 316065301 WCI 316065301 Contact Us For Availability
*60053
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*60055
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
4
WCI 316089005 WCI 316089005 Contact Us For Availability
5
WCI 316088700 WCI 316088700 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
6
WCI 316088401 WCI 316088401 Contact Us For Availability
7
WCI 316007002 No Longer Available
7
WCI 316076400 WCI 316076400 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
13
WCI 316023200 WCI 316023200 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 3131361 Contact Us For Availability
15
WCI 316081401 WCI 316081401 Contact Us For Availability
16
WCI 316098105 WCI 316098105 Contact Us For Availability
16
WCI 316085700 WCI 316085700 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
26
WCI 316099101 WCI 316099101 Contact Us For Availability
26
WCI 316099201 WCI 316099201 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 316066101 WCI 316066101 Contact Us For Availability
48
WCI 316100200 WCI 316100200 Contact Us For Availability
52
WCI 316099400 WCI 316099400 Contact Us For Availability
52
WCI 316081301 WCI 316081301 Contact Us For Availability
53
WCI 316099301 WCI 316099301 Contact Us For Availability
57
WCI 316081101 WCI 316081101 Contact Us For Availability
58
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 316023601 WCI 316023601 Contact Us For Availability
59A
WCI 316073602 WCI 316073602 Contact Us For Availability
59B
BRACKET-MOUNTING, VENT TUBE (NOT ILLUSTRATED) WCI 316040100 Contact Us For Availability
63
PLATE=GROUND STRAP WCI 5301145190 Contact Us For Availability
71
WCI 316015805 WCI 316015805 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028105 WCI 316028105 Contact Us For Availability
× ![]()
