Model Electrolux FEF357BGWA RANGE – Common Parts & Diagrams

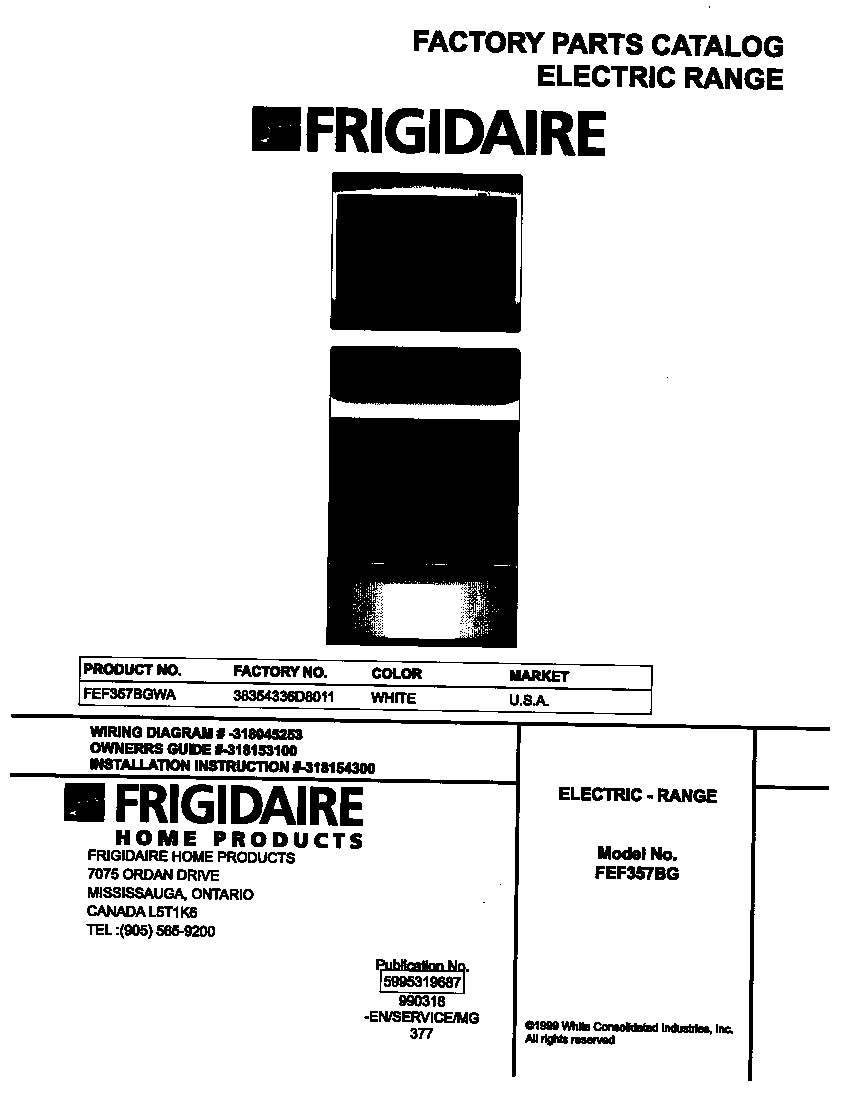

01 - COVER

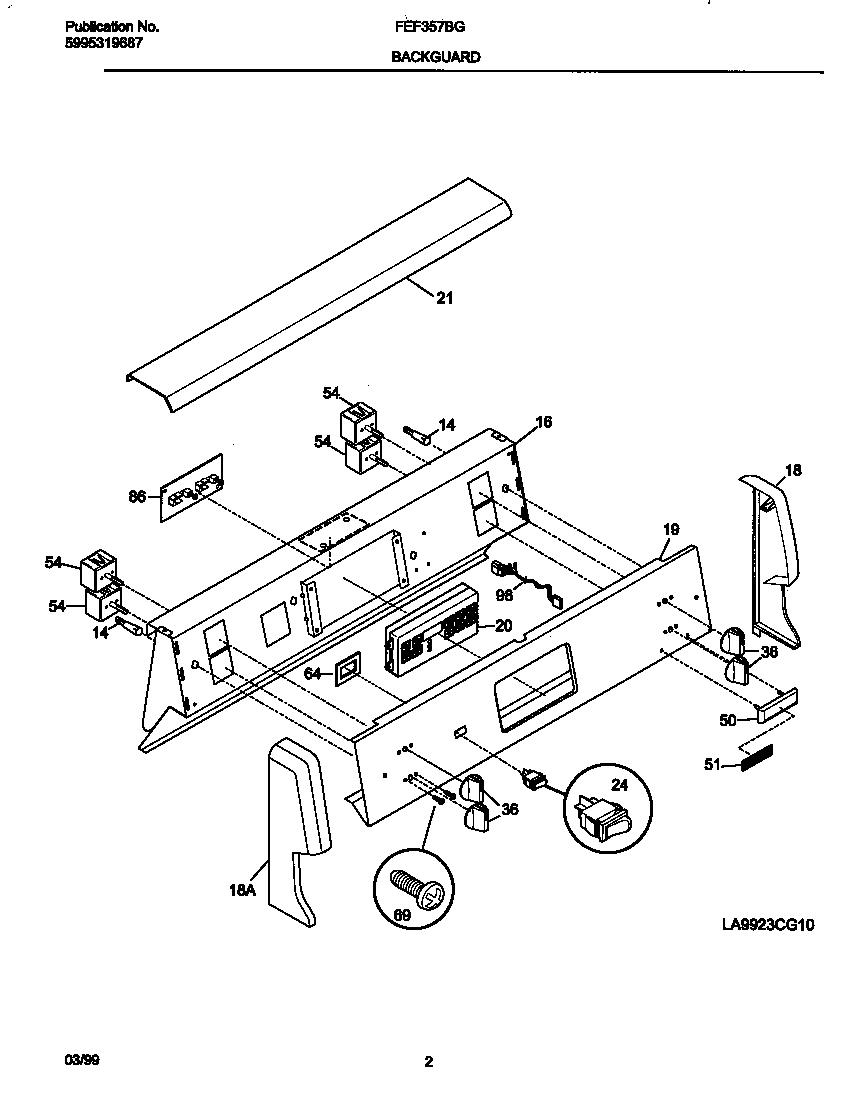

02 - BACKGUARD

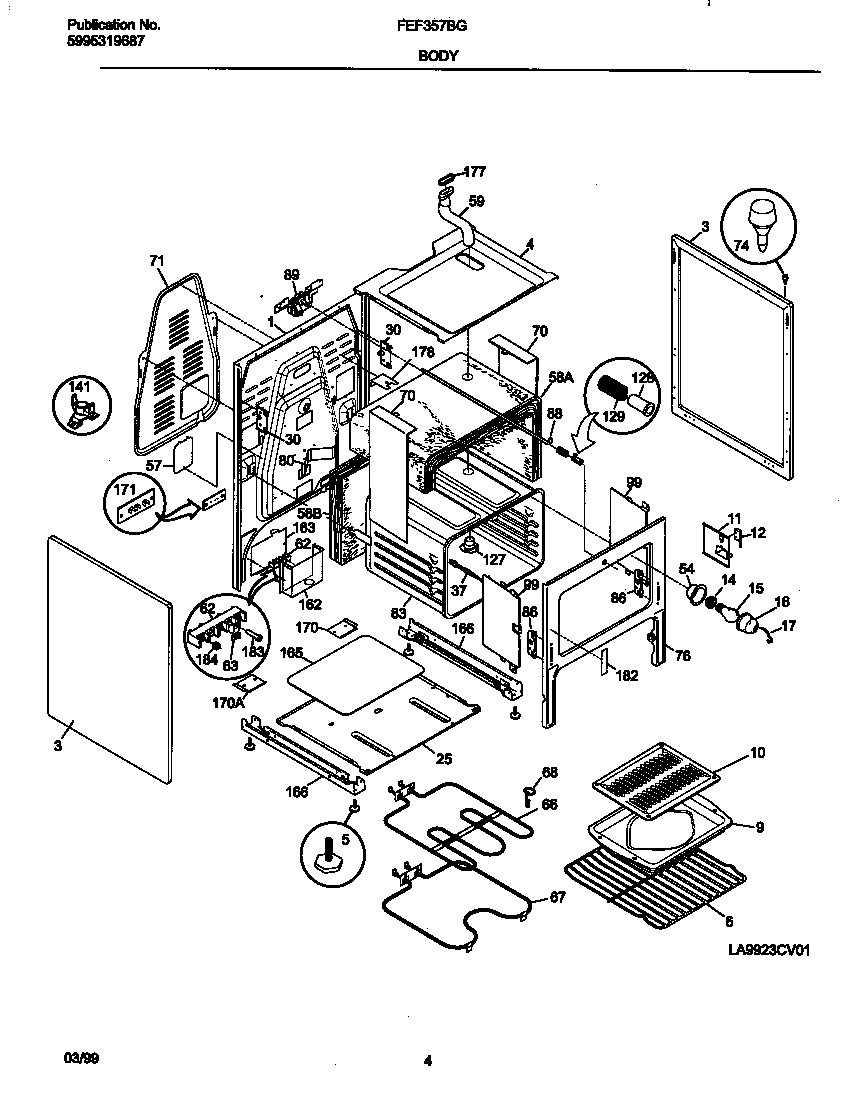

03 - BODY

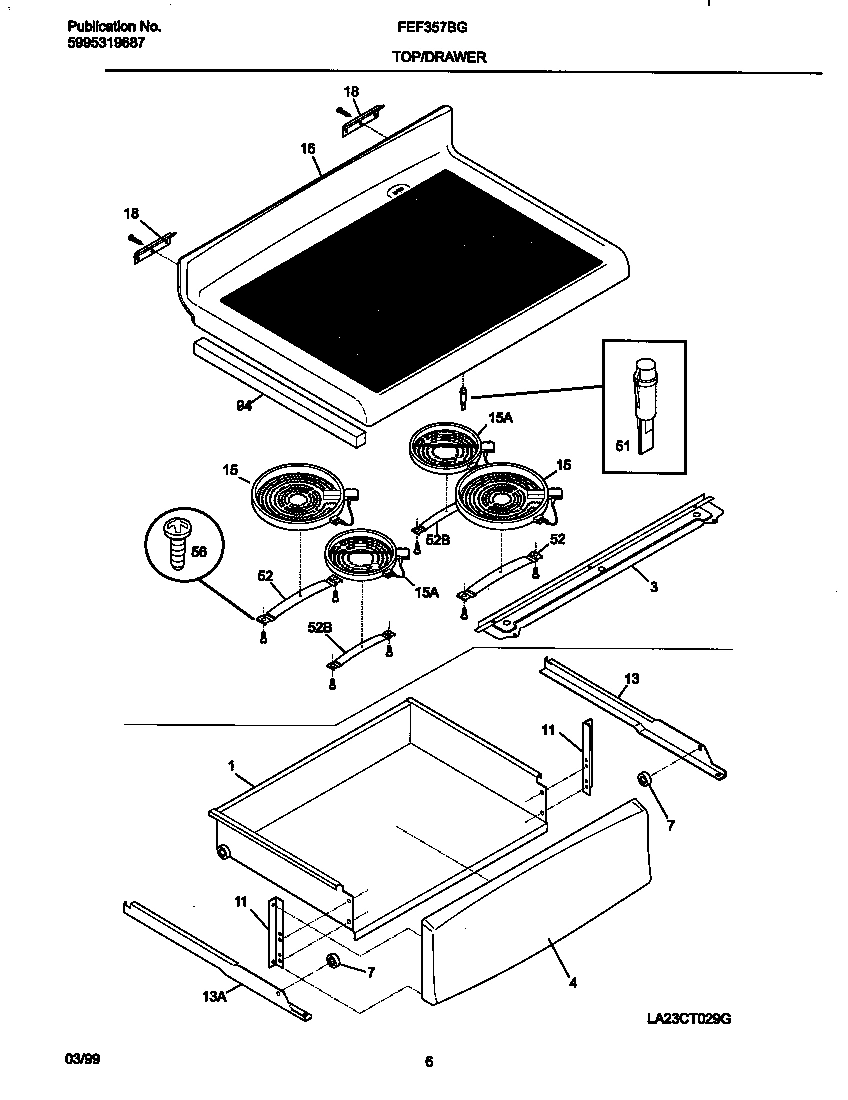

04 - TOP/DRAWER

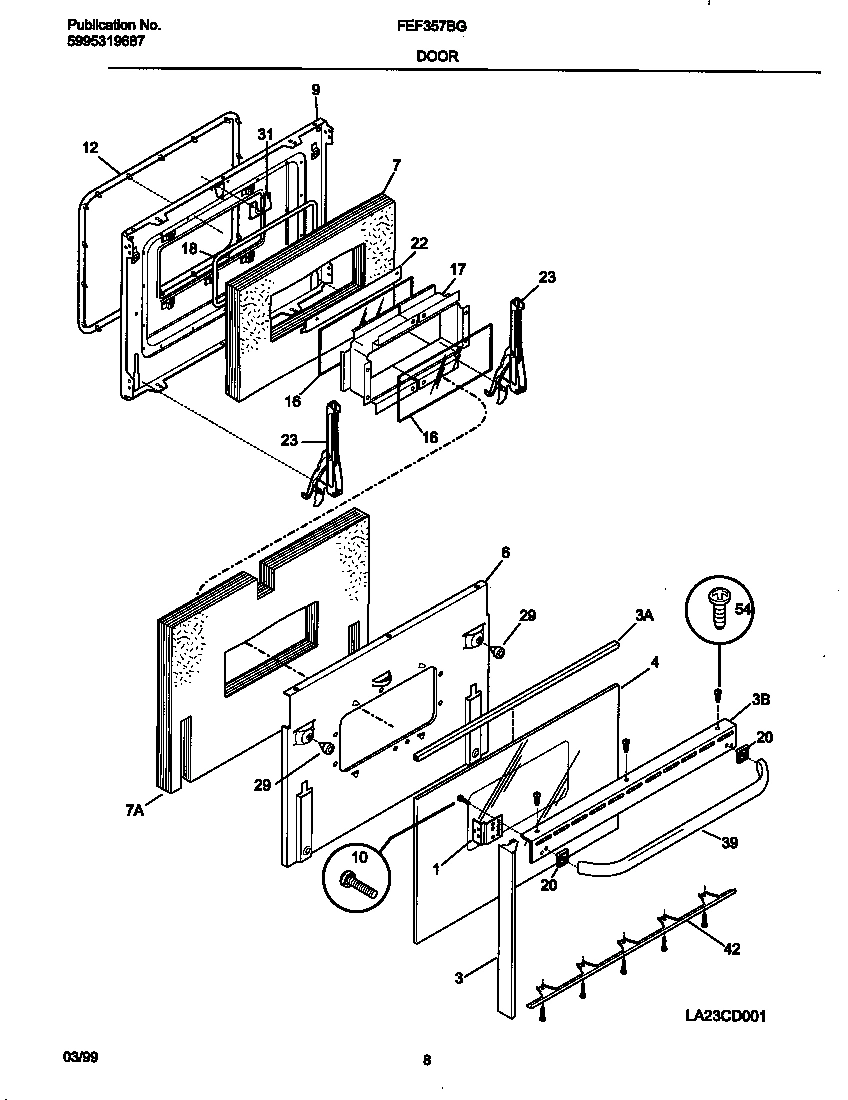

05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux FEF357BGWA RANGE
*19694
SHOULDER SCREW <8-18 X 1/2 >,8-18 X 1/2 WCI 5303325978 Contact Us For Availability
*19698
SCREW, TRUSS HEAD, 8-18 X 3/8, (4) WCI 08016432 Contact Us For Availability
1
WCI 318043100 WCI 318043100 Contact Us For Availability
1
WCI 318107103 WCI 318107103 Contact Us For Availability
3
WCI 318144301 WCI 318144301 Contact Us For Availability
3
TRIM-OVEN DOOR,UPPER WCI 318028900 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 318049019 Contact Us For Availability
3
WCI 318049201 WCI 318049201 Contact Us For Availability
4
PANEL-DRAWER,WHITE WCI 318044301 Contact Us For Availability
4
WCI 318041106 WCI 318041106 Contact Us For Availability
6
WCI 5303311192 WCI 5303311192 Contact Us For Availability
7
WCI 318014800 WCI 318014800 Contact Us For Availability
7
WCI 5303310532 WCI 5303310532 Contact Us For Availability
7
WCI 5303311150 WCI 5303311150 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318112906 WCI 318112906 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
WCI 5303324305 WCI 5303324305 Contact Us For Availability
11
WCI 318086100 WCI 318086100 Contact Us For Availability
11
BRACKET-SUPPORT,DRAWER ,(2) WCI 318107500 Contact Us For Availability
12
WCI 318089800 WCI 318089800 Contact Us For Availability
13
WCI 318018100 WCI 318018100 Contact Us For Availability
13
WCI 318018101 WCI 318018101 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303310533 Contact Us For Availability
16
WCI 318043850 WCI 318043850 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
17
SPACER-GLASS WCI 318139000 Contact Us For Availability
18
WCI 318074400 WCI 318074400 Contact Us For Availability
18
SEAL-ROPE WCI 5303310531 Contact Us For Availability
20
WCI 318014300 WCI 318014300 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSEMBLY WCI 318024700 Contact Us For Availability
24
SWITCH-ROCKER, OVEN LIGHT, BLACK, RH WCI 316083101 Contact Us For Availability
25
WCI 318108700 WCI 318108700 Contact Us For Availability
29
WCI 5303310535 WCI 5303310535 Contact Us For Availability
30
WCI 318110800 WCI 318110800 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
39
WCI 316091118 WCI 316091118 Contact Us For Availability
42
WCI 5303311200 WCI 5303311200 Contact Us For Availability
51
WCI 5303297484 WCI 5303297484 Contact Us For Availability
52
SPRING-ELEMENT MTG, 1200W & 1800W WCI 318122000 Contact Us For Availability
52
SPRING-ELEMENT MTG, 2200W WCI 318122003 Contact Us For Availability
54
WCI 318120500 WCI 318120500 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
57
WCI 318036500 WCI 318036500 Contact Us For Availability
58
WCI 5303310538 WCI 5303310538 Contact Us For Availability
58
INSULATION WRAPPER WCI 5303310539 Contact Us For Availability
59
WCI 318072513 WCI 318072513 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
WCI 318086600 WCI 318086600 Contact Us For Availability
74
WCI 318141900 WCI 318141900 Contact Us For Availability
76
WCI 318108502 WCI 318108502 Contact Us For Availability
83
WCI 318109404 WCI 318109404 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 318118902 WCI 318118902 Contact Us For Availability
89
WCI 318120702 WCI 318120702 Contact Us For Availability
89
WCI 318095900 WCI 318095900 Contact Us For Availability
89
WCI 318120704 WCI 318120704 Contact Us For Availability
94
WCI 318132608 WCI 318132608 Contact Us For Availability
99
WCI 318116400 WCI 318116400 Contact Us For Availability
99
WCI 318116500 WCI 318116500 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
162
WCI 318096401 WCI 318096401 Contact Us For Availability
163
WCI 318135802 WCI 318135802 Contact Us For Availability
165
SHIELD-PLATE WCI 318003100 Contact Us For Availability
166
SUPPORT BASE WCI 318111000 Contact Us For Availability
170
ANTI-TIP BRACKET WCI 3203575 Contact Us For Availability
170
ANTI-TIP BRACKET WCI 3203576 Contact Us For Availability
171
WCI 318111202 WCI 318111202 Contact Us For Availability
177
WCI 318053800 WCI 318053800 Contact Us For Availability
182
WCI 316042300 WCI 316042300 Contact Us For Availability
× ![]()
