Model Electrolux FEF357BAWA RANGE – Common Parts & Diagrams

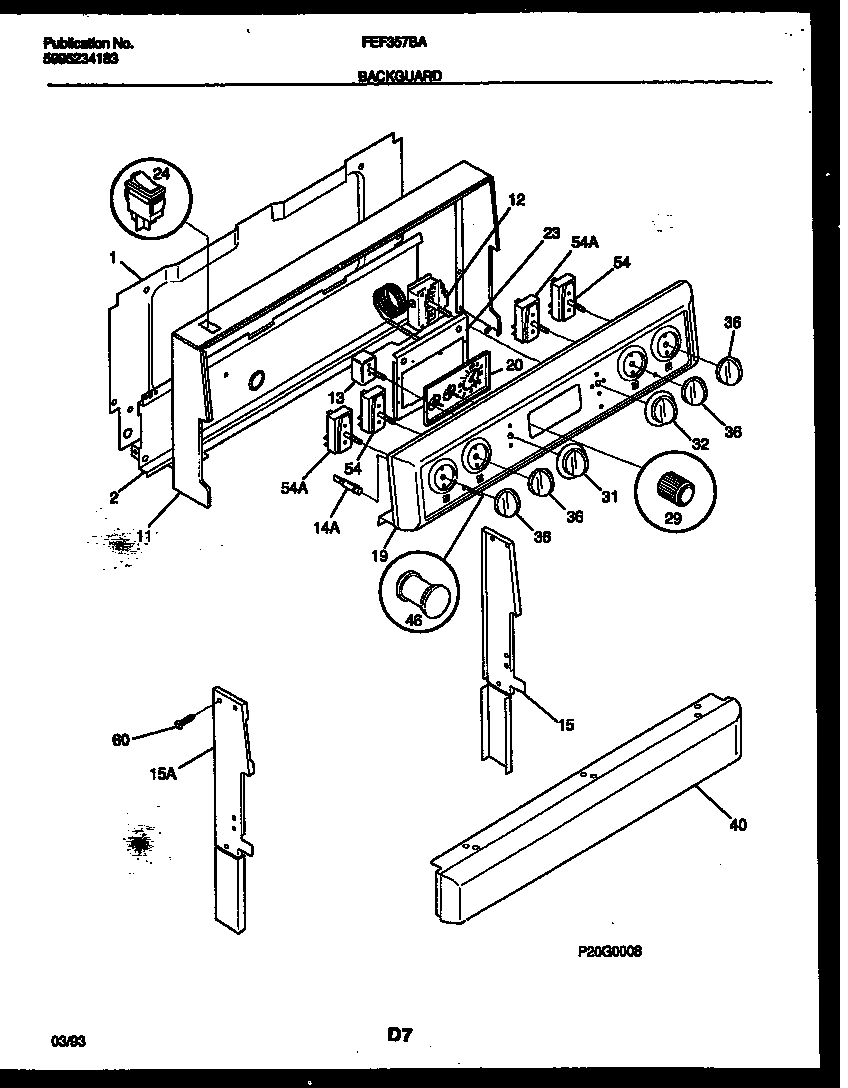

02 - BACKGUARD

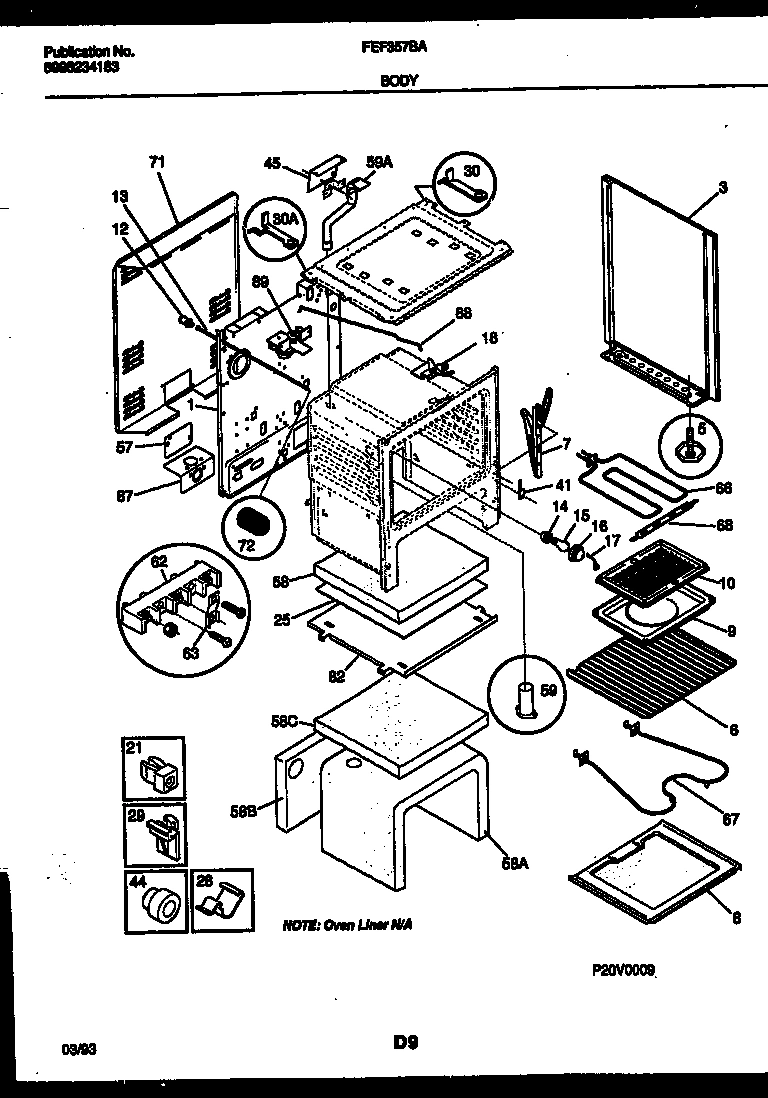

03 - BODY PARTS

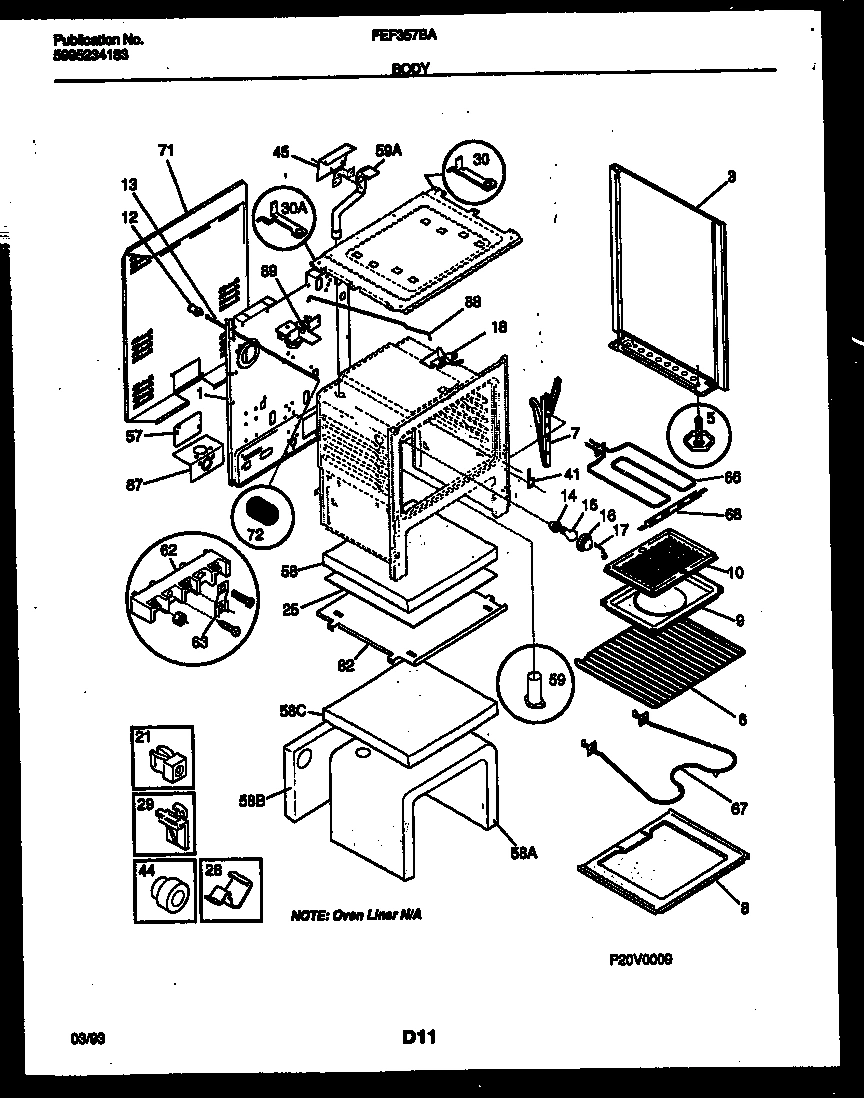

04 - BODY PARTS

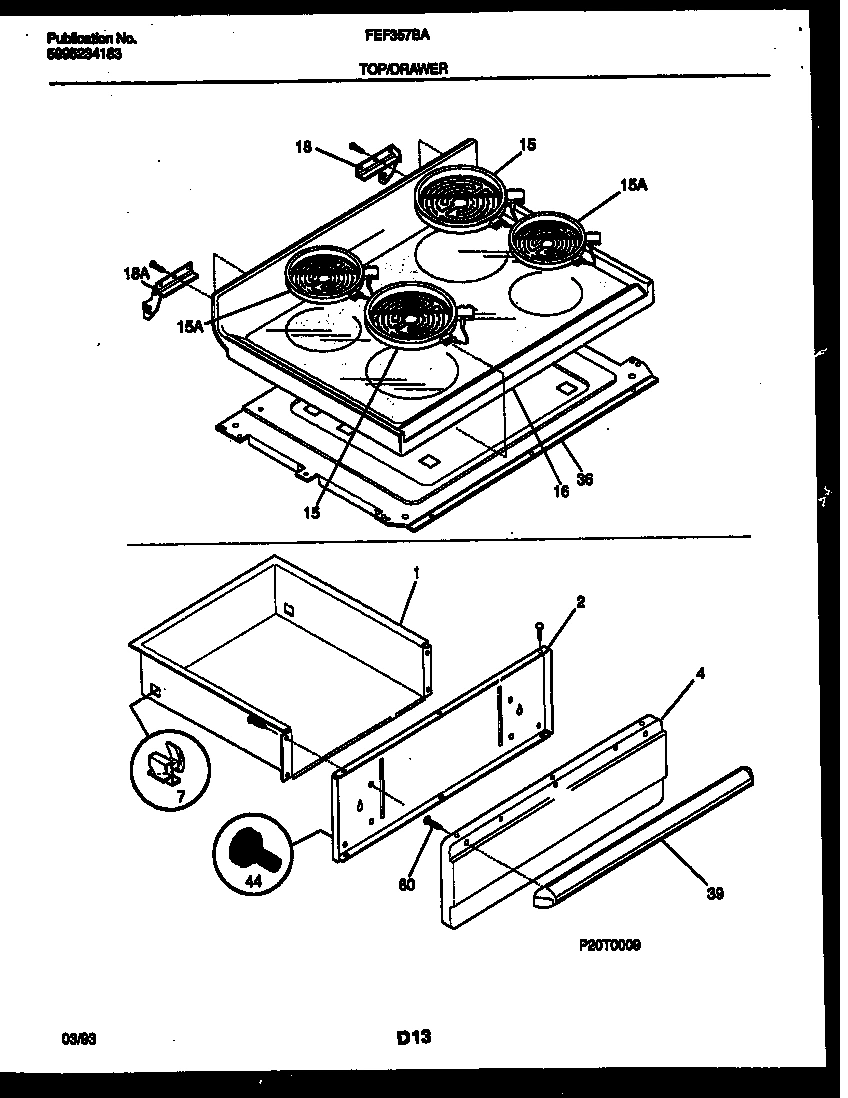

05 - COOKTOP AND BROILER DRAWER PARTS

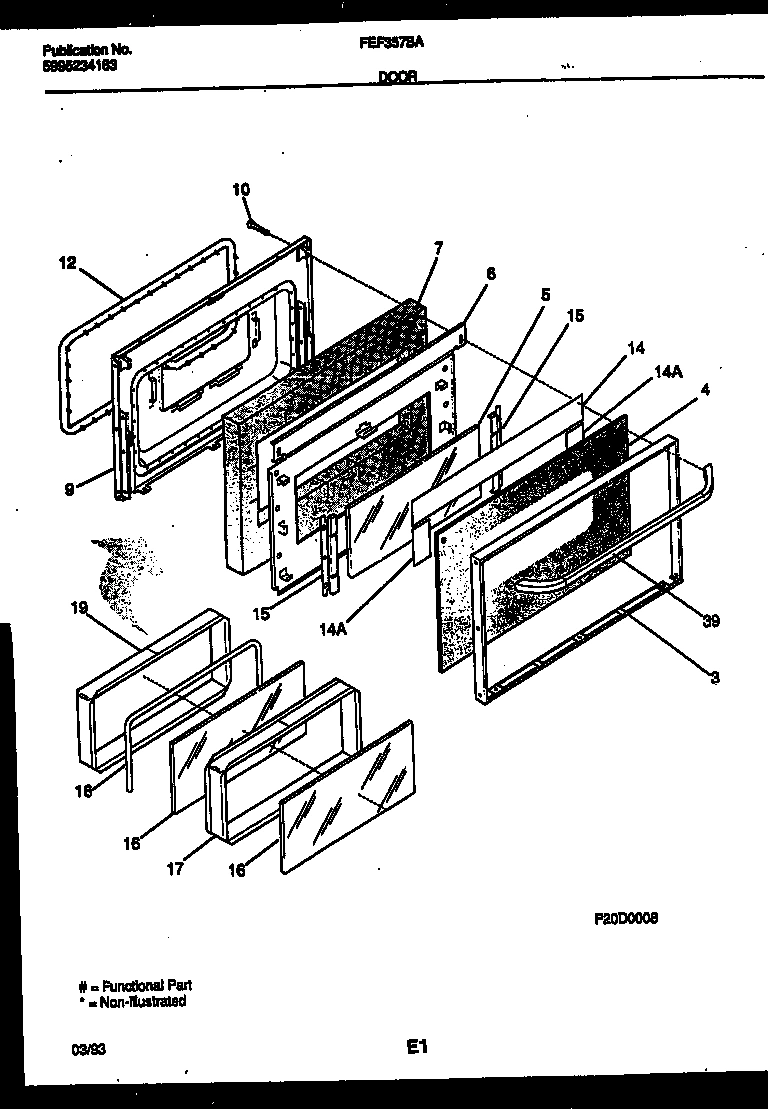

06 - DOOR PARTS
Common parts from model Electrolux FEF357BAWA RANGE
*73293
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*73294
WCI 5309951550 WCI 5309951550 Contact Us For Availability
*73296
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
BACK-MAIN, AUTOLATCH WCI 316029401 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
3A
SCREW, 8-18 X 1/2, BLACK (NON-ILLUSTRATED) WCI 5303269859 Contact Us For Availability
3C
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
4
WCI 316056201 WCI 316056201 Contact Us For Availability
4
WCI 316019706 WCI 316019706 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303211084 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 No Longer Available
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316023200 WCI 316023200 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 316035505 WCI 316035505 Contact Us For Availability
16A
HARNESS-TOP ELEMENTS (NON-ILLUSTRATED) WCI 316001713 Contact Us For Availability
16B
WCI 316034800 WCI 316034800 Contact Us For Availability
16C
WCI 316035700 WCI 316035700 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
COLLAR-GLASS MTG WCI 5303209511 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
28
WCI 316045000 WCI 316045000 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
36
WCI 316033601 WCI 316033601 Contact Us For Availability
36A
WCI 316023300 WCI 316023300 Contact Us For Availability
36B
WCI 316041000 WCI 316041000 Contact Us For Availability
39
WCI 316026100 WCI 316026100 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
45
WCI 316048001 WCI 316048001 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
WCI 316047700 WCI 316047700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 5303271871 WCI 5303271871 Contact Us For Availability
59A
WCI 316023601 WCI 316023601 Contact Us For Availability
59A
WCI 316040100 WCI 316040100 Contact Us For Availability
60
WCI 5303288574 WCI 5303288574 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD-REAR WALL WCI 316015801 Contact Us For Availability
72
WCI 5303285692 WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028100 WCI 316028100 Contact Us For Availability
× ![]()
