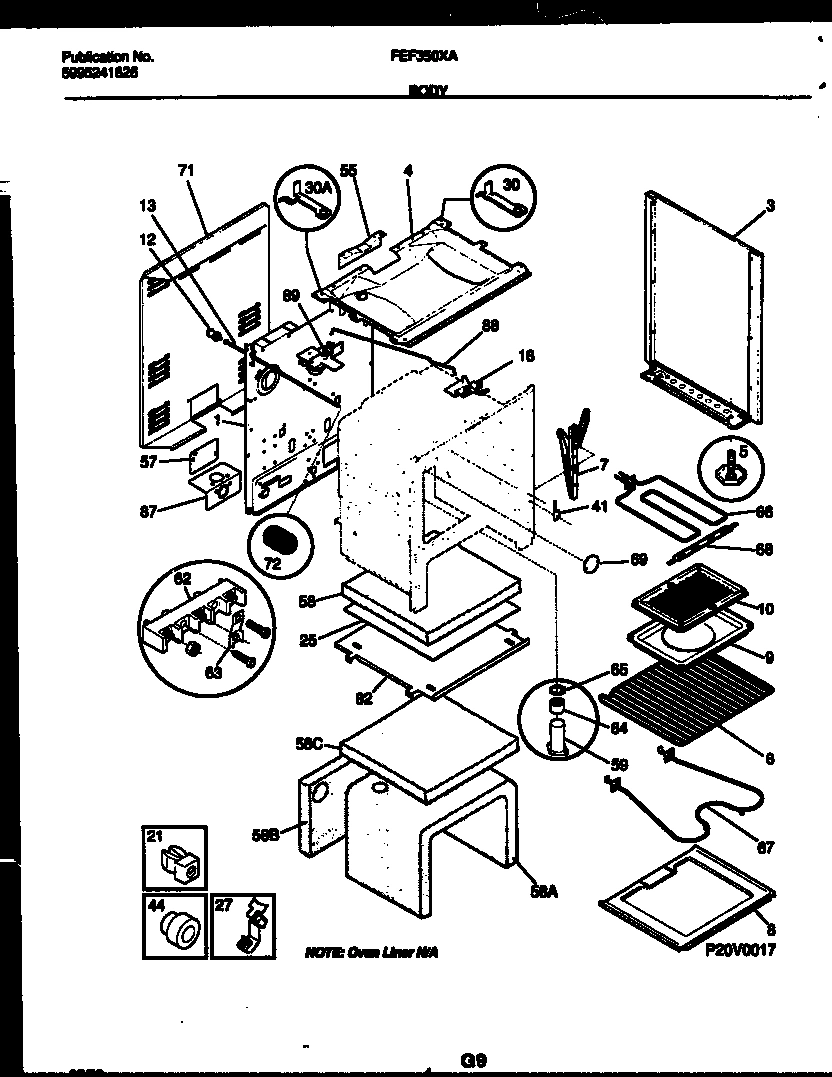

Model Electrolux FEF350XAWA RANGE – Common Parts & Diagrams

*83419
WCI 3200834
WCI 3200834 WCI 3200834 Contact Us For Availability
View on Model
*83419
WCI 3200846
WCI 3200846 WCI 3200846 Contact Us For Availability
View on Model
*83422
WCI 5303281584
WCI 5303281584 WCI 5303281584 Contact Us For Availability
View on Model
*83422
WCI 5303212671
WCI 5303212671 WCI 5303212671 Contact Us For Availability
View on Model
*83422
WCI 5303269859
WCI 5303269859 WCI 5303269859 Contact Us For Availability
View on Model
1
BACK-MAIN, AUTOLATCH
BACK-MAIN, AUTOLATCH WCI 316029401 Contact Us For Availability
View on Model
2
WCI 3131975
WCI 3131975 WCI 3131975 Contact Us For Availability
View on Model
3
PANEL-BODYSIDE, WHITE, RH
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
View on Model
3
TRIM-OVEN DOOR (BLACK)
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
View on Model
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED)
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
View on Model
4
WCI 5303271756
WCI 5303271756 WCI 5303271756 Contact Us For Availability
View on Model
4
PANEL-DUMMY, WHITE
PANEL-DUMMY, WHITE WCI 3051201 Contact Us For Availability
View on Model
4
WCI 316019705
WCI 316019705 WCI 316019705 Contact Us For Availability
View on Model
4A
WCI 08067785
WCI 08067785 WCI 08067785 Contact Us For Availability
View on Model
5
SCREW-LEVELING
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
View on Model
5A
ANTI-TIP KIT (NON-ILLUSTRATED)
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
View on Model
5B
WCI 5303288460
WCI 5303288460 WCI 5303288460 Contact Us For Availability
View on Model
6
SHIELD-INSULATION, BLACK
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
View on Model
7
Hinge,oven door ,(2)
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
View on Model
7
INSULATION-OVEN DOOR
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
View on Model
8
PANEL-OVEN BOTTOM
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
View on Model
9
LINER-OVEN DOOR
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
View on Model
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 No Longer Available
View on Model
12
WCI 316027700
WCI 316027700 WCI 316027700 Contact Us For Availability
View on Model
13
WCI 316023200
WCI 316023200 WCI 316023200 Contact Us For Availability
View on Model
13
WCI 316026800
WCI 316026800 WCI 316026800 Contact Us For Availability
View on Model
16
WCI 5303294319
WCI 5303294319 WCI 5303294319 Contact Us For Availability
View on Model
18
WCI 316036300
WCI 316036300 WCI 316036300 Contact Us For Availability
View on Model
18
HINGE-MAIN TOP (RH)
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
View on Model
18A
HINGE-MAIN TOP (LH)
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
View on Model
21
SPACER-BODYSIDE, (8)
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
View on Model
25
WCI 3200848
WCI 3200848 WCI 3200848 Contact Us For Availability
View on Model
28
MEDALLION, STAINLESS STEEL, SURF ELEM
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
View on Model
30
BRACKET-HINGE, MAIN TOP RH
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
View on Model
30A
BRACKET-HINGE, MAIN TOP, LH
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
View on Model
32
WCI 316054902
WCI 316054902 WCI 316054902 Contact Us For Availability
View on Model
36
WCI 316025100
WCI 316025100 WCI 316025100 Contact Us For Availability
View on Model
40
WCI 316025800
WCI 316025800 WCI 316025800 Contact Us For Availability
View on Model
41
WCI 3131570
WCI 3131570 WCI 3131570 Contact Us For Availability
View on Model
55
WCI 3051368
WCI 3051368 WCI 3051368 Contact Us For Availability
View on Model
57
COVER-ACCESS
COVER-ACCESS WCI 3203405 Contact Us For Availability
View on Model
58A
WCI 316047700
WCI 316047700 WCI 316047700 Contact Us For Availability
View on Model
58B
INSULATION, OVEN BACK
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
View on Model
58C
INSULATION, OVEN TOP
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
View on Model
59
WCI 3051344
WCI 3051344 WCI 3051344 Contact Us For Availability
View on Model
63
PLATE-GROUND STRAP
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
View on Model
64
FILTER-OVEN VENT, CATALYST
FILTER-OVEN VENT, CATALYST WCI 08067810 Contact Us For Availability
View on Model
65
RETAINER-FILTER
RETAINER-FILTER WCI 08010606 Contact Us For Availability
View on Model
69
WCI 3051218
WCI 3051218 WCI 3051218 Contact Us For Availability
View on Model
71
SHIELD-REAR WALL
SHIELD-REAR WALL WCI 316015801 Contact Us For Availability
View on Model
72
COVER-LIGHT/SWITCH ROD
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
View on Model
82
SHIELD, OVEN BOTTOM
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
View on Model
87
WCI 5303206618
WCI 5303206618 WCI 5303206618 Contact Us For Availability
View on Model
88
WCI 316026400
WCI 316026400 WCI 316026400 Contact Us For Availability
View on Model
89
WCI 316028100
WCI 316028100 WCI 316028100 Contact Us For Availability
View on Model
