Model Electrolux FEF350XAWA RANGE – Common Parts & Diagrams

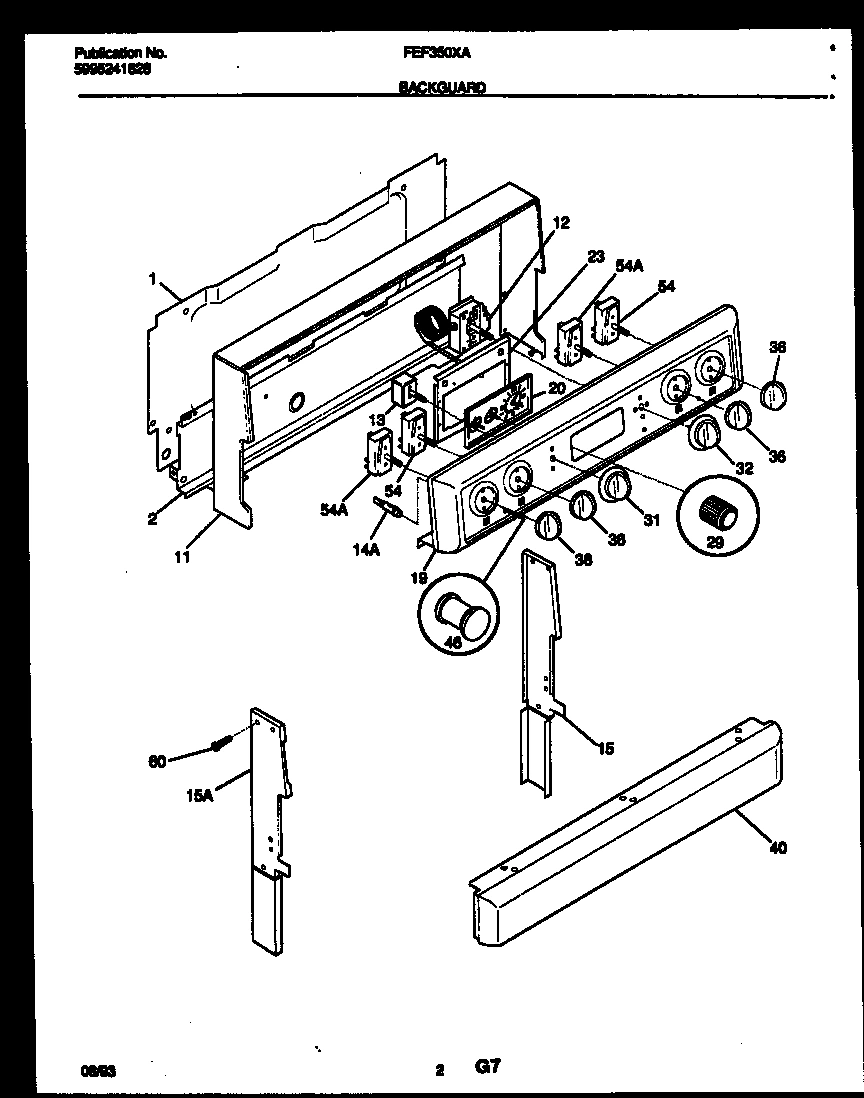

02 - BACKGUARD

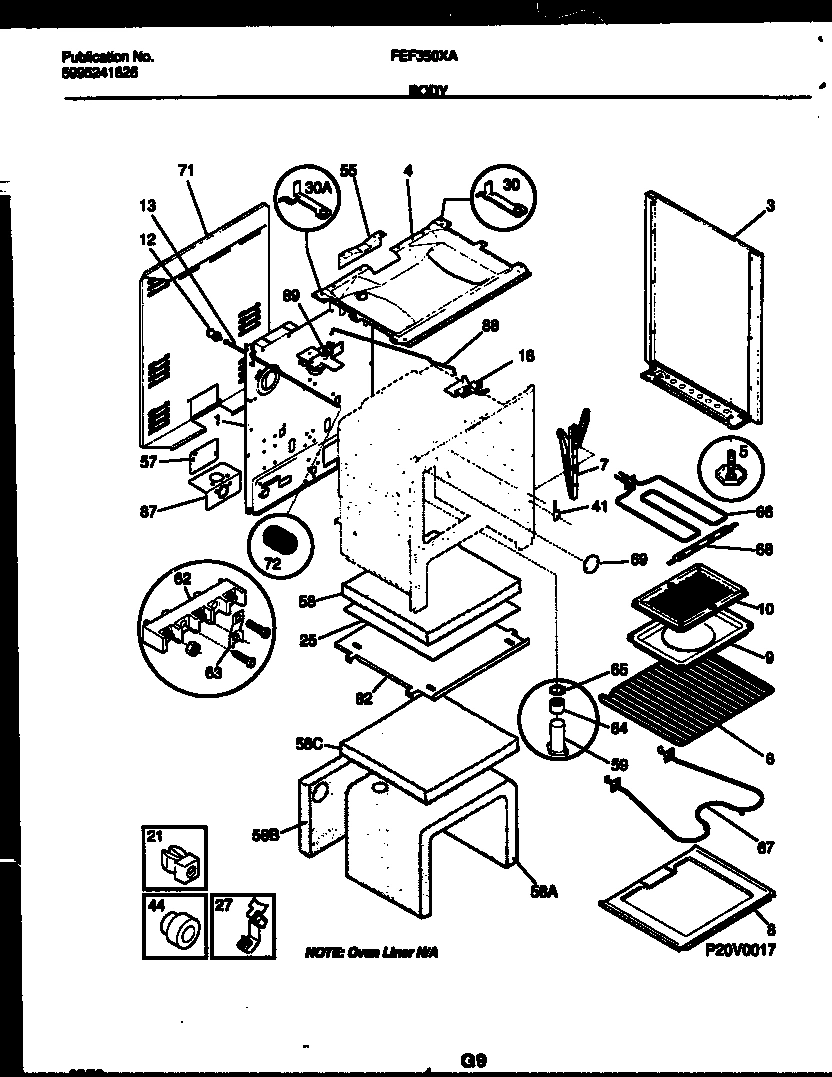

03 - BODY PARTS

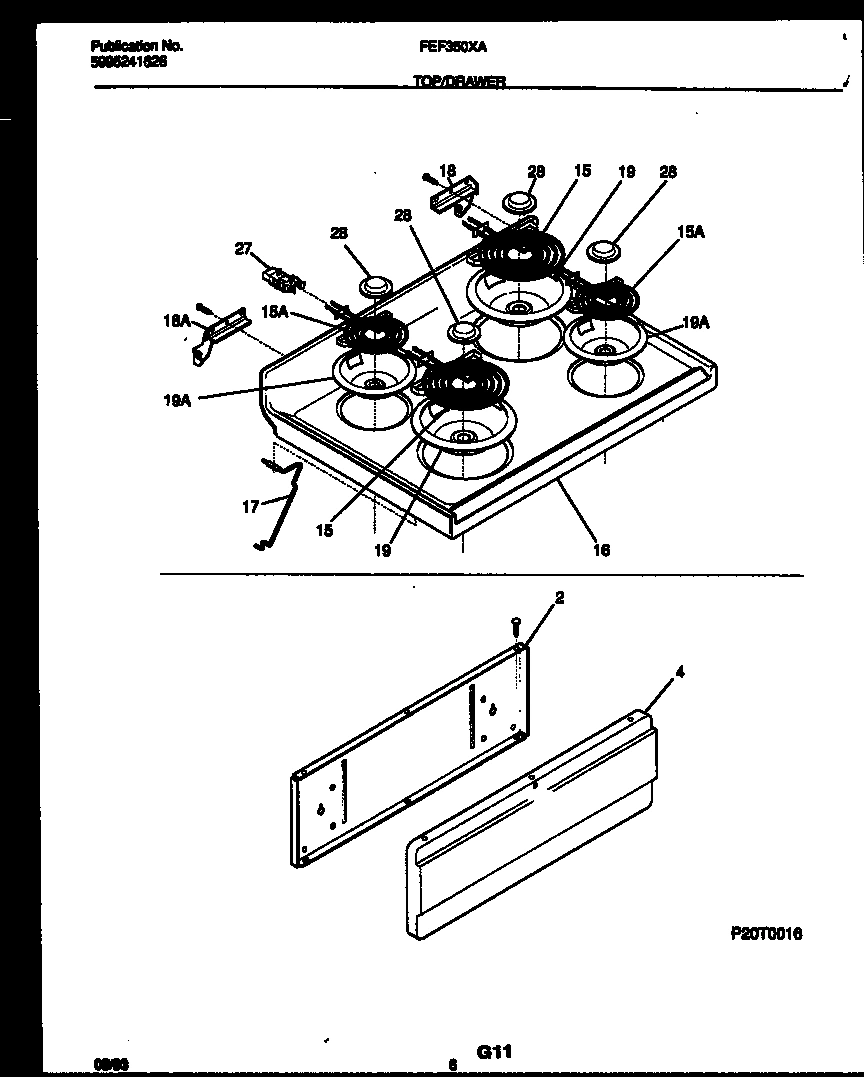

04 - COOKTOP AND DRAWER PARTS

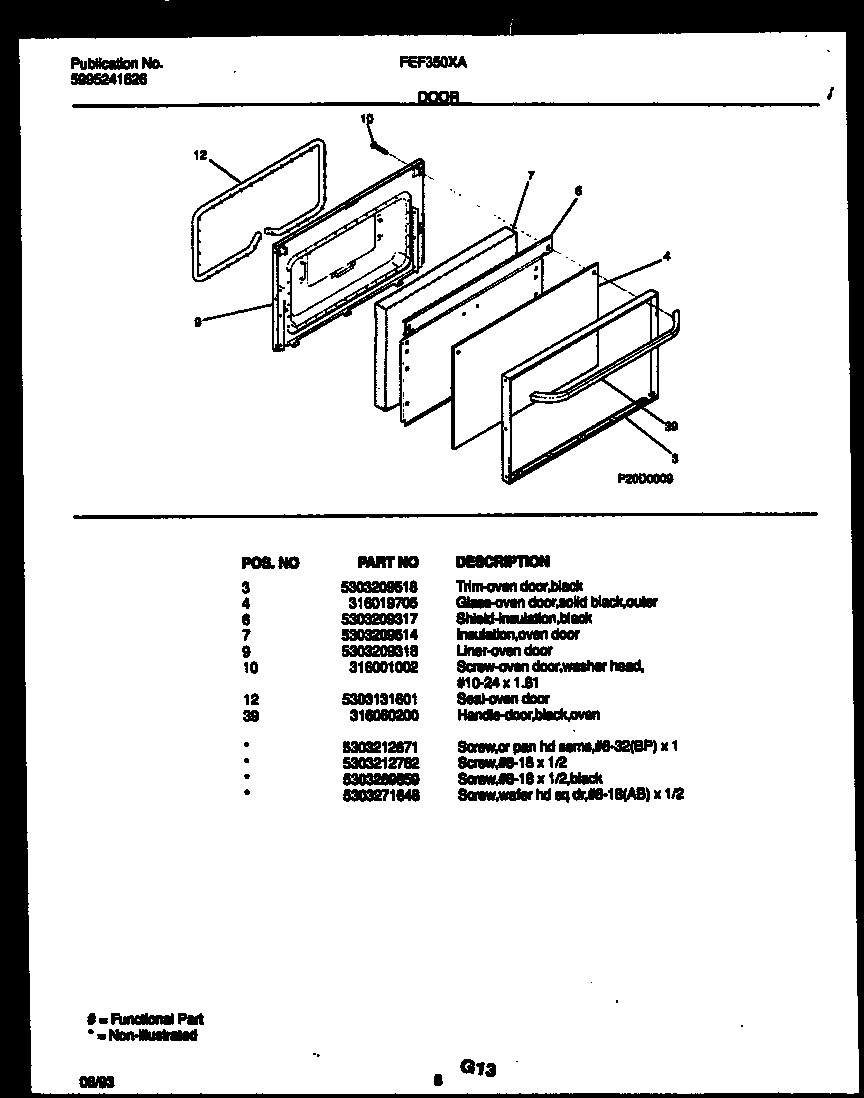

05 - DOOR PARTS
Common parts from model Electrolux FEF350XAWA RANGE
*83419
WCI 3200834 WCI 3200834 Contact Us For Availability
*83419
WCI 3200846 WCI 3200846 Contact Us For Availability
*83422
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*83422
WCI 5303212671 WCI 5303212671 Contact Us For Availability
*83422
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
BACK-MAIN, AUTOLATCH WCI 316029401 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
PANEL-BODYSIDE, WHITE, RH WCI 5303269518 Contact Us For Availability
3
TRIM-OVEN DOOR (BLACK) WCI 5303209518 Contact Us For Availability
3A
PANEL-BODYSIDE, WHITE, LH (NON-ILLUSTRATED) WCI 5303269519 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
PANEL-DUMMY, WHITE WCI 3051201 Contact Us For Availability
4
WCI 316019705 WCI 316019705 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
SHIELD-INSULATION, BLACK WCI 5303209317 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 Contact Us For Availability
12
WCI 316027700 WCI 316027700 Contact Us For Availability
13
WCI 316023200 WCI 316023200 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
16
WCI 5303294319 WCI 5303294319 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
28
MEDALLION, STAINLESS STEEL, SURF ELEM WCI 3017801 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
32
WCI 316054902 WCI 316054902 Contact Us For Availability
36
WCI 316025100 WCI 316025100 Contact Us For Availability
40
WCI 316025800 WCI 316025800 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
WCI 316047700 WCI 316047700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3204582 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
59
WCI 3051344 WCI 3051344 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
64
FILTER-OVEN VENT, CATALYST WCI 08067810 Contact Us For Availability
65
RETAINER-FILTER WCI 08010606 Contact Us For Availability
71
SHIELD-REAR WALL WCI 316015801 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028100 WCI 316028100 Contact Us For Availability
× ![]()
