Model Electrolux FEF322WHSA RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

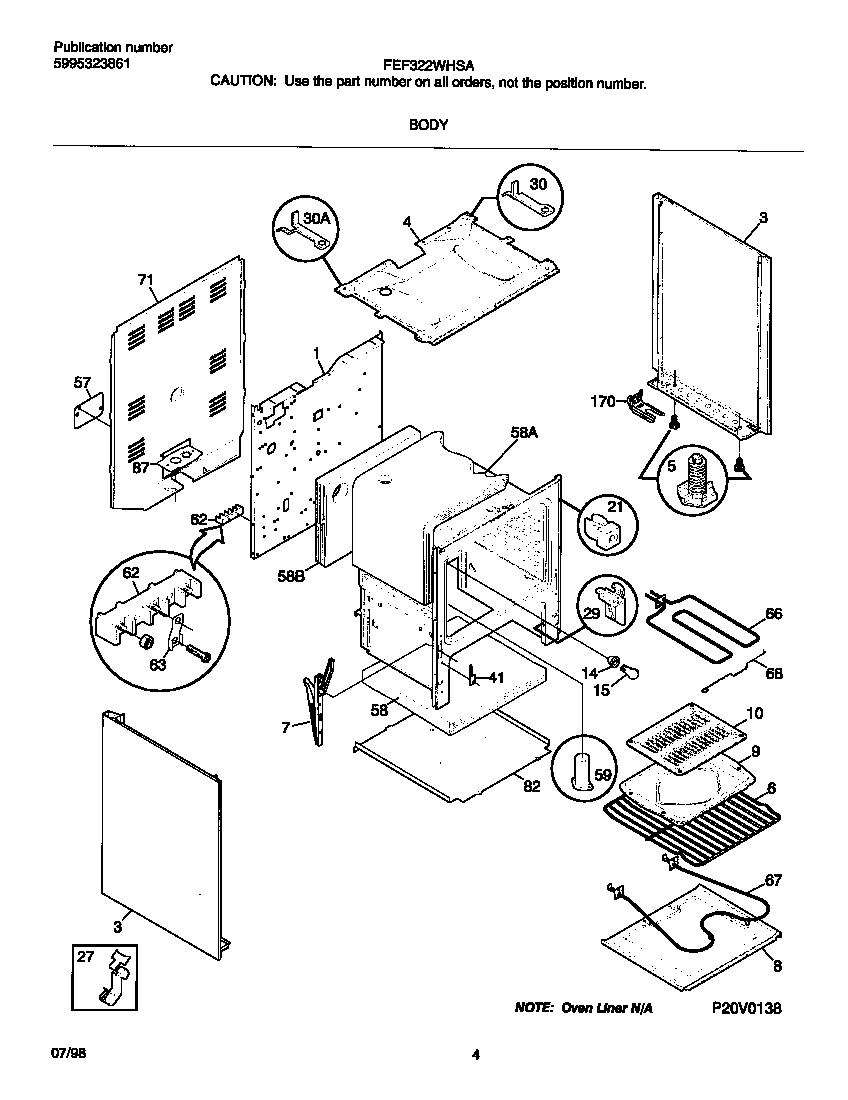

03 - BODY

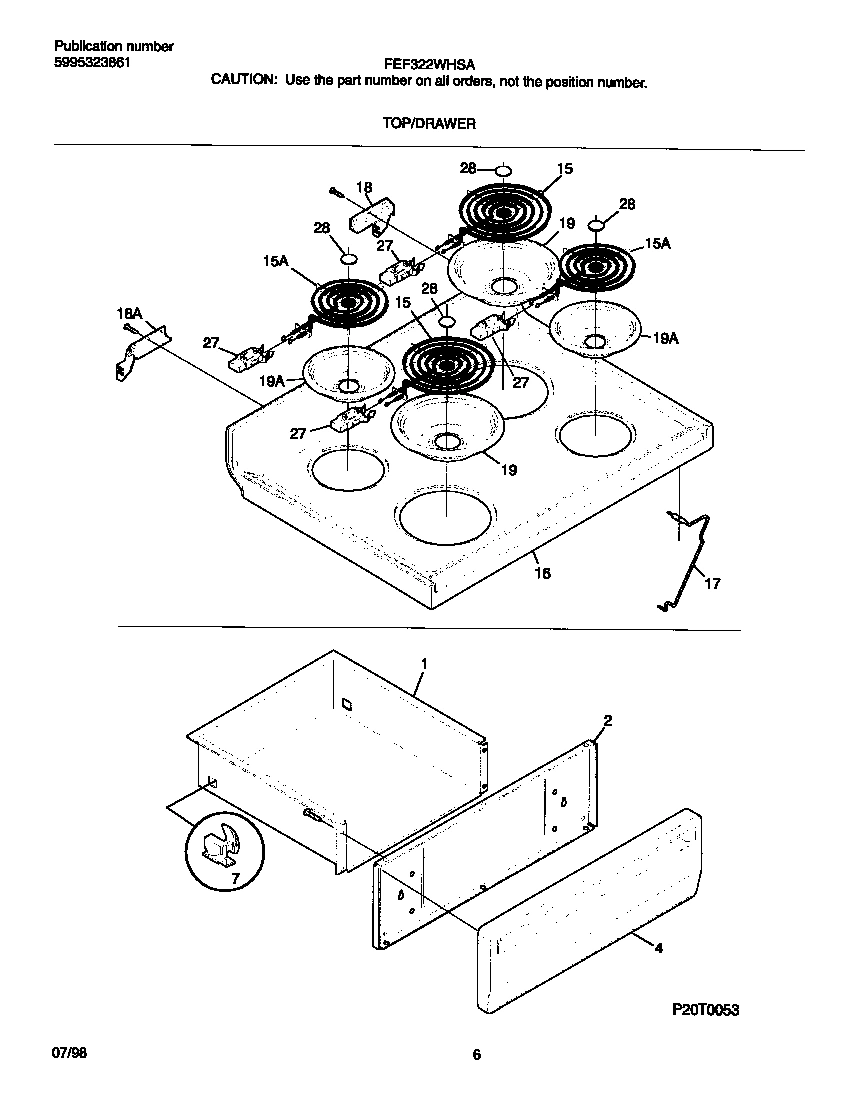

04 - TOP/DRAWER

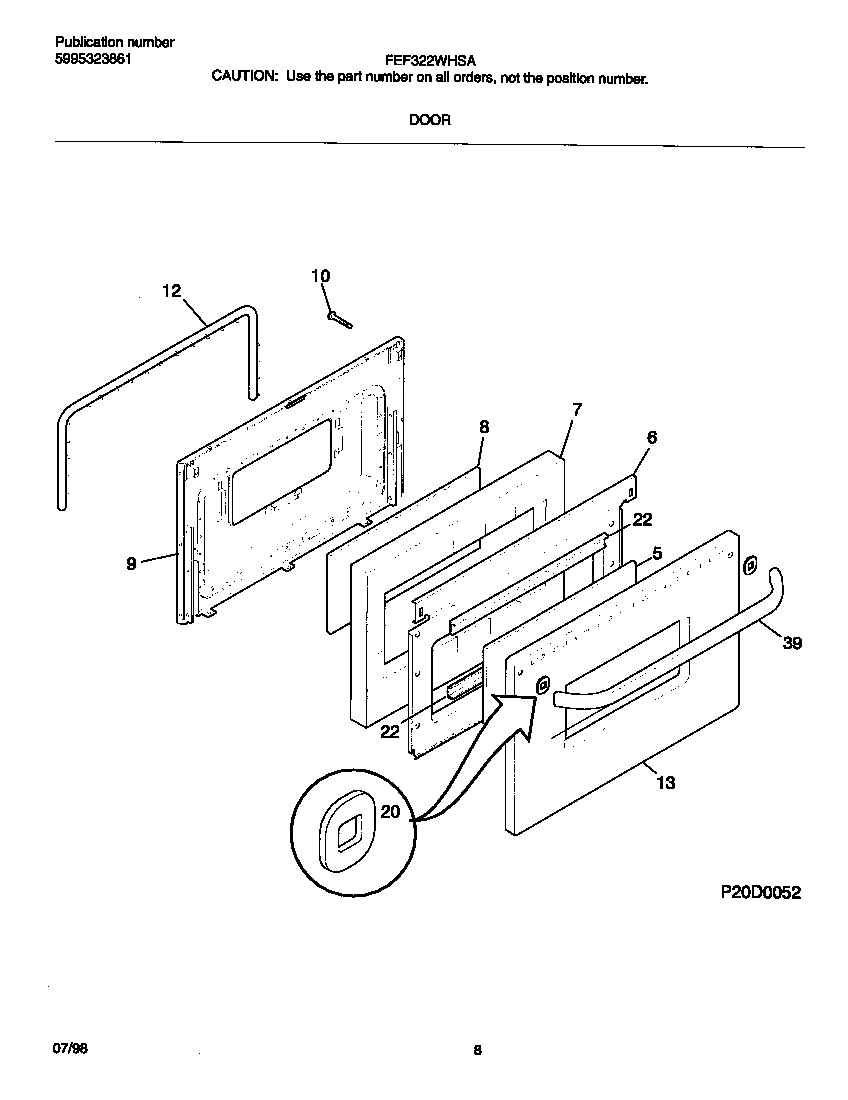

05 - DOOR

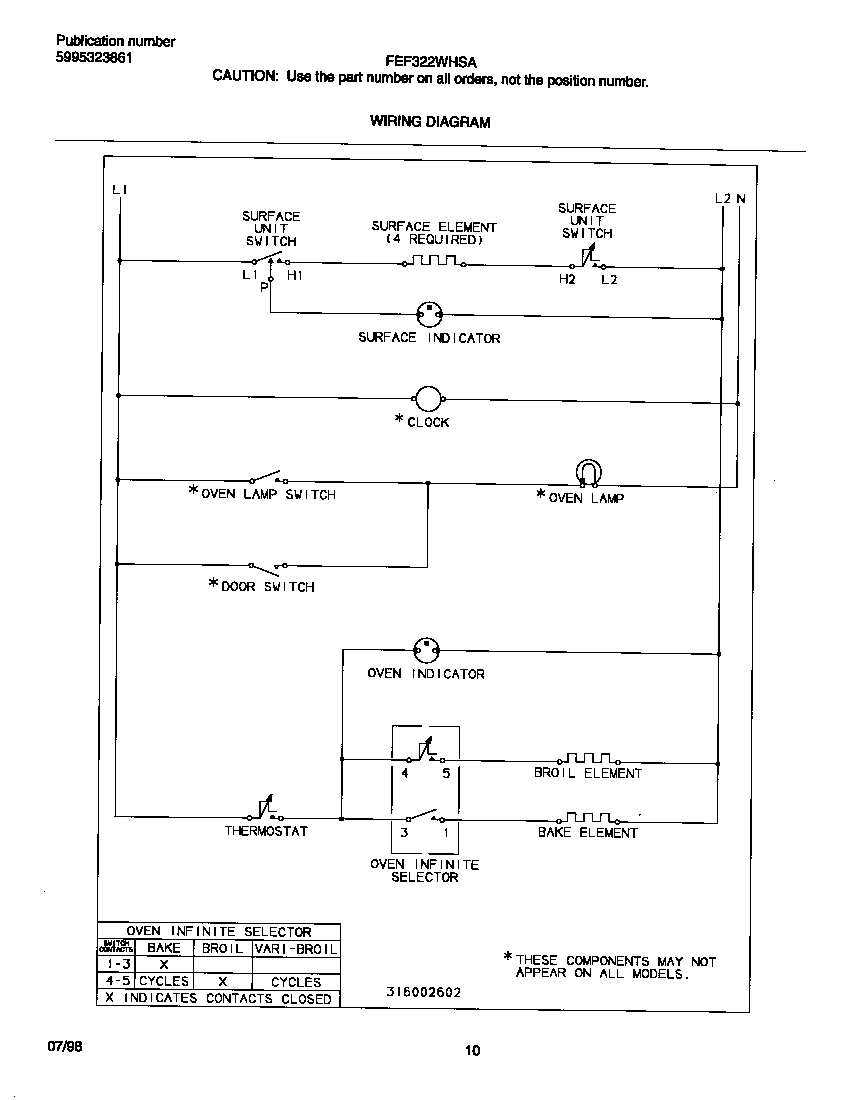

06 - WIRING DIAGRAM
Common parts from model Electrolux FEF322WHSA RANGE
*05127
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*05131
WCI 316001725 WCI 316001725 Contact Us For Availability
*05136
WCI 316089600 WCI 316089600 Contact Us For Availability
*05141
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*05142
SCREW-SWITCH/HANDLE,8-32 X 5/32 WCI 5303292005 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
4
WCI 316084405 WCI 316084405 Contact Us For Availability
5
Glass,oven door ,white ,outer WCI 316050300 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
13
WCI 316032500 WCI 316032500 Contact Us For Availability
13
PANEL, OVEN DOOR, WHITE WCI 3017081 Contact Us For Availability
15
WCI 316115400 WCI 316115400 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
31
WCI 316109603 WCI 316109603 Contact Us For Availability
36
WCI 316109601 WCI 316109601 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
× ![]()
