Model Electrolux FEF322BADA RANGE – Common Parts & Diagrams

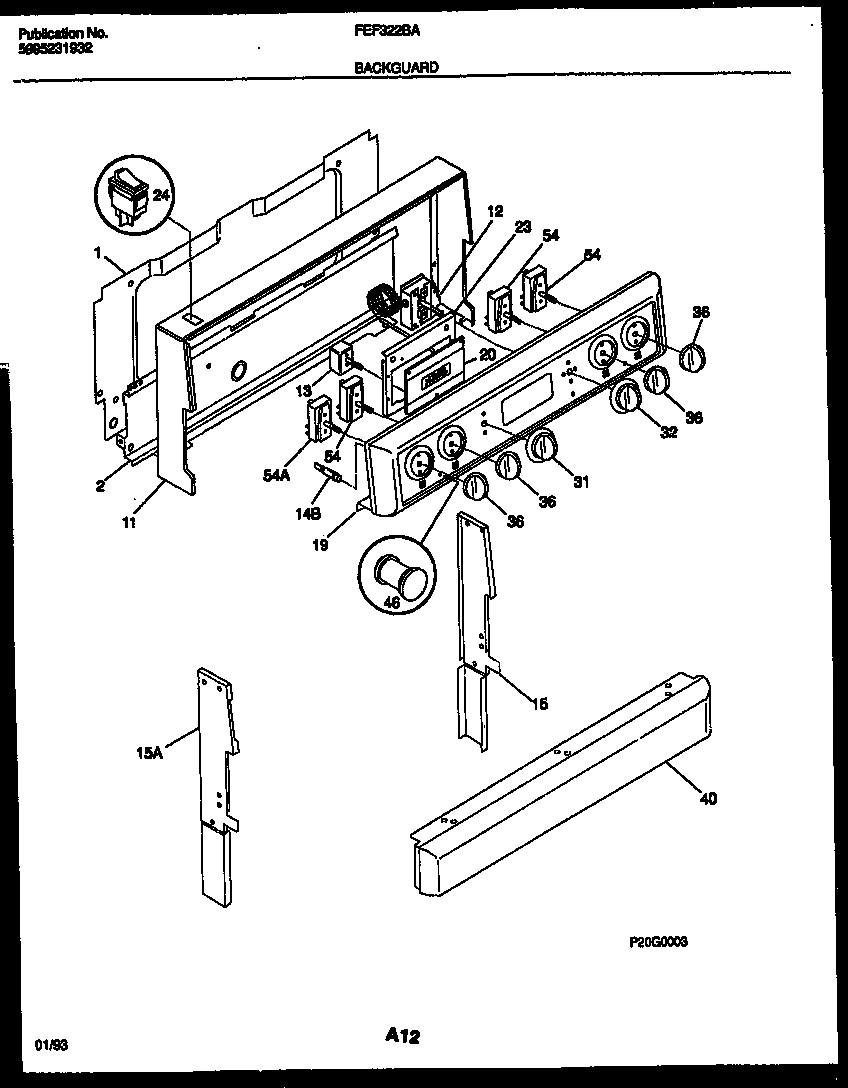

02 - BACKGUARD

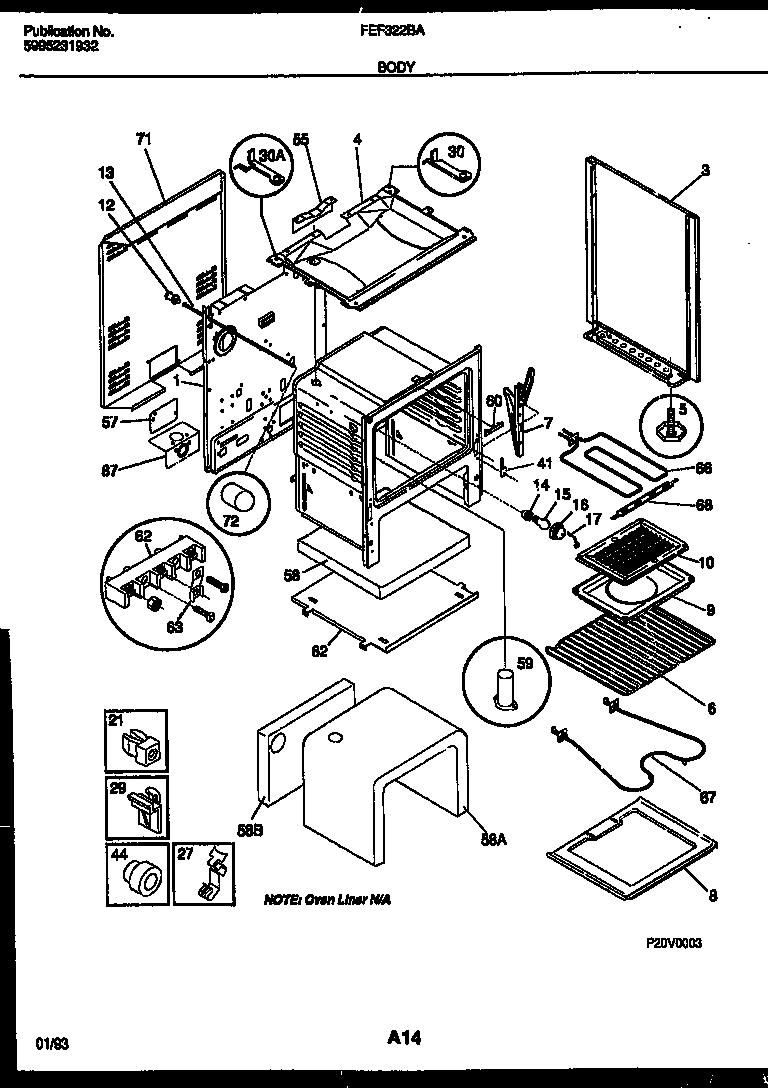

03 - BODY PARTS

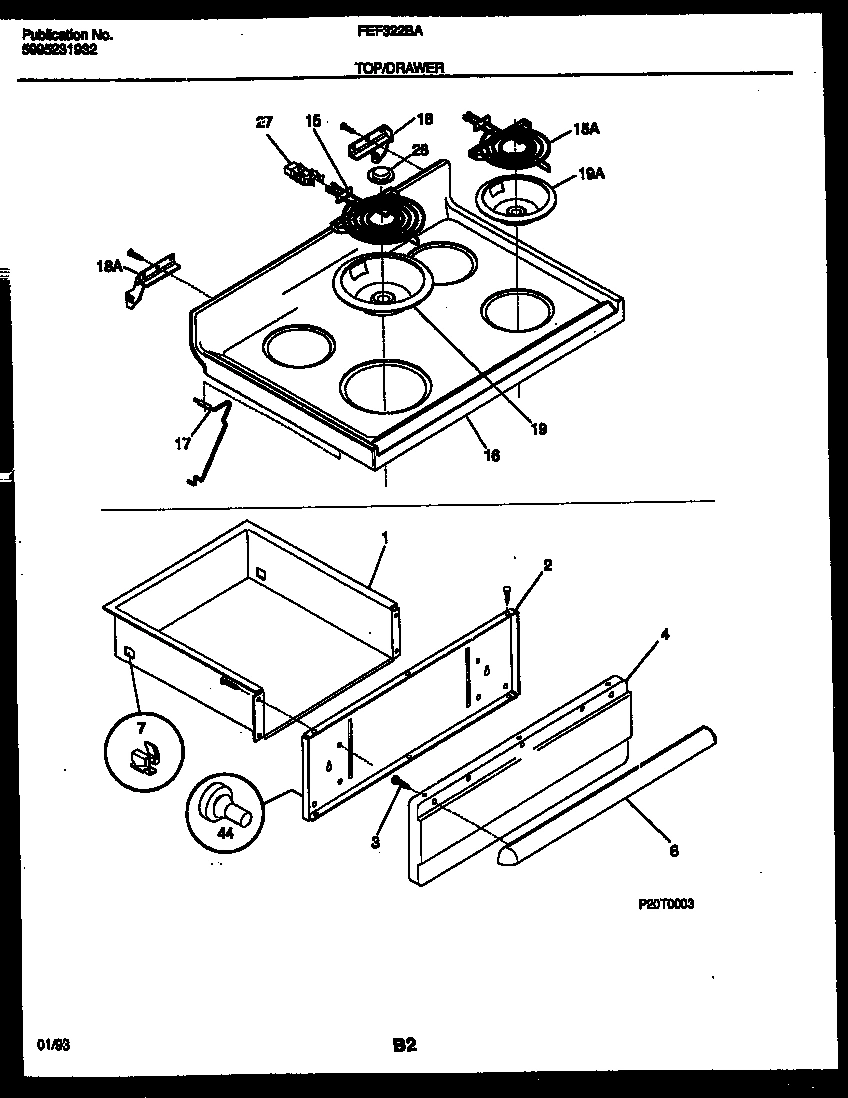

04 - COOKTOP AND DRAWER PARTS

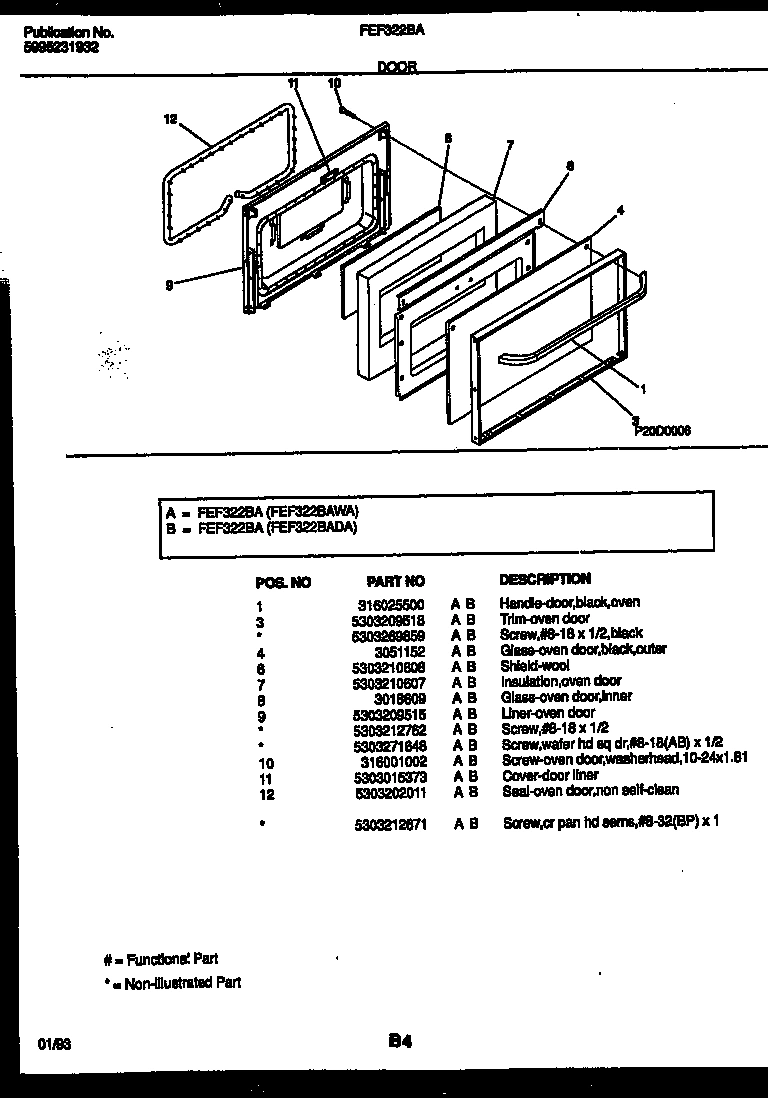

05 - DOOR PARTS
Common parts from model Electrolux FEF322BADA RANGE
*72377
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*72379
WCI 5303212671 WCI 5303212671 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 5303281379 WCI 5303281379 Contact Us For Availability
3
WCI 5303209518 WCI 5303209518 Contact Us For Availability
3A
SCREW, 8-18 X 1/2, BLACK (NON-ILLUSTRATED) WCI 5303269859 Contact Us For Availability
3B
WCI 5303269545 WCI 5303269545 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
WCI 316056202 WCI 316056202 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
4A
WCI 08067785 WCI 08067785 Contact Us For Availability
5
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
6
WCI 316026100 WCI 316026100 Contact Us For Availability
6
WCI 5303210608 WCI 5303210608 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
INSULATION, OVEN DOOR WCI 5303210607 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
8
GLASS-OVEN DOOR, INNER WCI 3018609 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 5303209515 WCI 5303209515 Contact Us For Availability
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 Contact Us For Availability
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 5303015373 WCI 5303015373 Contact Us For Availability
12
THERMOSTAT, OVEN, NON SC WCI 316032400 Contact Us For Availability
12
WCI 316027702 WCI 316027702 Contact Us For Availability
13
SWITCH-SELECTOR, 3 POS NSC WCI 316032500 Contact Us For Availability
13
ROD-LIGHT SWITCH WCI 316026800 Contact Us For Availability
16
MAIN TOP, ALMOND WCI 5303288821 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
21
SPACER-BODYSIDE, (3) WCI 3014099 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
59
WCI 5303283907 WCI 5303283907 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD-REAR WALL, LOWER WCI 316015801 Contact Us For Availability
71A
WCI 08067961 WCI 08067961 Contact Us For Availability
72
WCI 5303285692 WCI 5303285692 Contact Us For Availability
82
SHIELD WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
× ![]()
