Model Electrolux FED387CESB RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

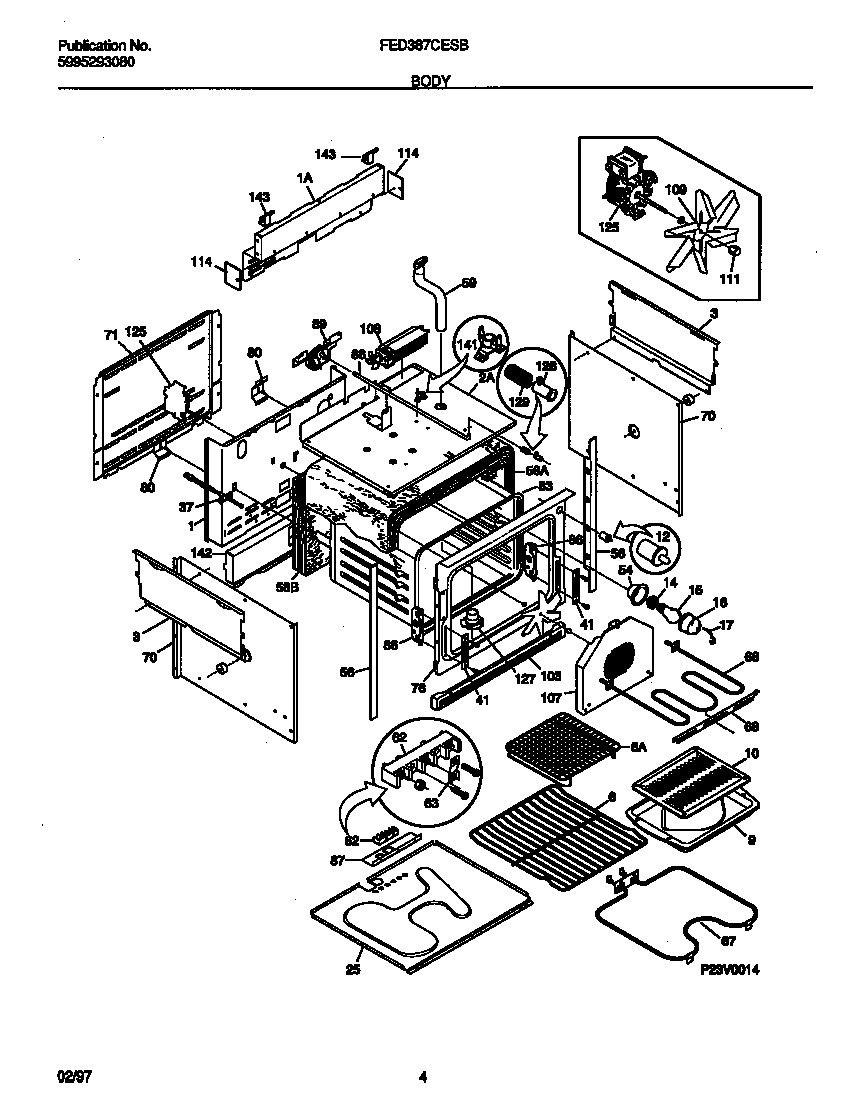

03 - BODY

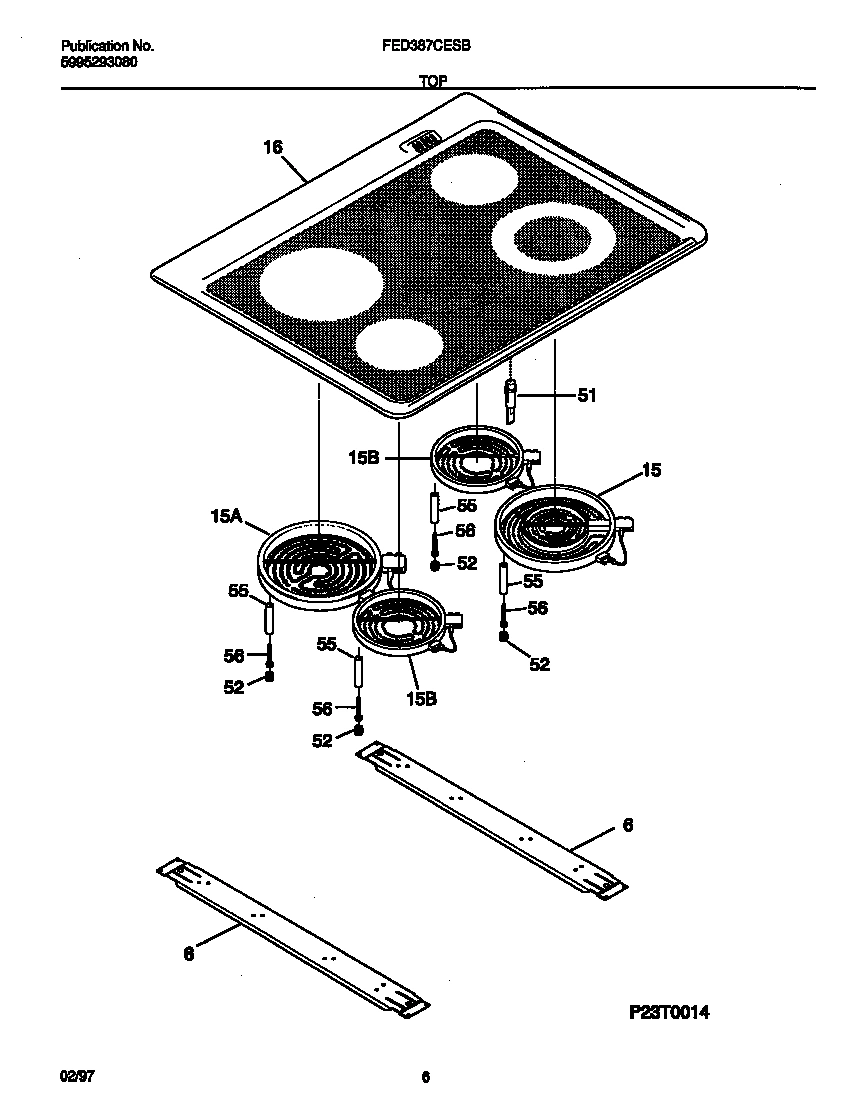

04 - TOP

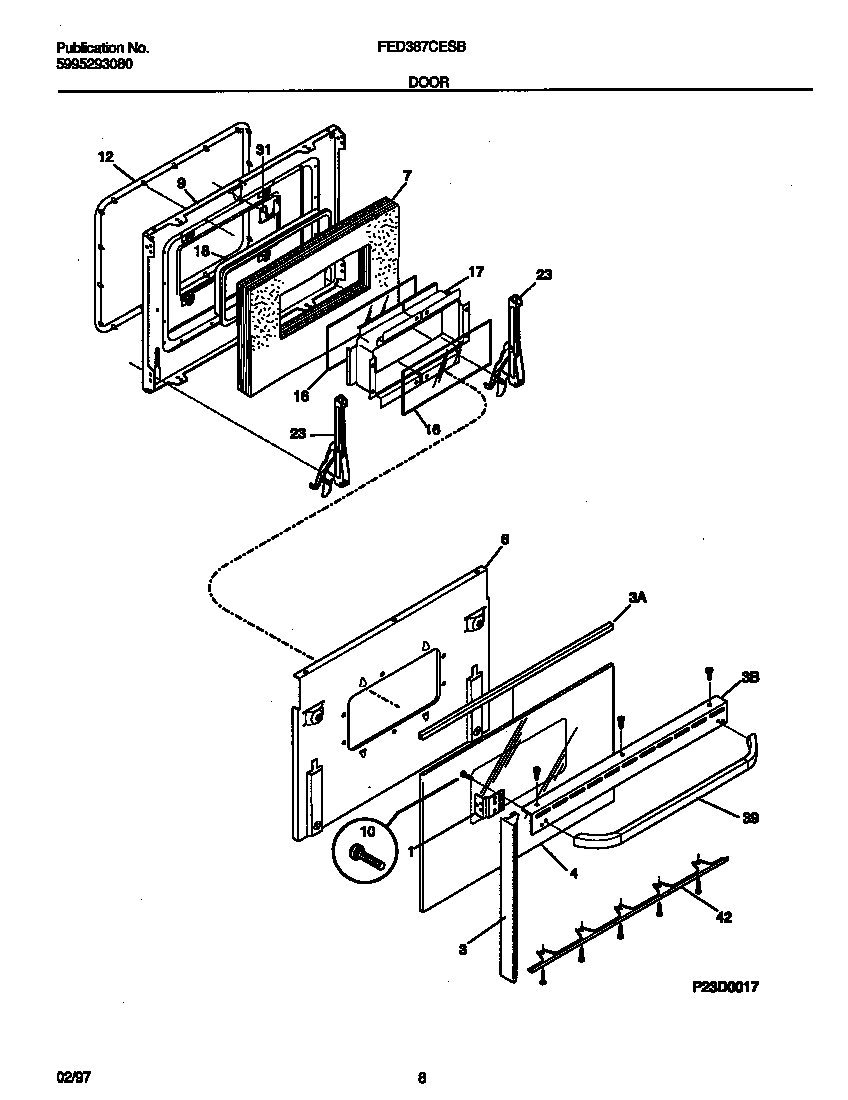

05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux FED387CESB RANGE
*36167
WCI 318055600 WCI 318055600 Contact Us For Availability
*36171
WCI 5303311171 WCI 5303311171 Contact Us For Availability
*36172
WCI 5303311207 WCI 5303311207 Contact Us For Availability
*36173
WCI 5303320846 WCI 5303320846 Contact Us For Availability
*36174
WCI 5303321212 WCI 5303321212 Contact Us For Availability
*36175
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
*36179
WCI 5303311156 WCI 5303311156 Contact Us For Availability
*36182
PLUG, DOOR LINER WCI 5308007939 Contact Us For Availability
1
WCI 318043100 WCI 318043100 Contact Us For Availability
1
BACK-MAIN, UPPER WCI 318070901 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
2
WCI 5303311158 WCI 5303311158 Contact Us For Availability
3
WCI 5303300143 WCI 5303300143 Contact Us For Availability
3
WCI 318028900 WCI 318028900 Contact Us For Availability
3
TRIM-OVEN DOOR, WHITE, SIDE, (2) WCI 318049206 Contact Us For Availability
3
Trim,oven door ,white ,lower WCI 5303311194 Contact Us For Availability
4
WCI 318041102 WCI 318041102 Contact Us For Availability
6
WCI 5303311206 WCI 5303311206 Contact Us For Availability
6
WCI 5303311190 WCI 5303311190 Contact Us For Availability
6
WCI 318056810 WCI 318056810 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048802 WCI 318048802 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, 125V, (2) WCI 5303051533 Contact Us For Availability
15
ELEMENT-SURFACE, DUAL RADIANT, 1000W/2000W, L WCI 318050200 Contact Us For Availability
15
ELEMENT-SURFACE, HALOGEN, SMALL/6 INCH, LIMIT WCI 5303297142 Contact Us For Availability
15
ELEMENT-SURFACE, HALOGEN, LARGE/8 INCH, LIMIT WCI 5303297143 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER ,(2) WCI 318041603 Contact Us For Availability
16
WCI 318079500 WCI 318079500 Contact Us For Availability
17
RETAINER-LENS, OVEN WCI 3204483 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSY WCI 5303311215 Contact Us For Availability
25
WCI 5303311141 WCI 5303311141 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
37
PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED) WCI 318080000 Contact Us For Availability
39
SPACER, CORK & RUBBER (NOT ILLUSTRATED) WCI 5303300414 Contact Us For Availability
39
HANDLE-DOOR, WHITE, OVEN WCI 316091119 Contact Us For Availability
39
SPACER-HANDLE, WHITE, (2) (NOT ILLUSTRATED) WCI 318014301 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
TRIM-OVEN DOOR, WHITE, UPPER WCI 318049020 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, RED, (2) WCI 5308006417 Contact Us For Availability
51
LIGHT-INDICATOR, HOT SURFACE, (4) WCI 5303297484 Contact Us For Availability
54
SWITCH-SURFACE UNIT, (4) WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
55
WCI 5303317178 WCI 5303317178 Contact Us For Availability
56
WCI 5303317179 WCI 5303317179 Contact Us For Availability
56
WCI 318002702 WCI 318002702 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
59
WCI 318072502 WCI 318072502 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089603 WCI 318089603 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
103
TRIM-BASE WCI 5303300213 Contact Us For Availability
107
WCI 318119600 WCI 318119600 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
109
FAN BLADE WCI 5303311203 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
127
WCI 5303311195 WCI 5303311195 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
WCI 318005000 WCI 318005000 Contact Us For Availability
141
SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED) WCI 5303311124 Contact Us For Availability
142
WCI 5303310541 WCI 5303310541 Contact Us For Availability
× ![]()
