Model Electrolux FED367CESD RANGE – Common Parts & Diagrams

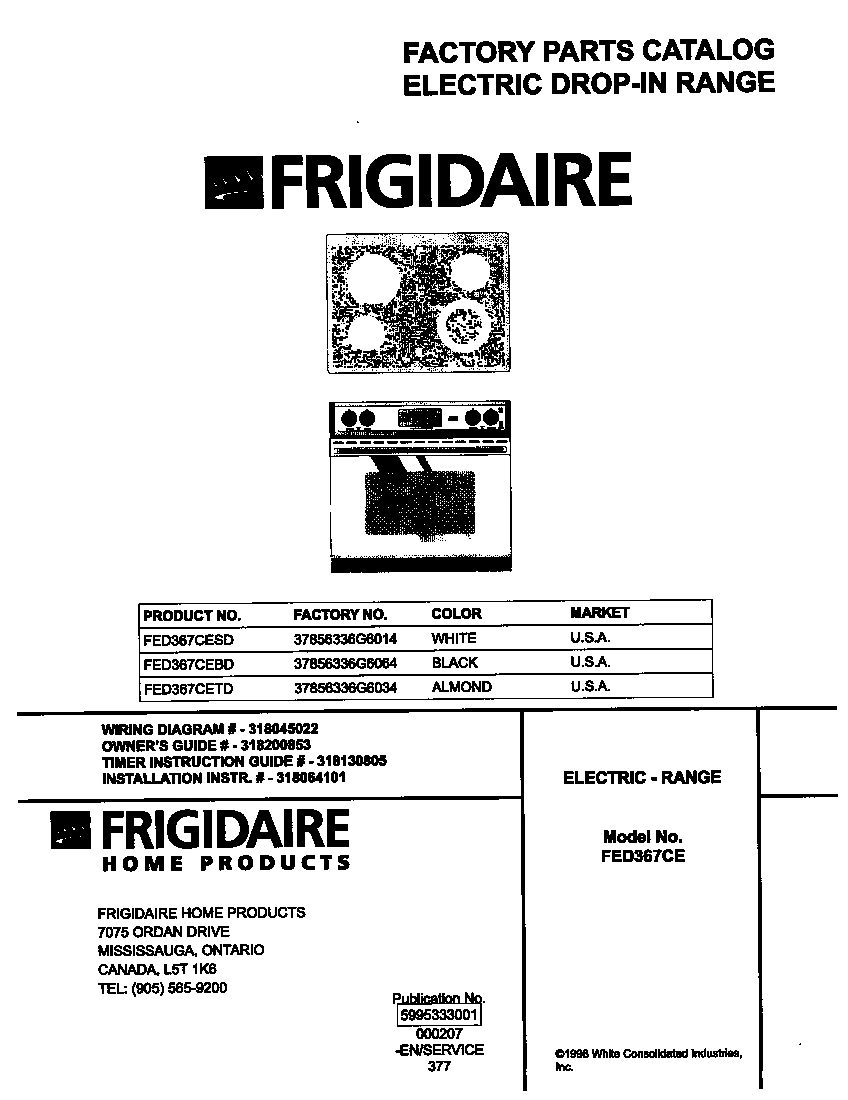

01 - COVER

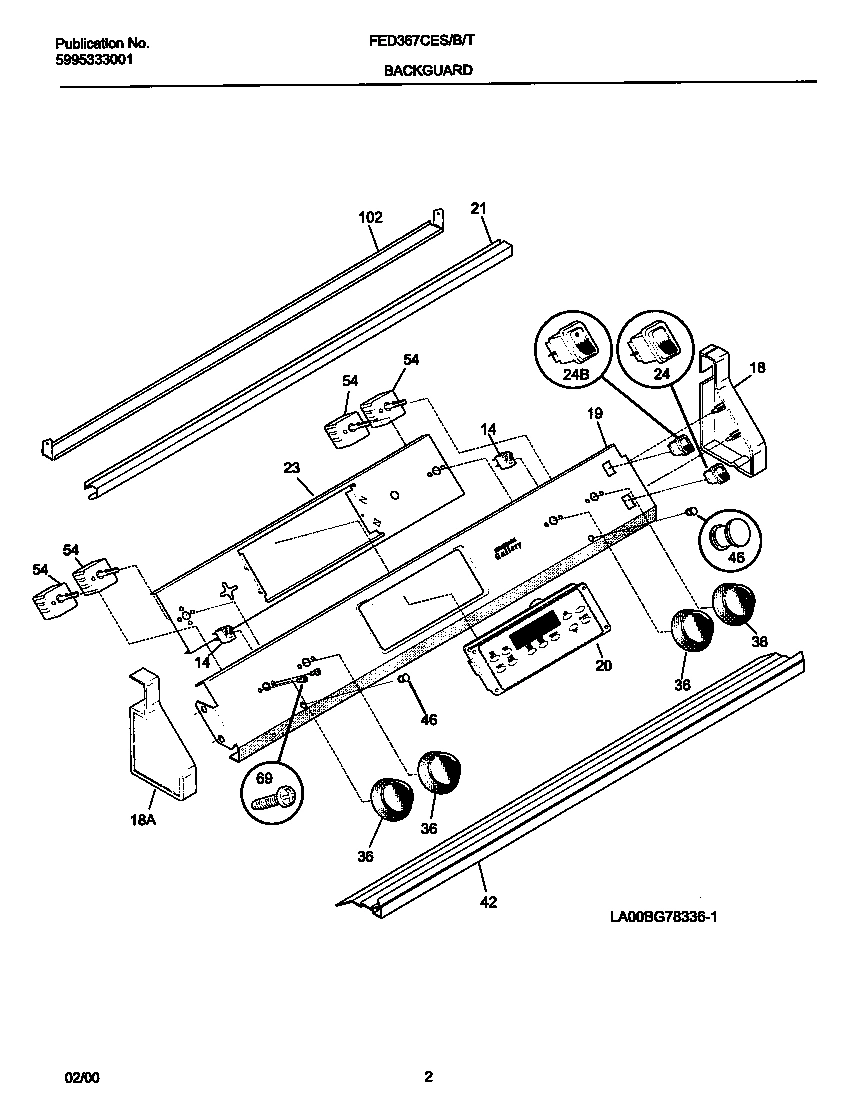

02 - CONTROL PANEL

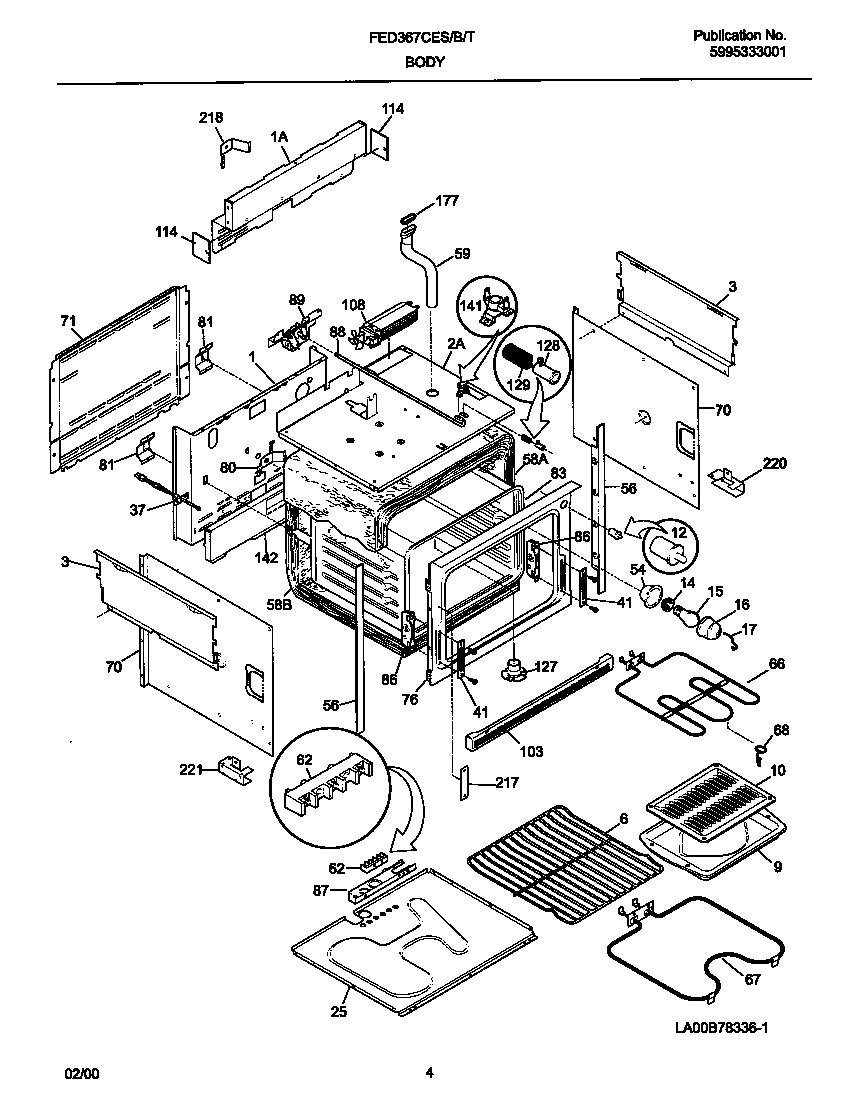

03 - BODY

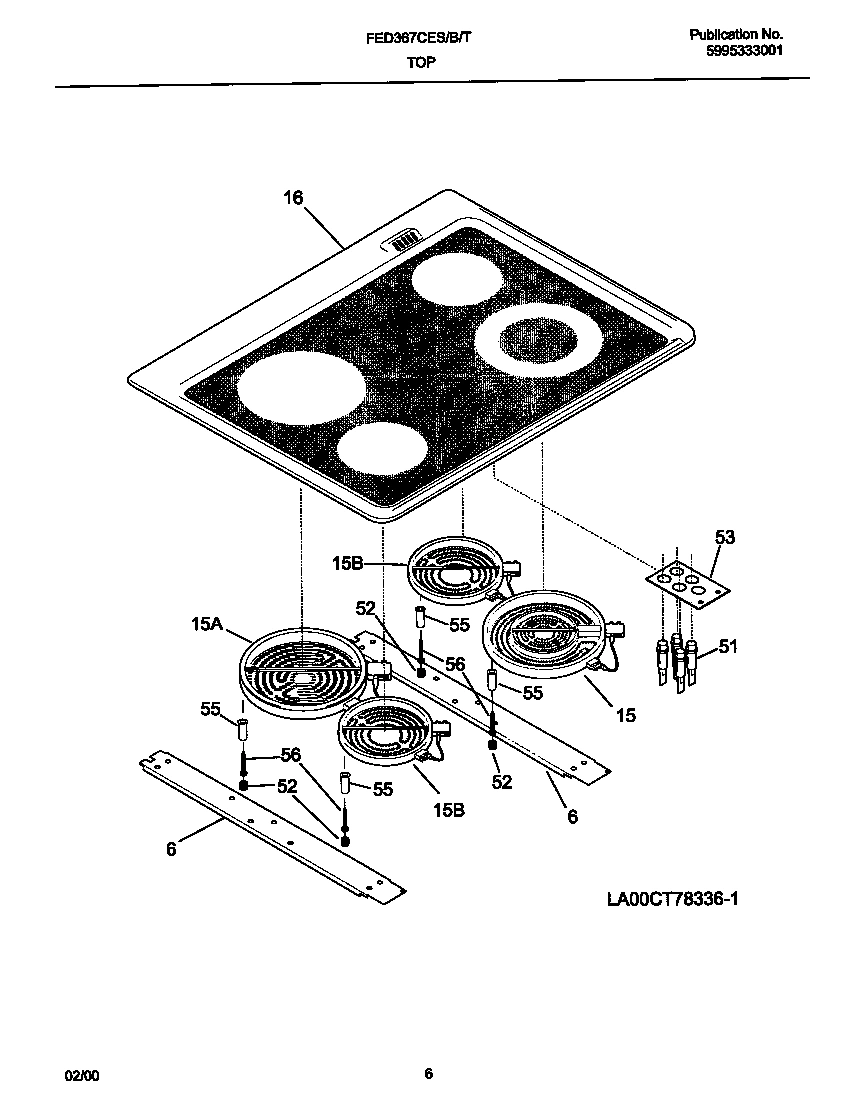

04 - TOP

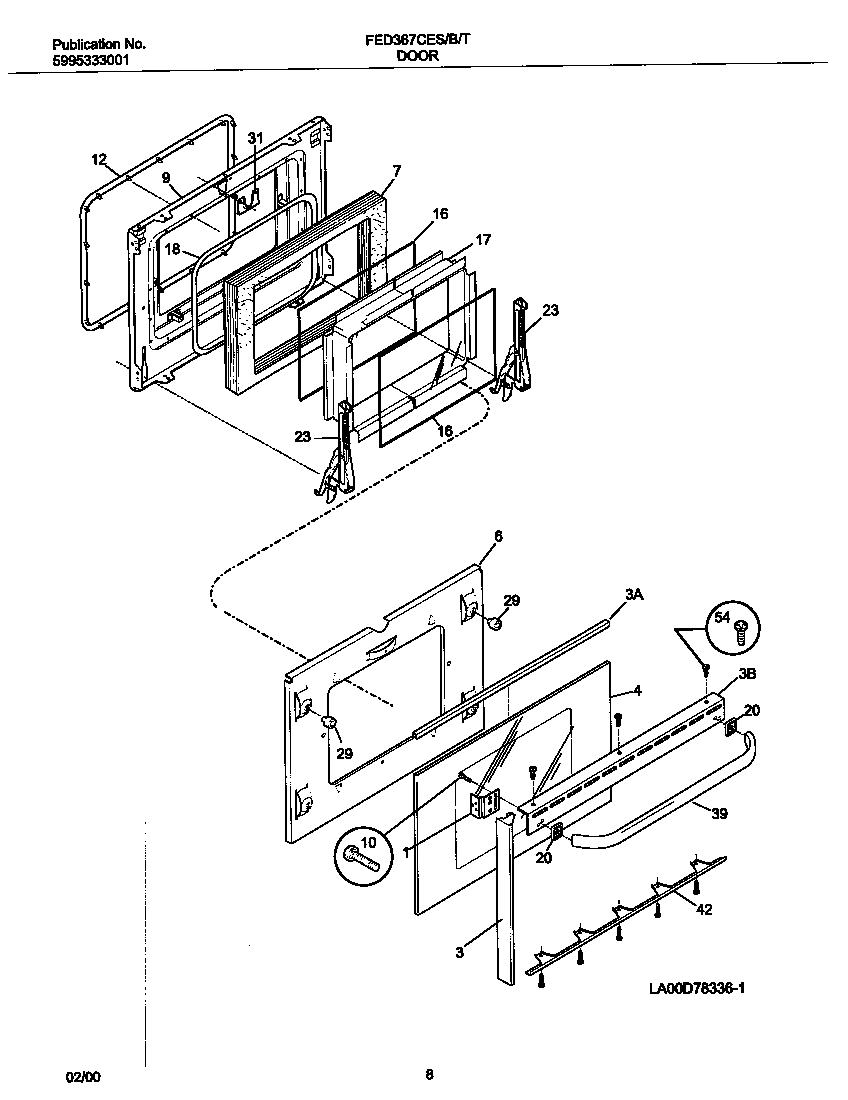

05 - DOOR

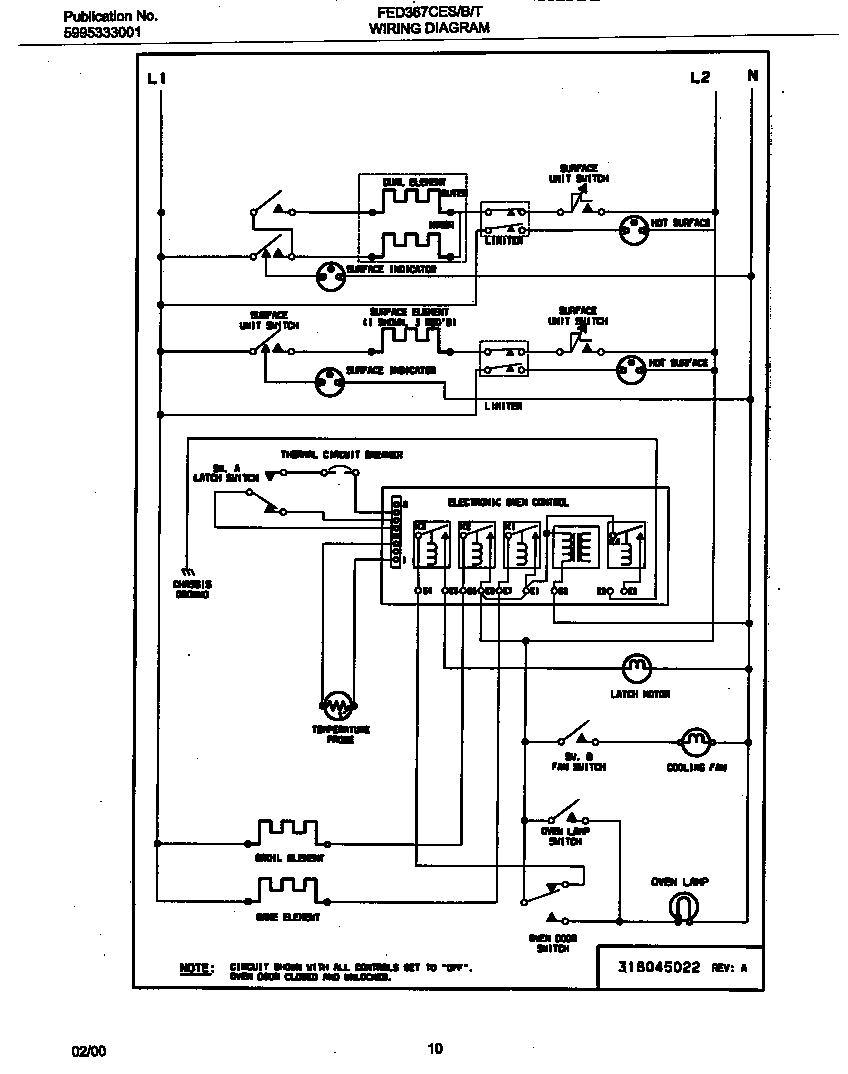

06 - WIRING DIAGRAM

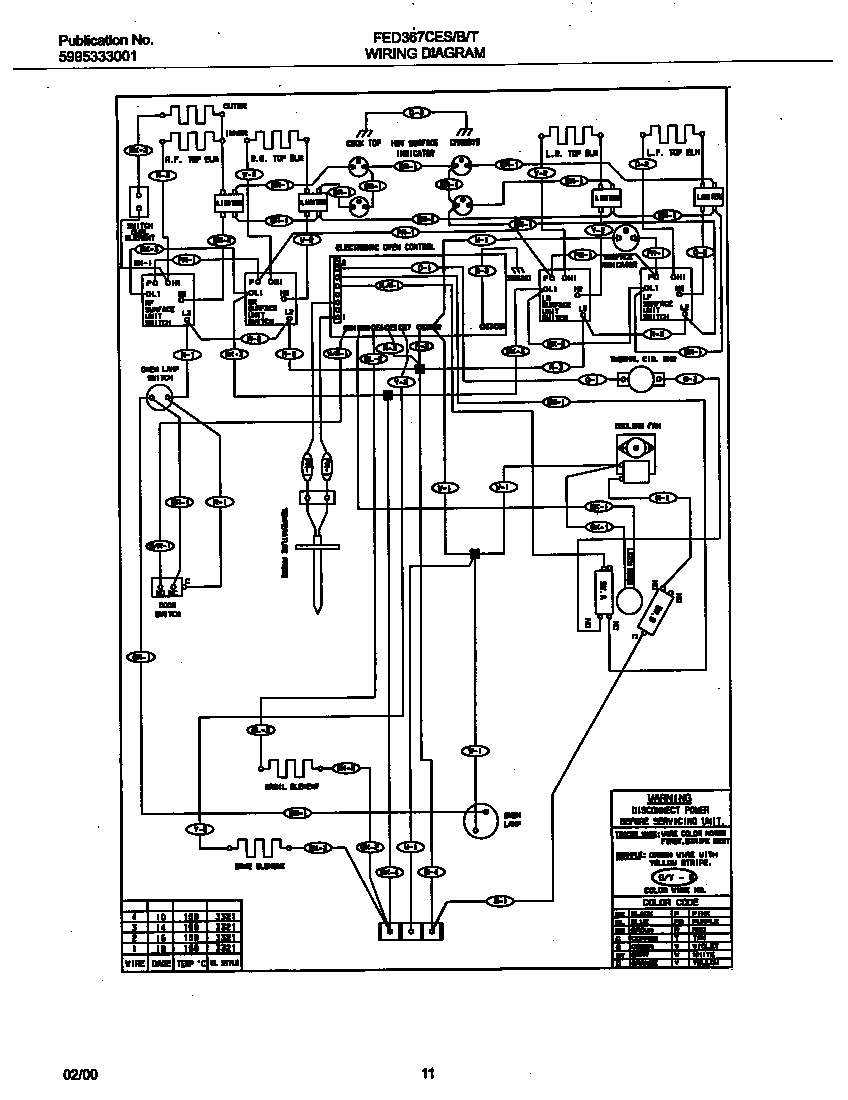

07 - WIRING DIAGRAM
Common parts from model Electrolux FED367CESD RANGE
*15920
WCI 08002868 WCI 08002868 Contact Us For Availability
1
WCI 318043100 WCI 318043100 Contact Us For Availability
3
TRIM-OVEN DOOR,UPPER WCI 318028900 Contact Us For Availability
3
TRIM-OVEN DOOR, WHITE, UPPER WCI 318049020 Contact Us For Availability
3
TRIM-OVEN DOOR, WHITE, SIDE, (2) WCI 318049206 Contact Us For Availability
4
WCI 318041102 WCI 318041102 Contact Us For Availability
6
WCI 5303311190 WCI 5303311190 Contact Us For Availability
6
SHIELD-INSULATION WCI 318056802 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 318048802 WCI 318048802 Contact Us For Availability
10
WCI 5303324305 WCI 5303324305 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
15
ELEMENT-SURFACE,DUAL ,6/9 INCHES ,1000/2000W WCI 318178002 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER ,(2) WCI 318041603 Contact Us For Availability
16
WCI 318079501 WCI 318079501 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSY WCI 5303311215 Contact Us For Availability
25
WCI 318179100 WCI 318179100 Contact Us For Availability
29
BUMPER BASE ETE>24`` WCI 318147410 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
36
KNOB,TEMP CONTROL ,WHITE WCI 318164500 Contact Us For Availability
39
HANDLE-DOOR, WHITE, OVEN WCI 316091119 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
Trim,oven door ,white ,lower WCI 5303311194 Contact Us For Availability
51
WCI 5303297484 WCI 5303297484 Contact Us For Availability
53
WCI 318125910 WCI 318125910 Contact Us For Availability
54
SWITCH-SURFACE UNIT, (4) WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
55
WCI 5303317178 WCI 5303317178 Contact Us For Availability
56
WCI 5303317179 WCI 5303317179 Contact Us For Availability
56
WCI 318002702 WCI 318002702 Contact Us For Availability
58
WCI 5303310538 WCI 5303310538 Contact Us For Availability
58
INSULATION WRAPPER WCI 5303310539 Contact Us For Availability
59
WCI 318072502 WCI 318072502 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN,COMP. WCI 318089608 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING,CORD SET WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89B
WCI 318120710 WCI 318120710 Contact Us For Availability
103
TRIM-BASE WCI 5303300213 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
114
WCI 318175100 WCI 318175100 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
177
WCI 5303324040 WCI 5303324040 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
218
WCI 318054700 WCI 318054700 Contact Us For Availability
220
WCI 5304401475 WCI 5304401475 Contact Us For Availability
221
WCI 5304401476 WCI 5304401476 Contact Us For Availability
× ![]()
