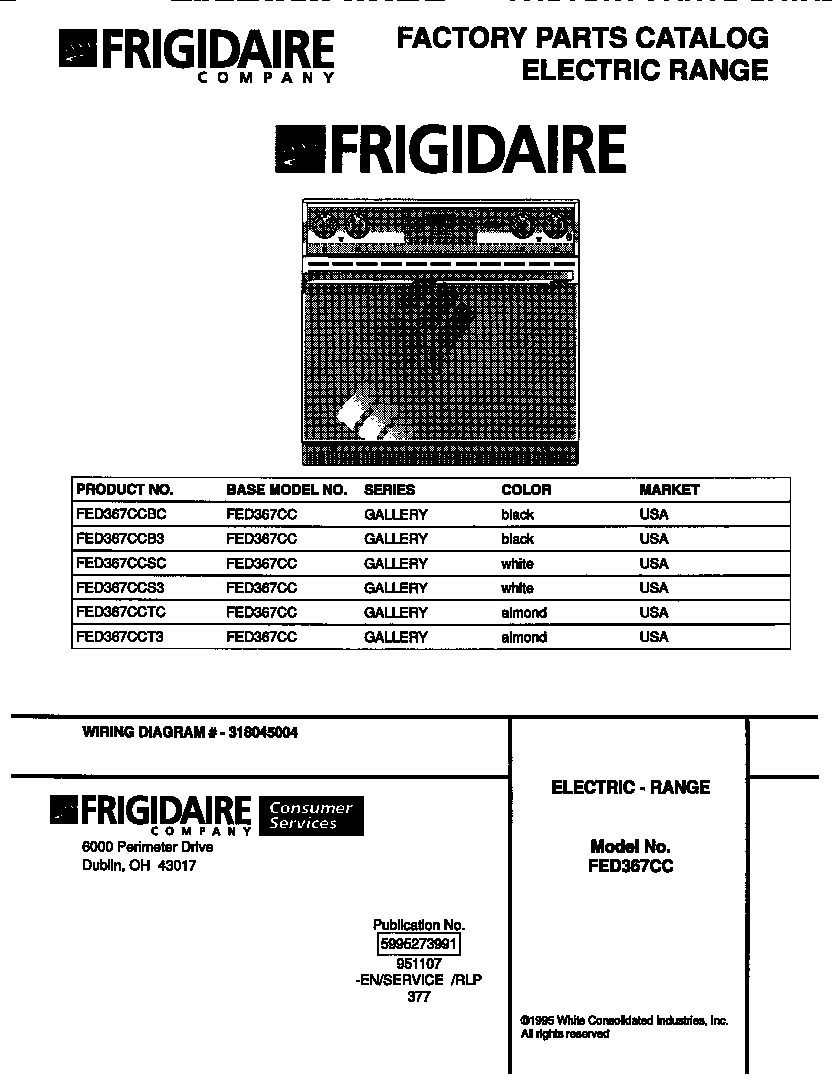

Model Electrolux FED367CCT3 RANGE – Common Parts & Diagrams

*23520
WCI 5303311171
WCI 5303311171 WCI 5303311171 Contact Us For Availability
View on Model
*23521
SWITCH, THERMAL CUTOUT
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
View on Model
1
WCI 318043100
WCI 318043100 WCI 318043100 Contact Us For Availability
View on Model
1
BACK-MAIN, UPPER
BACK-MAIN, UPPER WCI 318070901 Contact Us For Availability
View on Model
1
WCI 5303310527
WCI 5303310527 WCI 5303310527 Contact Us For Availability
View on Model
2
WCI 5303311158
WCI 5303311158 WCI 5303311158 Contact Us For Availability
View on Model
3
WCI 318028900
WCI 318028900 WCI 318028900 Contact Us For Availability
View on Model
3
WCI 318049203
WCI 318049203 WCI 318049203 Contact Us For Availability
View on Model
3
WCI 5303311198
WCI 5303311198 WCI 5303311198 Contact Us For Availability
View on Model
3A
WCI 5303300143
WCI 5303300143 WCI 5303300143 Contact Us For Availability
View on Model
3B
PLATE, ANTI-TIP (NOT ILLUSTRATED)
PLATE, ANTI-TIP (NOT ILLUSTRATED) WCI 318054700 Contact Us For Availability
View on Model
4
WCI 5303311196
WCI 5303311196 WCI 5303311196 Contact Us For Availability
View on Model
6
WCI 5303311190
WCI 5303311190 WCI 5303311190 Contact Us For Availability
View on Model
6
BAFFLE-DOOR
BAFFLE-DOOR WCI 5303311192 Contact Us For Availability
View on Model
7
WCI 5303310532
WCI 5303310532 WCI 5303310532 Contact Us For Availability
View on Model
7
WCI 5303311150
WCI 5303311150 WCI 5303311150 Contact Us For Availability
View on Model
9
WCI 5303310521
WCI 5303310521 WCI 5303310521 Contact Us For Availability
View on Model
9
WCI 5303311193
WCI 5303311193 WCI 5303311193 Contact Us For Availability
View on Model
10
WCI 5303310520
WCI 5303310520 WCI 5303310520 Contact Us For Availability
View on Model
15
WCI 318050407
WCI 318050407 WCI 318050407 Contact Us For Availability
View on Model
16
GLASS-OVEN DOOR, HEAT BARRIER
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303310533 Contact Us For Availability
View on Model
16
WCI 318079502
WCI 318079502 WCI 318079502 Contact Us For Availability
View on Model
17
WCI 3204483
WCI 3204483 WCI 3204483 Contact Us For Availability
View on Model
17
WCI 5303310534
WCI 5303310534 WCI 5303310534 Contact Us For Availability
View on Model
18
SEAL-ROPE
SEAL-ROPE WCI 5303310531 Contact Us For Availability
View on Model
22
RETAINER-GLASS
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
View on Model
23
WCI 318015000
WCI 318015000 WCI 318015000 Contact Us For Availability
View on Model
23
WCI 318024700
WCI 318024700 WCI 318024700 Contact Us For Availability
View on Model
24
SWITCH-ROCKER, ALMOND, OVEN LIGHT
SWITCH-ROCKER, ALMOND, OVEN LIGHT WCI 316005608 Contact Us For Availability
View on Model
24
WCI 316076302
WCI 316076302 WCI 316076302 Contact Us For Availability
View on Model
25
WCI 5303311141
WCI 5303311141 WCI 5303311141 Contact Us For Availability
View on Model
31
LATCH-DOOR
LATCH-DOOR WCI 5303310536 Contact Us For Availability
View on Model
36
KNOB-SURFACE UNIT, ALMOND
KNOB-SURFACE UNIT, ALMOND WCI 318016304 Contact Us For Availability
View on Model
39
WCI 5303311197
WCI 5303311197 WCI 5303311197 Contact Us For Availability
View on Model
41
WCI 5303310526
WCI 5303310526 WCI 5303310526 Contact Us For Availability
View on Model
42
WCI 5303304691
WCI 5303304691 WCI 5303304691 Contact Us For Availability
View on Model
42
WCI 318049003
WCI 318049003 WCI 318049003 Contact Us For Availability
View on Model
46
WCI 5303271239
WCI 5303271239 WCI 5303271239 Contact Us For Availability
View on Model
51
LIGHT-INDICATOR
LIGHT-INDICATOR WCI 5303297484 Contact Us For Availability
View on Model
54
SWITCH-SURFACE UNIT, SMALL, (3)
SWITCH-SURFACE UNIT, SMALL, (3) WCI 318120501 Contact Us For Availability
View on Model
54
SWITCH-SURFACE UNIT, DOUBLE
SWITCH-SURFACE UNIT, DOUBLE WCI 5303311186 Contact Us For Availability
View on Model
54
WCI 5303310514
WCI 5303310514 WCI 5303310514 Contact Us For Availability
View on Model
56
WCI 318002703
WCI 318002703 WCI 318002703 Contact Us For Availability
View on Model
58
INSULATION, OVEN WRAPPER
INSULATION, OVEN WRAPPER WCI 5303310538 Contact Us For Availability
View on Model
58
INSULATION, OVEN BACK
INSULATION, OVEN BACK WCI 5303310539 Contact Us For Availability
View on Model
59
WCI 318072502
WCI 318072502 WCI 318072502 Contact Us For Availability
View on Model
63A
WCI 5303310517
WCI 5303310517 WCI 5303310517 Contact Us For Availability
View on Model
68
WCI 5303307563
WCI 5303307563 WCI 5303307563 Contact Us For Availability
View on Model
70
PANEL-BODYSIDE
PANEL-BODYSIDE WCI 5303300142 Contact Us For Availability
View on Model
71
COVER-WIRING
COVER-WIRING WCI 5303310515 Contact Us For Availability
View on Model
76
WCI 5303311159
WCI 5303311159 WCI 5303311159 Contact Us For Availability
View on Model
80
WCI 5303301261
WCI 5303301261 WCI 5303301261 Contact Us For Availability
View on Model
83
WCI 5303310523
WCI 5303310523 WCI 5303310523 Contact Us For Availability
View on Model
86
CHANNEL-HINGE
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
View on Model
87
WCI 5303311146
WCI 5303311146 WCI 5303311146 Contact Us For Availability
View on Model
88
WCI 5303311160
WCI 5303311160 WCI 5303311160 Contact Us For Availability
View on Model
103
TRIM-BASE
TRIM-BASE WCI 5303300214 Contact Us For Availability
View on Model
108
WCI 318073001
WCI 318073001 WCI 318073001 Contact Us For Availability
View on Model
114
PLATE-FILLER
PLATE-FILLER WCI 3051827 Contact Us For Availability
View on Model
127B
WCI 5303311195
WCI 5303311195 WCI 5303311195 Contact Us For Availability
View on Model
128
WCI 5303311163
WCI 5303311163 WCI 5303311163 Contact Us For Availability
View on Model
141
WCI 318005000
WCI 318005000 WCI 318005000 Contact Us For Availability
View on Model
142
WCI 5303310541
WCI 5303310541 WCI 5303310541 Contact Us For Availability
View on Model
