Model Electrolux FED355CCTF RANGE – Common Parts & Diagrams

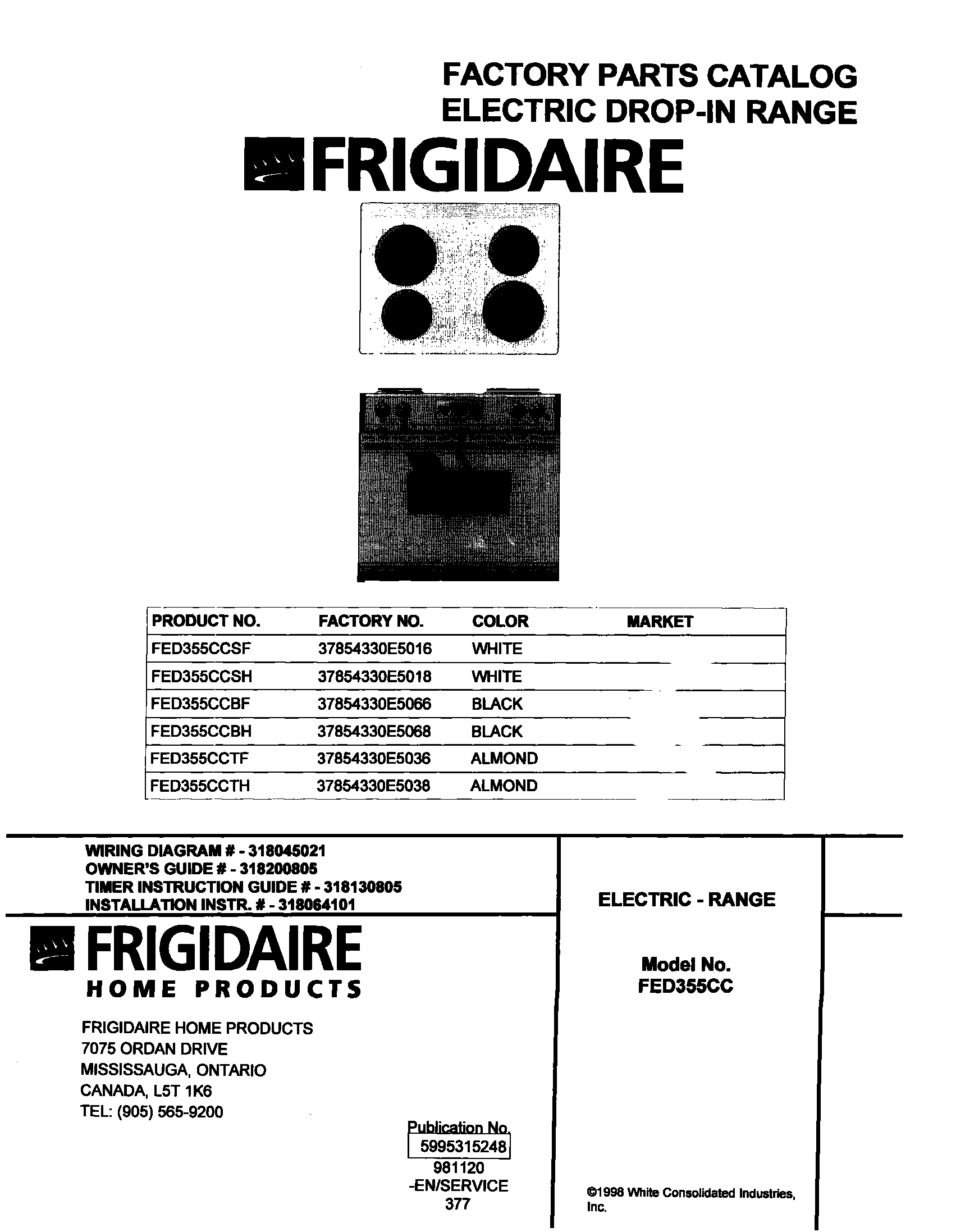

01 - COVER

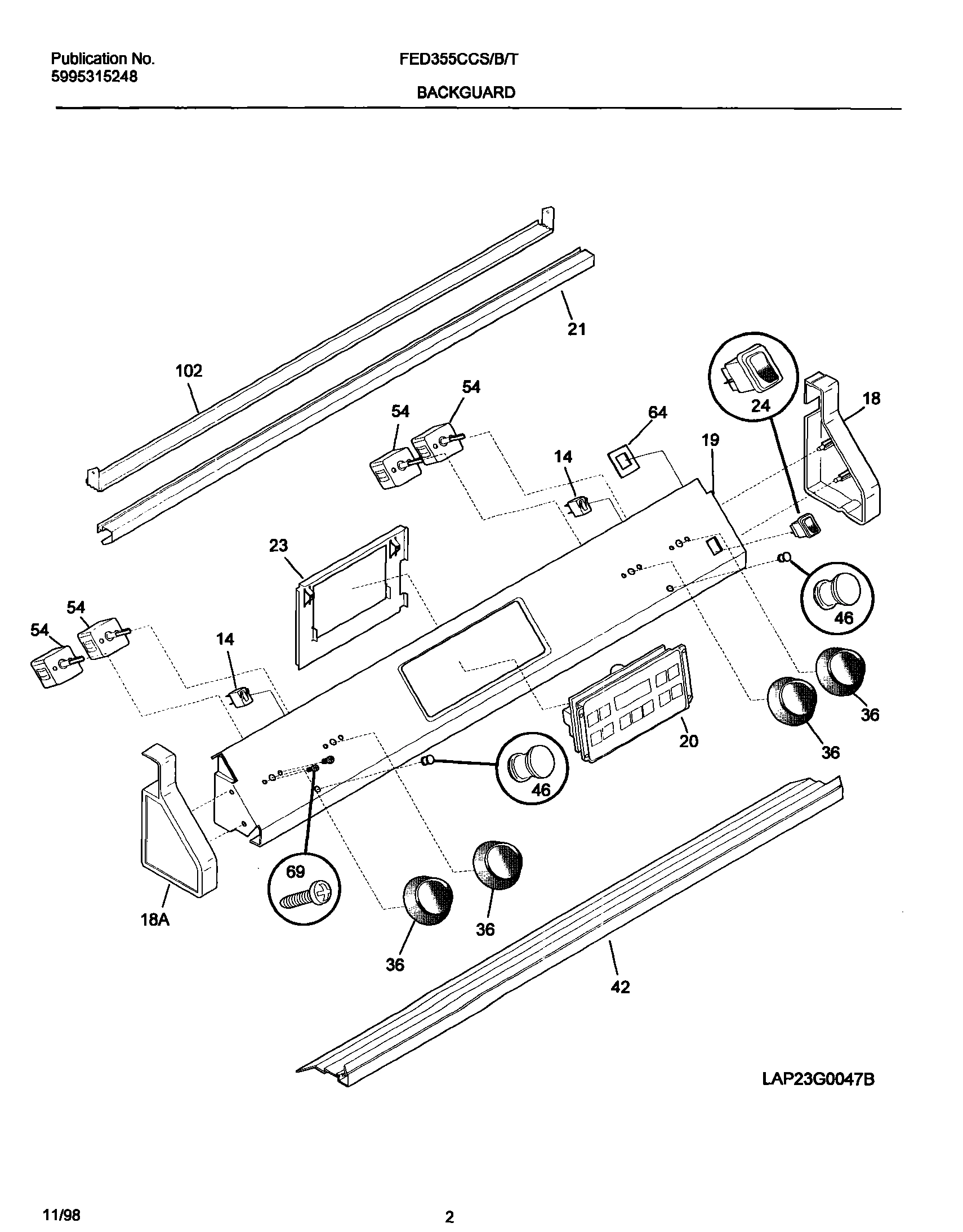

03 - BACKGUARD

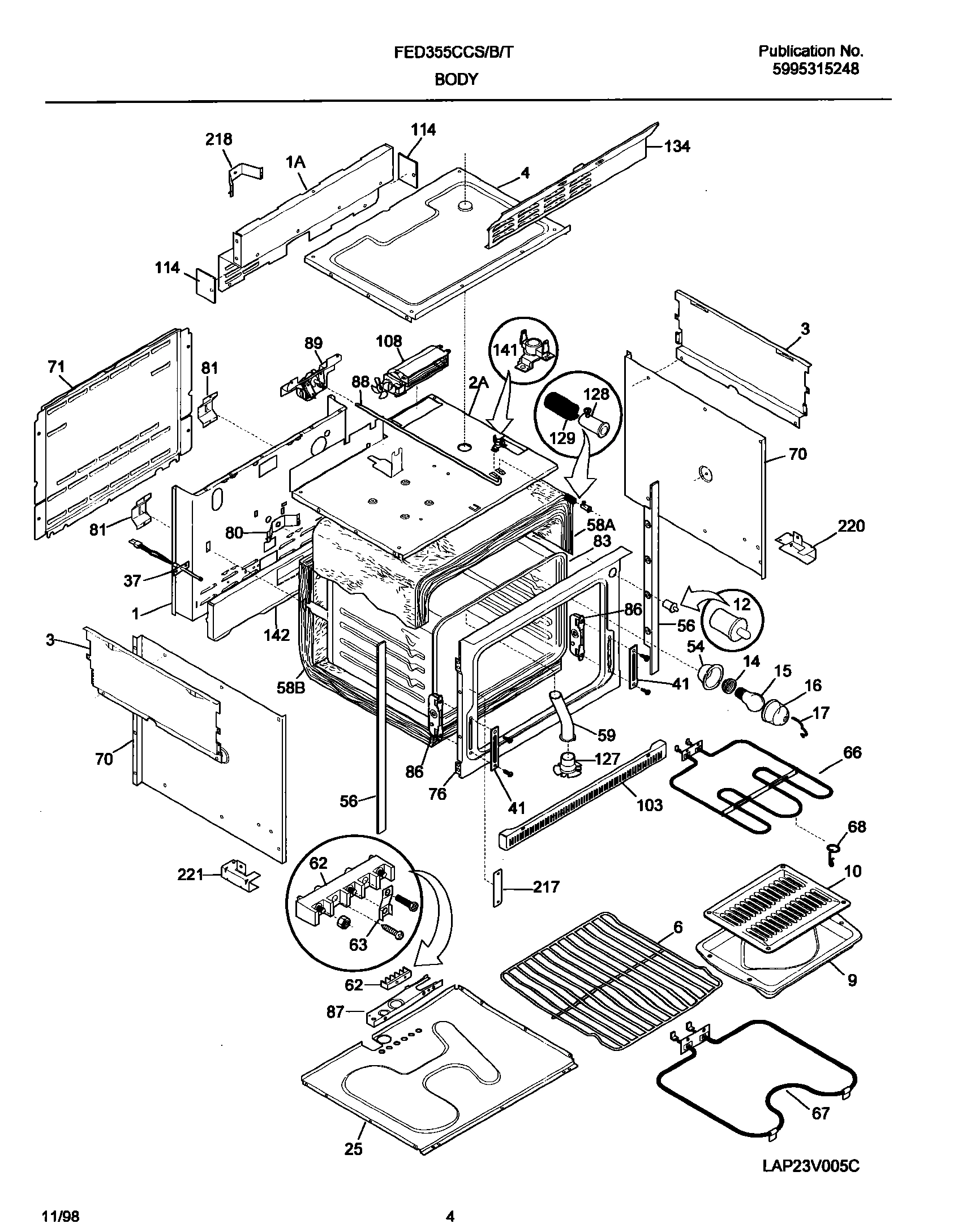

05 - BODY

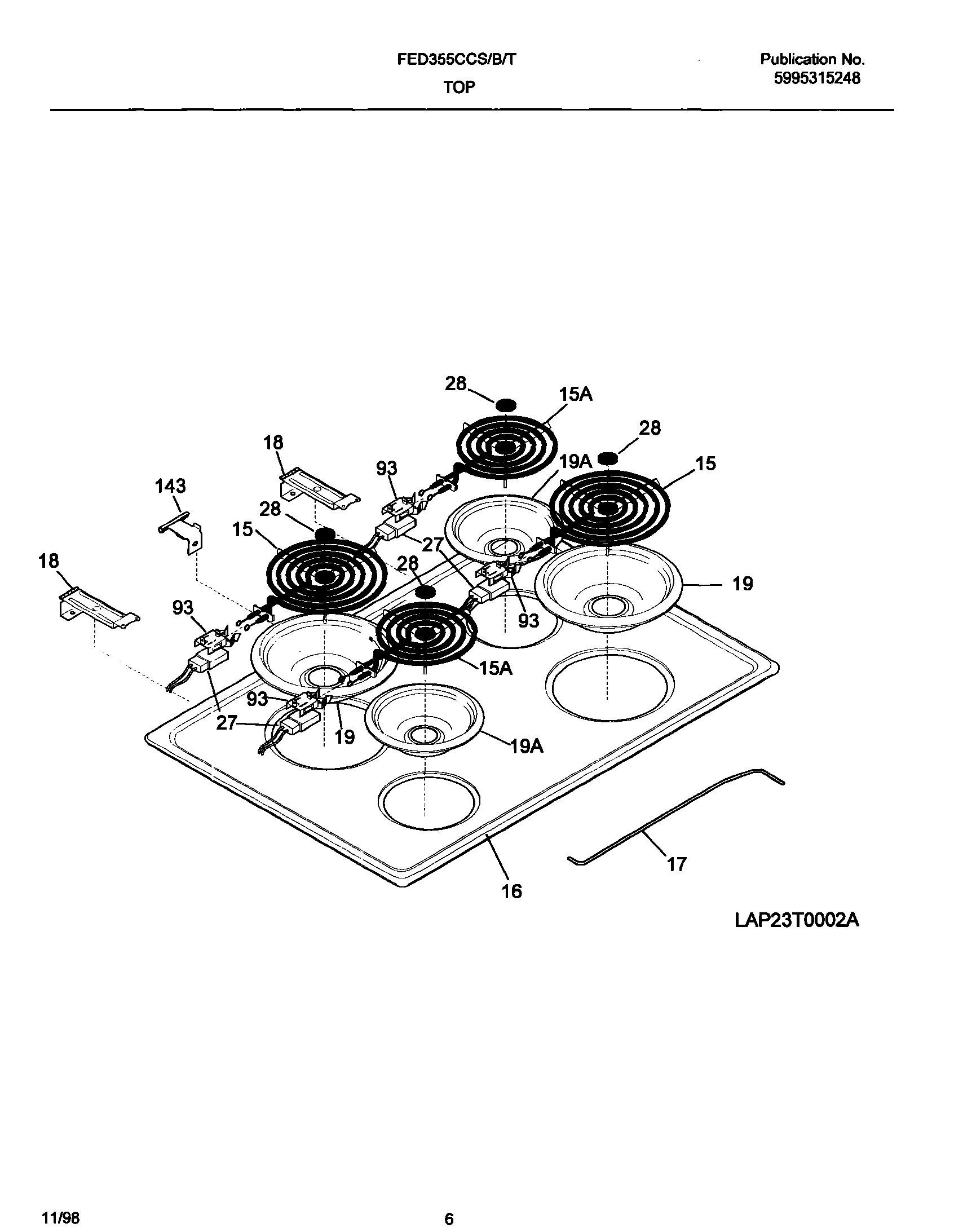

07 - TOP

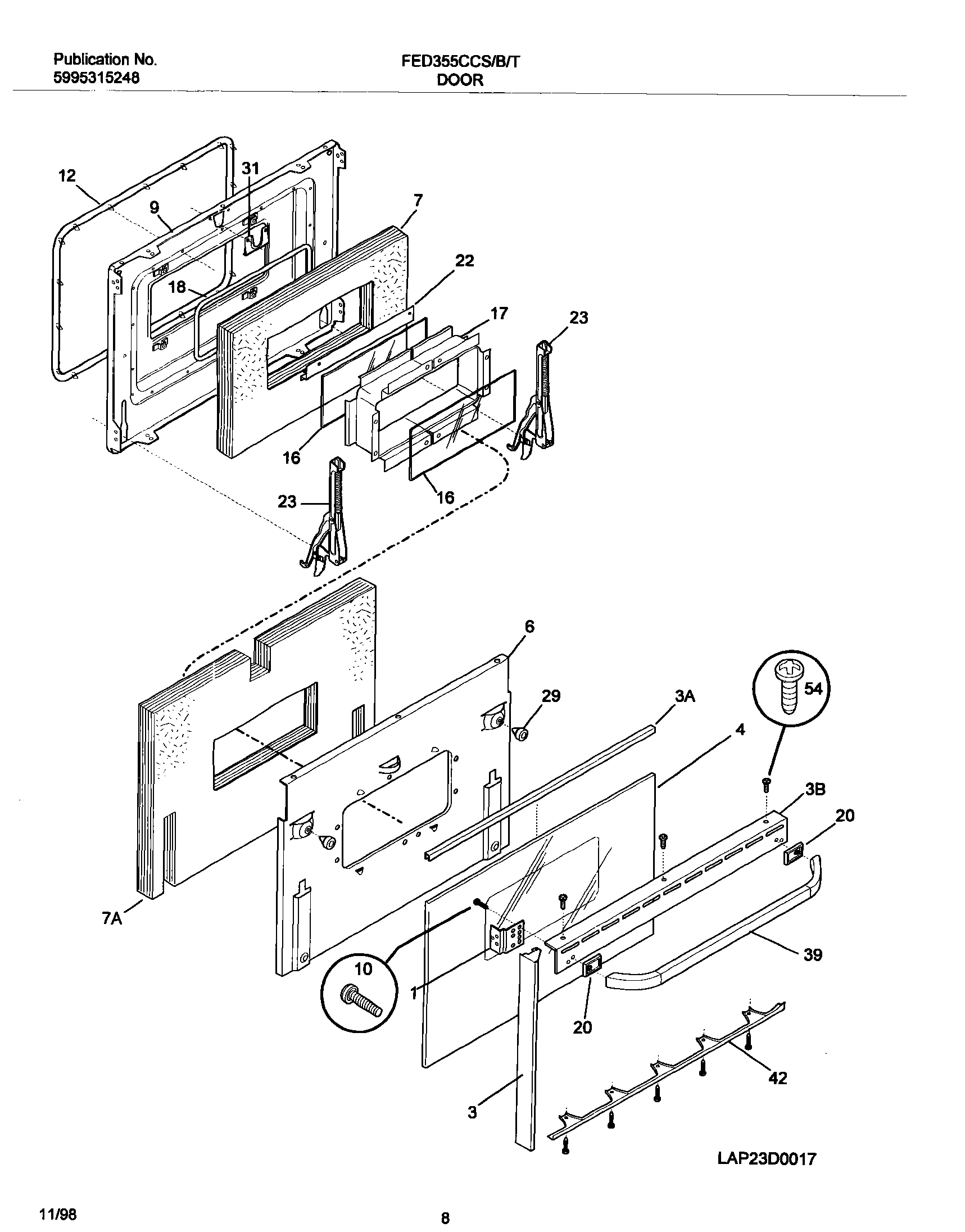

09 - DOOR

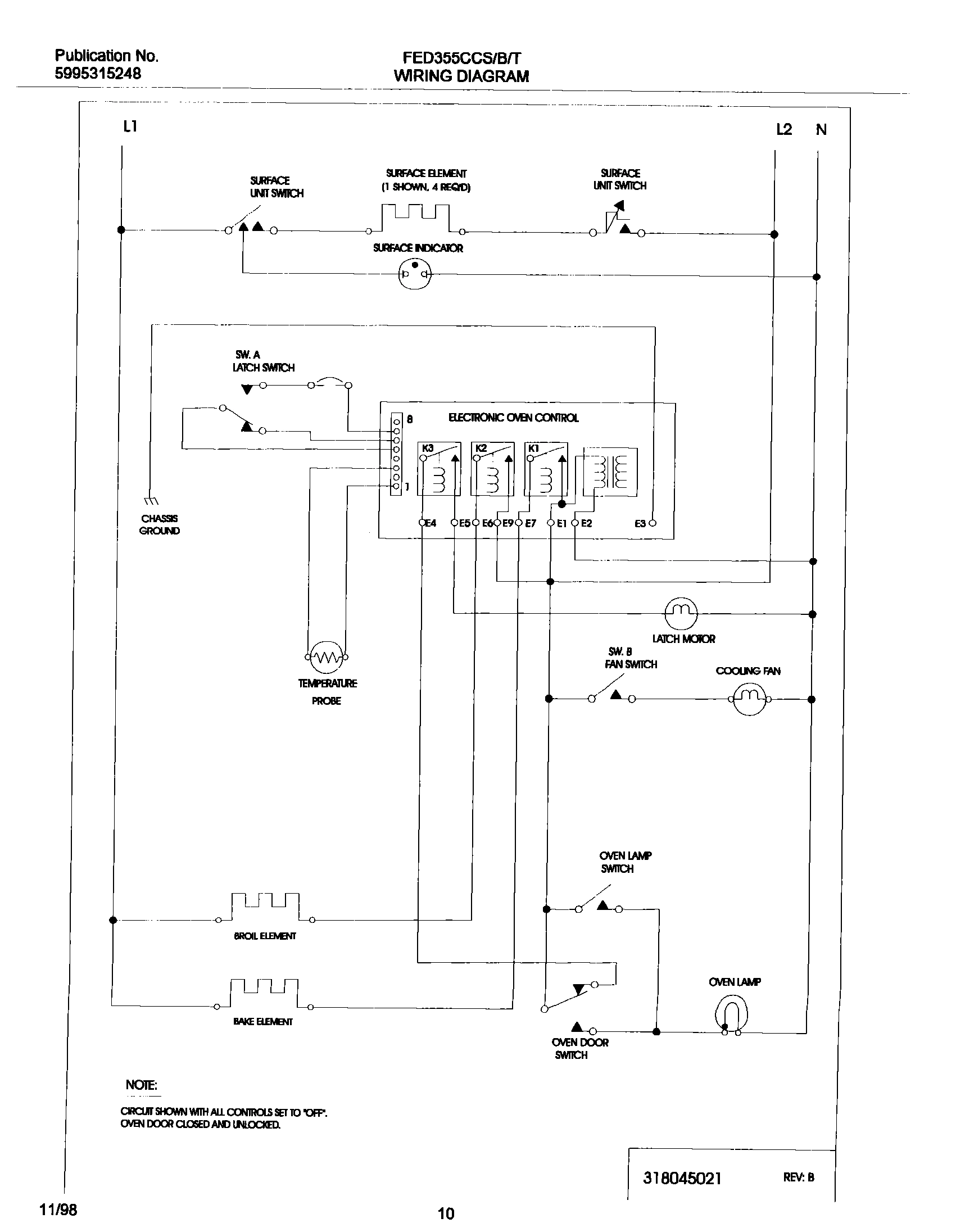

10 - WIRING DIAGRAM
Common parts from model Electrolux FED355CCTF RANGE
1
BRACKET-TRIM WCI 318043100 Contact Us For Availability
3
WCI 318049203 WCI 318049203 Contact Us For Availability
3A
WCI 318028900 WCI 318028900 Contact Us For Availability
3B
Trim,oven door ,almond WCI 318049021 Contact Us For Availability
4
WCI 5303311196 WCI 5303311196 Contact Us For Availability
6
WCI 5303310522 WCI 5303310522 Contact Us For Availability
6
WCI 5303311192 WCI 5303311192 Contact Us For Availability
7
WCI 5303310532 WCI 5303310532 Contact Us For Availability
7A
WCI 5303311150 WCI 5303311150 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318112906 WCI 318112906 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
SCREW, 10-24 X 5/8 WCI 5303324305 Contact Us For Availability
14
LIGHT-LAMP/INDICATOR WCI 5303051533 Contact Us For Availability
16
GLASS-OVEN DOOR WCI 5303310533 Contact Us For Availability
16
WCI 5303300167 WCI 5303300167 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
ROD MAIN TOP WCI 3051554 Contact Us For Availability
17
SPACER-GLASS WCI 318139000 Contact Us For Availability
18
BRACKET-HINGE WCI 5303305530 Contact Us For Availability
18
SEAL-ROPE WCI 5303310531 Contact Us For Availability
20
SPACER-HANDLE,ALMOND WCI 318014302 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSEMBLY WCI 318024700 Contact Us For Availability
25
WCI 5303311141 WCI 5303311141 Contact Us For Availability
27
WCI 5303323704 WCI 5303323704 Contact Us For Availability
28
CENTER TRIM (NON-ILLUSTRATED) WCI 5303301461 Contact Us For Availability
29
WCI 5303310535 WCI 5303310535 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
39
WCI 316091120 WCI 316091120 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
WCI 5303311198 WCI 5303311198 Contact Us For Availability
46
WCI 5308006417 WCI 5308006417 Contact Us For Availability
54
WCI 318120501 WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318002703 WCI 318002703 Contact Us For Availability
58A
WCI 5303310539 WCI 5303310539 Contact Us For Availability
58B
WCI 5303310538 WCI 5303310538 Contact Us For Availability
59
WCI 5303311139 WCI 5303311139 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089608 WCI 318089608 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
WCI 318120702 WCI 318120702 Contact Us For Availability
89
WCI 5304404899 WCI 5304404899 Contact Us For Availability
93
BRACKET,TERMINAL BLOCK WCI 318122500 Contact Us For Availability
103
TRIM-BASE WCI 5303300214 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
134
WCI 5303319029 WCI 5303319029 Contact Us For Availability
141
SWITCH WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
143
BRACKET-HINGE WCI 5303300148 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
220
WCI 5304401475 WCI 5304401475 Contact Us For Availability
221
WCI 5304401476 WCI 5304401476 Contact Us For Availability
NI
SCREW WCI 5303311124 Contact Us For Availability
NI
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
× ![]()
