Model Electrolux FED355CCBJ RANGE – Common Parts & Diagrams

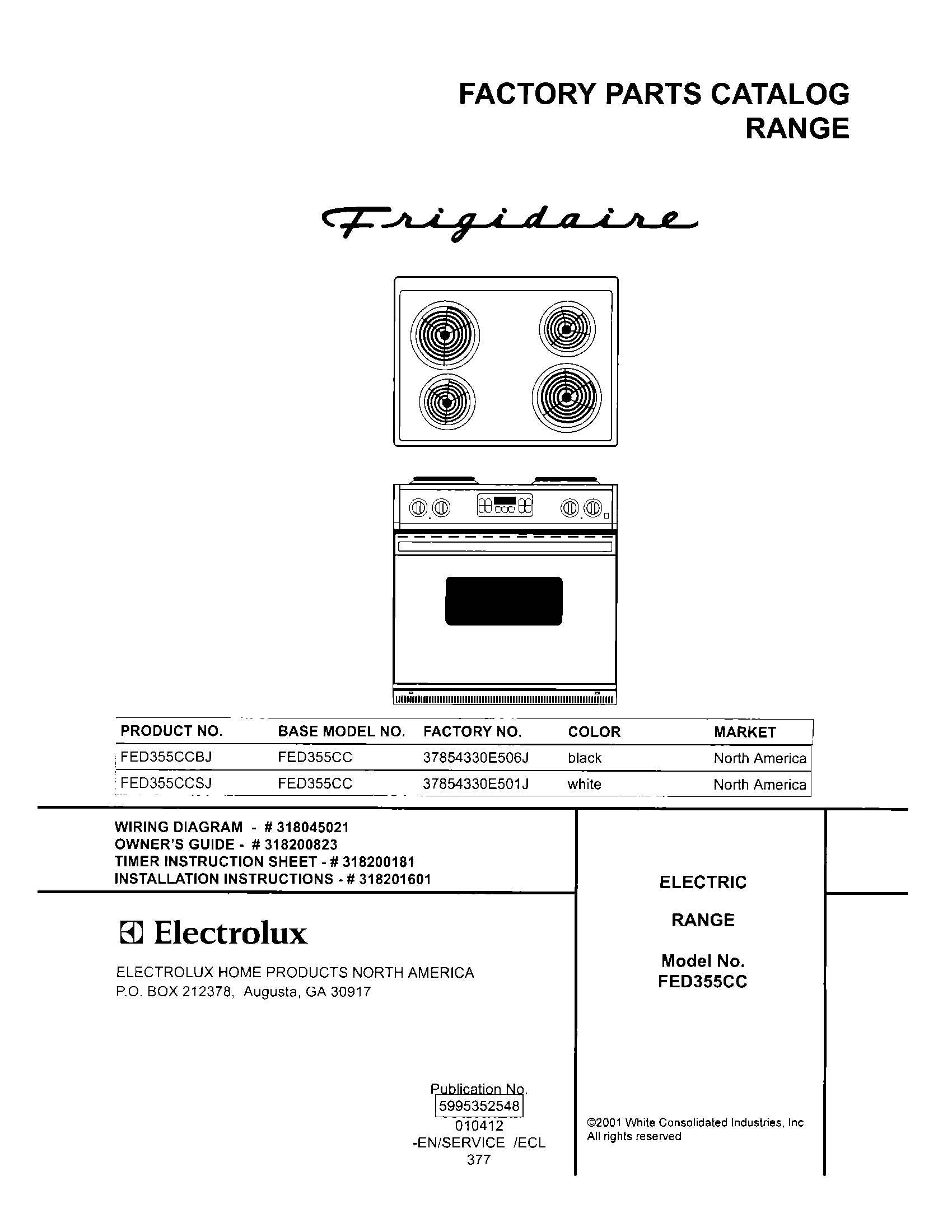

01 - COVER

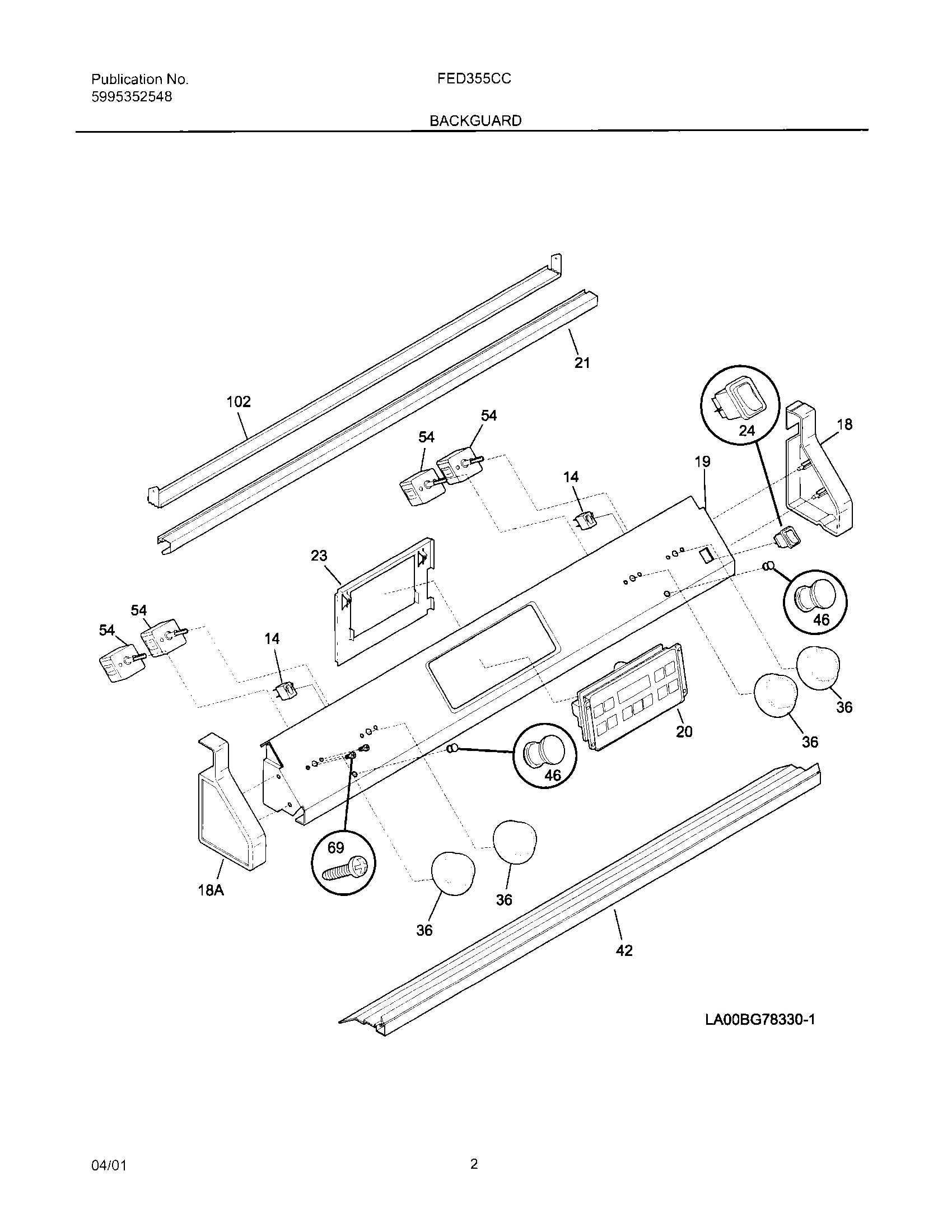

03 - BACKGUARD
05 - BODY
07 - TOP/DRAWER
09 - DOOR
10 - WIRING DIAGRAM
11 - WIRING DIAGRAM
Common parts from model Electrolux FED355CCBJ RANGE
1
WCI 318043100 WCI 318043100 Contact Us For Availability
3
TRIM-OVEN DOOR,UPPER WCI 318028900 Contact Us For Availability
3
Trim,oven door ,black ,upper WCI 318049019 Contact Us For Availability
3
WCI 318049201 WCI 318049201 Contact Us For Availability
4
WCI 5303311199 WCI 5303311199 Contact Us For Availability
6
WCI 318057010 WCI 318057010 Contact Us For Availability
7
Insulation,oven door ,cavity WCI 5303310532 Contact Us For Availability
7
Insulation,oven door ,full length WCI 5303311150 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318157013 WCI 318157013 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
Screw,10-24 x 0.625 ,handle mtg WCI 5303324305 Contact Us For Availability
14
Light,indicator WCI 5303051533 Contact Us For Availability
16
WCI 5303310533 WCI 5303310533 Contact Us For Availability
16
WCI 5303307287 WCI 5303307287 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
Rod,support ,main top panel WCI 3051554 Contact Us For Availability
17
WCI 318139000 WCI 318139000 Contact Us For Availability
18
WCI 5303305530 WCI 5303305530 Contact Us For Availability
18
WCI 5303310531 WCI 5303310531 Contact Us For Availability
20
WCI 318014300 WCI 318014300 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSEMBLY WCI 318024700 Contact Us For Availability
25
Shield,heat ,lower WCI 318179107 Contact Us For Availability
27
TERMINAL BLOCK, SURFACE ELEMENT WCI 5303323704 Contact Us For Availability
28
WCI 5303301461 WCI 5303301461 Contact Us For Availability
29
WCI 318147410 WCI 318147410 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
39
Handle,oven door ,black WCI 316091118 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
WCI 5303311200 WCI 5303311200 Contact Us For Availability
54
WCI 318120501 WCI 318120501 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318002711 WCI 318002711 Contact Us For Availability
58
WCI 318132609 WCI 318132609 Contact Us For Availability
58
INSULATION,OVEN WRAPPER WCI 5303310539 Contact Us For Availability
59
WCI 318072524 WCI 318072524 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
81
WCI 318192400 WCI 318192400 Contact Us For Availability
83
WCI 318089613 WCI 318089613 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
WCI 318111800 WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
93
WCI 318122500 WCI 318122500 Contact Us For Availability
103
Trim,base ,black WCI 5303300217 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
114
WCI 318175100 WCI 318175100 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
134
WCI 318077610 WCI 318077610 Contact Us For Availability
141
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
143
WCI 5303300148 WCI 5303300148 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
220
WCI 5304401475 WCI 5304401475 Contact Us For Availability
221
WCI 5304401476 WCI 5304401476 Contact Us For Availability
NI
WCI 318078515 WCI 318078515 Contact Us For Availability
NI
Switch,cooktop shutoff WCI 318120710 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
× ![]()
