Model Electrolux FED354BAB3 RANGE – Common Parts & Diagrams

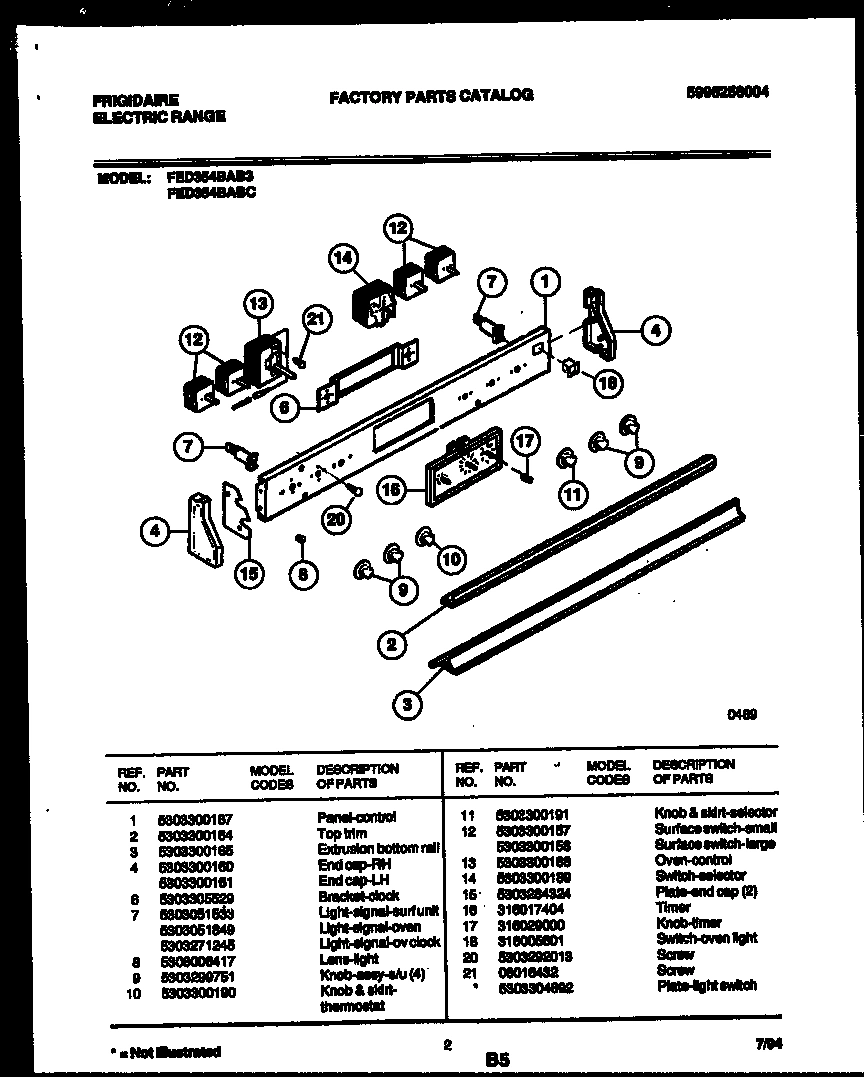

02 - CONTROL PANEL

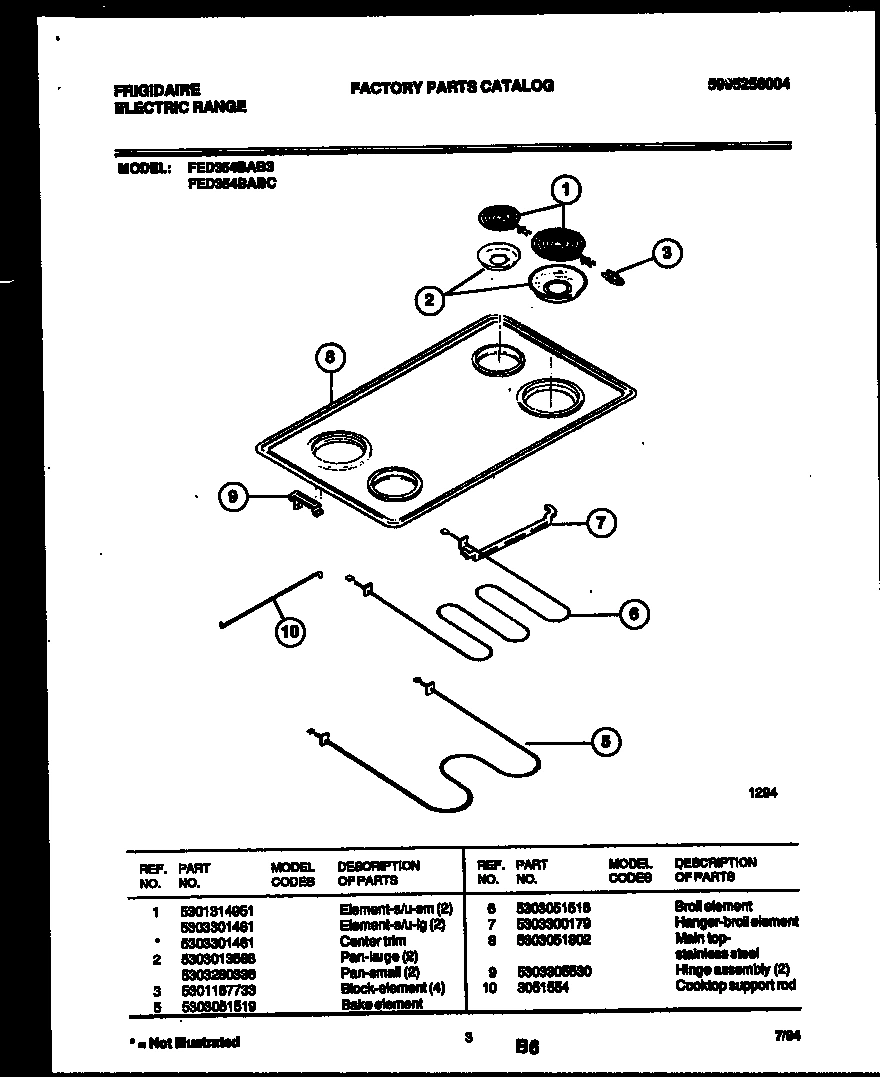

03 - COOKTOP AND BROILER PARTS
04 - DOOR PARTS
05 - BODY PARTS
Common parts from model Electrolux FED354BAB3 RANGE
*10541
CORK & RUBBER WCI 5303300414 Contact Us For Availability
*10542
WIRING DIAGRAM WCI 211896-1060 Contact Us For Availability
*10542
RETAINER-DOOR WCI 3051810 Contact Us For Availability
*10542
WCI 316039801 WCI 316039801 Contact Us For Availability
*10542
WCI 3204825 WCI 3204825 Contact Us For Availability
1
WCI 5303300192 WCI 5303300192 Contact Us For Availability
1
WCI 5303293414 WCI 5303293414 Contact Us For Availability
1B
CENTER TRIM (NON-ILLUSTRATED) WCI 5303301461 Contact Us For Availability
2
WCI 5303300193 WCI 5303300193 Contact Us For Availability
2
BACK-RANGE WCI 5303305534 Contact Us For Availability
3
WCI 5301167830 WCI 5301167830 Contact Us For Availability
3
WCI 5303286183 WCI 5303286183 Contact Us For Availability
4
WCI 5303300194 WCI 5303300194 Contact Us For Availability
4
WIRING COVER WCI 5303051856 Contact Us For Availability
5
GASKET WCI 5303051704 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
7
LIGHT-SIGNAL SURF UNIT WCI 5303051533 Contact Us For Availability
7
WCI 5303209512 WCI 5303209512 Contact Us For Availability
7
WCI 5303300179 WCI 5303300179 Contact Us For Availability
7
TUBE-VENT ASSEMBLY WCI 3051773 Contact Us For Availability
8
LENS-LIGHT WCI 5308006417 Contact Us For Availability
8
MAIN TOP-STAINLESS STEEL WCI 5303051802 Contact Us For Availability
8
WCI 5303269564 WCI 5303269564 Contact Us For Availability
8
WCI 3203574 WCI 3203574 Contact Us For Availability
9
BRACKET-HINGE WCI 5303305530 Contact Us For Availability
9
WCI 5303269679 WCI 5303269679 Contact Us For Availability
9
THERMOSTAT BULB BRKT WCI 3051552 Contact Us For Availability
10
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
10
COOKTOP SUPPORT ROD WCI 3051554 Contact Us For Availability
10
WCI 5303305535 WCI 5303305535 Contact Us For Availability
11
KNOB & SKIRT-SELECTOR WCI 5303300191 Contact Us For Availability
11
WCI 3051807 WCI 3051807 Contact Us For Availability
13
OVEN CONTROL WCI 5303300188 Contact Us For Availability
14
WCI 5303300189 WCI 5303300189 Contact Us For Availability
14
WCI 5303300196 WCI 5303300196 Contact Us For Availability
14
RETAINER-LENS WCI 5303205904 Contact Us For Availability
15
WCI 5303284324 WCI 5303284324 Contact Us For Availability
15
WCI 5303210232 WCI 5303210232 Contact Us For Availability
15
WCI 5303300142 WCI 5303300142 Contact Us For Availability
16
TIMER WCI 316017404 Contact Us For Availability
16
PANEL-SIDE (2) WCI 5303300143 Contact Us For Availability
17
KNOB-TIMER WCI 316029000 Contact Us For Availability
17
WCI 5303299481 WCI 5303299481 Contact Us For Availability
18
WCI 316005601 WCI 316005601 Contact Us For Availability
18
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
18
WCI 5303300212 WCI 5303300212 Contact Us For Availability
19
WCI 5303300197 WCI 5303300197 Contact Us For Availability
20
WCI 5303292013 WCI 5303292013 Contact Us For Availability
20
WCI 5303300211 WCI 5303300211 Contact Us For Availability
21
SCREW WCI 08016432 Contact Us For Availability
21
WCI 5303269535 WCI 5303269535 Contact Us For Availability
21
WCI 5303293413 WCI 5303293413 Contact Us For Availability
22
WCI 5303212546 WCI 5303212546 Contact Us For Availability
22
TRIM-BOTTOM GRILLE WCI 5303300217 Contact Us For Availability
23
SPACER-HANDLE MTG WCI 5303212865 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
WCI 5303299479 WCI 5303299479 Contact Us For Availability
25
OVEN BACK INSULATION WCI 5303051630 Contact Us For Availability
26
INSULATION-VENT TUBE WCI 3008673 Contact Us For Availability
28
WCI 5303300148 WCI 5303300148 Contact Us For Availability
29A
WCI 5303300202 WCI 5303300202 Contact Us For Availability
30
BRACKET, DOOR SWITCH WCI 3051643 Contact Us For Availability
31
SWITCH-DOOR LATCH WCI 5308003081 Contact Us For Availability
32
PUSH ROD-SWITCH WCI 3051645 Contact Us For Availability
33
WCI 08007444 WCI 08007444 Contact Us For Availability
34
MOTOR LATCH ASSEMBLY WCI 5308015743 Contact Us For Availability
35
WCI 3051649 WCI 3051649 Contact Us For Availability
36
WCI 3051648 WCI 3051648 Contact Us For Availability
37
BRACKET LATCH WCI 3051647 Contact Us For Availability
38
WCI 5308012004 WCI 5308012004 Contact Us For Availability
39
WCI 3202114 WCI 3202114 Contact Us For Availability
39A
SWITCH-BOTTOM WCI 3202430 Contact Us For Availability
41
WCI 3204817 WCI 3204817 Contact Us For Availability
42
WCI 5303300198 WCI 5303300198 Contact Us For Availability
44
BROILER GRILL WCI 5303293415 Contact Us For Availability
45
BROILER PAN WCI 5303293416 Contact Us For Availability
46
WCI 5303304726 WCI 5303304726 Contact Us For Availability
× ![]()
