Model Electrolux FED300DSB RANGE – Common Parts & Diagrams

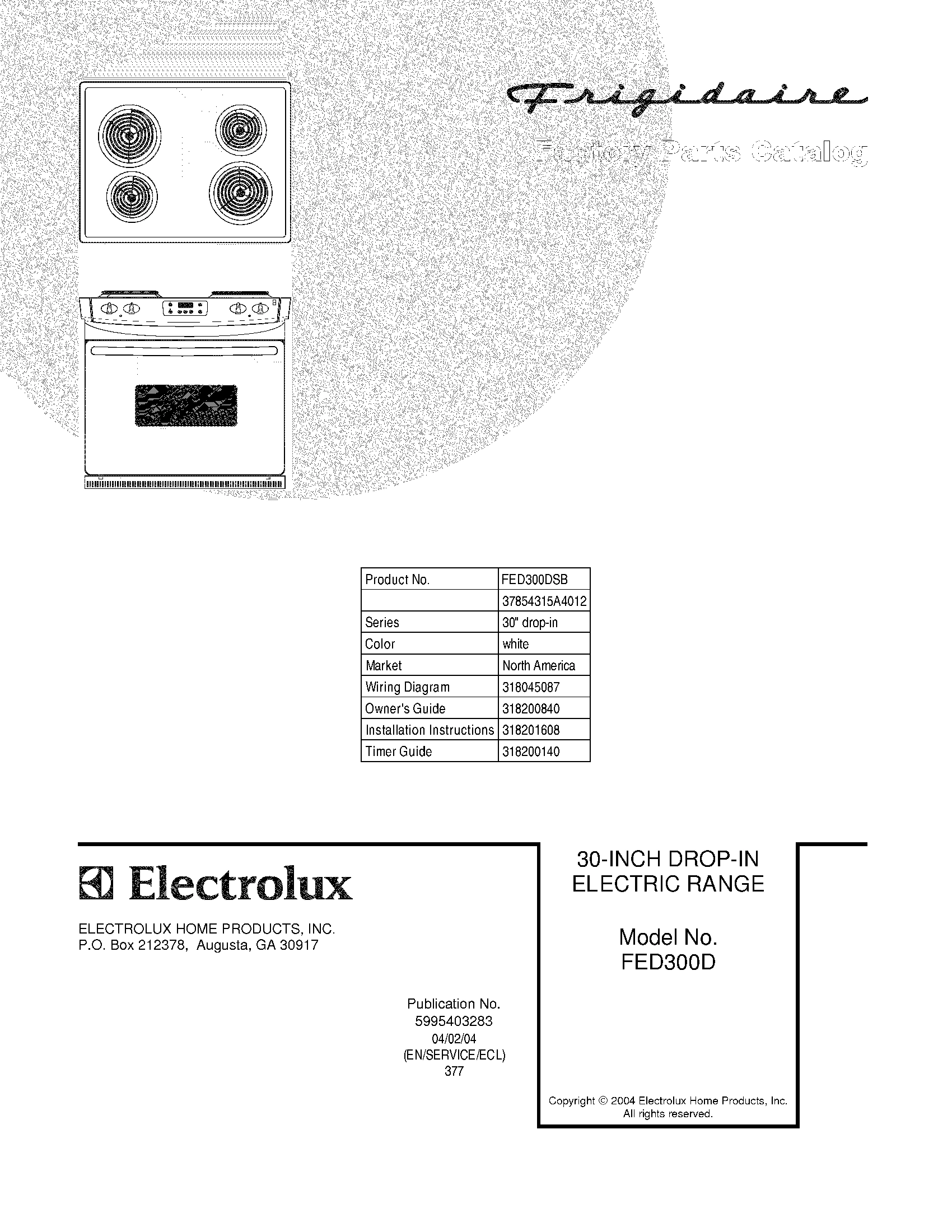

01 - COVER

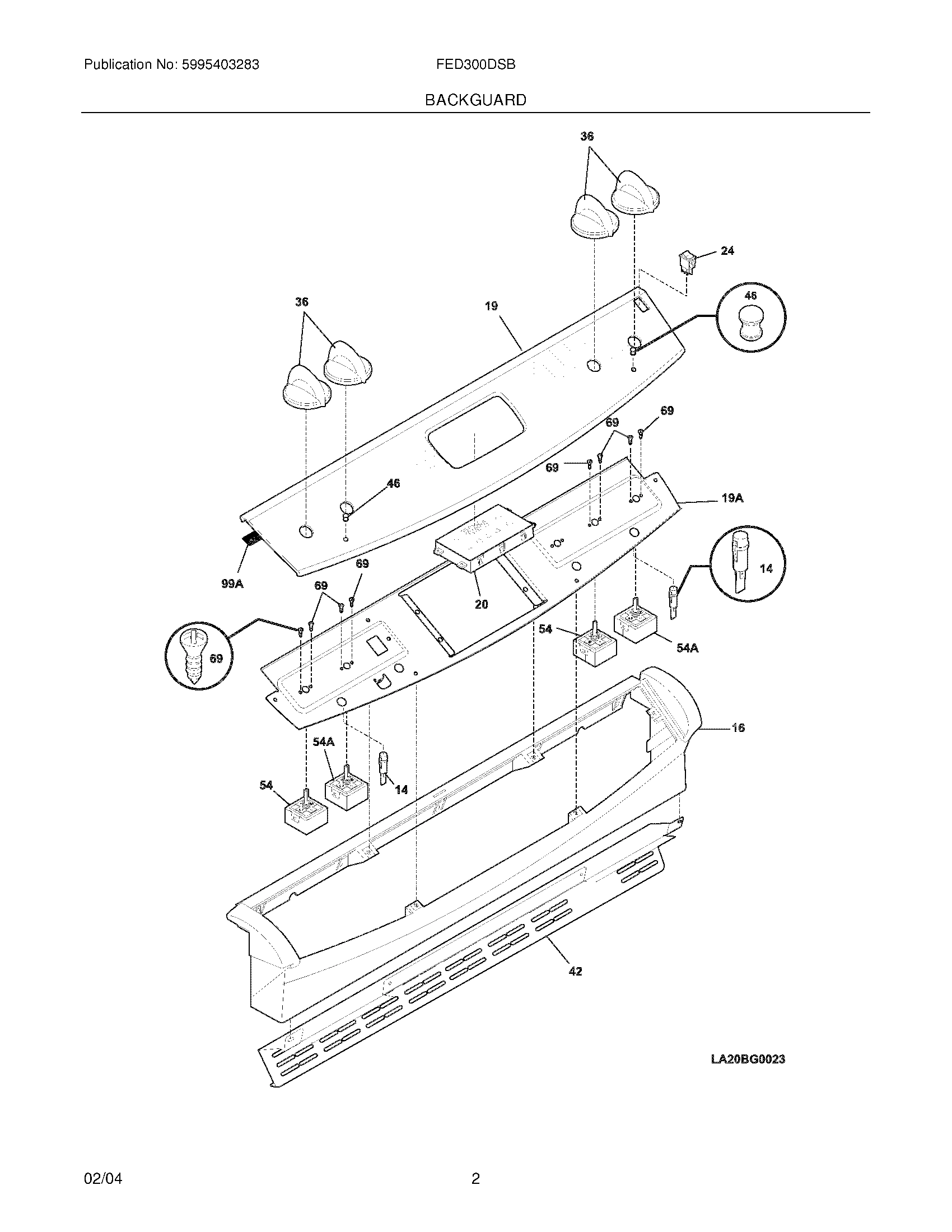

03 - BACKGUARD

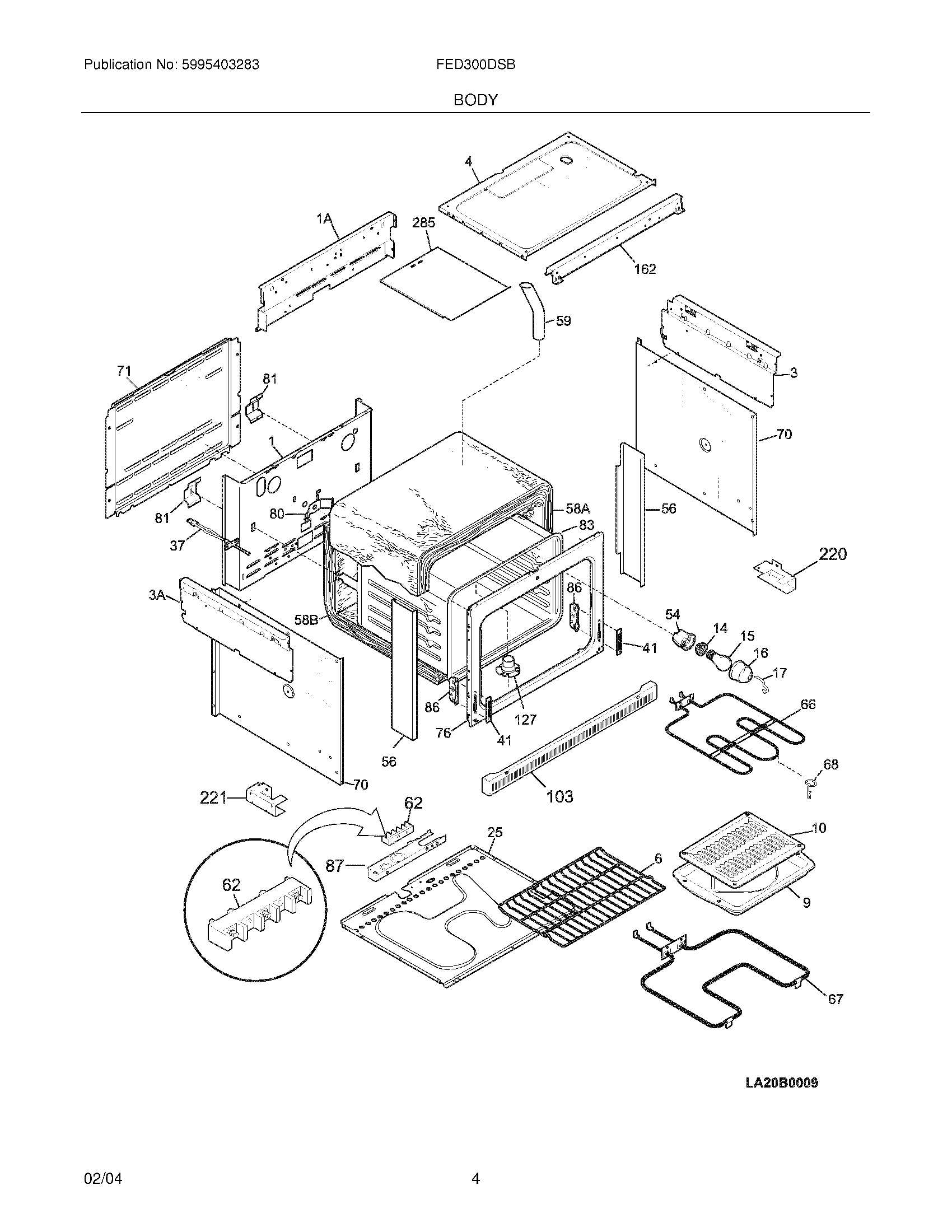

05 - BODY

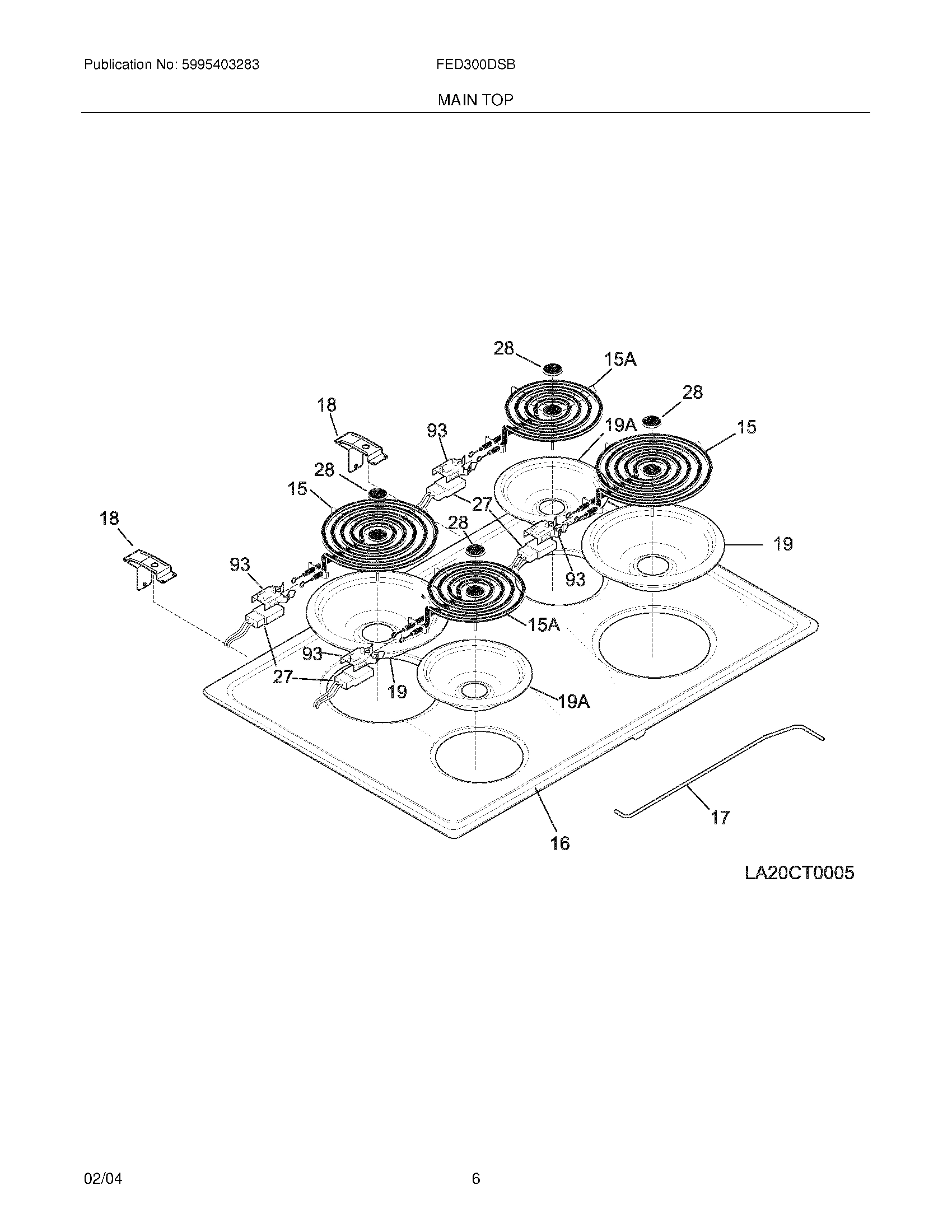

07 - MAINTOP

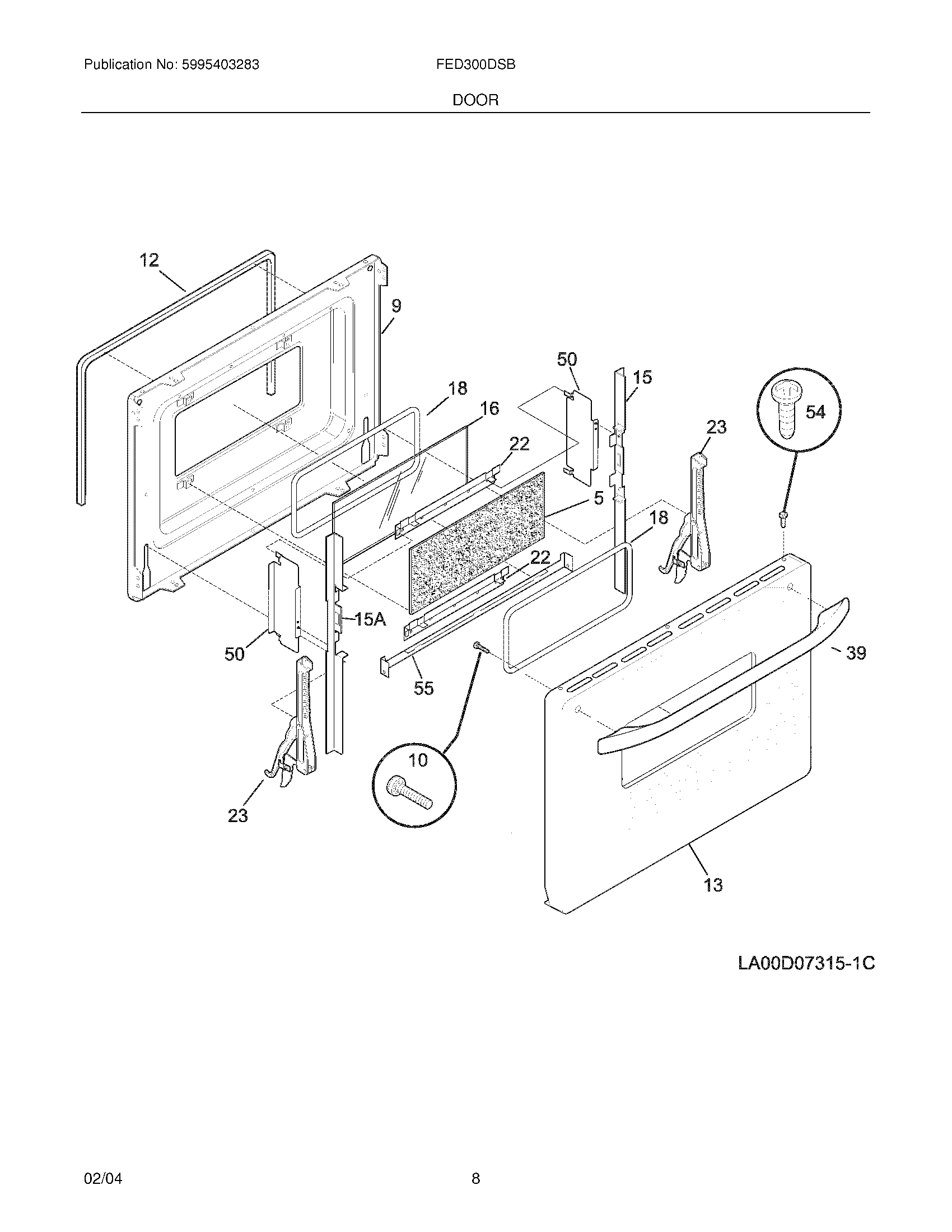

09 - DOOR

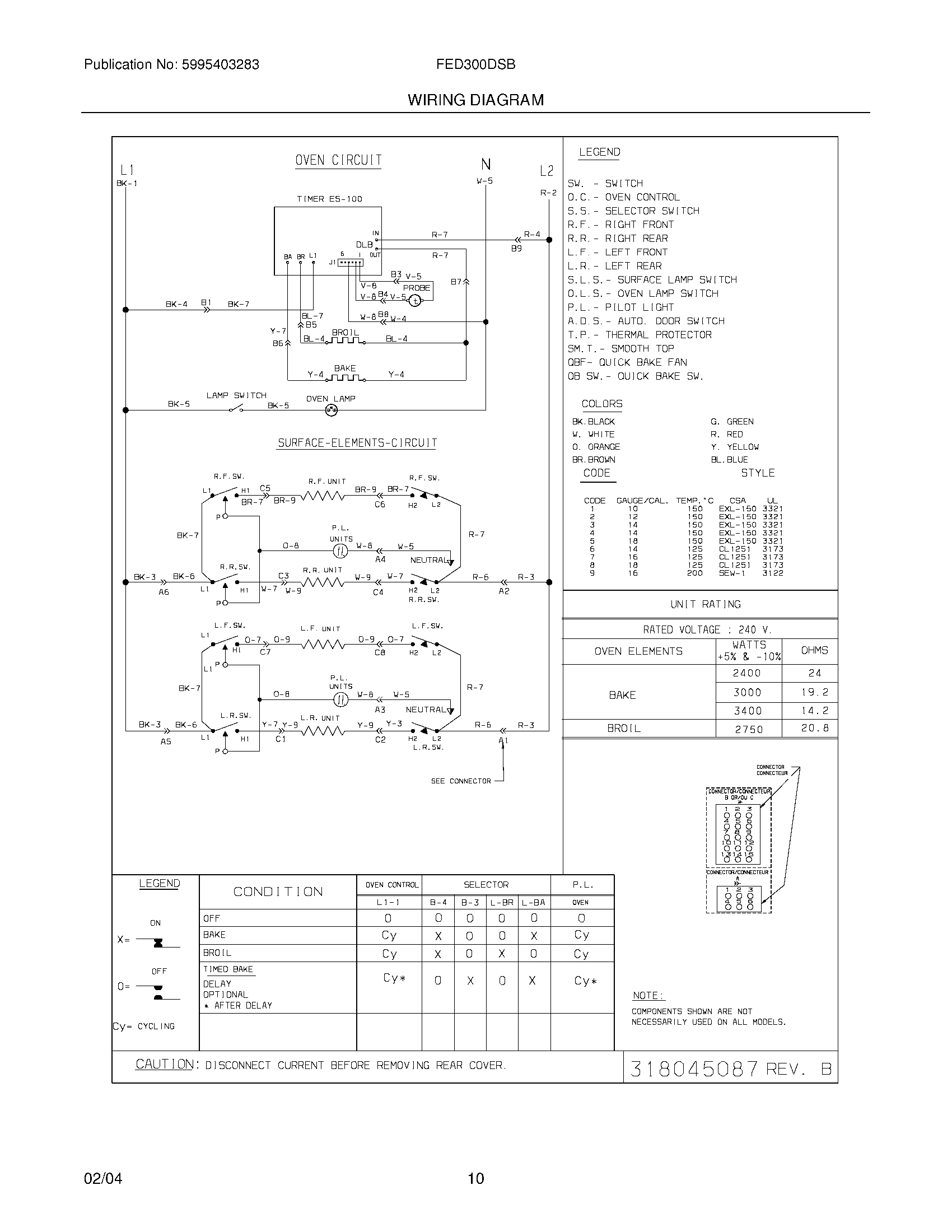

10 - WIRING DIAGRAM
Common parts from model Electrolux FED300DSB RANGE
5
WCI 5303310508 WCI 5303310508 Contact Us For Availability
9
WCI 318157017 WCI 318157017 Contact Us For Availability
12
WCI 318053301 WCI 318053301 Contact Us For Availability
13
WCI 318009074 WCI 318009074 Contact Us For Availability
15
Element,surface ,large/8 inch ,(2) ,medallion WCI 5308011964 Contact Us For Availability
15
WCI 5303311153 WCI 5303311153 Contact Us For Availability
15A
WCI 5303311154 WCI 5303311154 Contact Us For Availability
16
WCI 5303310533 WCI 5303310533 Contact Us For Availability
16
WCI 318225602 WCI 318225602 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
Rod,support ,main top panel WCI 3051554 Contact Us For Availability
18
WCI 318053203 WCI 318053203 Contact Us For Availability
18
WCI 318227700 WCI 318227700 Contact Us For Availability
22
WCI 5303310511 WCI 5303310511 Contact Us For Availability
23
WCI 5303310506 WCI 5303310506 Contact Us For Availability
27
WCI 318223414 WCI 318223414 Contact Us For Availability
27
WCI 318223413 WCI 318223413 Contact Us For Availability
27
WCI 318223415 WCI 318223415 Contact Us For Availability
27
WCI 318223418 WCI 318223418 Contact Us For Availability
28
Medallion,1 1/2``dia ,black ,surface element WCI 5303017715 Contact Us For Availability
35
WCI 318183101 WCI 318183101 Contact Us For Availability
37
WCI 316217002 WCI 316217002 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
50
WCI 318144900 WCI 318144900 Contact Us For Availability
54
WCI 318222400 WCI 318222400 Contact Us For Availability
55
WCI 318122300 WCI 318122300 Contact Us For Availability
68
Support,element hanger WCI 5304403015 Contact Us For Availability
81
WCI 318192400 WCI 318192400 Contact Us For Availability
87
WCI 318111800 WCI 318111800 Contact Us For Availability
93
WCI 318122500 WCI 318122500 Contact Us For Availability
99A
WCI 318223900 WCI 318223900 Contact Us For Availability
103
WCI 5303300213 WCI 5303300213 Contact Us For Availability
127
Adapter,vent tube ,with converter WCI 318230000 Contact Us For Availability
162
WCI 318225800 WCI 318225800 Contact Us For Availability
220
WCI 5304401475 WCI 5304401475 Contact Us For Availability
221
WCI 5304401476 WCI 5304401476 Contact Us For Availability
285
WCI 318236200 WCI 318236200 Contact Us For Availability
NI
WCI 318213800 WCI 318213800 Contact Us For Availability
NI
Screw,8-32 x 0.437 WCI 5303307980 Contact Us For Availability
NI
WCI 5303211311 WCI 5303211311 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
NI
WCI 318078526 WCI 318078526 Contact Us For Availability
NI
WCI 5303325856 WCI 5303325856 Contact Us For Availability
NI
WCI 316221001 WCI 316221001 Contact Us For Availability
× ![]()
