Model Electrolux FEB798WCC1 WALL OVEN – Common Parts & Diagrams
01 - COVER

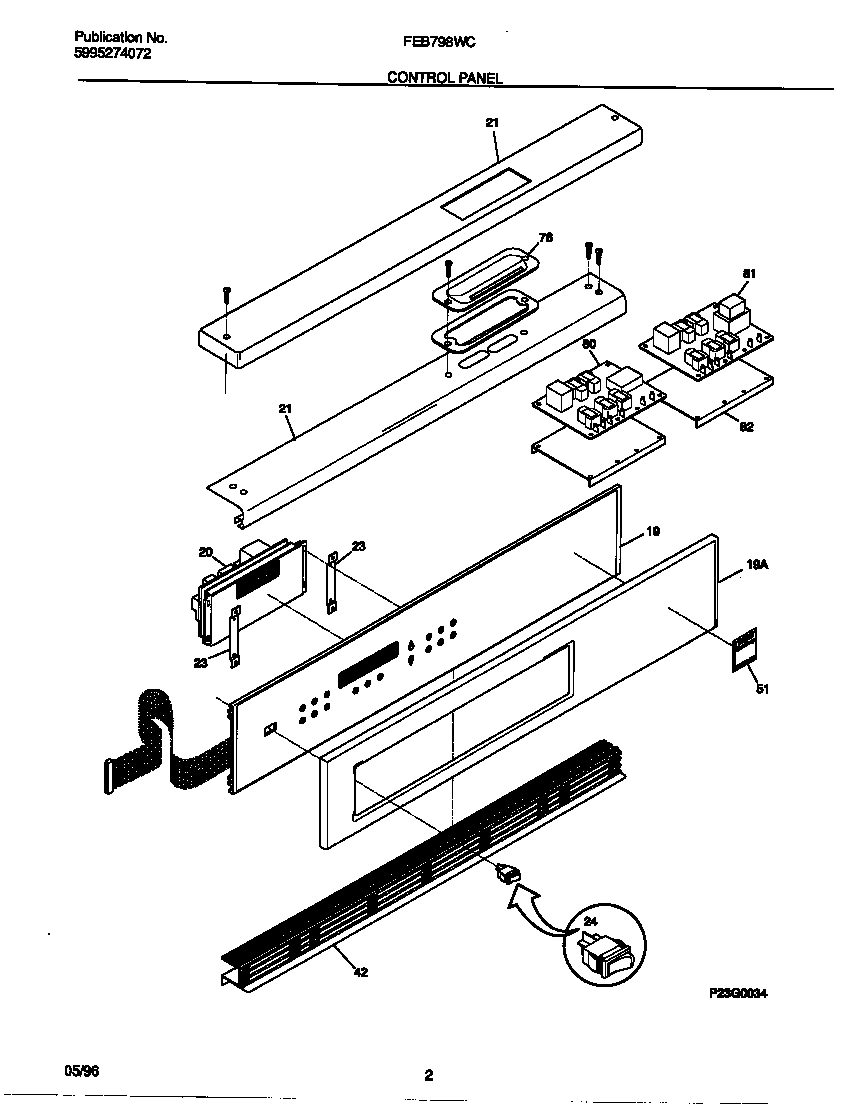

02 - CONTROL PANEL

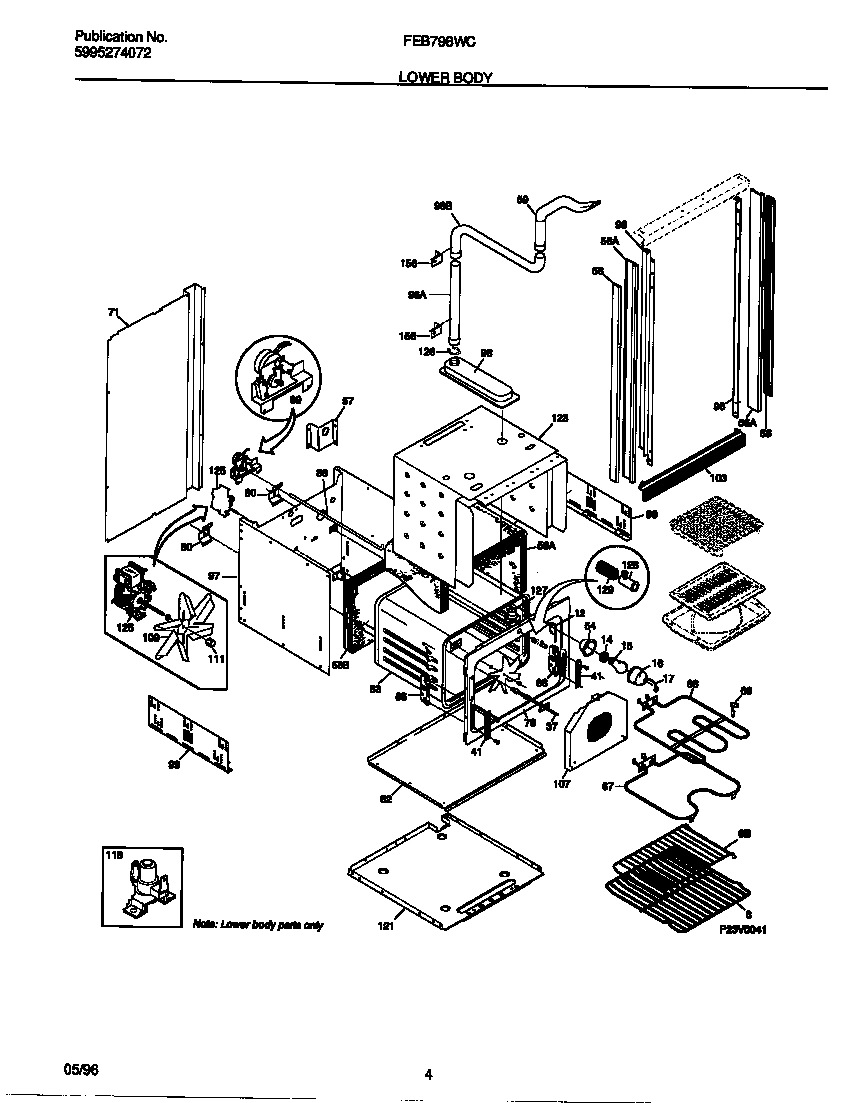

03 - LOWER BODY

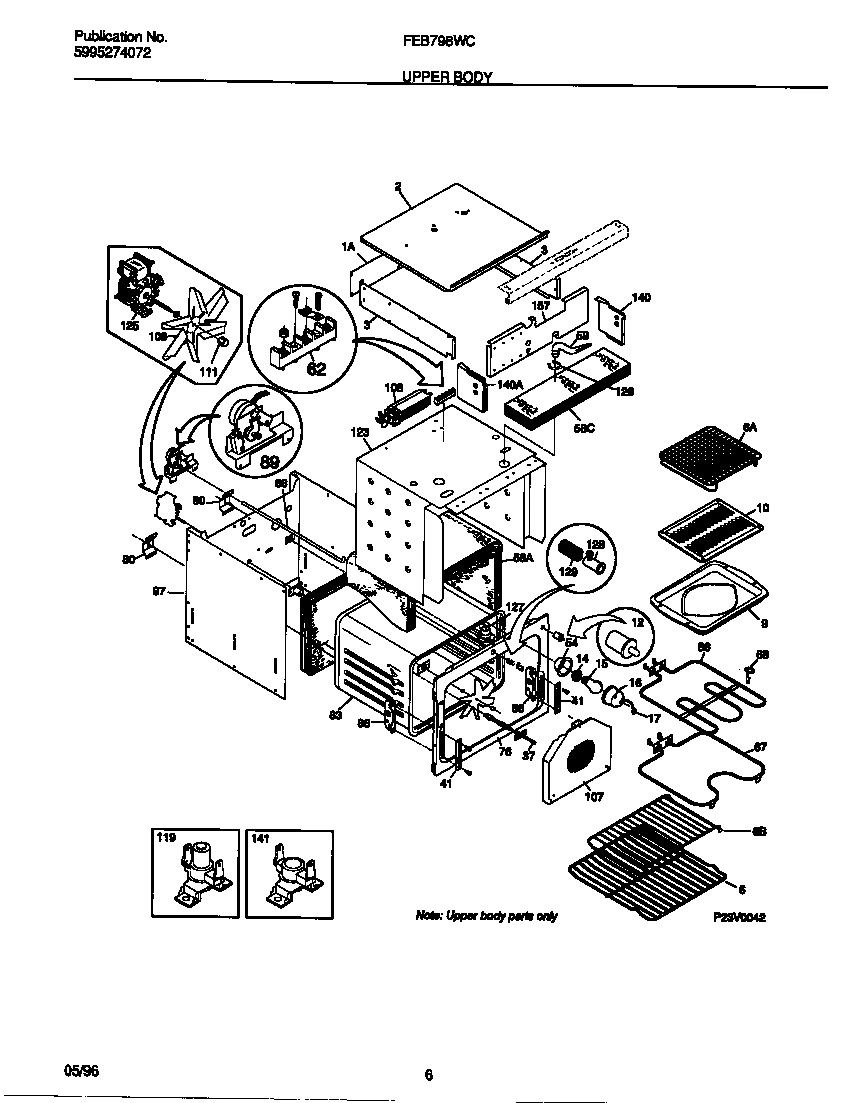

04 - UPPER BODY

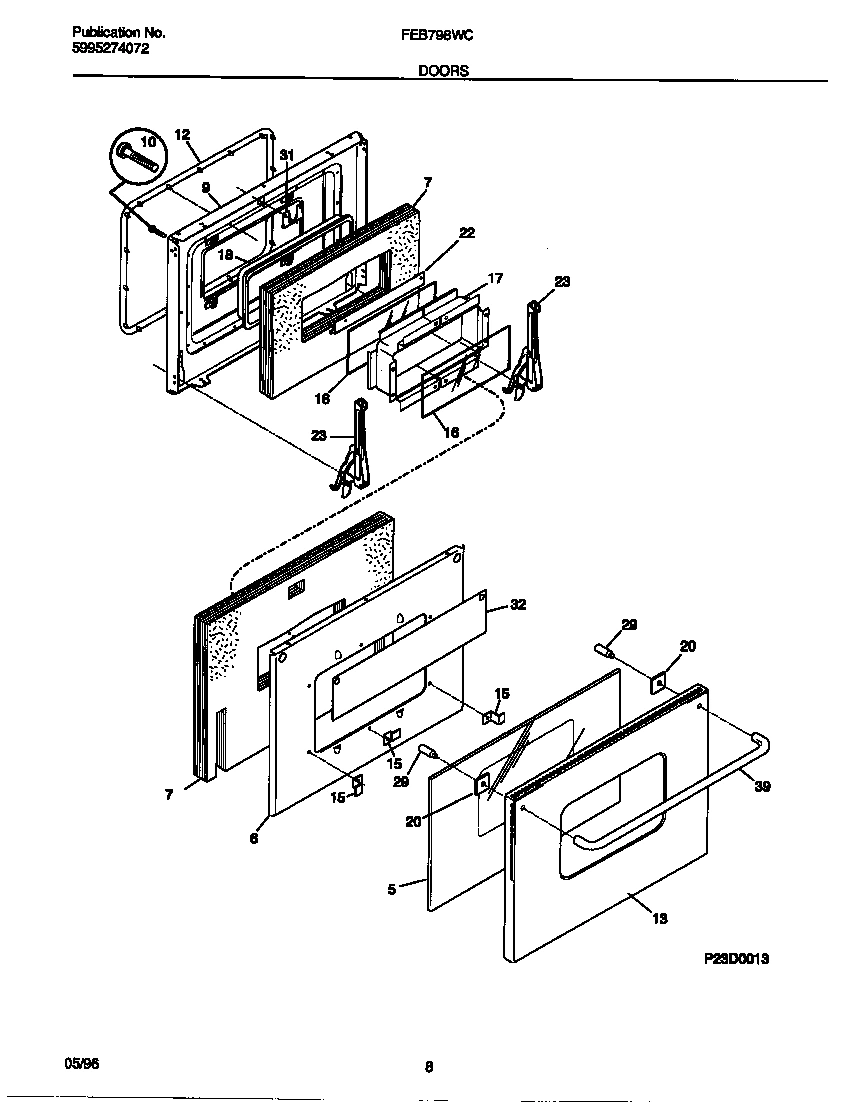

05 - DOORS

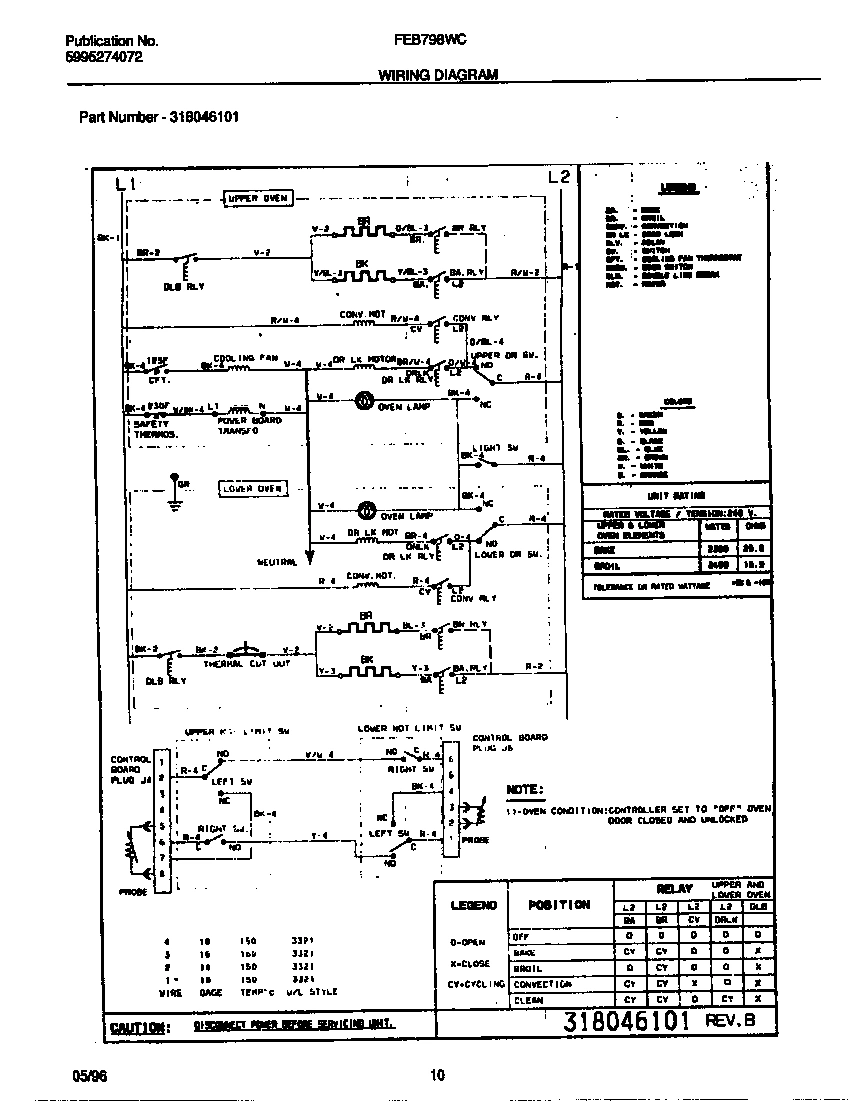

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB798WCC1 WALL OVEN
*76808
WCI 318078501 WCI 318078501 Contact Us For Availability
*76809
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*76810
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*76812
SCREW, TRUSS HEAD, 8-18 X 3/8, (4) WCI 08016432 Contact Us For Availability
1
WCI 318071000 WCI 318071000 Contact Us For Availability
2
WCI 318070201 WCI 318070201 Contact Us For Availability
3
WCI 318070600 WCI 318070600 Contact Us For Availability
3
WCI 318070601 WCI 318070601 Contact Us For Availability
5
WCI 318041200 WCI 318041200 Contact Us For Availability
5
TAPE,SEAL, (3) (NOT ILLUSTRATED) WCI 5303316982 Contact Us For Availability
6
WCI 318025200 WCI 318025200 Contact Us For Availability
6
WCI 318025300 WCI 318025300 Contact Us For Availability
6
WCI 5303311206 WCI 5303311206 Contact Us For Availability
6
WCI 318073501 WCI 318073501 Contact Us For Availability
7
INSULATION, OVEN BACK/DOOR WCI 5303311214 Contact Us For Availability
9
WCI 5303310521 WCI 5303310521 Contact Us For Availability
9
WCI 318048500 WCI 318048500 Contact Us For Availability
10
WCI 5303310520 WCI 5303310520 Contact Us For Availability
10
WCI 5303316953 WCI 5303316953 Contact Us For Availability
12
WCI 318053100 WCI 318053100 Contact Us For Availability
12
SWITCH-DOOR WCI 5303275924 Contact Us For Availability
13
WCI 318009200 WCI 318009200 Contact Us For Availability
15
WCI 318091101 WCI 318091101 Contact Us For Availability
16
WCI 318042300 WCI 318042300 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
WCI 318042000 WCI 318042000 Contact Us For Availability
18
WCI 318053000 WCI 318053000 Contact Us For Availability
20
WCI 318086020 WCI 318086020 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 5303310506 WCI 5303310506 Contact Us For Availability
29
WCI 318014400 WCI 318014400 Contact Us For Availability
31
WCI 318065100 WCI 318065100 Contact Us For Availability
32
DEFLECTOR WCI 318056700 Contact Us For Availability
39
WCI 318039800 WCI 318039800 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318029502 WCI 318029502 Contact Us For Availability
56
WCI 318029503 WCI 318029503 Contact Us For Availability
56
TRIM-BODYSIDE, (2) WCI 5303283302 Contact Us For Availability
57
WCI 318072100 WCI 318072100 Contact Us For Availability
58
WCI 5303311218 WCI 5303311218 Contact Us For Availability
58
INSULATION, OVEN BACK/TOP WCI 5303311219 Contact Us For Availability
59
Tube,oven vent WCI 3016331 Contact Us For Availability
59
BRACKET-VENT TUBE (NOT ILLUSTRATED) WCI 318024100 Contact Us For Availability
59
WCI 318072505 WCI 318072505 Contact Us For Availability
62
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305023 Contact Us For Availability
76
WCI 318056101 WCI 318056101 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 5303311221 WCI 5303311221 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 5303311222 WCI 5303311222 Contact Us For Availability
88
TUBE, ROD-LATCH (NOT ILLUSTRATED) WCI 318013501 Contact Us For Availability
89
WCI 5303317196 WCI 5303317196 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
96
WCI 5303317197 WCI 5303317197 Contact Us For Availability
97
WCI 318066600 WCI 318066600 Contact Us For Availability
97
WCI 318066500 WCI 318066500 Contact Us For Availability
98
TRIM-SIDE, INNER, RH WCI 3016321 Contact Us For Availability
98
TRIM-SIDE, INNER, LH WCI 3016322 Contact Us For Availability
103
TRIM-BASE, BLACK WCI 5303316773 Contact Us For Availability
107
WCI 5303311224 WCI 5303311224 Contact Us For Availability
108
WCI 318073000 WCI 318073000 Contact Us For Availability
109
FAN BLADE WCI 5303311203 Contact Us For Availability
119
WCI 318005200 WCI 318005200 Contact Us For Availability
121
WCI 5303304700 WCI 5303304700 Contact Us For Availability
123
WCI 318071400 WCI 318071400 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 3205683 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
140
WCI 318042700 WCI 318042700 Contact Us For Availability
140
WCI 318042701 WCI 318042701 Contact Us For Availability
141
WCI 318005100 WCI 318005100 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
157
WCI 318071600 WCI 318071600 Contact Us For Availability
× ![]()
