Model Electrolux FEB798CCSD WALL OVEN – Common Parts & Diagrams

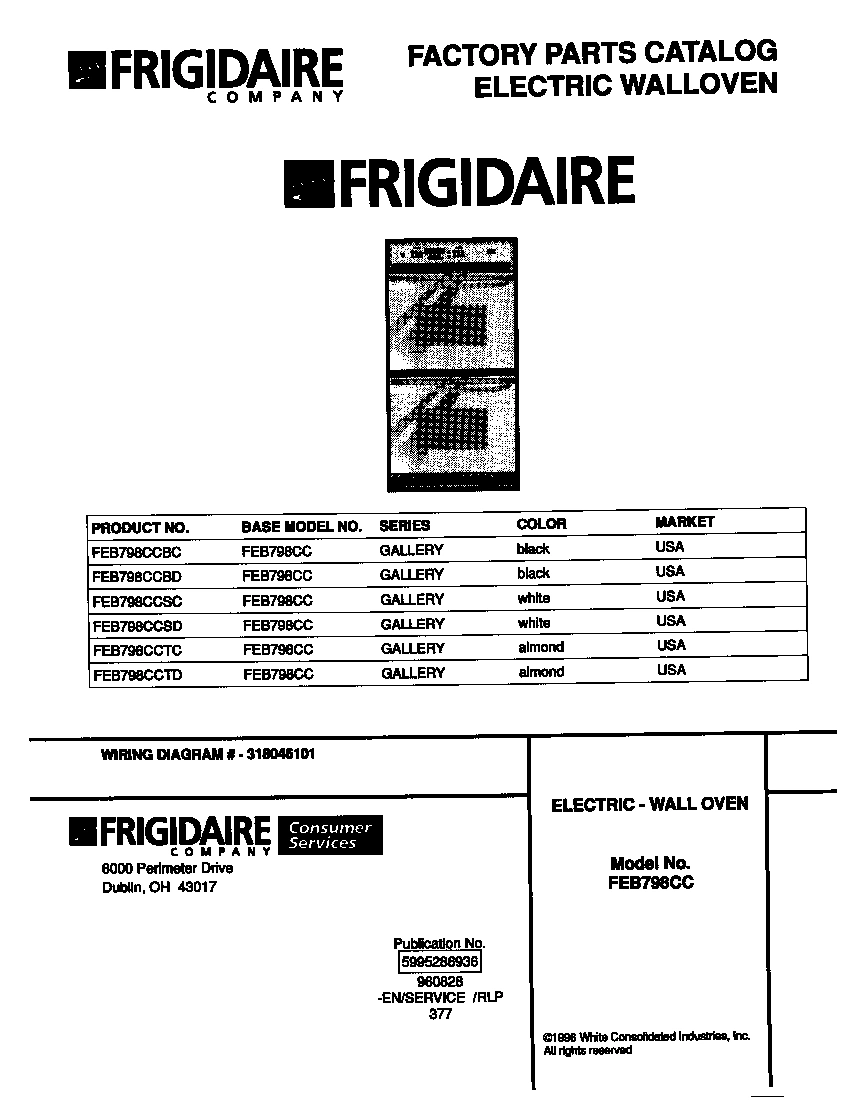

01 - COVER

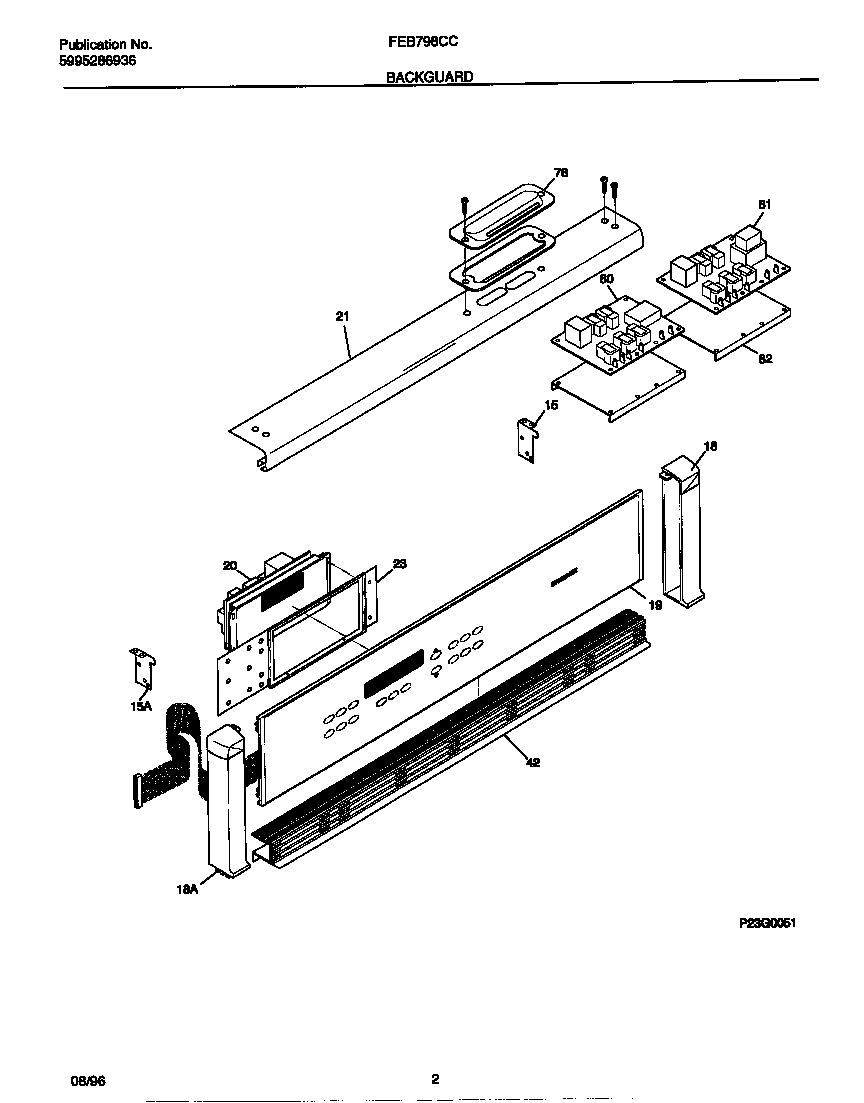

02 - BACKGUARD

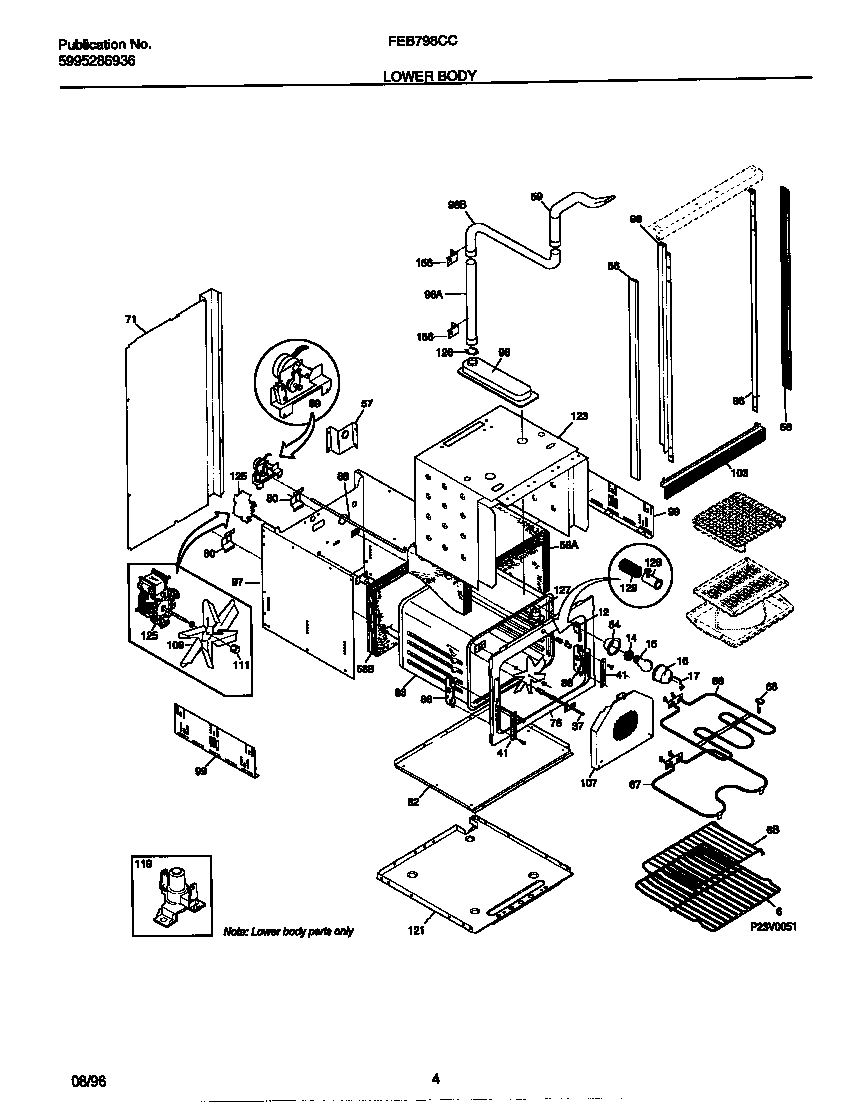

03 - LOWER BODY

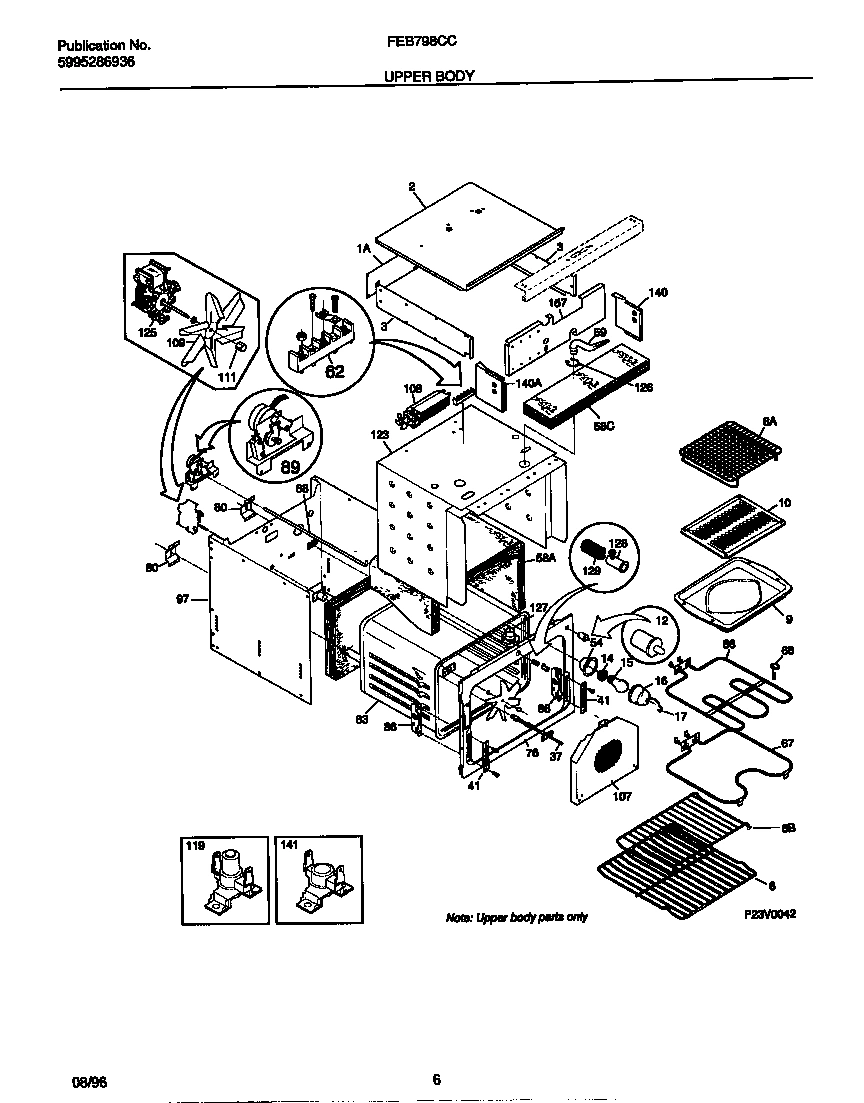

04 - UPPER BODY

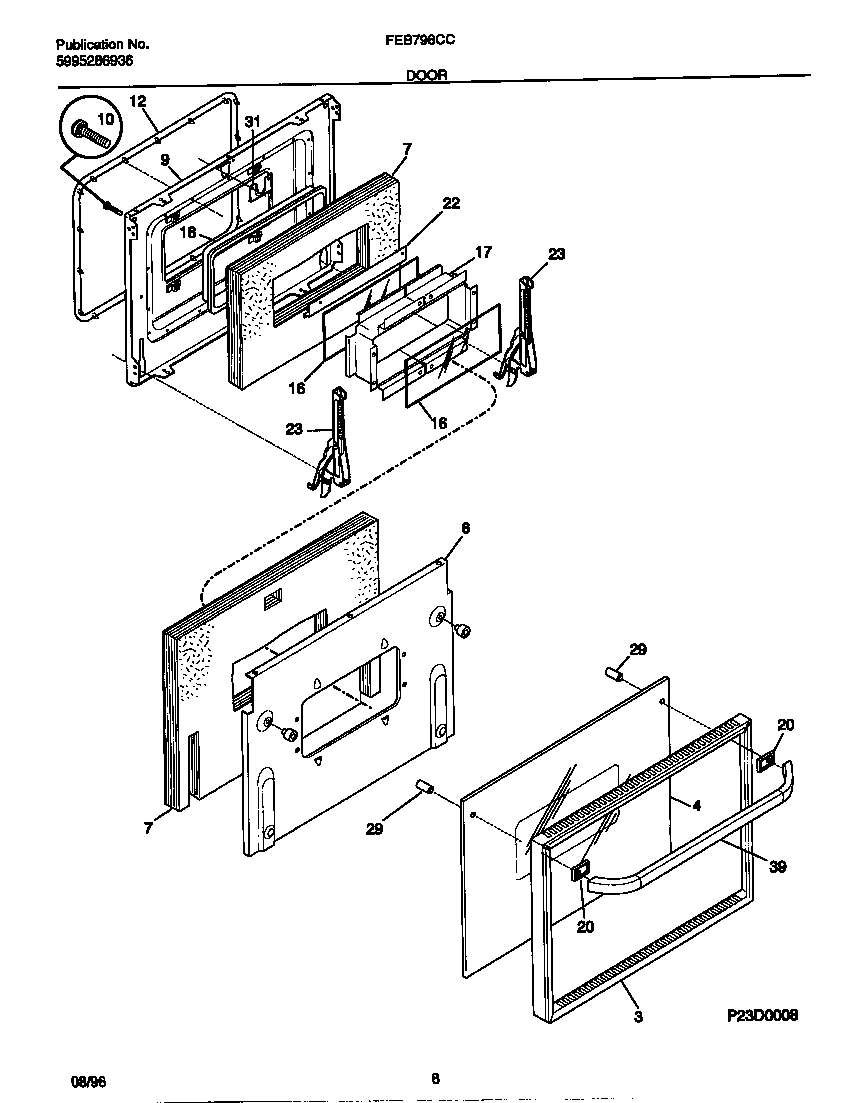

05 - DOOR

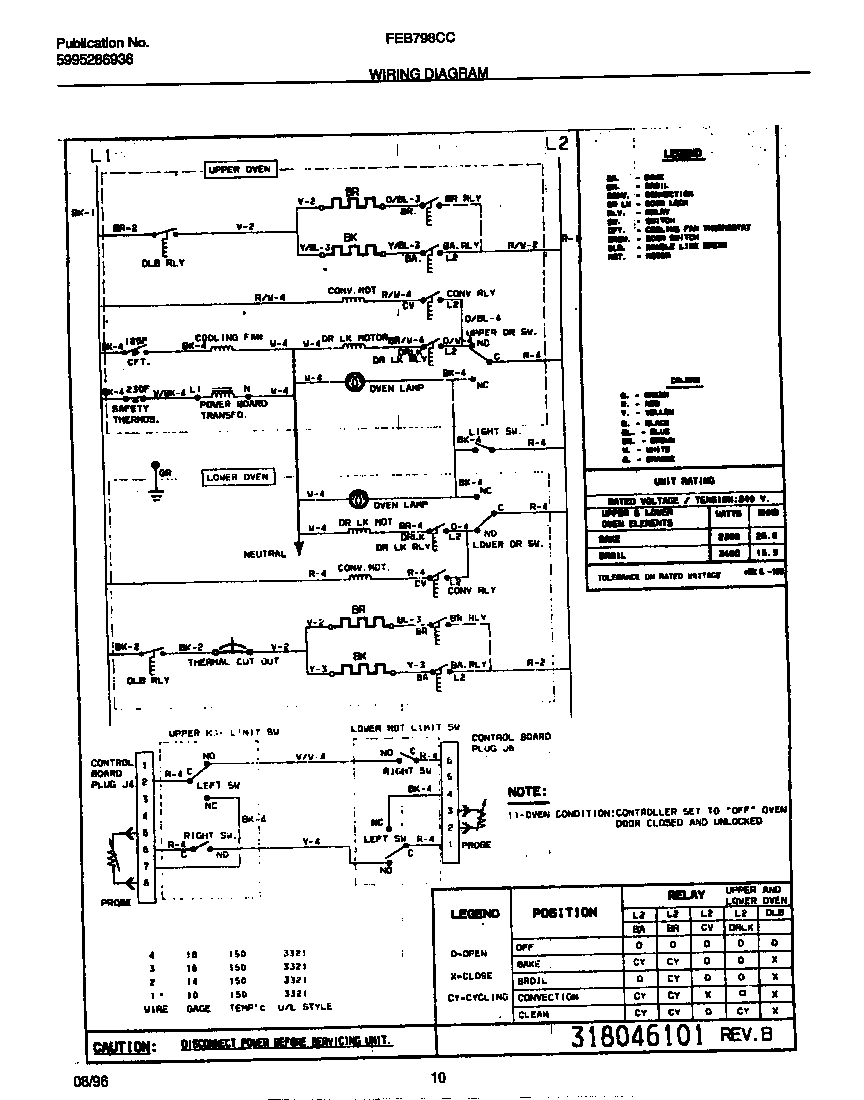

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB798CCSD WALL OVEN
*47289
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*47290
SCREW, TRUSS HEAD, 8-18 X 3/8, (4) WCI 08016432 Contact Us For Availability
*47291
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*47295
TAPE, SEAL, (3) WCI 5303316982 Contact Us For Availability
1
WCI 318071000 WCI 318071000 Contact Us For Availability
2
WCI 318070200 WCI 318070200 Contact Us For Availability
3
WCI 318026110 WCI 318026110 Contact Us For Availability
3A
WCI 318070600 WCI 318070600 Contact Us For Availability
3B
WCI 318070601 WCI 318070601 Contact Us For Availability
4
WCI 318051601 WCI 318051601 Contact Us For Availability
6
WCI 5303299719 WCI 5303299719 Contact Us For Availability
6
WCI 318025202 WCI 318025202 Contact Us For Availability
6
WCI 5303311206 WCI 5303311206 Contact Us For Availability
6
WCI 318073501 WCI 318073501 Contact Us For Availability
7
INSULATION, OVEN BACK/DOOR WCI 5303311214 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048503 WCI 318048503 Contact Us For Availability
10
SCREW-HANDLE WCI 5303311217 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
12
WCI 318053100 WCI 318053100 Contact Us For Availability
12
SWITCH-DOOR WCI 5303275924 Contact Us For Availability
16
WCI 318042300 WCI 318042300 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17
WCI 318042000 WCI 318042000 Contact Us For Availability
18
WCI 318053000 WCI 318053000 Contact Us For Availability
20
WCI 318010501 WCI 318010501 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23A
WCI 5303310506 WCI 5303310506 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
31
WCI 318065100 WCI 318065100 Contact Us For Availability
39
WCI 316091107 WCI 316091107 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 5303302282 WCI 5303302282 Contact Us For Availability
57
WCI 318072100 WCI 318072100 Contact Us For Availability
58
WCI 5303311218 WCI 5303311218 Contact Us For Availability
58
INSULATION, OVEN BACK/TOP WCI 5303311219 Contact Us For Availability
59
WCI 318072510 WCI 318072510 Contact Us For Availability
59A
WCI 5303300951 WCI 5303300951 Contact Us For Availability
59B
BRACKET-VENT TUBE (NOT ILLUSTRATED) WCI 318024100 Contact Us For Availability
62B
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305023 Contact Us For Availability
76
WCI 318056104 WCI 318056104 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
BOARD-RELAY, TRANSFORMER WCI 318022002 No Longer Available
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 318089510 WCI 318089510 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88A
WCI 5303311222 WCI 5303311222 Contact Us For Availability
88B
TUBE, ROD-LATCH (NOT ILLUSTRATED) WCI 318013501 Contact Us For Availability
89
WCI 5303317196 WCI 5303317196 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
96
WCI 5303317197 WCI 5303317197 Contact Us For Availability
97
WCI 318066600 WCI 318066600 Contact Us For Availability
97
WCI 318066500 WCI 318066500 Contact Us For Availability
98A
TRIM-SIDE, INNER, RH WCI 5303300954 Contact Us For Availability
98B
TRIM-SIDE, INNER, LH WCI 5303300955 Contact Us For Availability
103
WCI 318028701 WCI 318028701 Contact Us For Availability
107
WCI 5303318711 WCI 5303318711 Contact Us For Availability
108
WCI 318073000 WCI 318073000 Contact Us For Availability
109
WCI 318137400 WCI 318137400 Contact Us For Availability
111A
WCI 318137700 WCI 318137700 Contact Us For Availability
111B
WCI 318137600 WCI 318137600 Contact Us For Availability
119
WCI 318005200 WCI 318005200 Contact Us For Availability
121
WCI 5303304700 WCI 5303304700 Contact Us For Availability
123
WCI 318071400 WCI 318071400 Contact Us For Availability
125
WCI 318137100 WCI 318137100 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
140
WCI 318042700 WCI 318042700 Contact Us For Availability
140
WCI 318042701 WCI 318042701 Contact Us For Availability
141
WCI 318005100 WCI 318005100 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
157
WCI 318071600 WCI 318071600 Contact Us For Availability
× ![]()
