Model Electrolux FEB789WCCB WALL OVEN – Common Parts & Diagrams

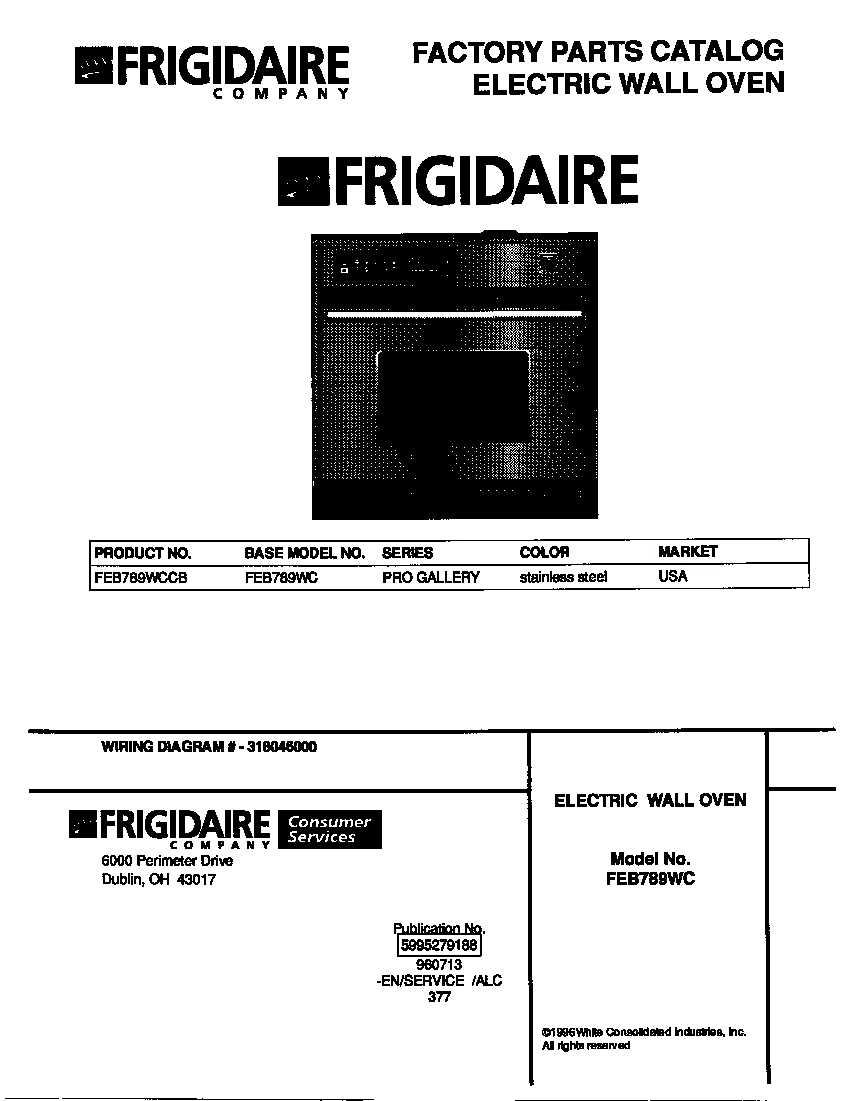

01 - COVER

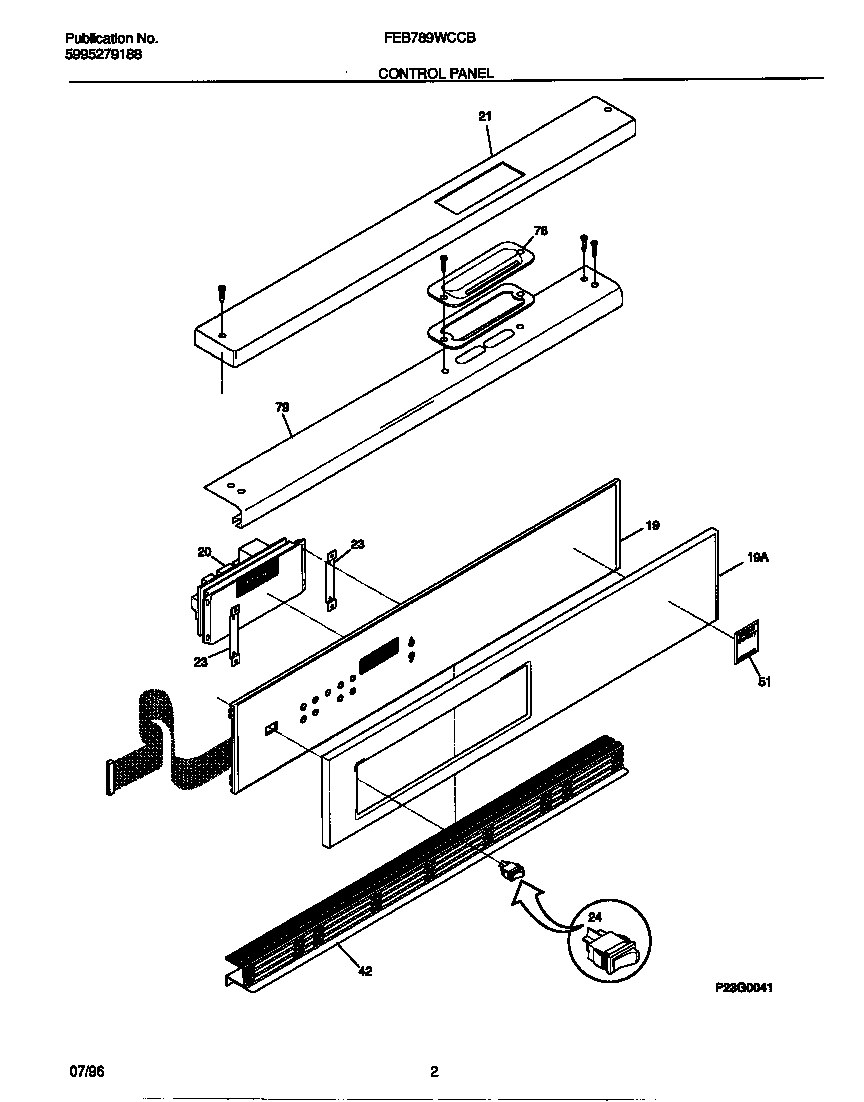

02 - CONTROL PANEL

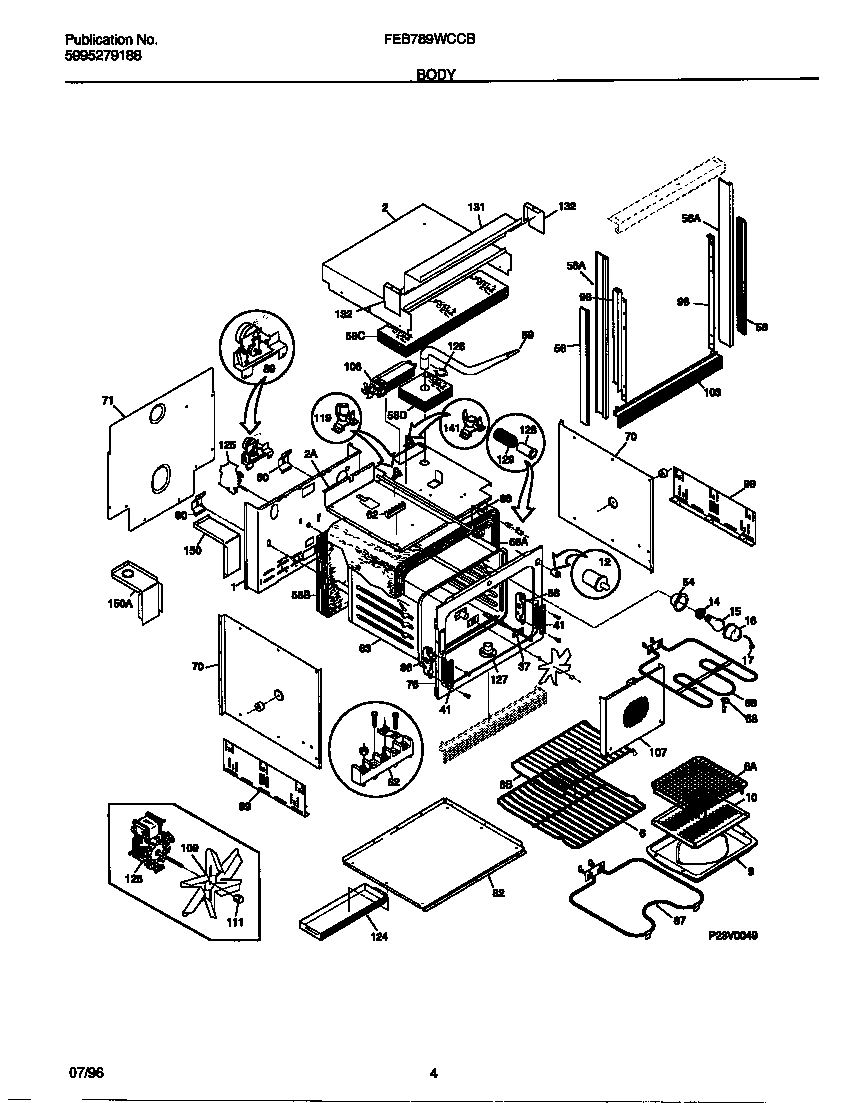

03 - BODY

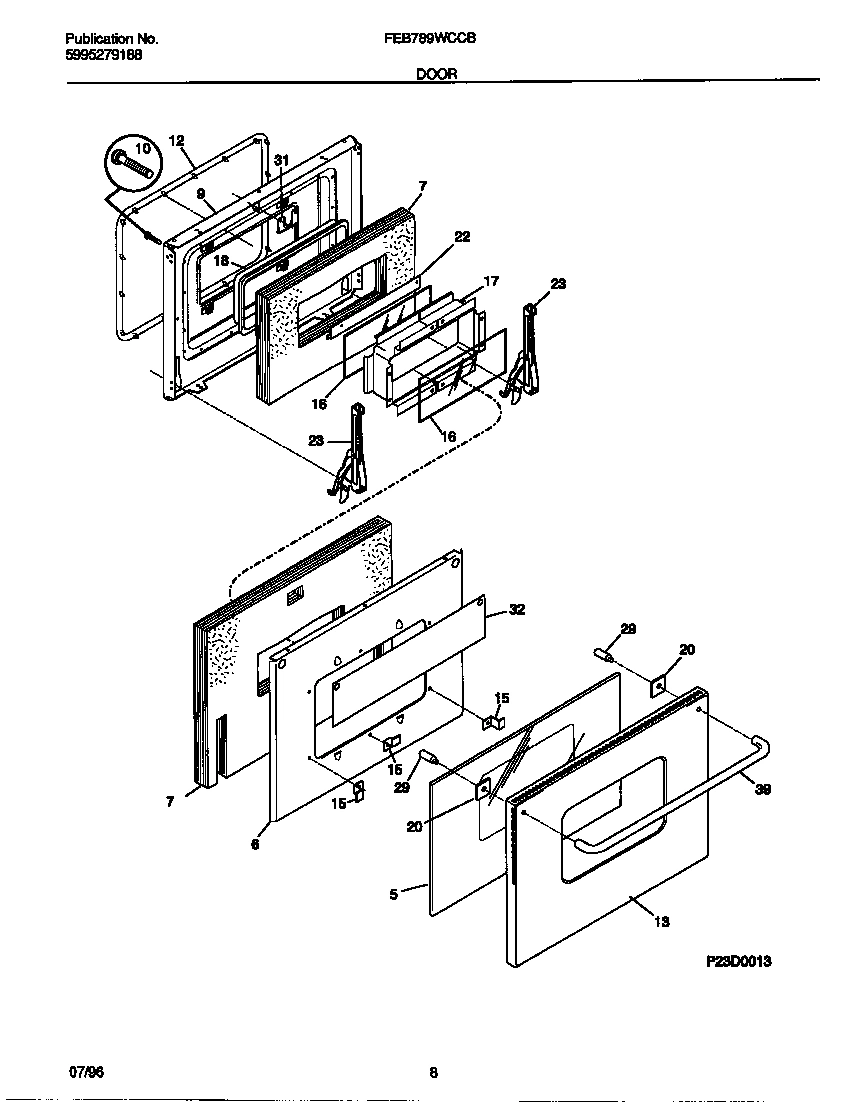

04 - DOOR

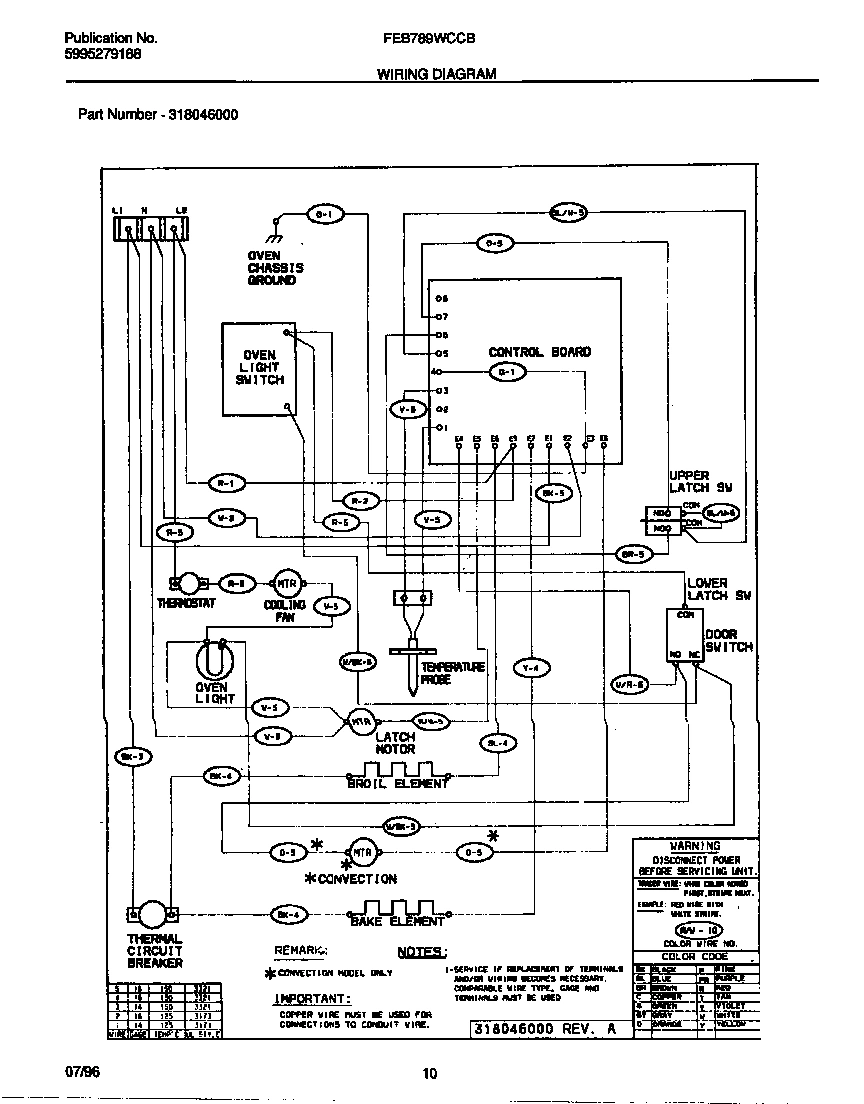

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB789WCCB WALL OVEN
*45966
SCREW, 8 X 5/8, SPARK MODULE WCI 3131048 Contact Us For Availability
*45967
WCI 3201881 WCI 3201881 Contact Us For Availability
*45969
SCREW, OVAL HD, 20 X 5/8 WCI 5303311528 Contact Us For Availability
*45970
WCI 318052007 WCI 318052007 Contact Us For Availability
*45971
WCI 318078500 WCI 318078500 Contact Us For Availability
*45972
SCREW, TRUSS HEAD, 8-18 X 3/8, (4) WCI 08016432 Contact Us For Availability
*45973
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*45975
WCI 5303300414 WCI 5303300414 Contact Us For Availability
1
WCI 318066700 WCI 318066700 Contact Us For Availability
2
WCI 318102000 WCI 318102000 Contact Us For Availability
2A
WCI 318071500 WCI 318071500 Contact Us For Availability
5
WCI 318041200 WCI 318041200 Contact Us For Availability
5
TAPE,SEAL, (3) (NOT ILLUSTRATED) WCI 5303316982 Contact Us For Availability
6
WCI 318025300 WCI 318025300 Contact Us For Availability
6
WCI 318073501 WCI 318073501 Contact Us For Availability
6A
WCI 5303311206 WCI 5303311206 Contact Us For Availability
6B
WCI 318025200 WCI 318025200 Contact Us For Availability
7
INSULATION, OVEN BACK/DOOR WCI 5303311214 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048503 WCI 318048503 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
WCI 5303316953 WCI 5303316953 Contact Us For Availability
12
WCI 318053100 WCI 318053100 Contact Us For Availability
13
WCI 318009200 WCI 318009200 Contact Us For Availability
15
WCI 318091101 WCI 318091101 Contact Us For Availability
16
WCI 318042300 WCI 318042300 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
WCI 318042000 WCI 318042000 Contact Us For Availability
18
WCI 318053000 WCI 318053000 Contact Us For Availability
20
WCI 318086020 WCI 318086020 Contact Us For Availability
22
RETAINER-GLASS WCI 5303310511 Contact Us For Availability
23
WCI 5303310506 WCI 5303310506 Contact Us For Availability
28
CLIP-WIRE WCI 3015722 Contact Us For Availability
29
WCI 318014400 WCI 318014400 Contact Us For Availability
31
WCI 318065100 WCI 318065100 Contact Us For Availability
32
DEFLECTOR WCI 318056700 Contact Us For Availability
37
PLATE, OVEN TEMP PROBE (NOT ILLUSTRATED) WCI 318080000 Contact Us For Availability
39
WCI 318039800 WCI 318039800 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318029500 WCI 318029500 Contact Us For Availability
56
WCI 318029501 WCI 318029501 Contact Us For Availability
56
TRIM-BODYSIDE, BLACK, (2) WCI 5303271105 Contact Us For Availability
56
WCI 5303318690 WCI 5303318690 Contact Us For Availability
58A
WCI 5303311218 WCI 5303311218 Contact Us For Availability
58C
INSULATION, OVEN TOP WCI 5303311219 Contact Us For Availability
58D
INSULATION, OVEN VENT WCI 5303316994 Contact Us For Availability
59
WCI 318072505 WCI 318072505 Contact Us For Availability
62
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
WCI 318071100 WCI 318071100 Contact Us For Availability
76
WCI 318056104 WCI 318056104 Contact Us For Availability
79
WCI 318029602 WCI 318029602 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
82
WCI 318071800 WCI 318071800 Contact Us For Availability
83
WCI 5303318710 WCI 5303318710 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 5303311222 WCI 5303311222 Contact Us For Availability
88
TUBE, ROD-LATCH (NOT ILLUSTRATED) WCI 318013501 Contact Us For Availability
89
WCI 5303311223 WCI 5303311223 Contact Us For Availability
98
WCI 318029800 WCI 318029800 Contact Us For Availability
98
WCI 318029801 WCI 318029801 Contact Us For Availability
99
WCI 318055400 WCI 318055400 Contact Us For Availability
103
TRIM-BASE, BLACK WCI 5303316773 Contact Us For Availability
107
WCI 5303318711 WCI 5303318711 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
109
FAN BLADE WCI 5303311203 Contact Us For Availability
124
WCI 318076900 WCI 318076900 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 3205683 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
131
WCI 318102201 WCI 318102201 Contact Us For Availability
132
END-COVER, CONTROL HSG, RH WCI 318101700 Contact Us For Availability
132
END-COVER, CONTROL HSG, LH WCI 318101701 Contact Us For Availability
141
WCI 318005000 WCI 318005000 Contact Us For Availability
150
BRACKET-SUPPORT, ACCESS COVER, RH WCI 318072206 Contact Us For Availability
150A
BRACKET-SUPPORT, ACCESS COVER, LH WCI 318072207 Contact Us For Availability
× ![]()
