Model Electrolux FEB756CESE WALL OVEN – Common Parts & Diagrams

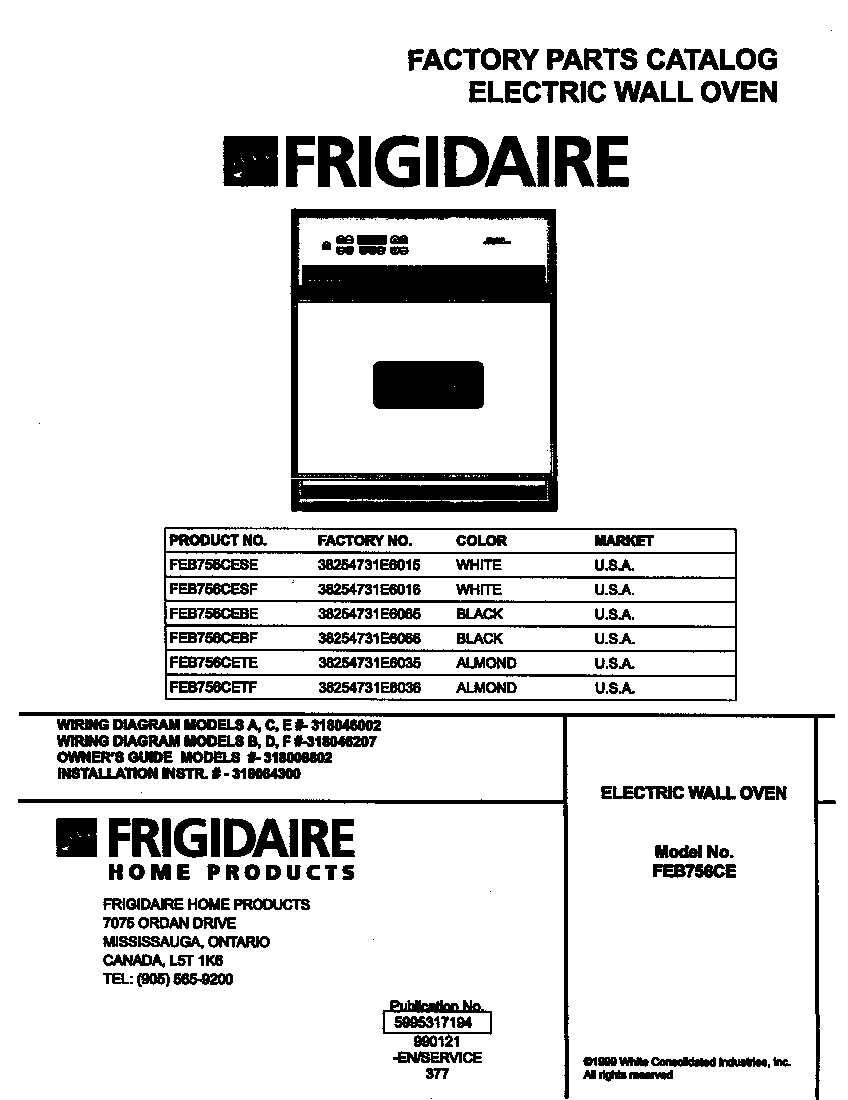

01 - COVER

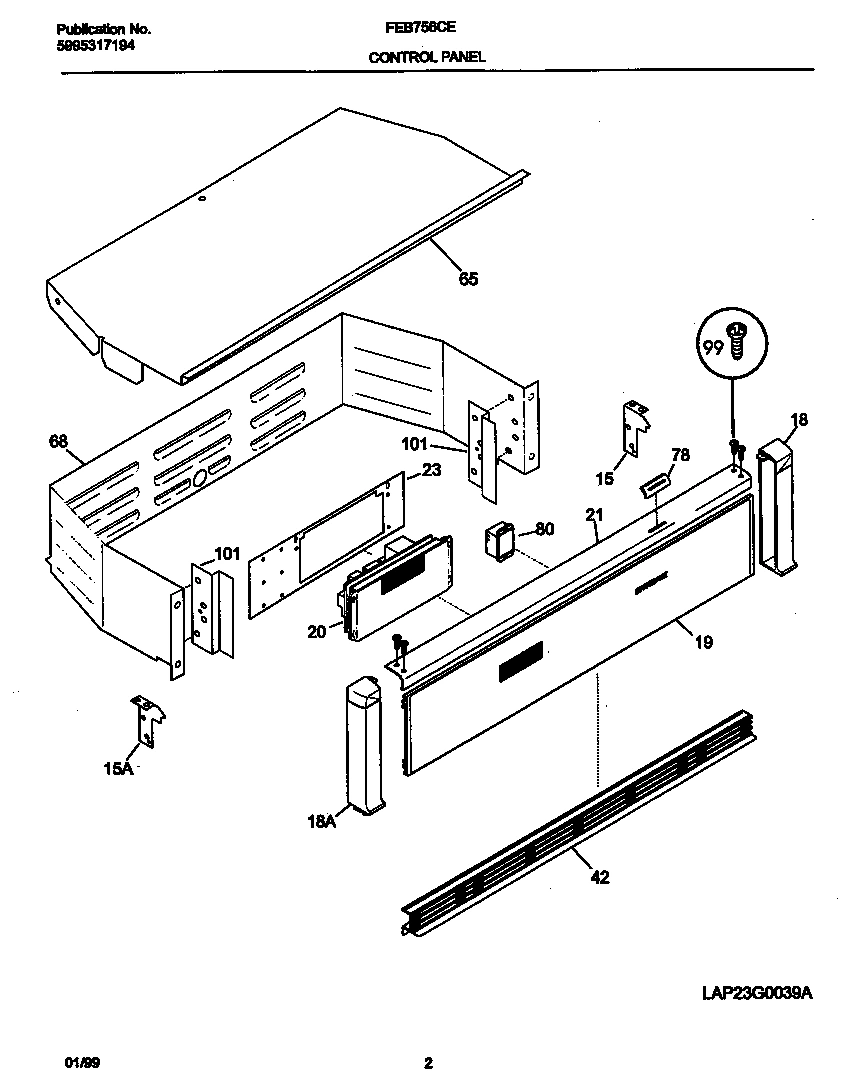

02 - CONTROL PANEL

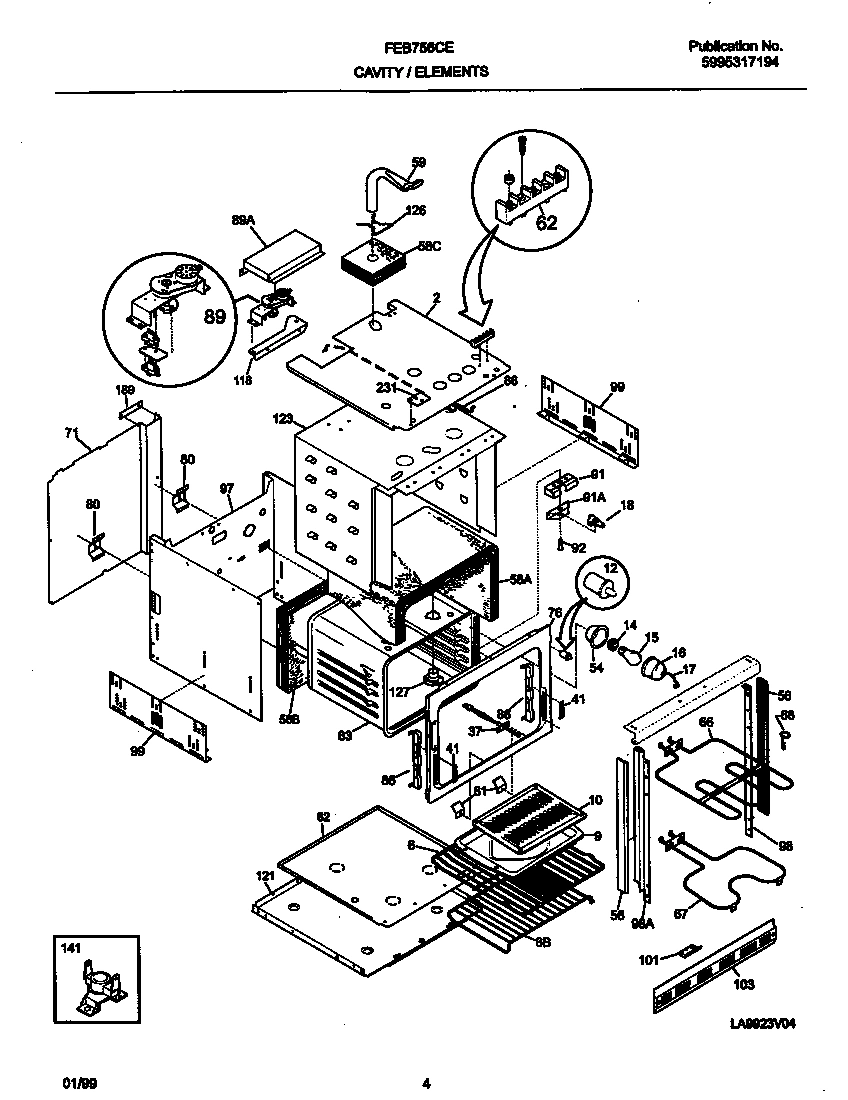

03 - BODY

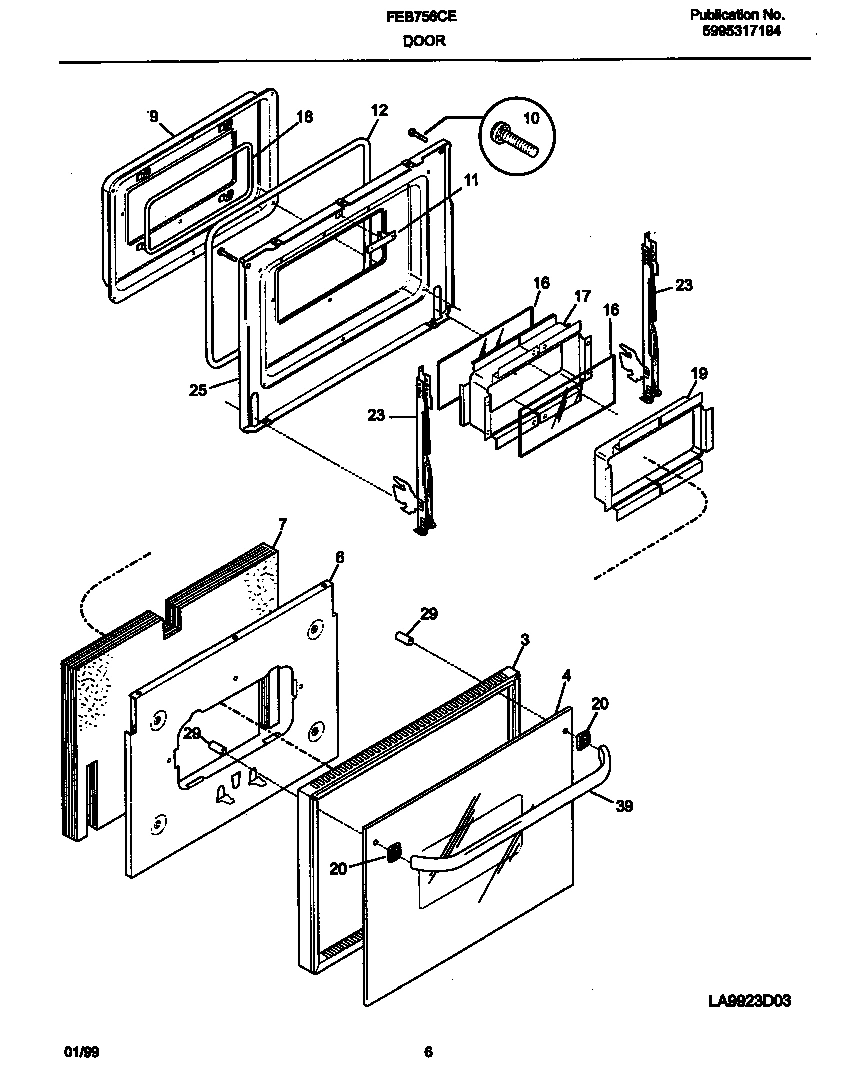

04 - DOOR

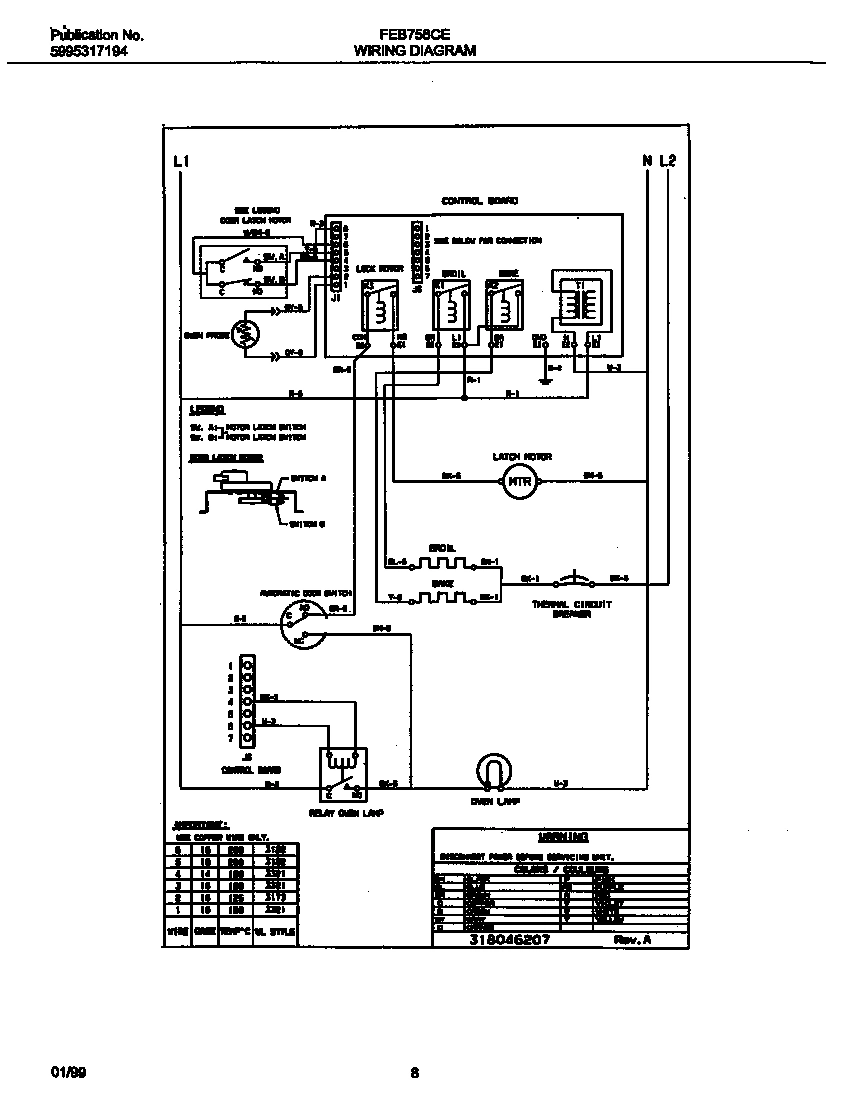

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB756CESE WALL OVEN
*79682
WCI 08002868 WCI 08002868 Contact Us For Availability
*79683
SCREW-6-20 X 5/16 WCI 5303320422 Contact Us For Availability
*79687
SCREW, 10-16 X 1 1/8, BLACK WCI 5303302745 Contact Us For Availability
*79690
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*79691
WCI 5303325981 WCI 5303325981 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 5304402380 Contact Us For Availability
3
WCI 318026600 WCI 318026600 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK WCI 5304401679 Contact Us For Availability
6
WCI 318073600 WCI 318073600 Contact Us For Availability
7
INSULATION-DOOR WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
LINER-OVEN DOOR WCI 318038601 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
WCI 5303294969 WCI 5303294969 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3206270 Contact Us For Availability
14
SOCKET-LIGHT WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR WCI 5303324250 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
SPACER-GLASS LOWER WCI 318139100 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE WCI 3016263 Contact Us For Availability
19
WCI 318139201 WCI 318139201 Contact Us For Availability
20
SPACER-HANDLE,BLACK WCI 318014300 Contact Us For Availability
23
HINGE-OVEN DOOR WCI 318074101 Contact Us For Availability
25
LINER-DOOR BAFFLE WCI 318048301 Contact Us For Availability
29
SPACER-HANDLE MTG WCI 5303210003 Contact Us For Availability
39
HANDLE-DOOR,BLACK WCI 316091106 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
56
WCI 5303298951 WCI 5303298951 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3019048 Contact Us For Availability
58
WCI 5303311220 WCI 5303311220 Contact Us For Availability
58
WCI 5304409957 WCI 5304409957 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
71
WCI 5303304701 WCI 5303304701 Contact Us For Availability
76
WCI 318124200 WCI 318124200 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
WCI 5303323710 WCI 5303323710 Contact Us For Availability
82
WCI 55303304699 WCI 55303304699 Contact Us For Availability
83
WCI 318089518 WCI 318089518 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
91
WCI 3051647 WCI 3051647 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
97
WRAPPER-BACK SIDE WCI 5303300980 Contact Us For Availability
98
WCI 5303298952 WCI 5303298952 Contact Us For Availability
98
WCI 5303298953 WCI 5303298953 Contact Us For Availability
99
SCREW,6-32 X 3/8,BLACK WCI 5303307406 Contact Us For Availability
101
WCI 5303302412 WCI 5303302412 Contact Us For Availability
101
BRACKET-TRIM WCI 318039511 Contact Us For Availability
103
WCI 318028700 WCI 318028700 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
121
WCI 318145002 WCI 318145002 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 5303299270 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
189
RETAINER PLATE WCI 318042500 Contact Us For Availability
231
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
× ![]()
