Model Electrolux FEB756CESB WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

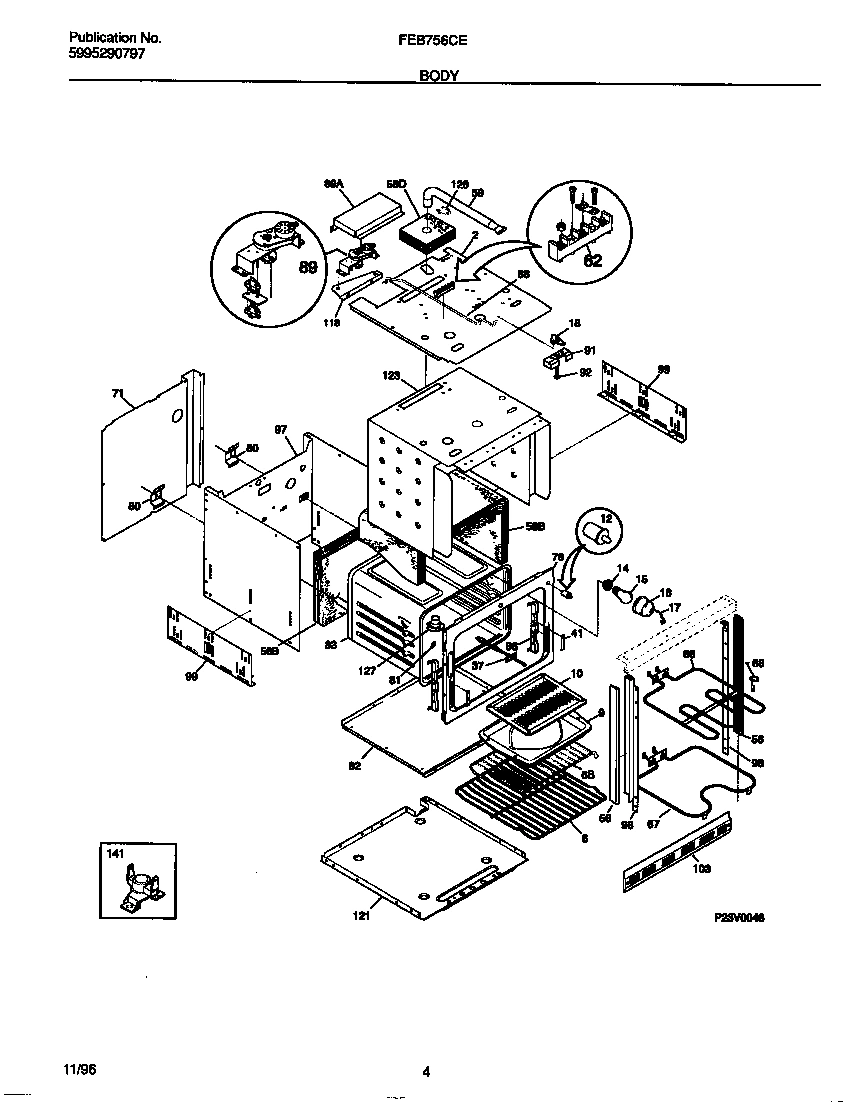

03 - BODY

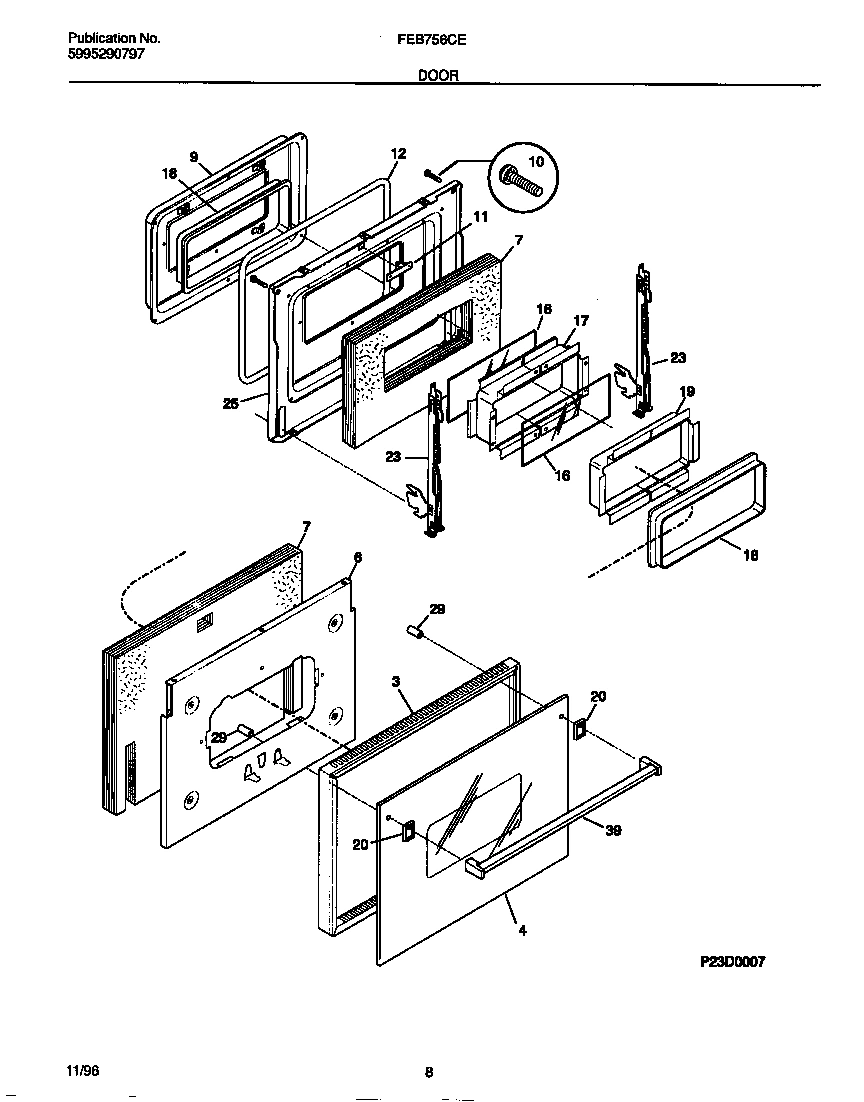

04 - DOOR

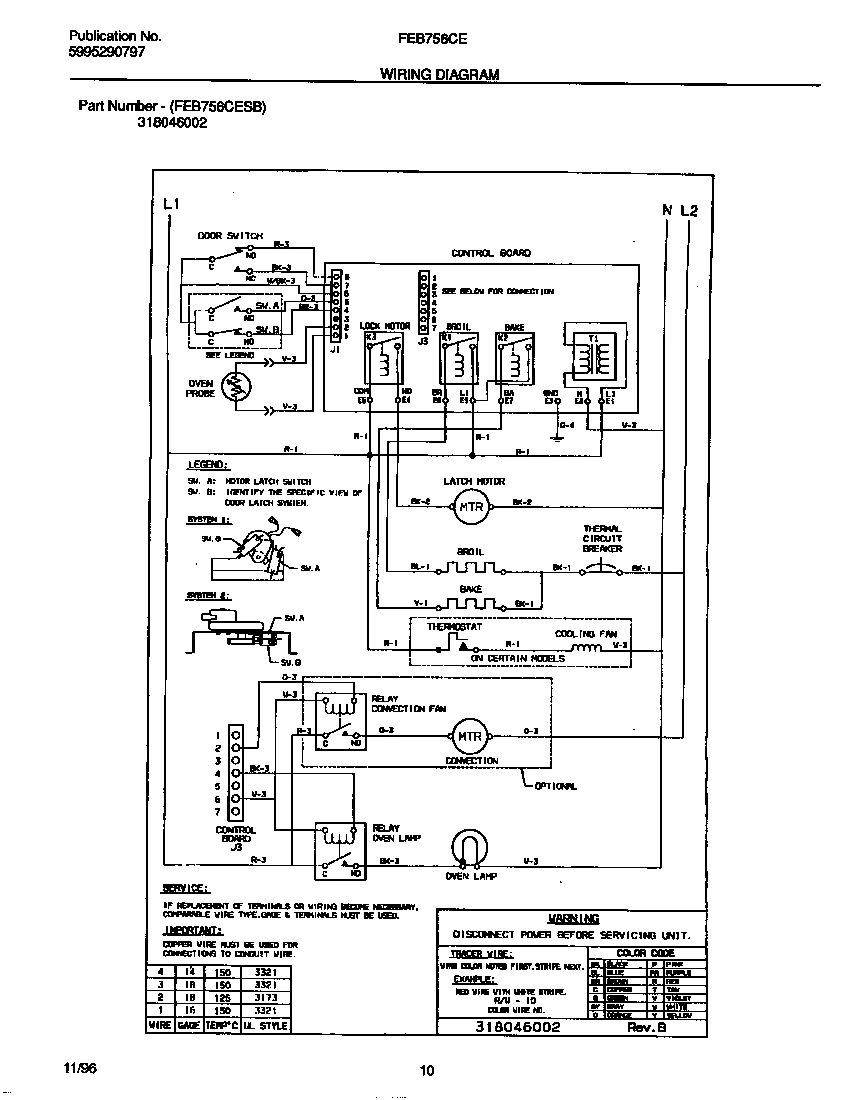

05 - WIRING DIAGRAM

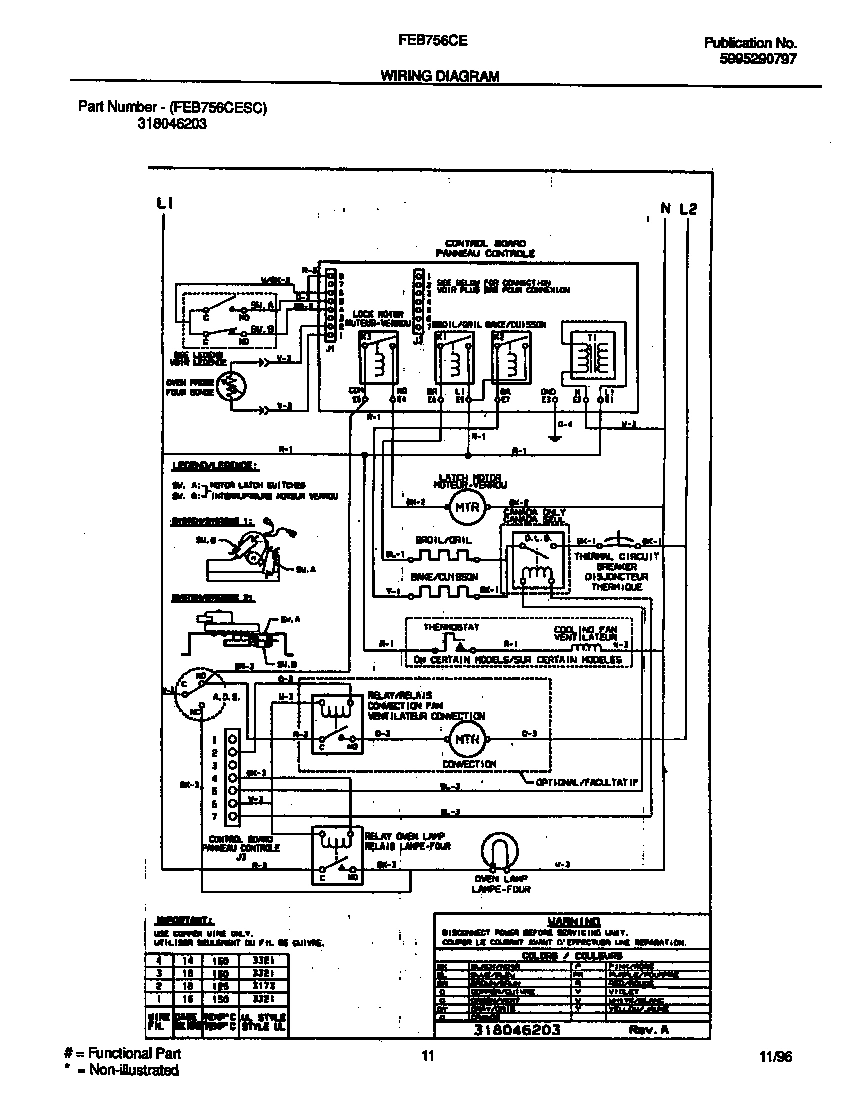

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB756CESB WALL OVEN
*36922
WCI 3018802 WCI 3018802 Contact Us For Availability
*36923
WCI 3201881 WCI 3201881 Contact Us For Availability
*36924
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*36927
WCI 08002868 WCI 08002868 Contact Us For Availability
*36929
WCI 5303319468 WCI 5303319468 Contact Us For Availability
*36930
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*36933
TAPE, SEAL, (3) WCI 5303316982 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 3016249 Contact Us For Availability
3
WCI 318026110 WCI 318026110 Contact Us For Availability
4
GLASS-OVEN DOOR,WHITE ,OUTER WCI 5303302279 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
LINER-OVEN DOOR WCI 318048301 Contact Us For Availability
10
SCREW-HANDLE WCI 5303311217 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
STRIKE PLATE WCI 5301167830 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 5303299275 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303210001 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 5303210008 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE WCI 3016263 Contact Us For Availability
19
WCI 318139201 WCI 318139201 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
21
TRIM-CANOPY/SHIELD, WHITE WCI 5303311212 Contact Us For Availability
21
SCREW, TOP TRIM, 6-32 X 3/8, WHITE, (2) (NOT WCI 5303316956 Contact Us For Availability
23
WCI 318111600 WCI 318111600 Contact Us For Availability
23A
HINGE-OVEN DOOR WCI 5303018381 Contact Us For Availability
25
LINER-DOOR BAFFLE WCI 318038601 Contact Us For Availability
28
CLIP-WIRE WCI 3015722 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
39
WCI 316091107 WCI 316091107 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
TRIM-VENT, WHITE WCI 5303302296 Contact Us For Availability
56
WCI 5303302711 WCI 5303302711 Contact Us For Availability
56
SCREW, 6-20 X 5/16, SIDE TRIM, (4) (NOT ILLUS WCI 5303320422 Contact Us For Availability
58
INSULATION,OVEN BACK ,WRAPPER WCI 3019048 Contact Us For Availability
58
WCI 5303311220 WCI 5303311220 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
62B
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303302386 WCI 5303302386 Contact Us For Availability
68
WCI 5303302285 WCI 5303302285 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
WCI 5303304701 WCI 5303304701 Contact Us For Availability
76
WCI 318124200 WCI 318124200 Contact Us For Availability
78
WCI 5303302394 WCI 5303302394 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 318089512 WCI 318089512 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
97
WCI 5303300980 WCI 5303300980 Contact Us For Availability
98A
WCI 5303298952 WCI 5303298952 Contact Us For Availability
98B
WCI 5303298953 WCI 5303298953 Contact Us For Availability
103
WCI 318028701 WCI 318028701 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
121
WCI 5303304700 WCI 5303304700 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 5303299270 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
× ![]()
