Model Electrolux FEB756CBTB WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

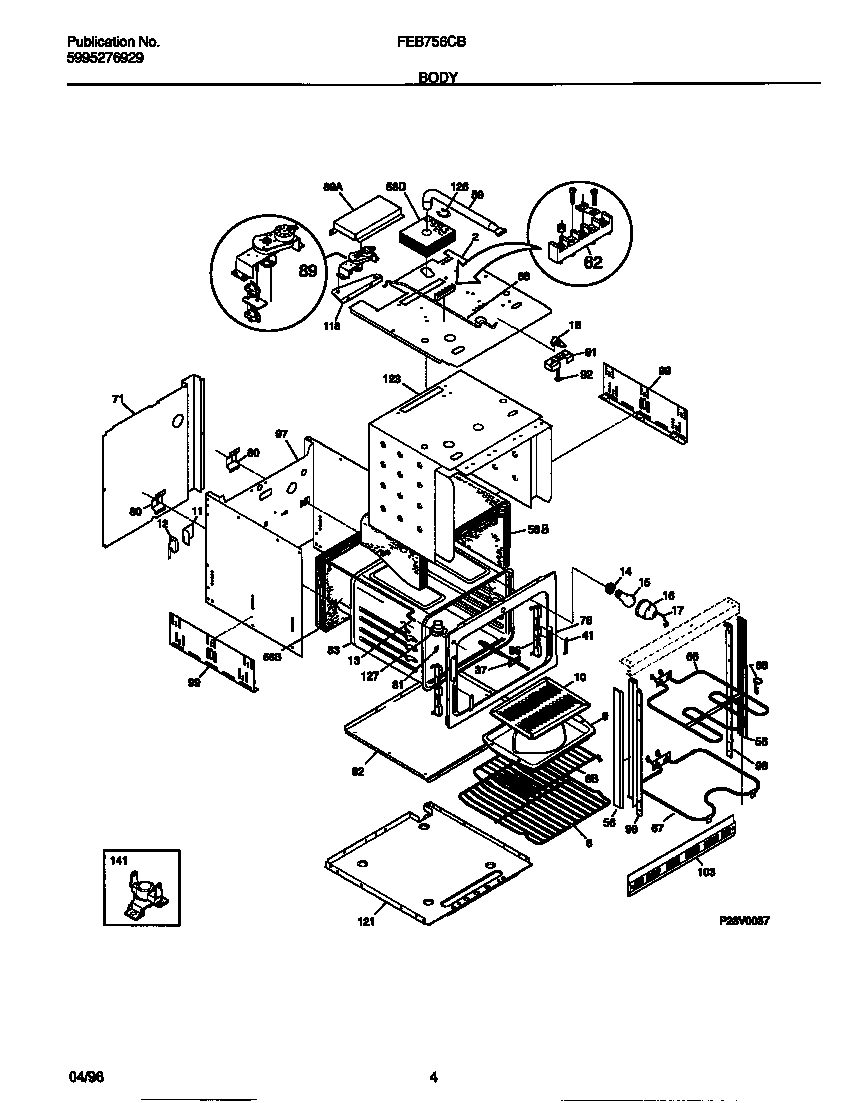

03 - BODY

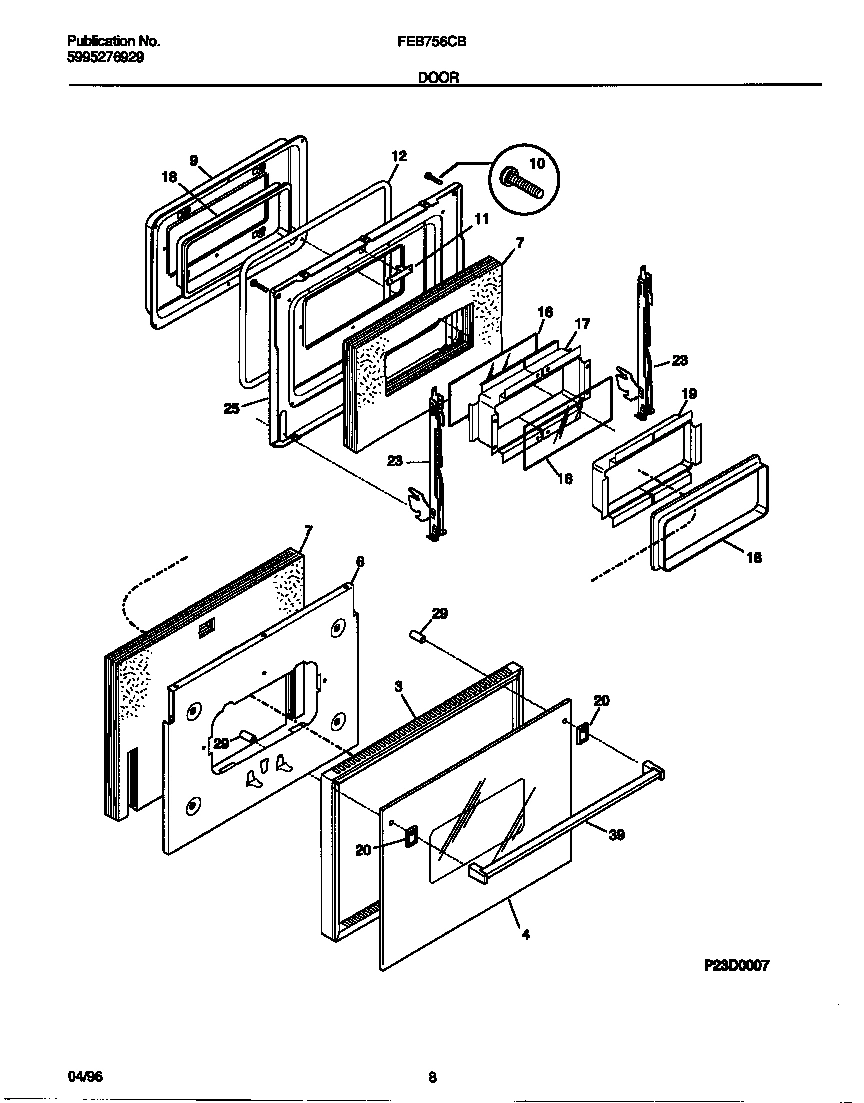

04 - DOOR

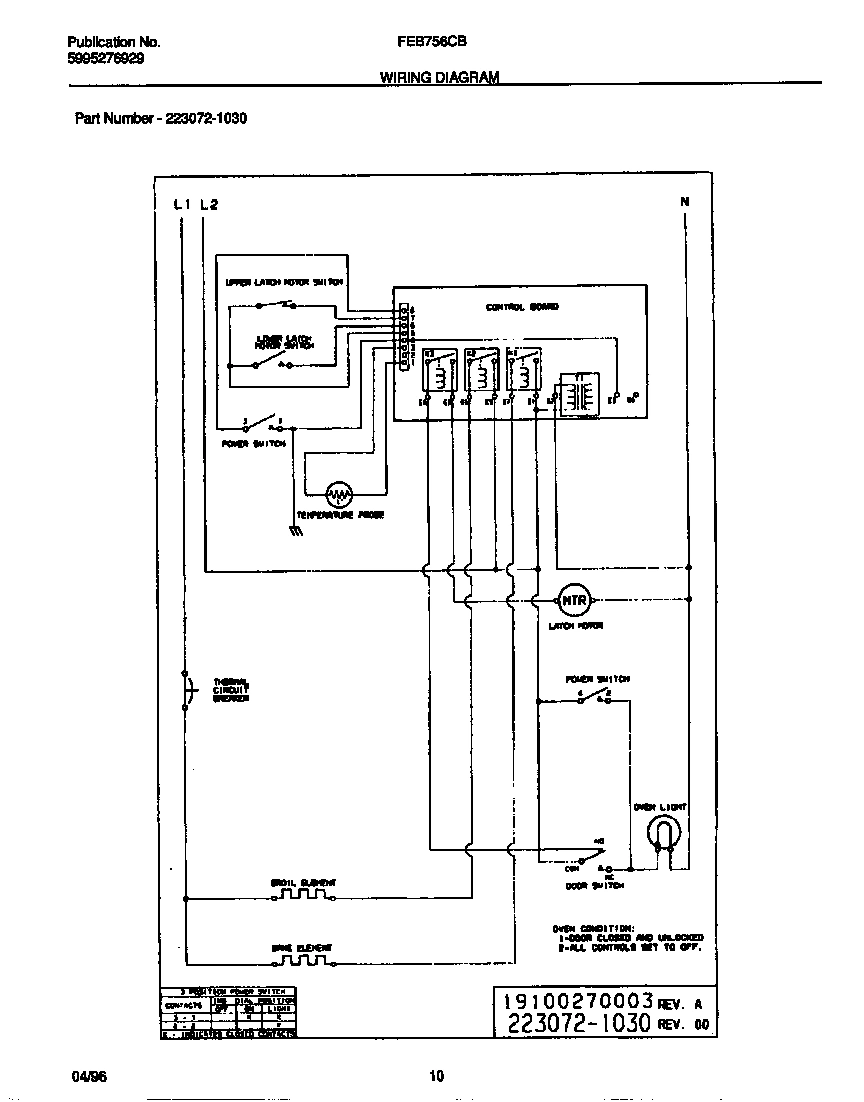

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB756CBTB WALL OVEN
*19523
WCI 3201881 WCI 3201881 Contact Us For Availability
*19525
WCI 08002868 WCI 08002868 Contact Us For Availability
*19526
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*19527
WCI 3018802 WCI 3018802 Contact Us For Availability
*19528
CLIP-WIRE WCI 3015722 Contact Us For Availability
*19529
WCI 5303316995 WCI 5303316995 Contact Us For Availability
*19530
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*19533
TAPE, SEAL, (2) WCI 5303316982 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 3016249 Contact Us For Availability
3
WCI 318026600 WCI 318026600 Contact Us For Availability
4
GLASS-OVEN DOOR,ALMOND ,OUTER WCI 5303303595 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303310521 WCI 5303310521 Contact Us For Availability
9
LINER-OVEN DOOR WCI 5303300950 Contact Us For Availability
10
WCI 5303310520 WCI 5303310520 Contact Us For Availability
10
WCI 5303299481 WCI 5303299481 Contact Us For Availability
11
WCI 5303308448 WCI 5303308448 Contact Us For Availability
11
WCI DK1323556 WCI DK1323556 Contact Us For Availability
12
SEAL-OVEN DOOR, UPPER OVEN WCI 5303299275 Contact Us For Availability
12A
SWITCH-DOOR WCI 5303275924 Contact Us For Availability
12B
FASTENER, SWITCH (NOT ILLUSTRATED) WCI 3131095 Contact Us For Availability
12C
WCI 5303308447 WCI 5303308447 Contact Us For Availability
13A
ROD-LIGHT SWITCH WCI 3202077 Contact Us For Availability
13B
SPRING-ROD (NOT ILLUSTRATED) WCI 3204114 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, UPPER OVEN WCI 5303210001 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS, UPPER OVEN WCI 5303210008 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE, UPPER OVEN WCI 3016263 Contact Us For Availability
19
COLLAR-GLASS MTG WCI 5303210006 Contact Us For Availability
20
WCI 5303307401 WCI 5303307401 Contact Us For Availability
20
WCI 5303300174 WCI 5303300174 Contact Us For Availability
21
TRIM-CANOPY/SHIELD, ALMOND WCI 5303303412 Contact Us For Availability
21
WCI 5303317307 WCI 5303317307 Contact Us For Availability
23A
HINGE-OVEN DOOR, UPPER OVEN WCI 5303018381 Contact Us For Availability
24A
WCI 3202654 WCI 3202654 Contact Us For Availability
24B
WCI 5303310393 WCI 5303310393 Contact Us For Availability
25
LINER-DOOR BAFFLE WCI 5303300949 Contact Us For Availability
28
WCI 5303302402 WCI 5303302402 Contact Us For Availability
29
WCI 5303302399 WCI 5303302399 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
39
HANDLE-DOOR, ALMOND, OVEN WCI 5303303594 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
TRIM-VENT,ALMOND WCI 5303303417 Contact Us For Availability
56
WCI 5303302712 WCI 5303302712 Contact Us For Availability
58
INSULATION,OVEN BACK ,WRAPPER WCI 3019048 Contact Us For Availability
58
WCI 5303311220 WCI 5303311220 Contact Us For Availability
59
WCI 5303300422 WCI 5303300422 Contact Us For Availability
62B
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303302386 WCI 5303302386 Contact Us For Availability
68
WCI 5303302285 WCI 5303302285 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
WCI 5303304701 WCI 5303304701 Contact Us For Availability
76
FRONT-OVEN WCI 5303299384 Contact Us For Availability
78
WCI 5303302395 WCI 5303302395 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 3202392 WCI 3202392 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
97
WCI 5303300980 WCI 5303300980 Contact Us For Availability
98A
WCI 5303298952 WCI 5303298952 Contact Us For Availability
98B
WCI 5303298953 WCI 5303298953 Contact Us For Availability
103
WCI 318028702 WCI 318028702 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
121
WCI 5303304700 WCI 5303304700 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 5303299270 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 3205683 Contact Us For Availability
× ![]()
