Model Electrolux FEB755CESF WALL OVEN – Common Parts & Diagrams

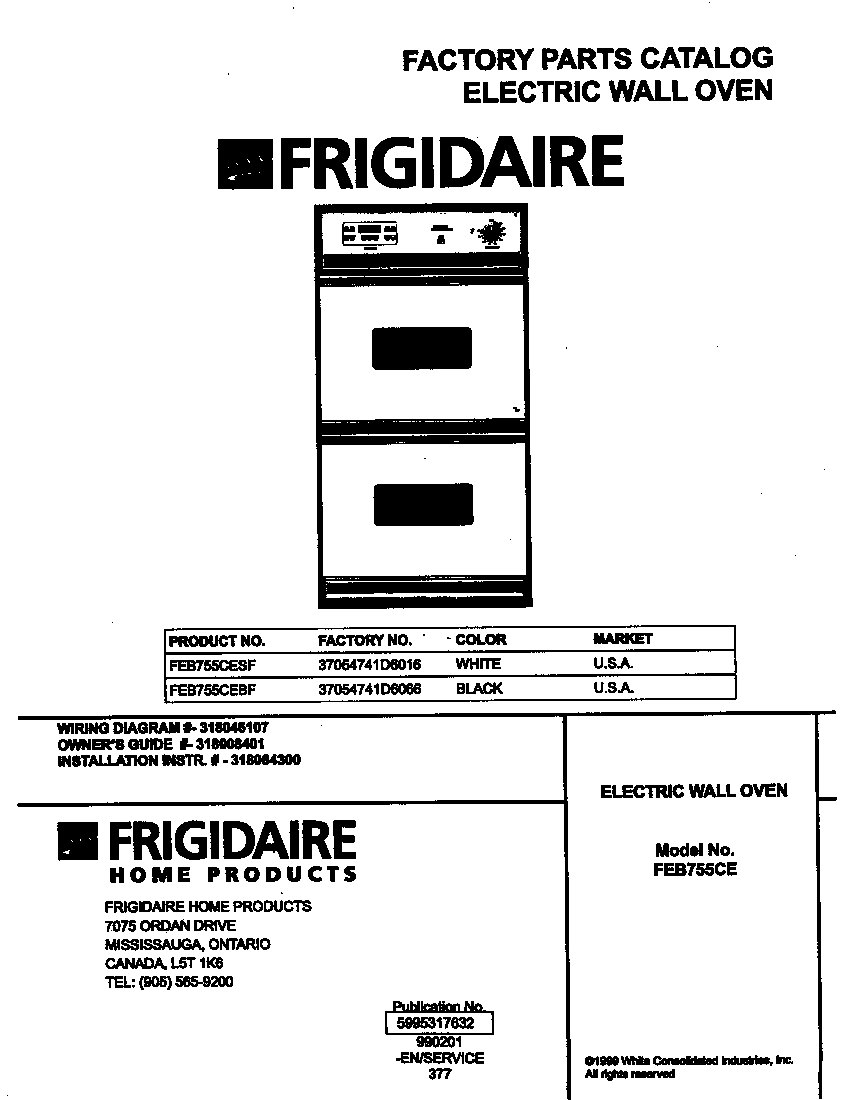

01 - COVER

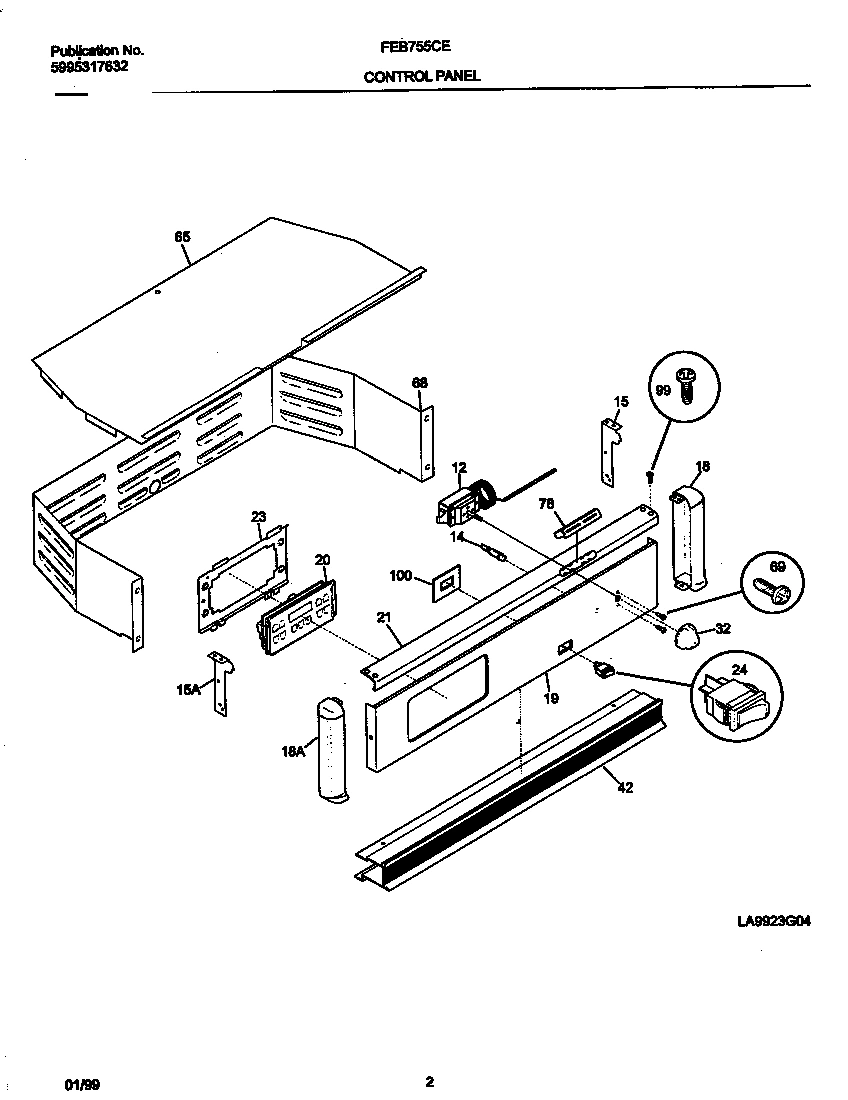

02 - CONTROL PANEL

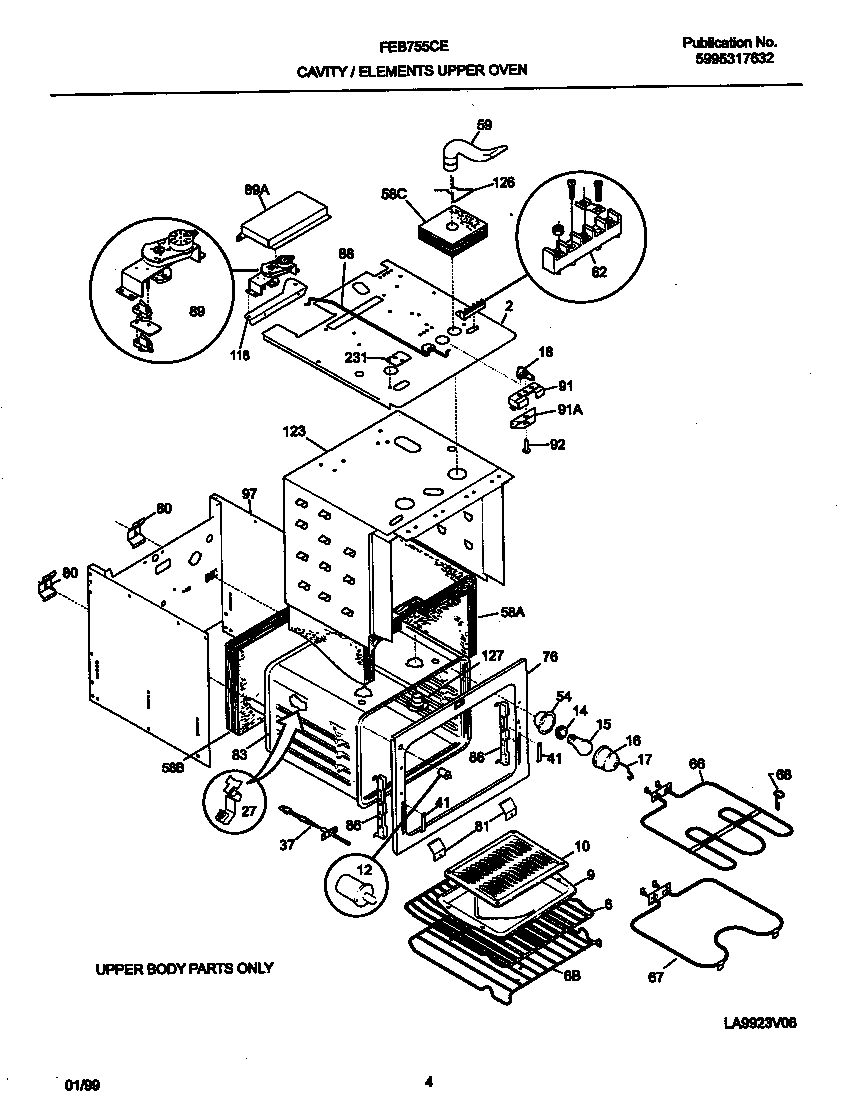

03 - CAVITY/ELEMENTS UPPER OVEN

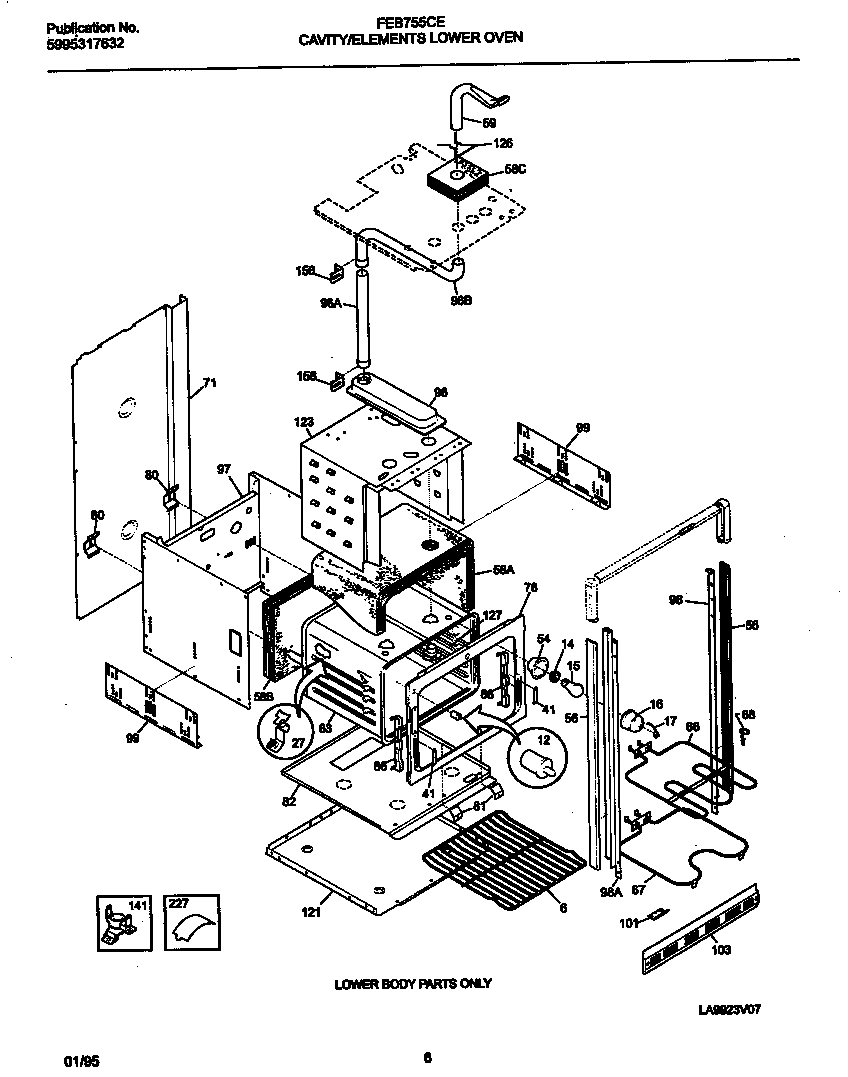

04 - CAVITY/ELEMENTS LOWER OVEN

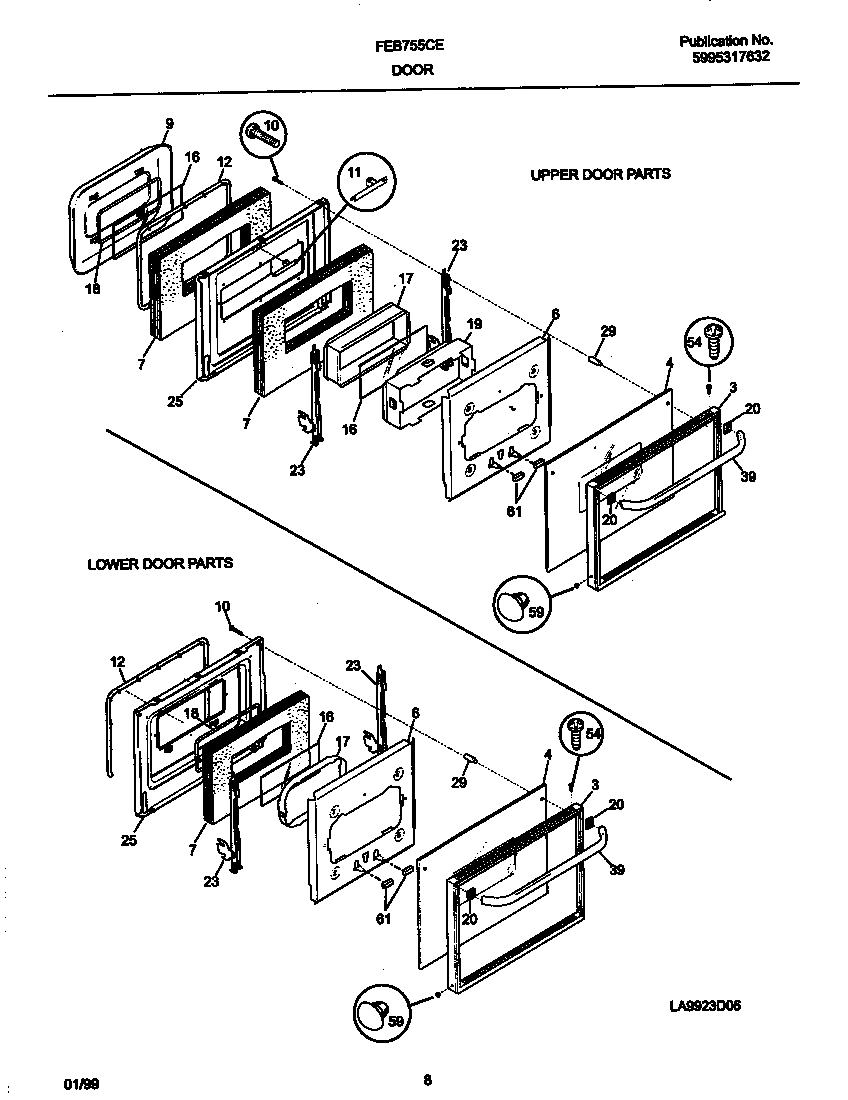

05 - UPPER/LOWER DOORS

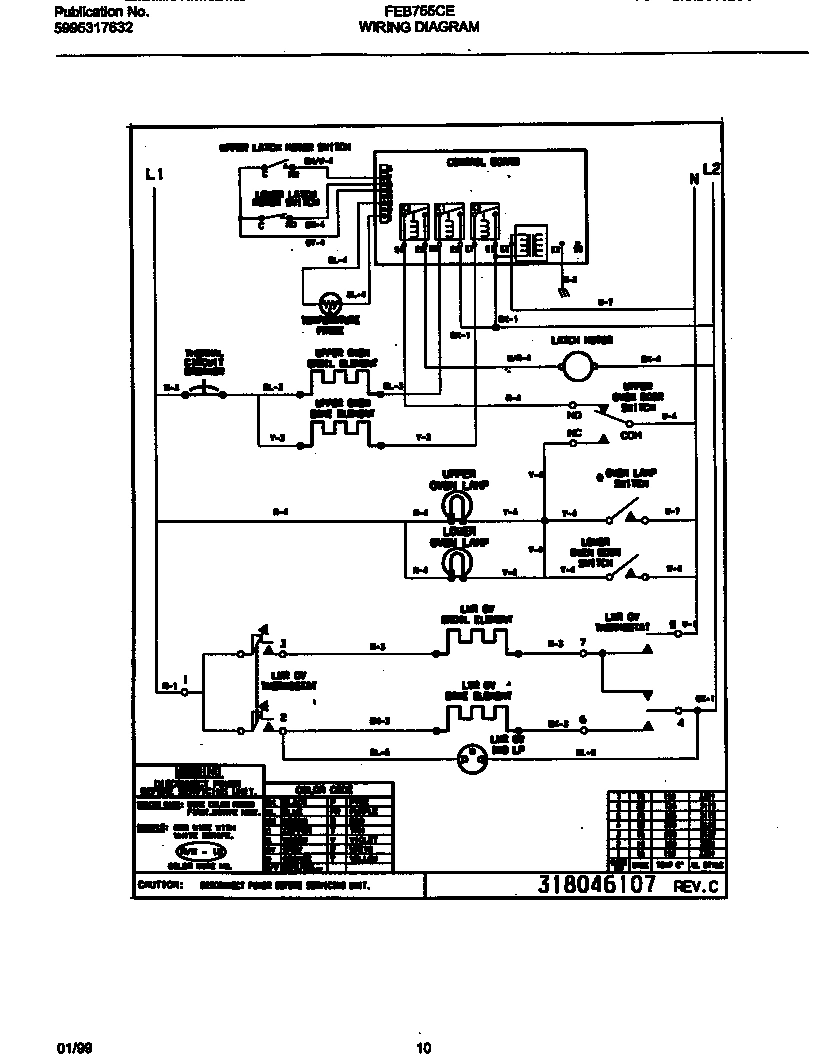

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB755CESF WALL OVEN
*02894
WCI 3018802 WCI 3018802 Contact Us For Availability
*02896
WCI 5303935083 WCI 5303935083 Contact Us For Availability
*02897
SCREW <10-16X-1-1/8> WCI 5303302745 Contact Us For Availability
*02898
SCREW-6-20 X 5/16 WCI 5303320422 Contact Us For Availability
*02900
WCI 5303320505 WCI 5303320505 Contact Us For Availability
*02901
CLIP-WIRE WCI 3015722 Contact Us For Availability
*02902
WCI 08002868 WCI 08002868 Contact Us For Availability
*02904
WCI 5303325981 WCI 5303325981 Contact Us For Availability
2
WCI 5304402380 WCI 5304402380 Contact Us For Availability
3
WCI 318026110 WCI 318026110 Contact Us For Availability
4
GLASS-OVEN DOOR,WHITE WCI 5303302279 Contact Us For Availability
6
WCI 318073600 WCI 318073600 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
LINER-DOOR BAFFLE WCI 318038601 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
WCI 5303294969 WCI 5303294969 Contact Us For Availability
12
SWITCH-LIGHT WCI 5301314211 Contact Us For Availability
12A
SEAL-OVEN DOOR UPPER WCI 3206270 Contact Us For Availability
12B
SEAL-OVEN DOOR, LOWER WCI 5303316768 Contact Us For Availability
16A
GLASS-OVEN DOOR UPPER WCI 5303324250 Contact Us For Availability
16B
GLASS-OVEN DOOR LOWER WCI 5303323828 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17A
SUPPORT-GLASS DOOR,UPPER WCI 318139100 Contact Us For Availability
17B
SUPPORT-GLASS DOOR,LOWER WCI 318162601 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18A
SEAL-ROPE DOOR,UPPER WCI 3016263 Contact Us For Availability
18B
SEAL-ROPE DOOR,LOWER WCI 5303299723 Contact Us For Availability
19
COLLAR GLASS MTG,DOOR UPPER WCI 318139201 Contact Us For Availability
20
SPACER-HANDLE,WHITE WCI 318014301 Contact Us For Availability
23A
WCI 318074101 WCI 318074101 Contact Us For Availability
23B
HINGE-OVEN DOOR,LOWER WCI 318074103 Contact Us For Availability
25A
LINER-OVEN DOOR,UPPER WCI 318048301 Contact Us For Availability
25B
LINER-OVEN DOOR, LOWER WCI 318048402 Contact Us For Availability
29
SPACER-HANDLE MTG WCI 5303210003 Contact Us For Availability
39
HANDLE-DOOR,WHITE WCI 316091107 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
TRIM-BODYSIDE,WHITE WCI 5303302282 Contact Us For Availability
58
WCI 53019048 WCI 53019048 Contact Us For Availability
58
WCI 5303317714 WCI 5303317714 Contact Us For Availability
58
WCI 5304409957 WCI 5304409957 Contact Us For Availability
58
INSULATION-WRAPPER WCI 5303304702 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
59
WCI 5303300951 WCI 5303300951 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
59
BUTTON, PLUG WCI 3202113 Contact Us For Availability
61
WCI 5303300414 WCI 5303300414 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305023 Contact Us For Availability
76
WCI 318124200 WCI 318124200 Contact Us For Availability
76
WCI 318124201 WCI 318124201 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
WCI 5303323710 WCI 5303323710 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 318089518 WCI 318089518 Contact Us For Availability
83
WCI 318089507 WCI 318089507 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH WCI 318095800 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
91
WCI 3051647 WCI 3051647 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
WCI 3016327 WCI 3016327 Contact Us For Availability
96
DUCT-OVEN ASSY WCI 5303317197 Contact Us For Availability
97
WCI 318066500 WCI 318066500 Contact Us For Availability
97
WRAPPER-BACK & SIDES WCI 318066701 Contact Us For Availability
98
WCI 318029332 WCI 318029332 Contact Us For Availability
98
WCI 318029333 WCI 318029333 Contact Us For Availability
101
WCI 318039512 WCI 318039512 Contact Us For Availability
103
WCI 318028701 WCI 318028701 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
121
WCI 318145002 WCI 318145002 Contact Us For Availability
123
WCI 318071430 WCI 318071430 Contact Us For Availability
123
WCI 3180714300 WCI 3180714300 Contact Us For Availability
126
CLIP-INSULATION RETAINER WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 318072800 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
227
WCI 5303323955 WCI 5303323955 Contact Us For Availability
231
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
× ![]()
