Model Electrolux FEB755CESB WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

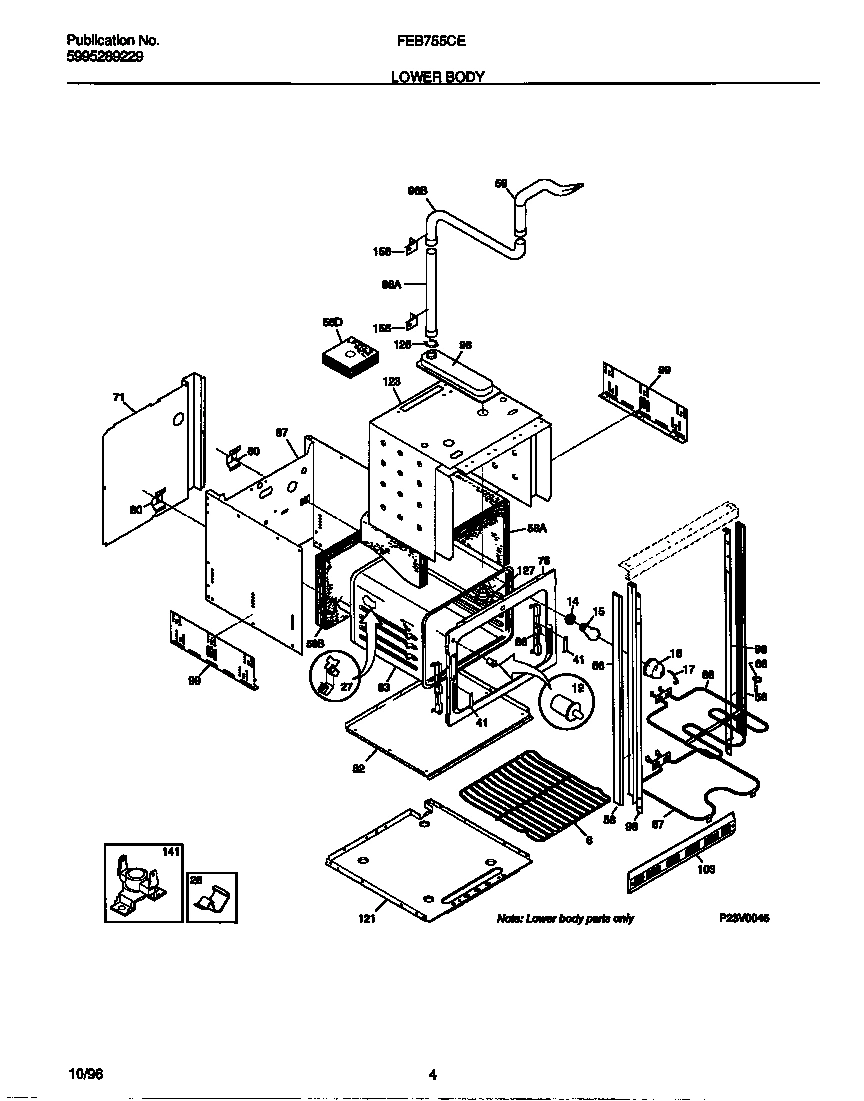

03 - LOWER BODY

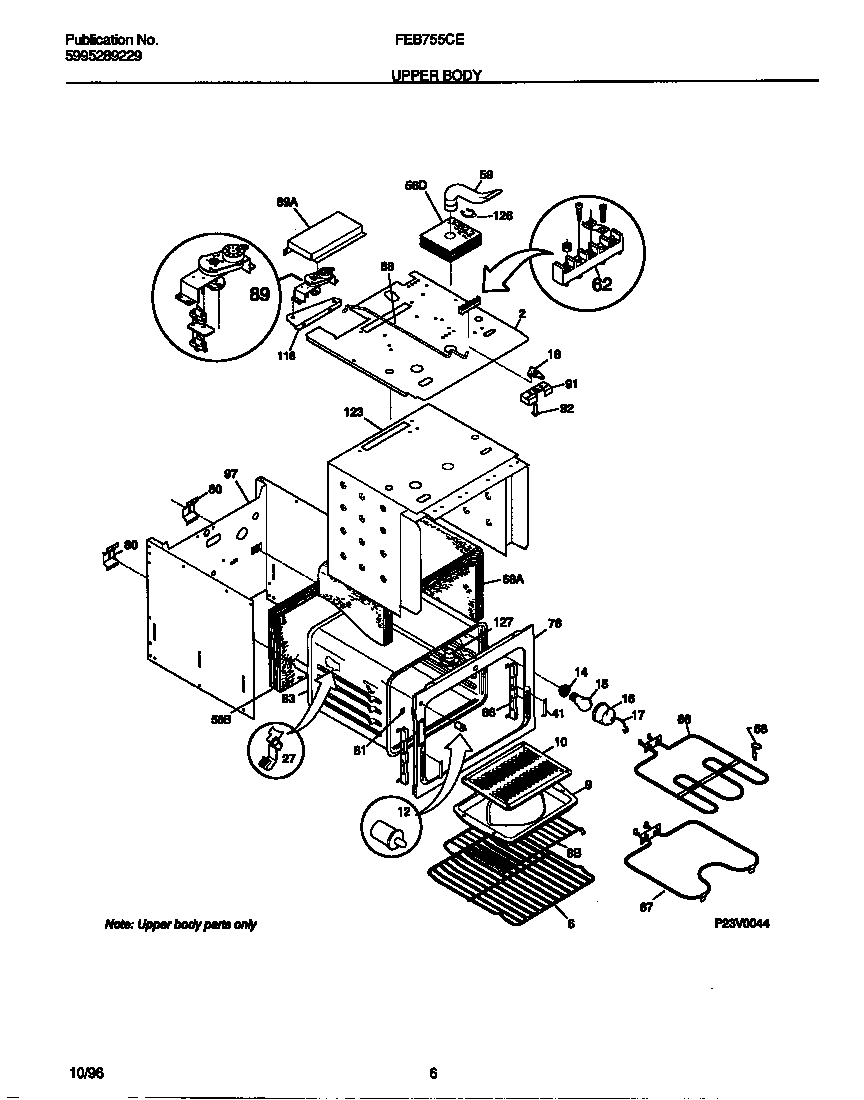

04 - UPPER BODY

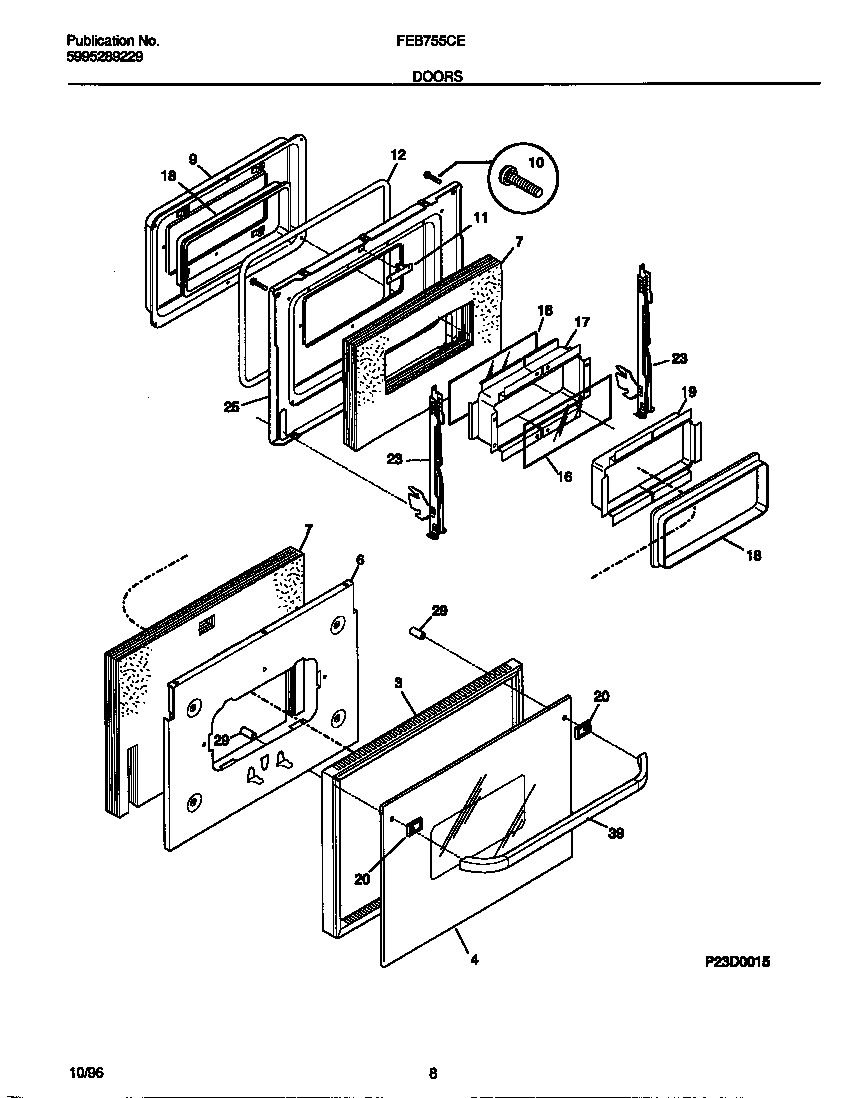

05 - DOOR

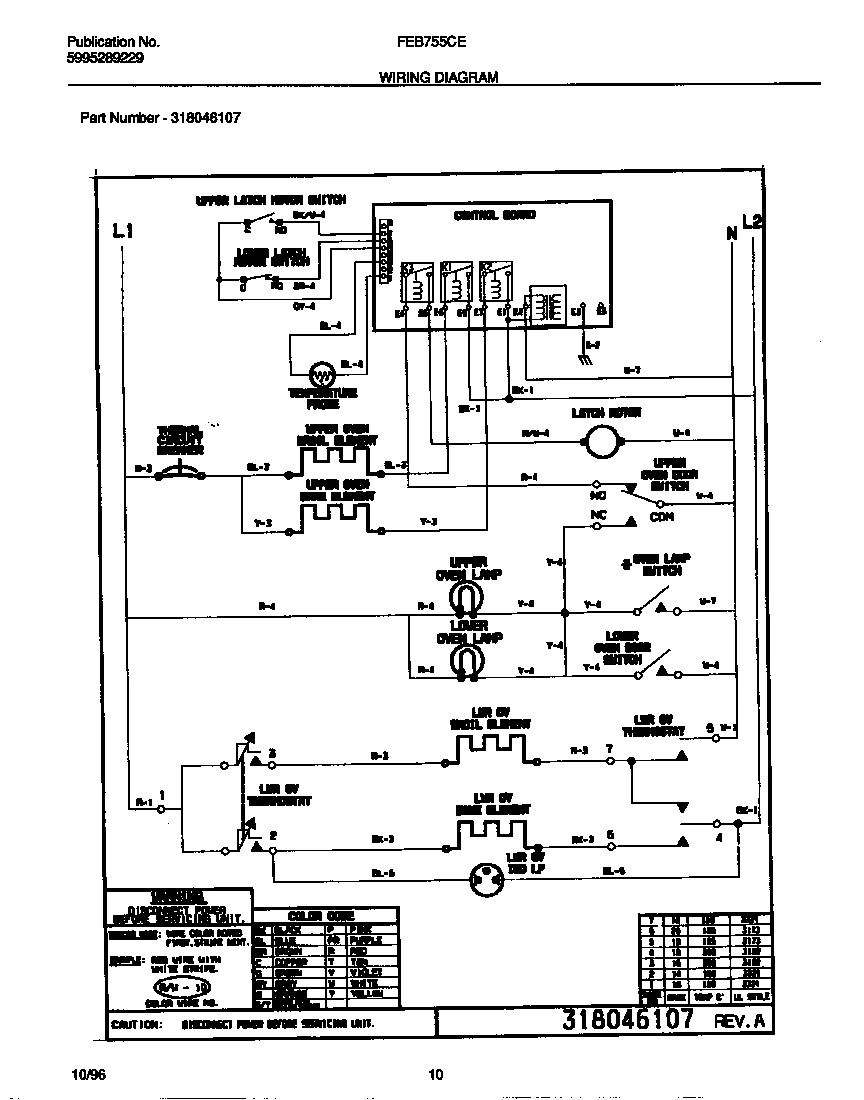

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB755CESB WALL OVEN
*38363
WCI 3201881 WCI 3201881 Contact Us For Availability
*38364
WCI 08002868 WCI 08002868 Contact Us For Availability
*38366
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*38367
WCI 5303320505 WCI 5303320505 Contact Us For Availability
*38368
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*38369
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*38372
TAPE, SEAL, (3) WCI 5303316982 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 3016249 Contact Us For Availability
3
WCI 318026110 WCI 318026110 Contact Us For Availability
4
GLASS-OVEN DOOR,WHITE ,OUTER WCI 5303302279 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9A
WCI 318048301 WCI 318048301 Contact Us For Availability
9B
LINER-OVEN DOOR, LOWER OVEN WCI 318048402 Contact Us For Availability
10
SCREW-HANDLE WCI 5303311217 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
STRIKE PLATE WCI 5301167830 Contact Us For Availability
12
SWITCH-LIGHT WCI 5301314211 Contact Us For Availability
12A
SEAL-OVEN DOOR, UPPER OVEN WCI 5303299275 Contact Us For Availability
12B
SEAL-OVEN DOOR, LOWER OVEN WCI 5303316768 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16A
GLASS-OVEN DOOR, HEAT BARRIER, UPPER OVEN WCI 5303210001 Contact Us For Availability
16B
GLASS-OVEN DOOR, HEAT BARRIER, LOWER OVEN WCI 5303016336 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17A
SPACER-GLASS, UPPER OVEN WCI 5303210008 Contact Us For Availability
17B
SPACER-GLASS, LOWER OVEN WCI 5303212864 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18A
SEAL-ROPE, UPPER OVEN WCI 3016263 Contact Us For Availability
18B
SEAL-ROPE, LOWER OVEN WCI 3016338 Contact Us For Availability
19
WCI 318139200 WCI 318139200 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
23A
HINGE-OVEN DOOR, UPPER OVEN WCI 5303018381 Contact Us For Availability
23B
HINGE-OVEN DOOR, LOWER WCI 3202464 Contact Us For Availability
25
WCI 318038601 WCI 318038601 Contact Us For Availability
28
CLIP-WIRE WCI 3015722 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
32
WCI 318017206 WCI 318017206 Contact Us For Availability
39
WCI 316091107 WCI 316091107 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
WCI 5303318709 WCI 5303318709 Contact Us For Availability
56
WCI 5303302282 WCI 5303302282 Contact Us For Availability
56
SCREW, 6-20 X 5/16, SIDE TRIM, (4) (NOT ILLUS WCI 5303320422 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
58
WCI 5303317714 WCI 5303317714 Contact Us For Availability
58
INSULATION,OVEN BACK ,WRAPPER WCI 3019048 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
59
WCI 5303300951 WCI 5303300951 Contact Us For Availability
62B
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303302386 WCI 5303302386 Contact Us For Availability
68
WCI 5303302285 WCI 5303302285 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SCREW-SWITCH MTG, 8-32 X 5/32, (6) WCI 5303292005 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305023 Contact Us For Availability
76
WCI 318124201 WCI 318124201 Contact Us For Availability
76
WCI 318124200 WCI 318124200 Contact Us For Availability
78
COVER, OVEN VENT, WHITE WCI 5303302284 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 318089507 WCI 318089507 Contact Us For Availability
83
WCI 318089509 WCI 318089509 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
96
WCI 5303317197 WCI 5303317197 Contact Us For Availability
97
WCI 5303300980 WCI 5303300980 Contact Us For Availability
97
WCI 318066501 WCI 318066501 Contact Us For Availability
98A
TRIM-SIDE, INNER, RH WCI 5303300954 Contact Us For Availability
98B
TRIM-SIDE, INNER, LH WCI 5303300955 Contact Us For Availability
103
WCI 318028701 WCI 318028701 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
121
WCI 5303304700 WCI 5303304700 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 5303299270 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 318072800 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
× ![]()
