Model Electrolux FEB755CEBH WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

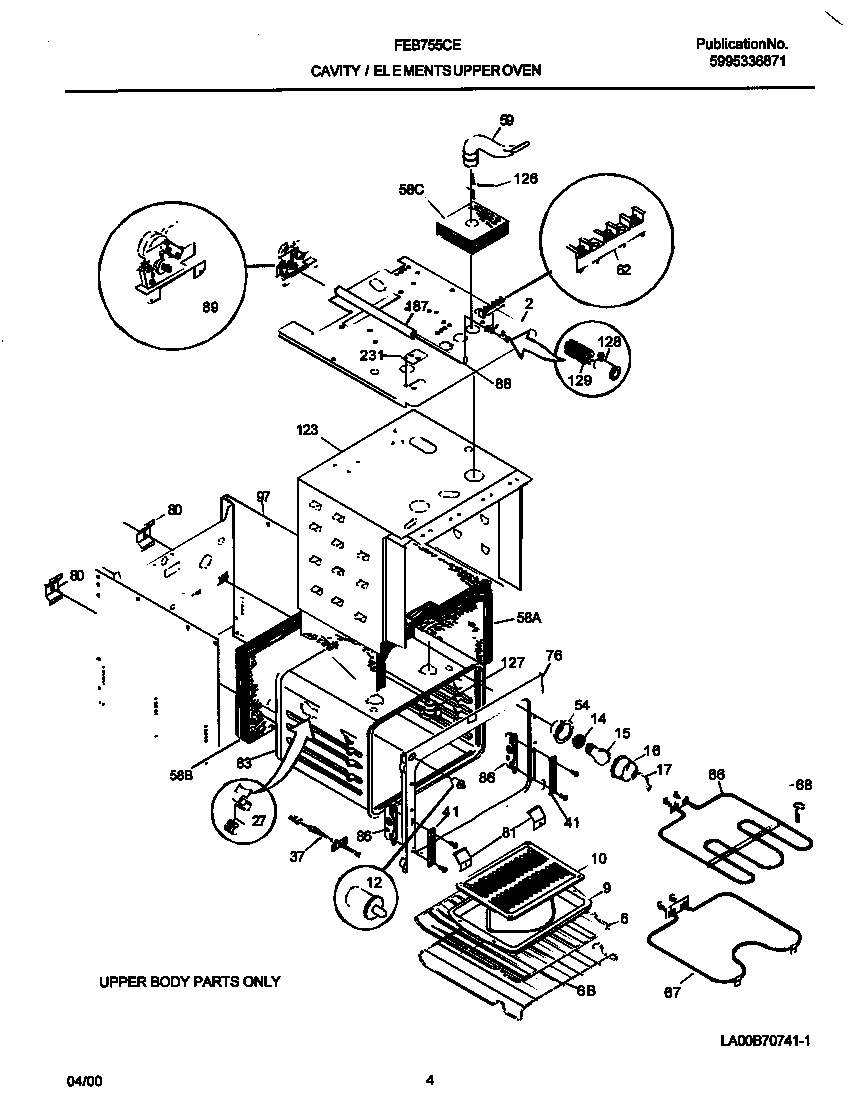

03 - UPPER OVEN

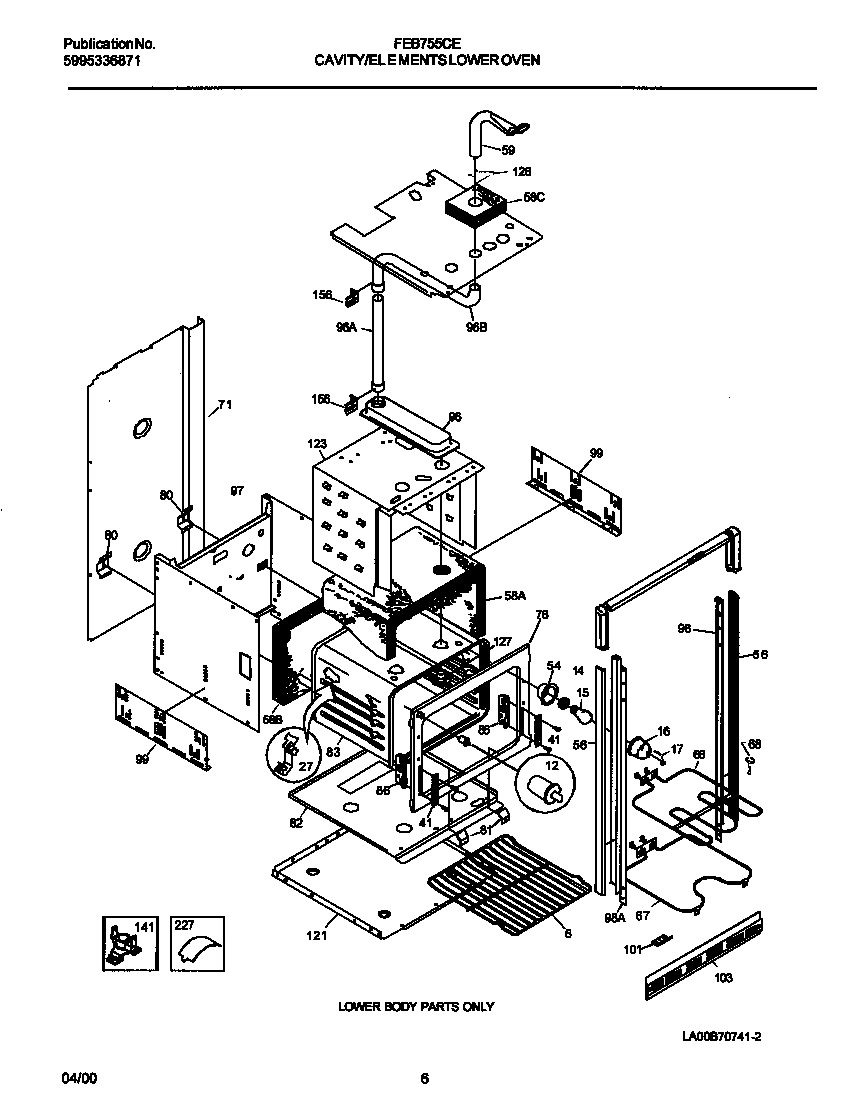

04 - LOWER OVEN

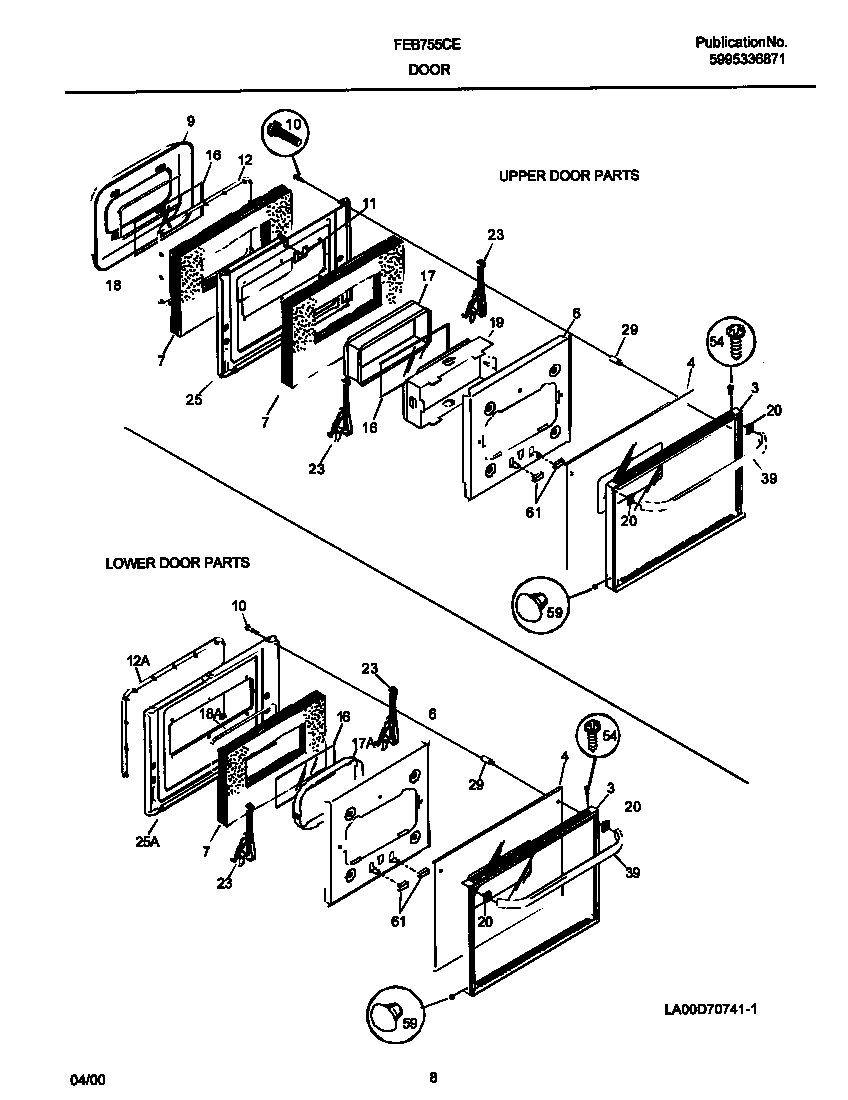

05 - DOOR

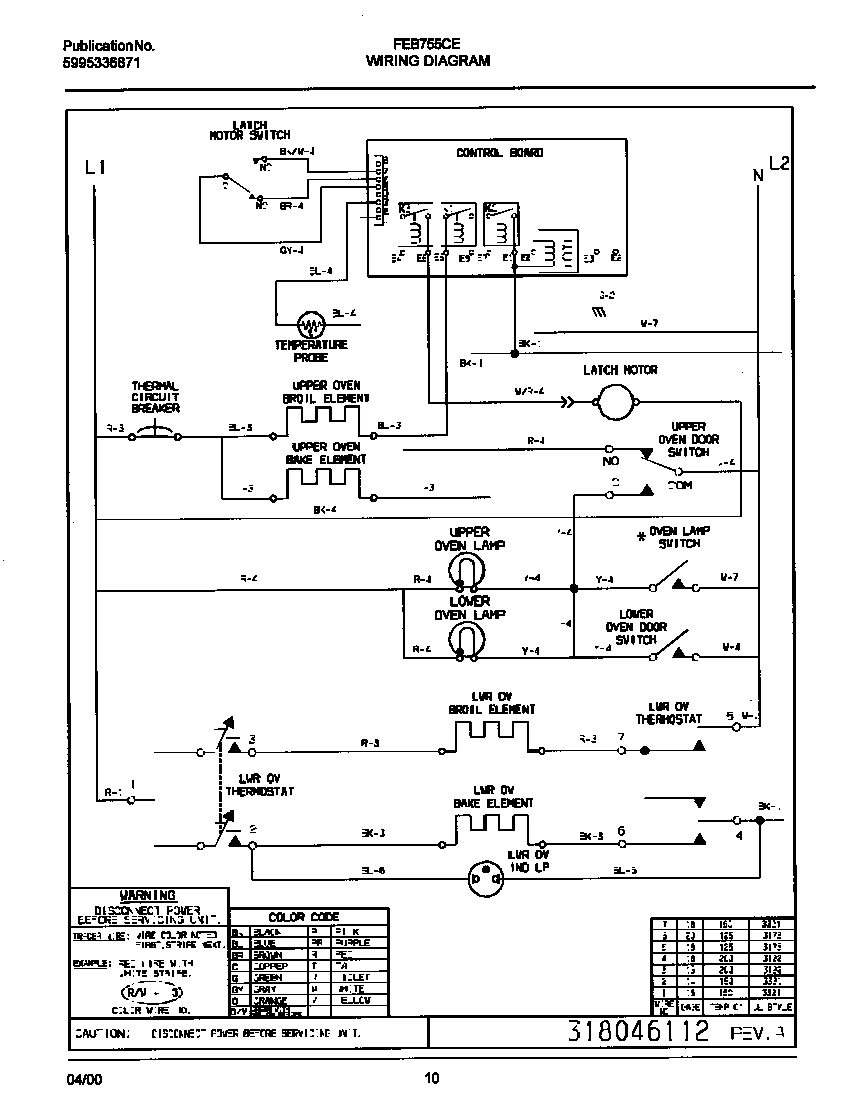

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB755CEBH WALL OVEN
*61218
WCI 08002868 WCI 08002868 Contact Us For Availability
*61227
WCI 5303320505 WCI 5303320505 Contact Us For Availability
*61228
CLIP-WIRE WCI 3015722 Contact Us For Availability
*61231
WCI 5303302745 WCI 5303302745 Contact Us For Availability
*61233
SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 WCI 5303311528 Contact Us For Availability
*61234
SCREW,6-20 X 5/16 ,SIDE TRIM ,(4) WCI 5303320422 Contact Us For Availability
*61237
WCI 318120710 WCI 318120710 Contact Us For Availability
*61238
WCI 318096002 WCI 318096002 Contact Us For Availability
2
WCI 5304402380 WCI 5304402380 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
WCI 318065102 WCI 318065102 Contact Us For Availability
12C
SEAL-OVEN DOOR, LOWER OVEN WCI 5303316768 Contact Us For Availability
16B
GLASS DOOR WCI 5303324250 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17B
SUPPORT-GLASS,LOWER OVEN WCI 318162601 Contact Us For Availability
18A
SEAL-ROPE, UPPER OVEN WCI 3016263 Contact Us For Availability
18B
GASKET WCI 318053204 Contact Us For Availability
19
WCI 318139201 WCI 318139201 Contact Us For Availability
20
WCI 318014300 WCI 318014300 Contact Us For Availability
23A
WCI 5303311259 WCI 5303311259 Contact Us For Availability
23B
WCI 5303325091 WCI 5303325091 Contact Us For Availability
25A
WCI 318048308 WCI 318048308 Contact Us For Availability
25B
LINE OVEN DOOR,LOWER DOOR WCI 318156606 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
39
WCI 316091106 WCI 316091106 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 5303300956 WCI 5303300956 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
58
WCI 5303317714 WCI 5303317714 Contact Us For Availability
58
INSULATION,OVEN BACK ,WRAPPER WCI 3019048 Contact Us For Availability
58
INSULATION WCI 5304409957 Contact Us For Availability
59
BUTTON, PLUG WCI 3202113 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
59
WCI 5303300951 WCI 5303300951 Contact Us For Availability
61
FOAM SEAL,SEAL ,(3) WCI 5303316982 Contact Us For Availability
71
WCI 318071120 WCI 318071120 Contact Us For Availability
76
WCI 318124212 WCI 318124212 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
WCI 5303323710 WCI 5303323710 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 318089507 WCI 318089507 Contact Us For Availability
83
WCI 318089518 WCI 318089518 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 318118903 WCI 318118903 Contact Us For Availability
89
WCI 318095915 WCI 318095915 Contact Us For Availability
89
WCI 318095916 WCI 318095916 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
96A
WCI 318072702 WCI 318072702 Contact Us For Availability
96B
WCI 5303317197 WCI 5303317197 Contact Us For Availability
97
WRAPPER-BACK SIDE WCI 318066702 Contact Us For Availability
97
WCI 318066500 WCI 318066500 Contact Us For Availability
98
WCI 318029332 WCI 318029332 Contact Us For Availability
98
WCI 318029333 WCI 318029333 Contact Us For Availability
101
BRACKET-TRIM WCI 318039511 Contact Us For Availability
103
WCI 318028700 WCI 318028700 Contact Us For Availability
121
WCI 318145002 WCI 318145002 Contact Us For Availability
123
WCI 318071442 WCI 318071442 Contact Us For Availability
123
WCI 318071432 WCI 318071432 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
WCI 318072800 WCI 318072800 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
187
TUBE, ROD-LATCH WCI 318013501 Contact Us For Availability
187
WCI 318013502 WCI 318013502 Contact Us For Availability
227
CLIP WCI 5303323955 Contact Us For Availability
231
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
× ![]()
