Model Electrolux FEB755BBBF WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

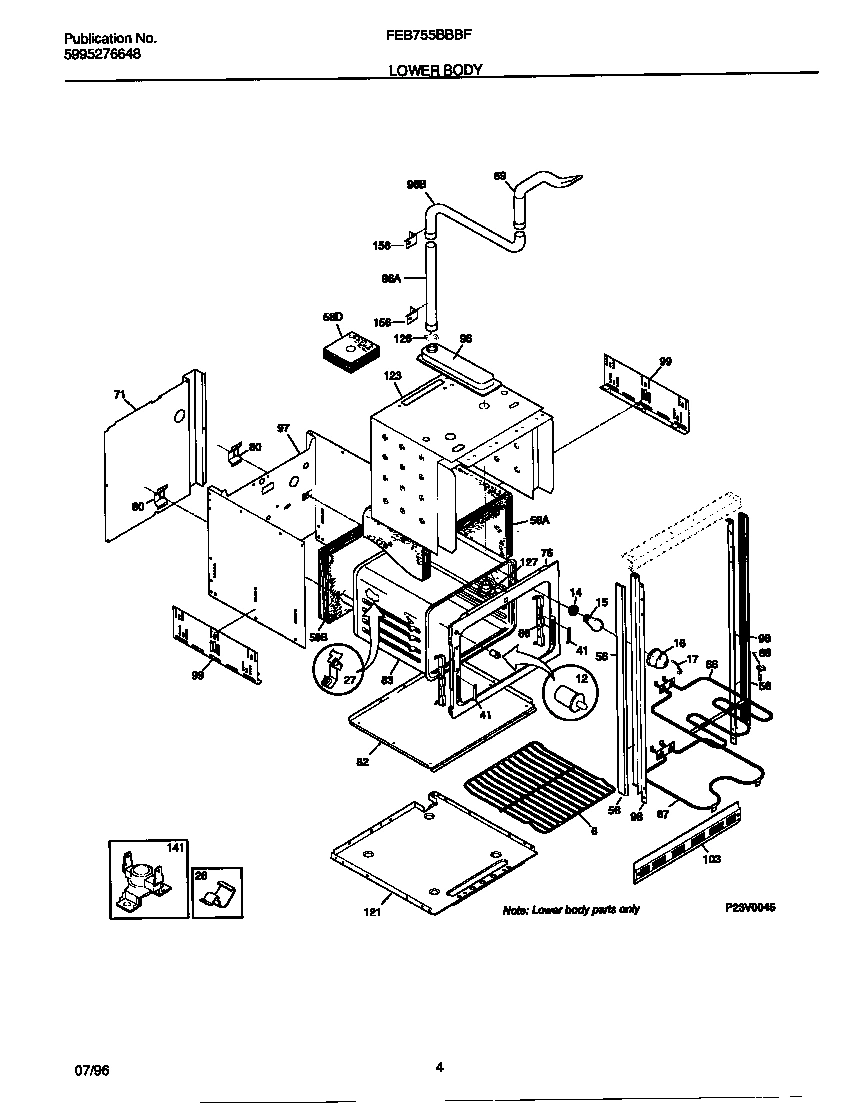

03 - LOWER BODY

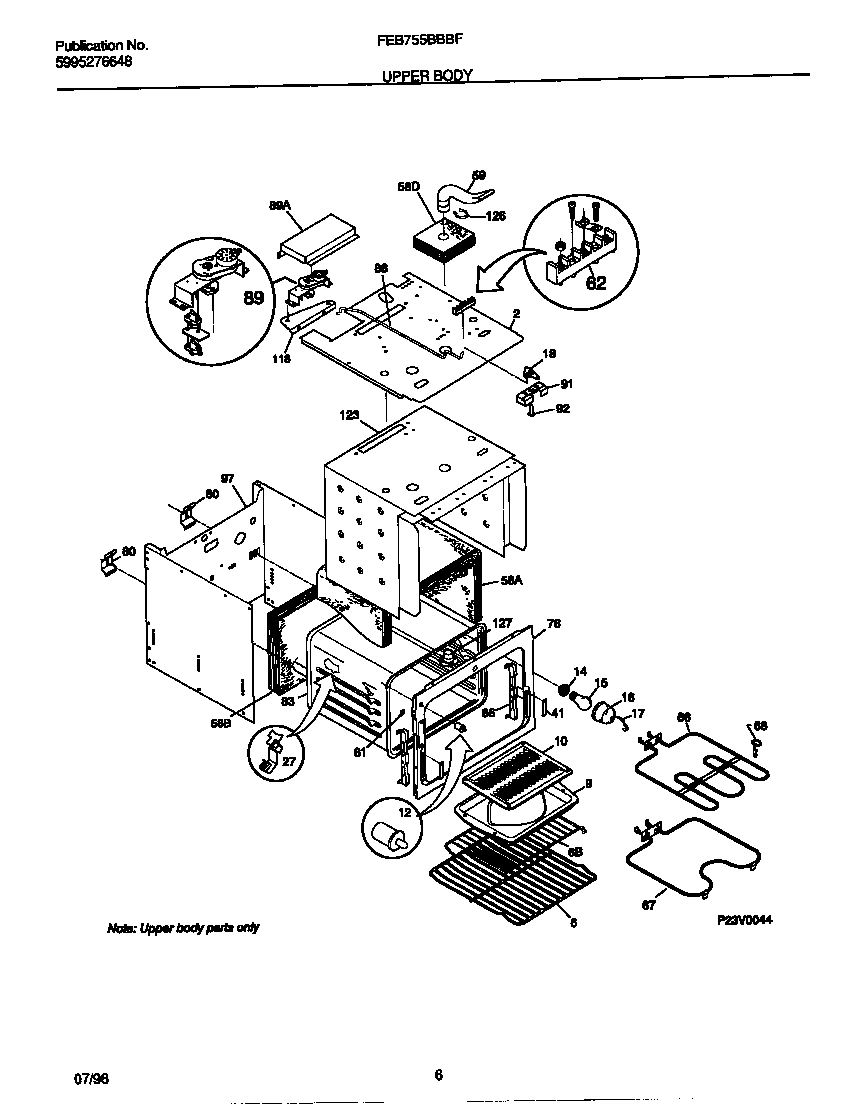

04 - UPPER BODY

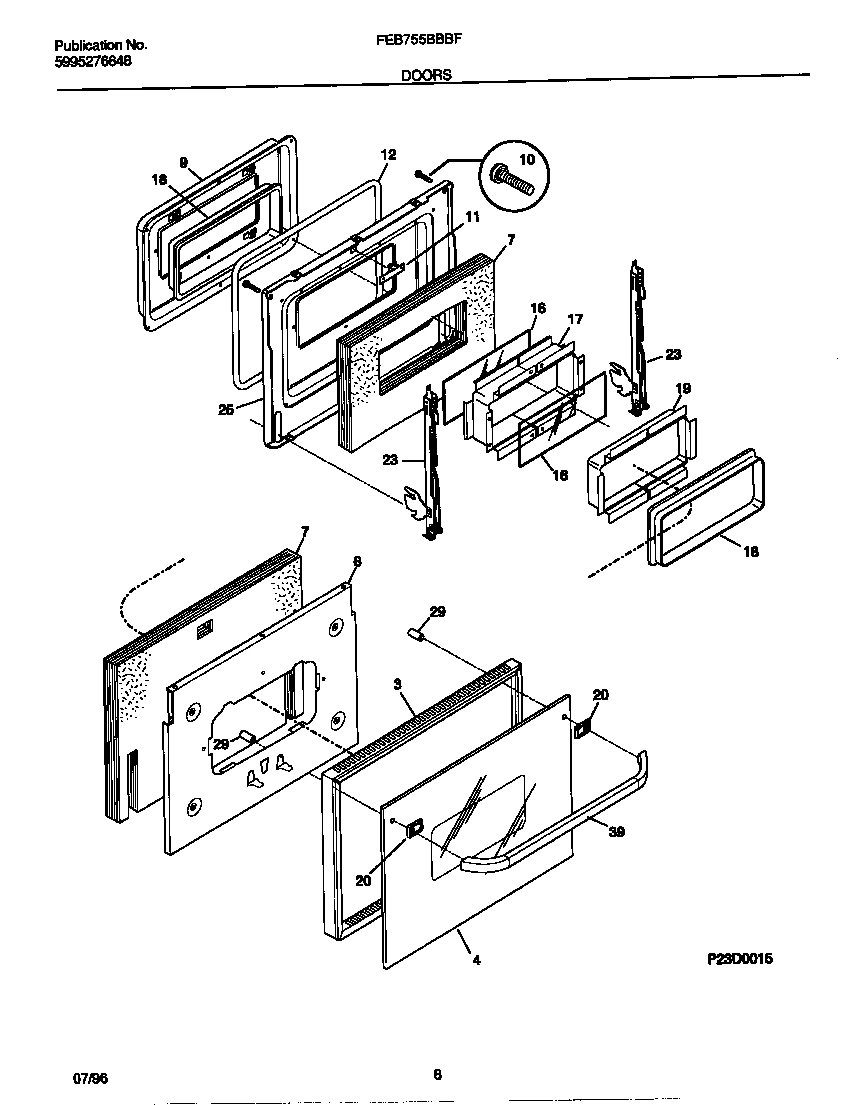

05 - DOORS

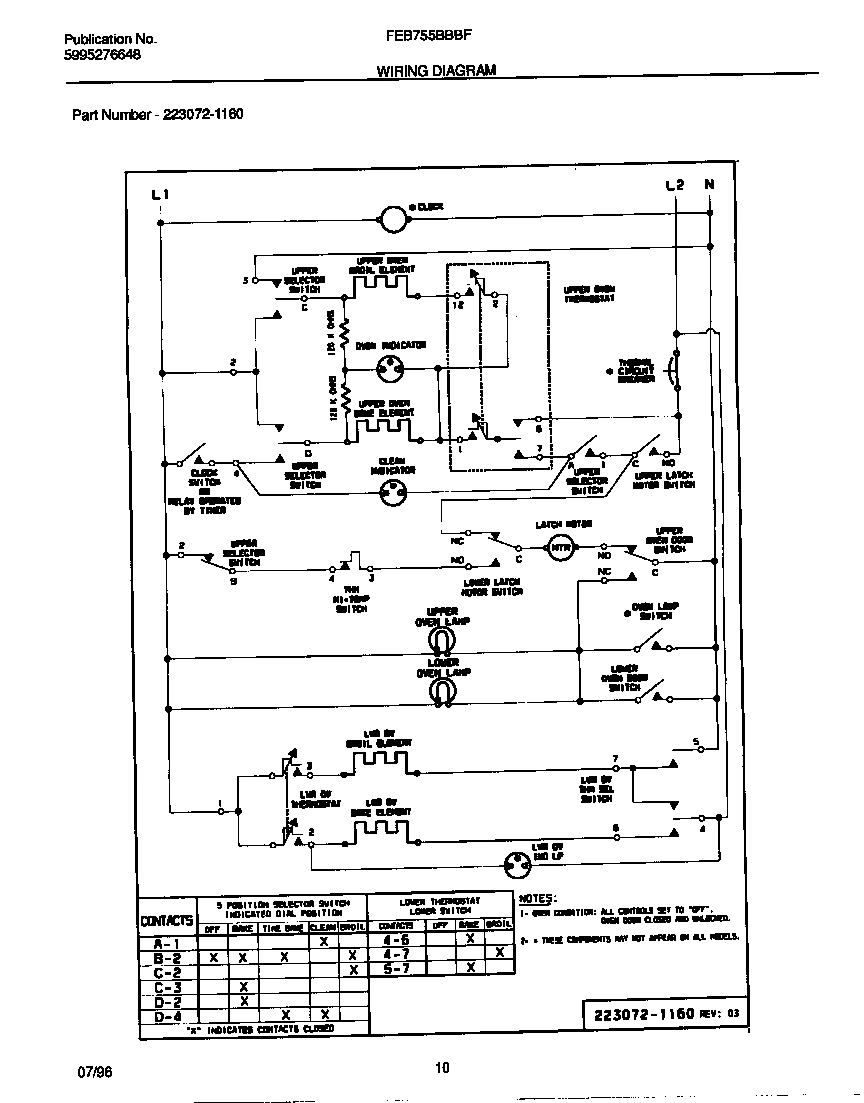

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB755BBBF WALL OVEN
*13362
WCI 3201881 WCI 3201881 Contact Us For Availability
*13364
WCI 08002868 WCI 08002868 Contact Us For Availability
*13366
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*13368
WCI 5303320505 WCI 5303320505 Contact Us For Availability
*13369
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*13370
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*13373
TAPE, SEAL, (2) WCI 5303316982 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 3016249 Contact Us For Availability
3
WCI 318026600 WCI 318026600 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 5303016258 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303310521 WCI 5303310521 Contact Us For Availability
9
LINER-OVEN DOOR, LOWER WCI 5303300097 Contact Us For Availability
9
LINER-OVEN DOOR, UPPER WCI 5303300949 Contact Us For Availability
10
SCREW-HANDLE WCI 5303311217 Contact Us For Availability
10
WCI 5303310520 WCI 5303310520 Contact Us For Availability
11
STRIKE PLATE, UPPER OVEN WCI DK1323556 Contact Us For Availability
12
SEAL-OVEN DOOR, LOWER WCI 5303316768 Contact Us For Availability
12
SWITCH-DOOR WCI 5301314211 Contact Us For Availability
12
SEAL-OVEN DOOR, UPPER WCI 5303299275 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, LOWER OVEN WCI 5303016336 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, UPPER OVEN WCI 5303210001 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS, UPPER OVEN WCI 5303210008 Contact Us For Availability
17
SPACER-GLASS, LOWER OVEN WCI 5303212864 Contact Us For Availability
18
SEAL-ROPE, LOWER OVEN WCI 3016338 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE, UPPER OVEN WCI 3016263 Contact Us For Availability
19
PANEL-CONTROL, GLASS WCI 5303302293 Contact Us For Availability
19
COLLAR-GLASS MTG, UPPER OVEN WCI 5303210006 Contact Us For Availability
20
WCI 5303302289 WCI 5303302289 Contact Us For Availability
20
WCI 5303300175 WCI 5303300175 Contact Us For Availability
21
TRIM-CANOPY/SHIELD, BLACK WCI 5303300968 Contact Us For Availability
21
SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT WCI 5303307406 Contact Us For Availability
23
BRACKET-CLOCK MTG WCI 3202088 Contact Us For Availability
23
HINGE-OVEN DOOR, LOWER OVEN WCI 3202464 Contact Us For Availability
23
HINGE-OVEN DOOR, UPPER WCI 5303018381 Contact Us For Availability
24
WCI 318090000 WCI 318090000 Contact Us For Availability
24
KNOB-LIGHT SWITCH, BLACK WCI 5303299474 Contact Us For Availability
24
WCI 5303302303 WCI 5303302303 Contact Us For Availability
25
LINER-DOOR BAFFLE, UPPER OVEN WCI 5303300950 Contact Us For Availability
28
WCI 5303302295 WCI 5303302295 Contact Us For Availability
28
CLIP-WIRE WCI 3015722 Contact Us For Availability
29
KNOB-CLOCK/TIMER, BLACK WCI 5303016292 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
30
WCI 5303316767 WCI 5303316767 Contact Us For Availability
32
KNOB-CONTROL, BLACK, (3) WCI 5303304950 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303300948 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
WCI 5303316983 WCI 5303316983 Contact Us For Availability
56
WCI 5303300956 WCI 5303300956 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3019048 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
58
WCI 5303317714 WCI 5303317714 Contact Us For Availability
59
WCI 5303300422 WCI 5303300422 Contact Us For Availability
59
WCI 5303300951 WCI 5303300951 Contact Us For Availability
62
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303302386 WCI 5303302386 Contact Us For Availability
66
WCI 5303304698 WCI 5303304698 Contact Us For Availability
68
PANEL-BACK, HOUSING CONTROL WCI 5303302285 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SCREW-SWITCH MTG, 8-32 X 5/32, (2) WCI 5303292005 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305023 Contact Us For Availability
76
FRONT-OVEN WCI 5303299859 Contact Us For Availability
76
FRONT-OVEN WCI 5303299251 Contact Us For Availability
78
COVER, OVEN VENT, BLACK WCI 5303300957 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
LINER-OVEN ASSY WCI 5303299383 Contact Us For Availability
83
WCI 5303305022 WCI 5303305022 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5308015743 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
96
WCI 3016324 WCI 3016324 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
97
WCI 5303300980 WCI 5303300980 Contact Us For Availability
97
WCI 318066501 WCI 318066501 Contact Us For Availability
98
TRIM-SIDE, INNER, RH WCI 5303300954 Contact Us For Availability
98
TRIM-SIDE, INNER, LH WCI 5303300955 Contact Us For Availability
103
WCI 318028700 WCI 318028700 Contact Us For Availability
118
WCI 5303308461 WCI 5303308461 Contact Us For Availability
121
WCI 5303304700 WCI 5303304700 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 5303299270 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 3205683 Contact Us For Availability
127
ADAPTER ASSY WCI 5303206498 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
× ![]()
