Model Electrolux FEB702CESG WALL OVEN – Common Parts & Diagrams

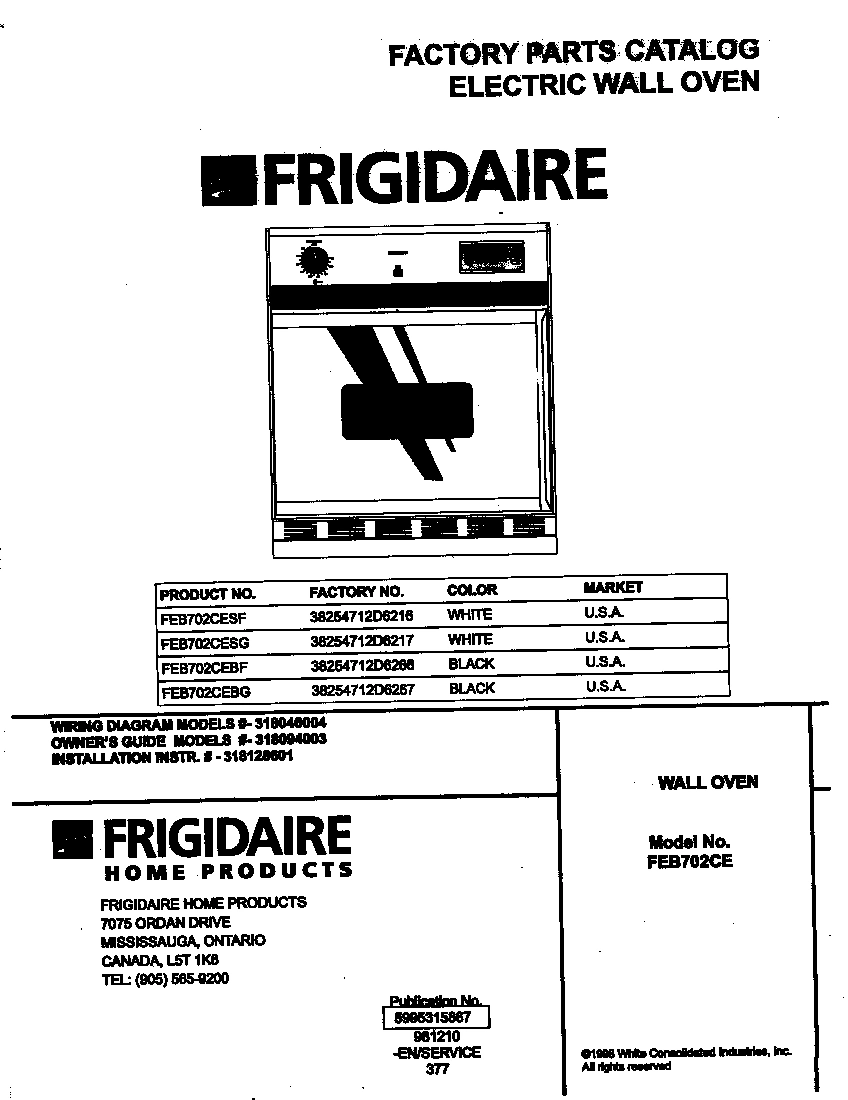

01 - COVER

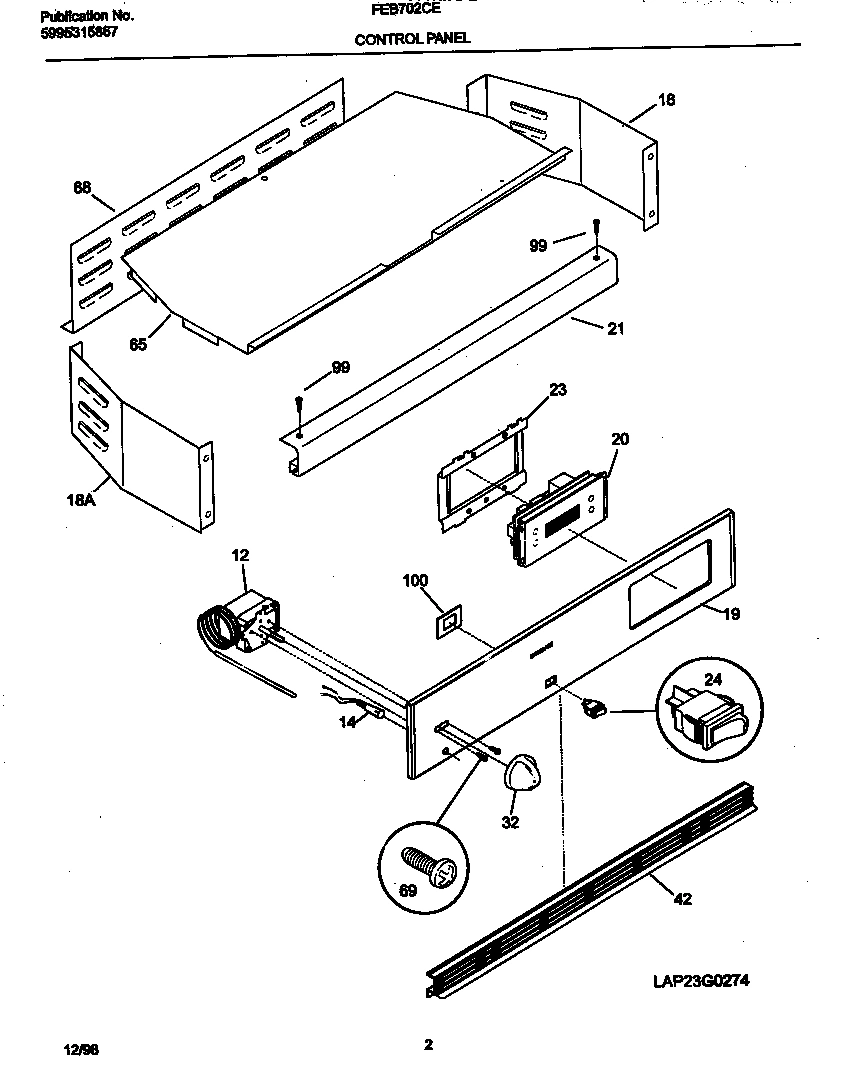

02 - CONTROL PANEL

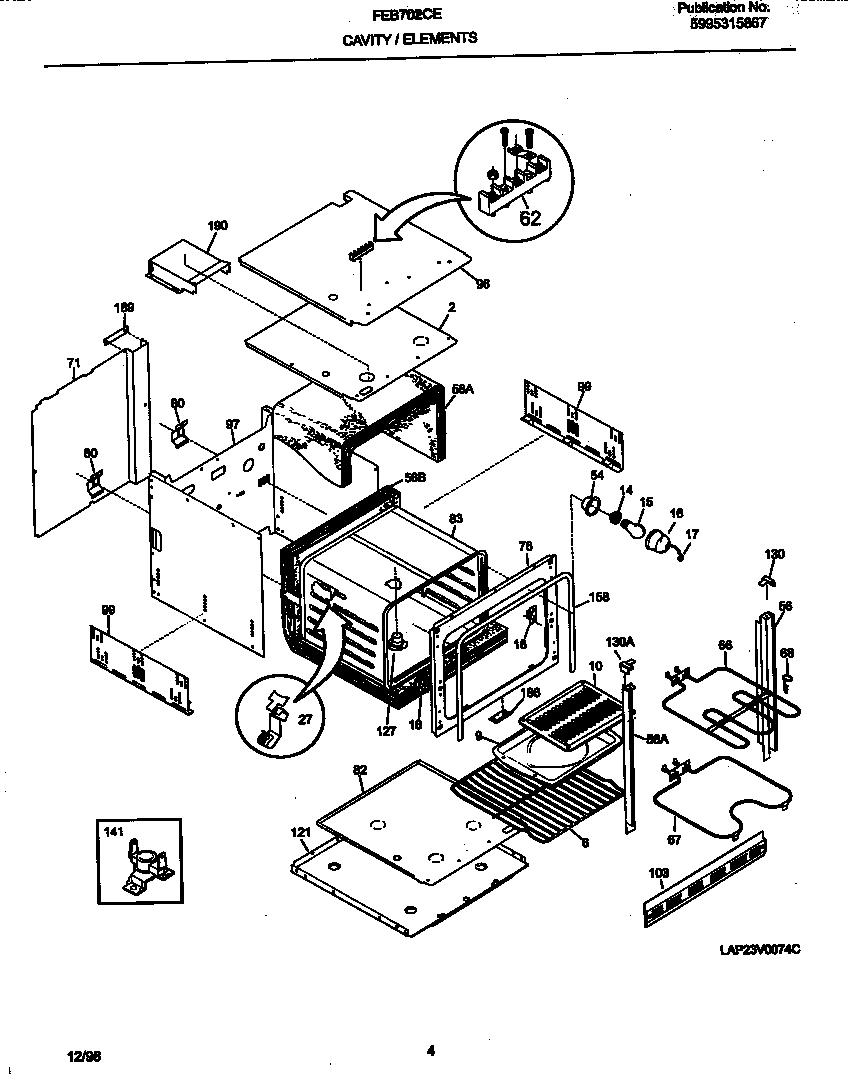

03 - CAVITY/ELEMENTS

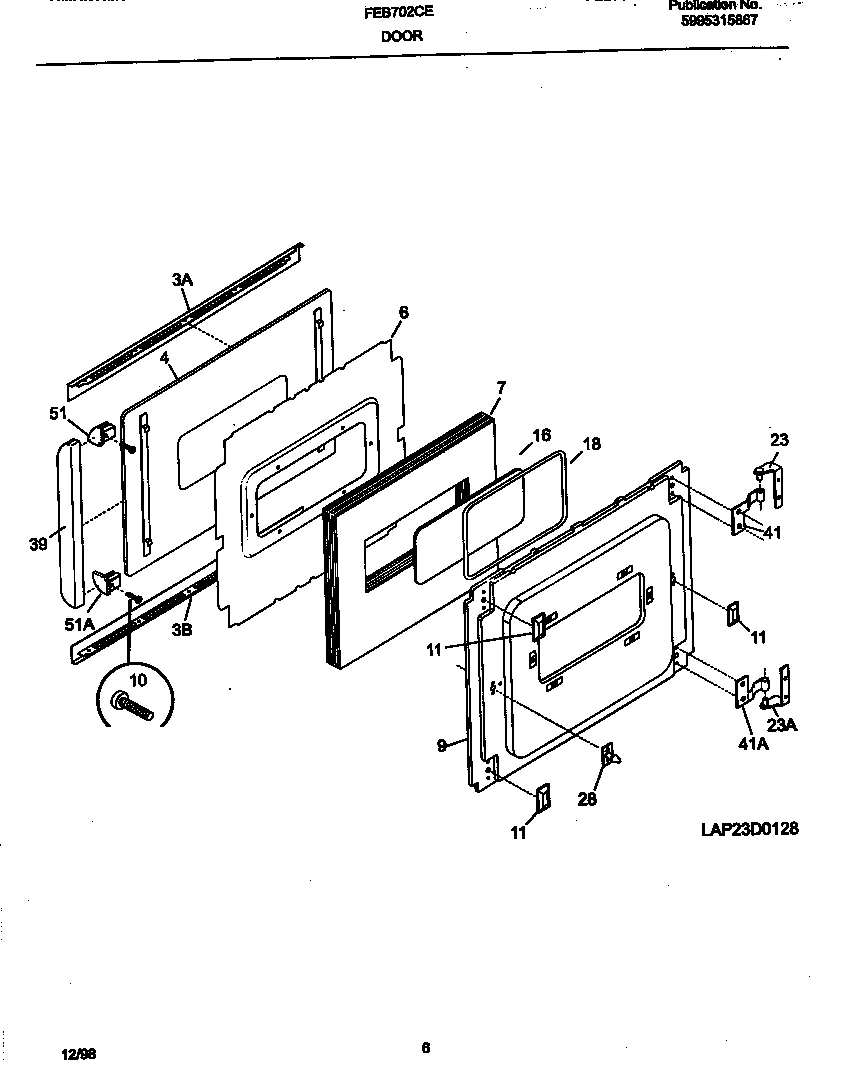

04 - DOOR

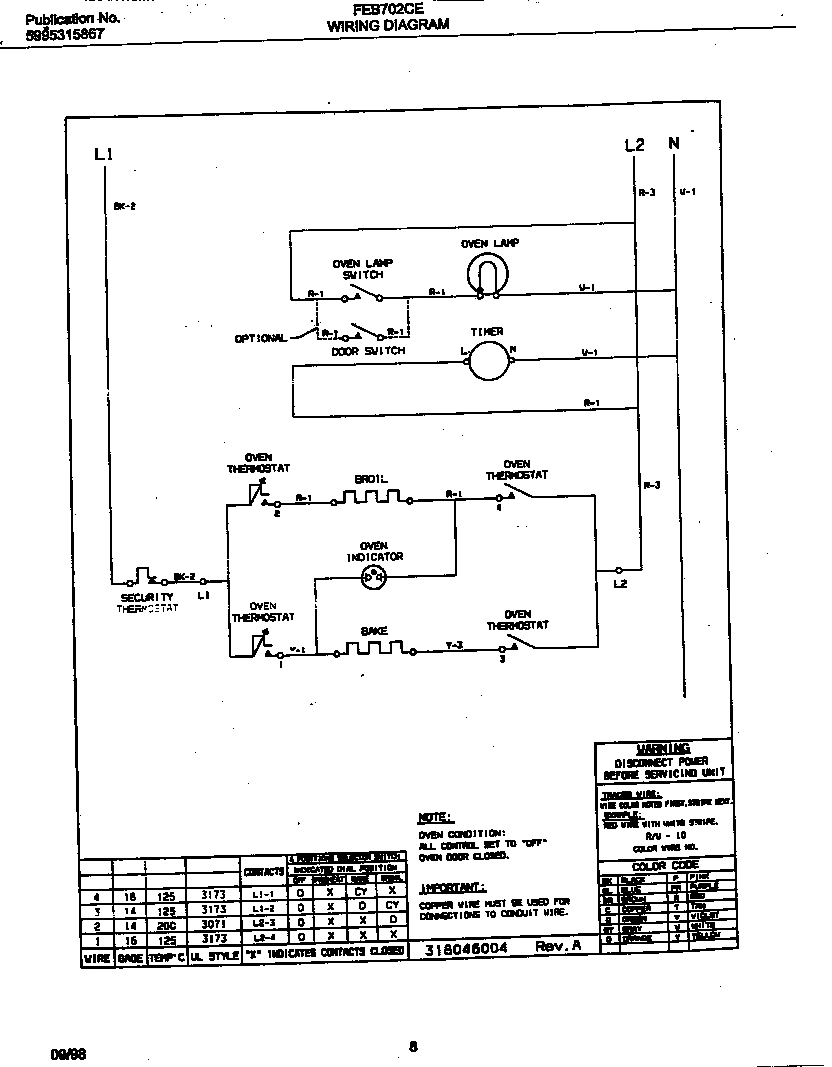

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB702CESG WALL OVEN
*05726
PLUG WCI 5303320489 Contact Us For Availability
*05728
WCI 08002868 WCI 08002868 Contact Us For Availability
*05730
WCI 5303319468 WCI 5303319468 Contact Us For Availability
2
WCI 5303316975 WCI 5303316975 Contact Us For Availability
3
TRIM-DOOR HANDLE,WHITE,UPPER WCI 5303299730 Contact Us For Availability
3
TRIM-DOOR HANDLE,UPPER WCI 5303299731 Contact Us For Availability
4
GLASS-OVEN DOOR,WHITE,OUTER,B WCI 5303299728 Contact Us For Availability
6
WCI 5303316954 WCI 5303316954 Contact Us For Availability
6
WCI 5303299719 WCI 5303299719 Contact Us For Availability
7
WCI 5303302388 WCI 5303302388 Contact Us For Availability
9
WCI 5303320491 WCI 5303320491 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
WCI 5303320493 WCI 5303320493 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303210001 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
18
WCI 5303299723 WCI 5303299723 Contact Us For Availability
23
WCI 5303299711 WCI 5303299711 Contact Us For Availability
23
WCI 5303299712 WCI 5303299712 Contact Us For Availability
28
WCI 318090220 WCI 318090220 Contact Us For Availability
39
WCI 5303299726 WCI 5303299726 Contact Us For Availability
41
WCI 5303299744 WCI 5303299744 Contact Us For Availability
41
WCI 5303299746 WCI 5303299746 Contact Us For Availability
51
BRACKET,WHITE,UPPER WCI 5303299738 Contact Us For Availability
51
WCI 5303299739 WCI 5303299739 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
TRIM-BODYSIDE,WHITE WCI 318034104 Contact Us For Availability
56
TRIM-BODYSIDE,WHITE WCI 318034105 Contact Us For Availability
58
WCI 5303299688 WCI 5303299688 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
71
WCI 5303304701 WCI 5303304701 Contact Us For Availability
76
WCI 318056107 WCI 318056107 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
LINER-OVEN,COMP. WCI 318089511 Contact Us For Availability
97
WCI 318066701 WCI 318066701 Contact Us For Availability
99
SCREW,TOP TRIM,6-20 X 3/8,WHITE WCI 5303320683 Contact Us For Availability
100
MTG ROCKER SWITCH WCI 318112200 Contact Us For Availability
103
TRIM-BASE, WALL, WHITE, INSTALLATION WCI 5303316903 Contact Us For Availability
121
WCI 318145002 WCI 318145002 Contact Us For Availability
127
WCI 318072800 WCI 318072800 Contact Us For Availability
130
WCI 5303299671 WCI 5303299671 Contact Us For Availability
130
WCI 5303299672 WCI 5303299672 Contact Us For Availability
141
THERMOSTAT-SAFETY WCI 5303299721 Contact Us For Availability
158
WCI 318053310 WCI 318053310 Contact Us For Availability
186
BRACKET-TRIM WCI 318039502 Contact Us For Availability
189
RETAINER PLATE WCI 318042500 Contact Us For Availability
190
WCI 5303299666 WCI 5303299666 Contact Us For Availability
× ![]()
