Model Electrolux FEB702CESC WALL OVEN – Common Parts & Diagrams
01 - COVER

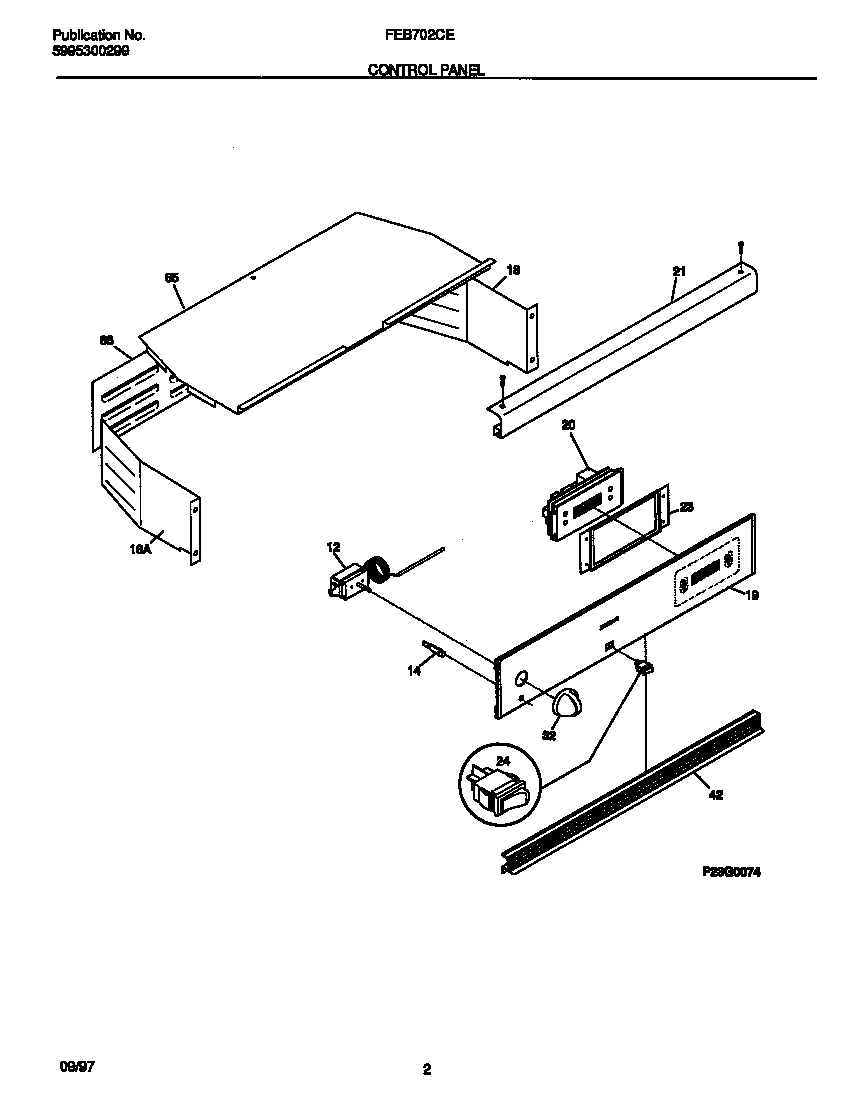

02 - CONTROL PANEL

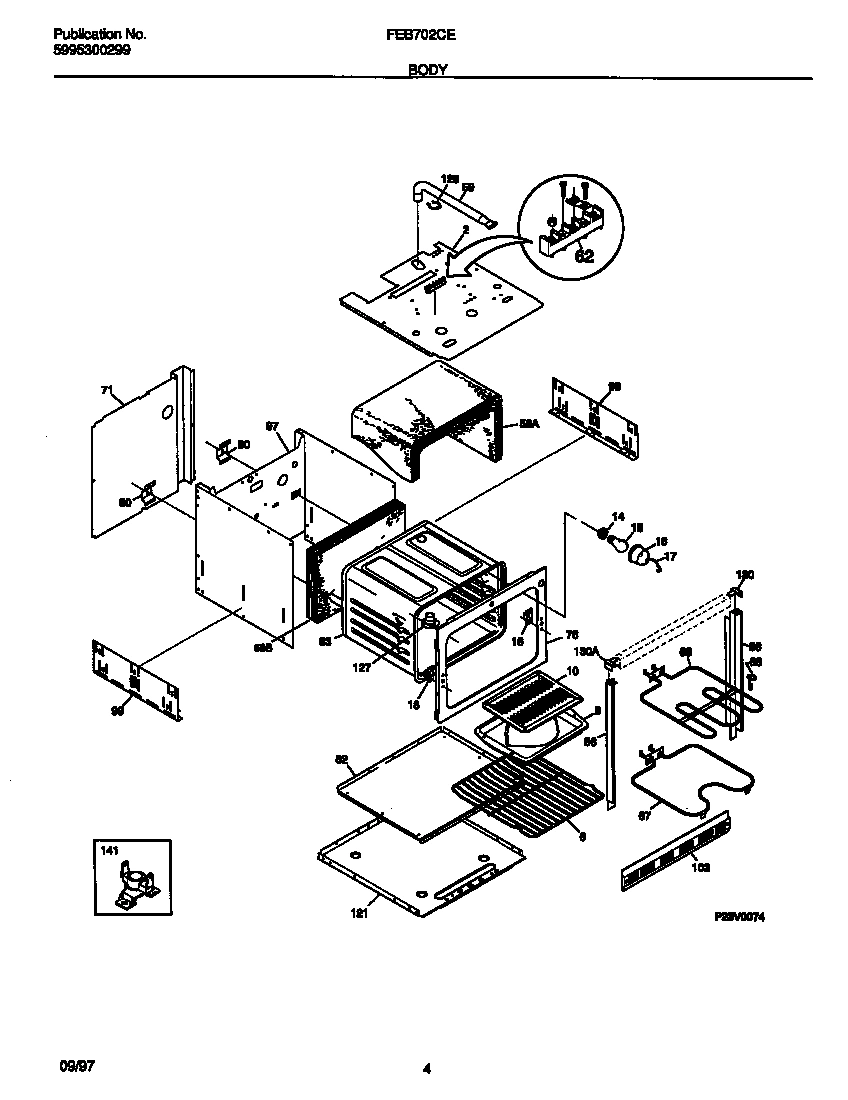

03 - BODY

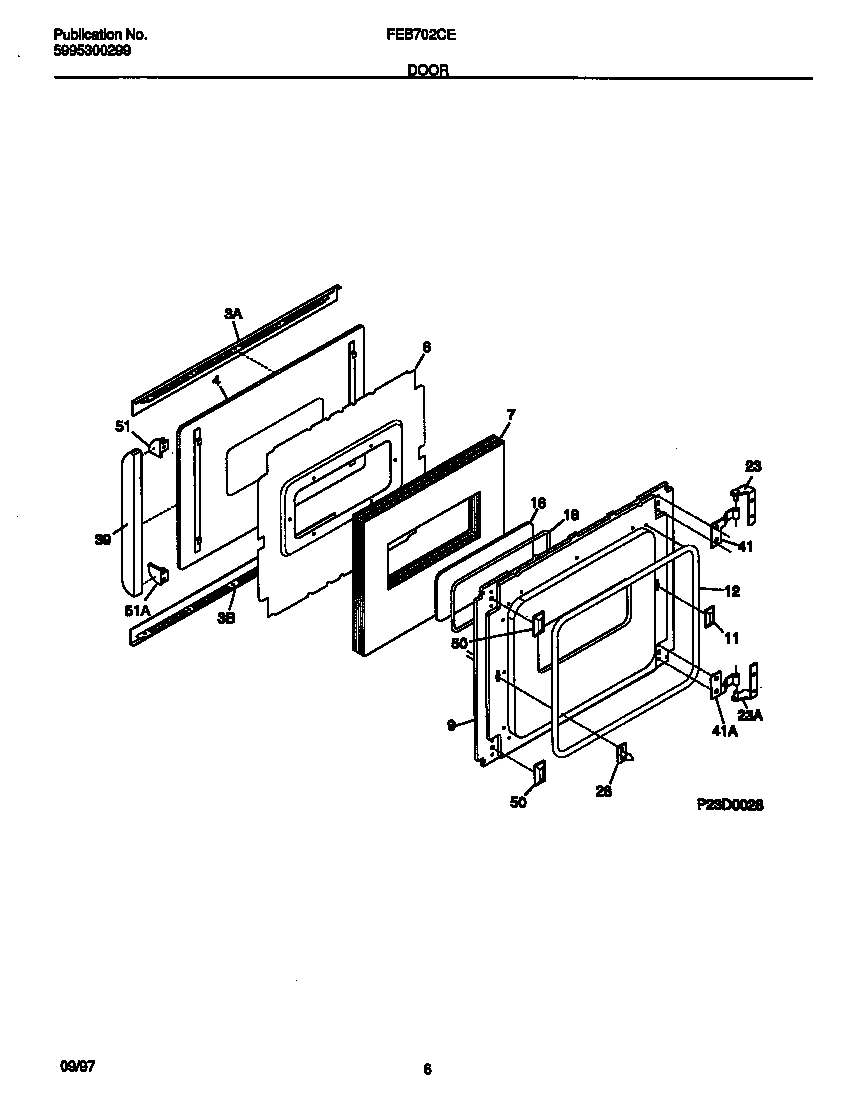

04 - DOOR

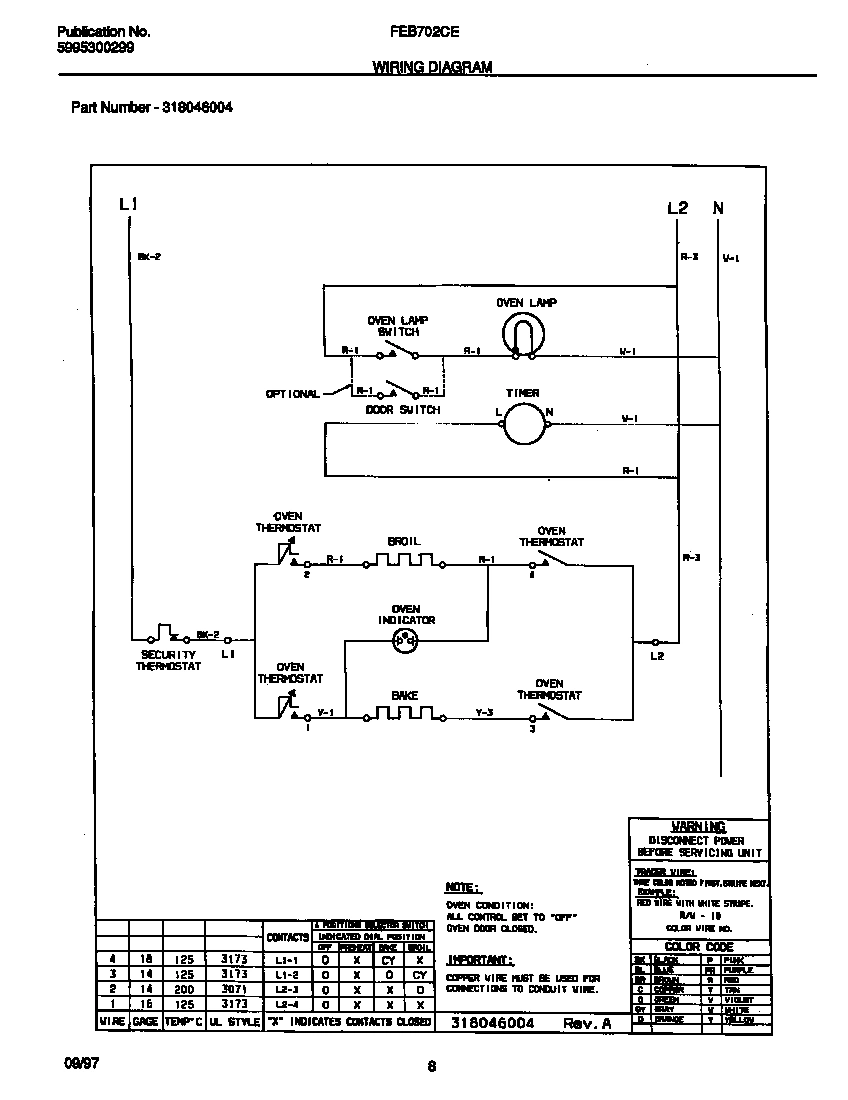

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB702CESC WALL OVEN
*55565
RETAINER PLATE WCI 318042500 Contact Us For Availability
*55568
WCI 5303320492 WCI 5303320492 Contact Us For Availability
*55569
WCI 5303319468 WCI 5303319468 Contact Us For Availability
*55570
SCREW, TRUSS HEAD, 8-18 X 3/8, (4) WCI 08016432 Contact Us For Availability
*55572
WCI 5303300414 WCI 5303300414 Contact Us For Availability
2
WCI 5303316975 WCI 5303316975 Contact Us For Availability
3
WCI 5303299730 WCI 5303299730 Contact Us For Availability
3
TRIM-OVEN DOOR, WHITE, LOWER WCI 5303299731 Contact Us For Availability
4
GLASS-OVEN DOOR, WHITE, OUTER, BRACKET INCL. WCI 5303299728 Contact Us For Availability
6
WCI 5303299719 WCI 5303299719 Contact Us For Availability
6
WCI 5303316954 WCI 5303316954 Contact Us For Availability
7
WCI 5303302388 WCI 5303302388 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 5303320491 WCI 5303320491 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
11
COVER-DOOR LATCH WCI 5303320489 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 5303299722 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303210001 Contact Us For Availability
17
RETAINER-LENS, OVEN WCI 3204483 Contact Us For Availability
18B
SEAL-ROPE WCI 5303299723 Contact Us For Availability
23
WCI 5303299711 WCI 5303299711 Contact Us For Availability
23A
WCI 5303299712 WCI 5303299712 Contact Us For Availability
23B
RIVET, (2) (NOT ILLUSTRATED) WCI 5303320423 Contact Us For Availability
24
WCI 5303304692 WCI 5303304692 Contact Us For Availability
28
WCI 318090220 WCI 318090220 Contact Us For Availability
32
WCI 318017206 WCI 318017206 Contact Us For Availability
39
WCI 5303299726 WCI 5303299726 Contact Us For Availability
41
HINGE-OVEN DOOR, UPPER WCI 5303299744 Contact Us For Availability
41
HINGE-OVEN DOOR, LOWER WCI 5303299746 Contact Us For Availability
42
WCI 318026907 WCI 318026907 Contact Us For Availability
50
WCI 5303320493 WCI 5303320493 Contact Us For Availability
51
WCI 5303299738 WCI 5303299738 Contact Us For Availability
51
WCI 5303299739 WCI 5303299739 Contact Us For Availability
56
TRIM-BODYSIDE, WHITE, RH WCI 5303299675 Contact Us For Availability
56
TRIM-BODYSIDE, WHITE, LH WCI 5303299676 Contact Us For Availability
58
WCI 5303299688 WCI 5303299688 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
59
WCI 5303299666 WCI 5303299666 Contact Us For Availability
65
WCI 3016309 WCI 3016309 Contact Us For Availability
68
WCI 5303302376 WCI 5303302376 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
WCI 5303304701 WCI 5303304701 Contact Us For Availability
76
WCI 318056107 WCI 318056107 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
LINER-OVEN ASSY WCI 318089511 Contact Us For Availability
97
WCI 5303300980 WCI 5303300980 Contact Us For Availability
103
TRIM-BASE, WALL, WHITE, INSTALLATION WCI 5303316903 Contact Us For Availability
121
WCI 318145002 WCI 318145002 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
130
END CAP-TRIM, WHITE, RH WCI 5303299671 Contact Us For Availability
130
END CAP-TRIM, WHITE, LH WCI 5303299672 Contact Us For Availability
141
THERMOSTAT-SAFETY WCI 5303299721 Contact Us For Availability
× ![]()
