Model Electrolux FEB556CETH WALL OVEN, ELECTRIC – Common Parts & Diagrams

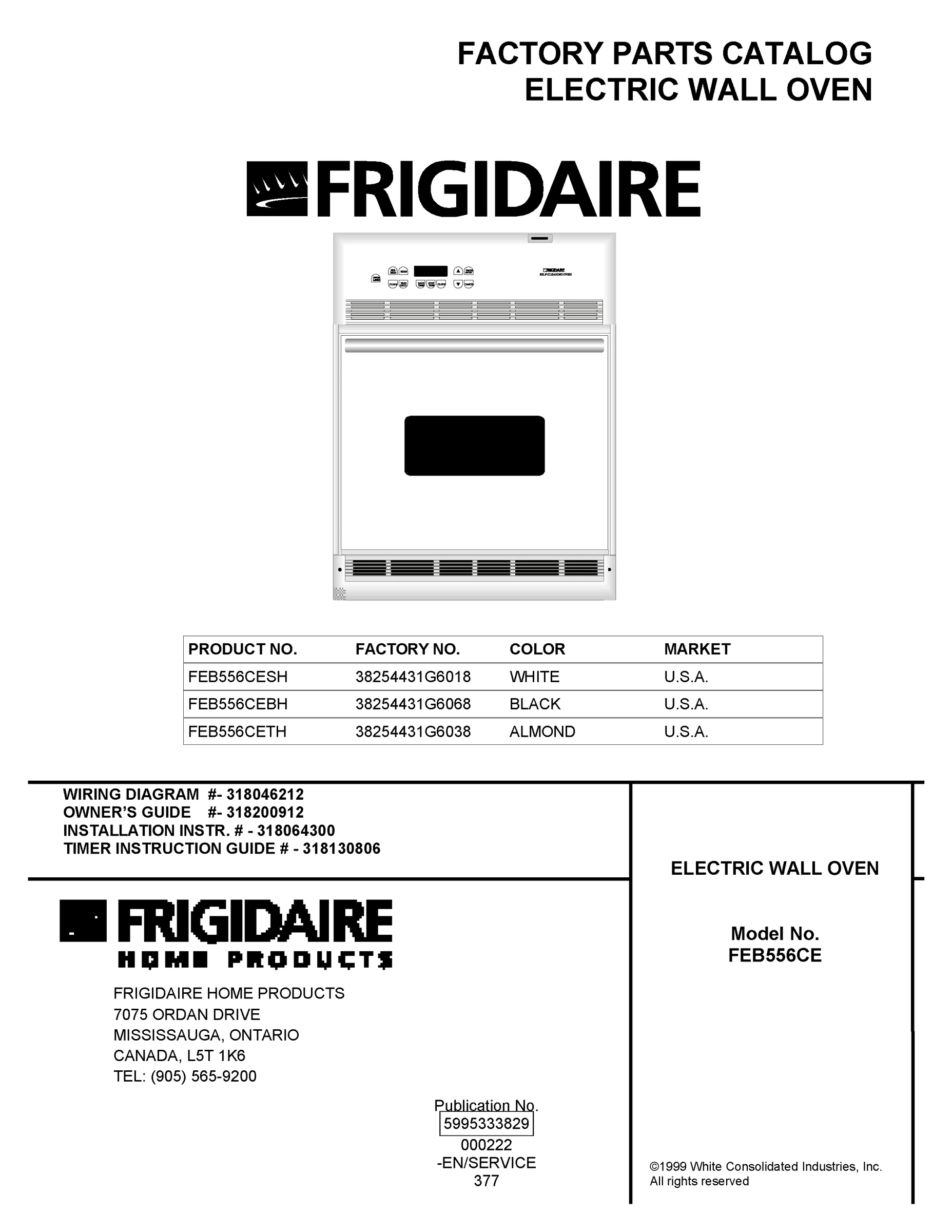

01 - COVER SHEET

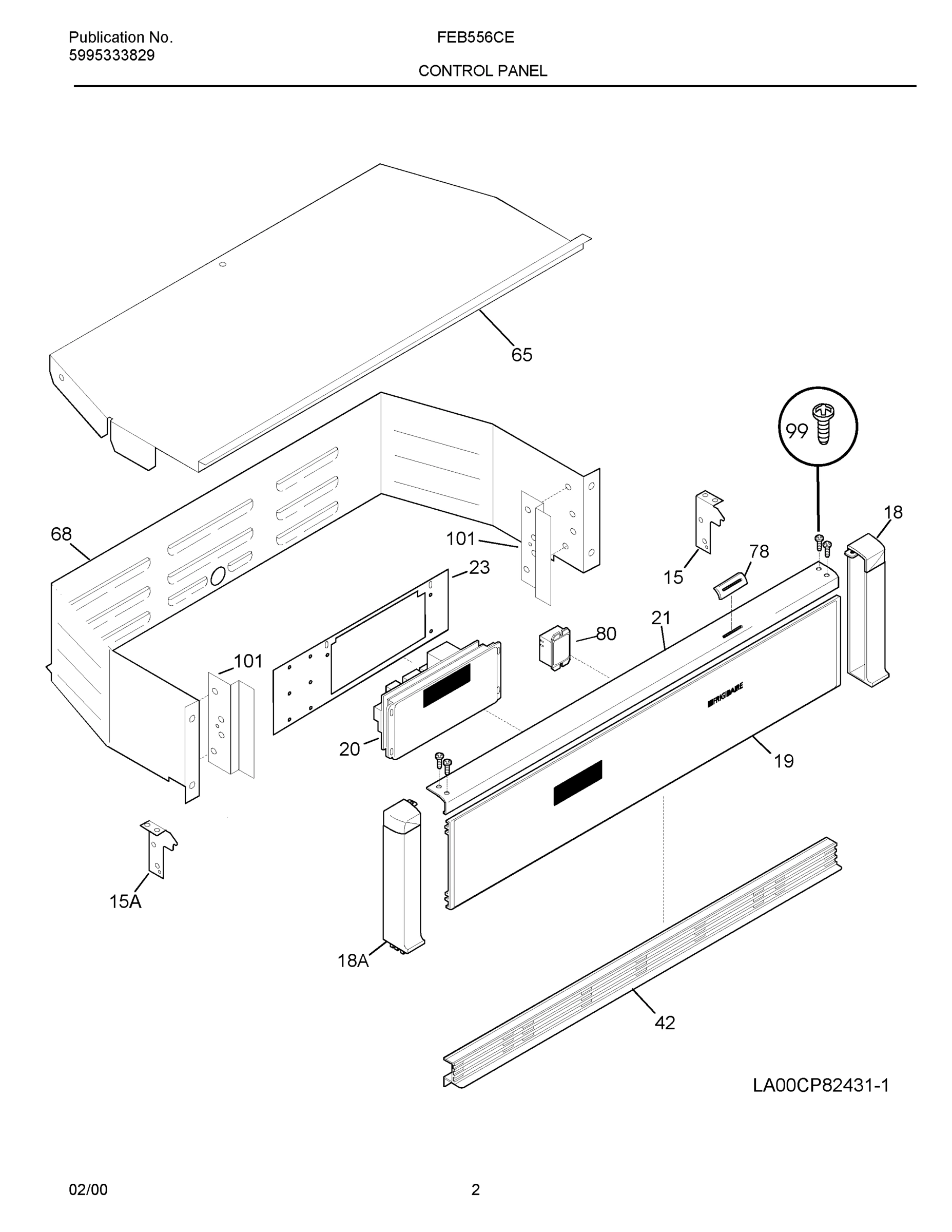

02 - CONTROL PANEL

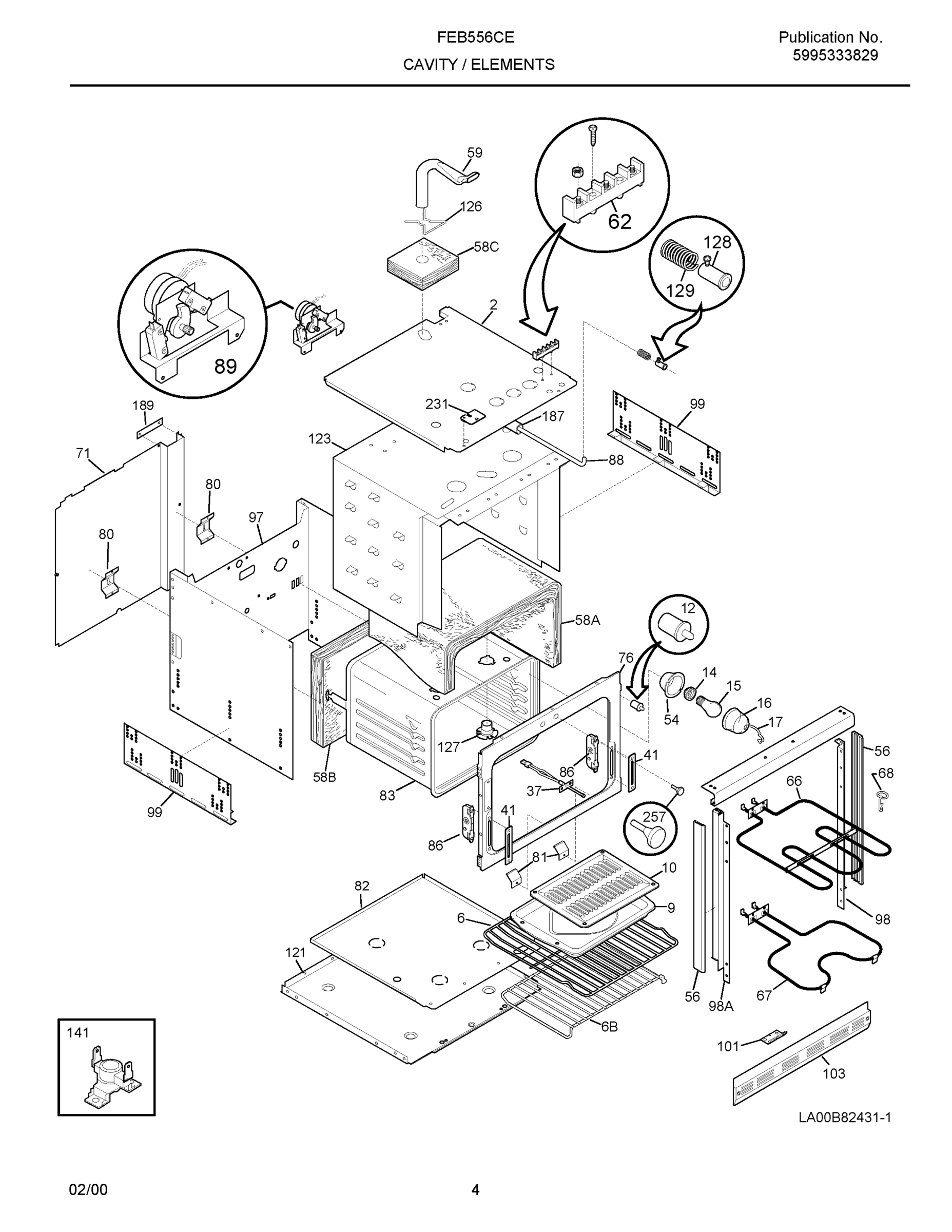

03 - CAVITY/ELEMENTS

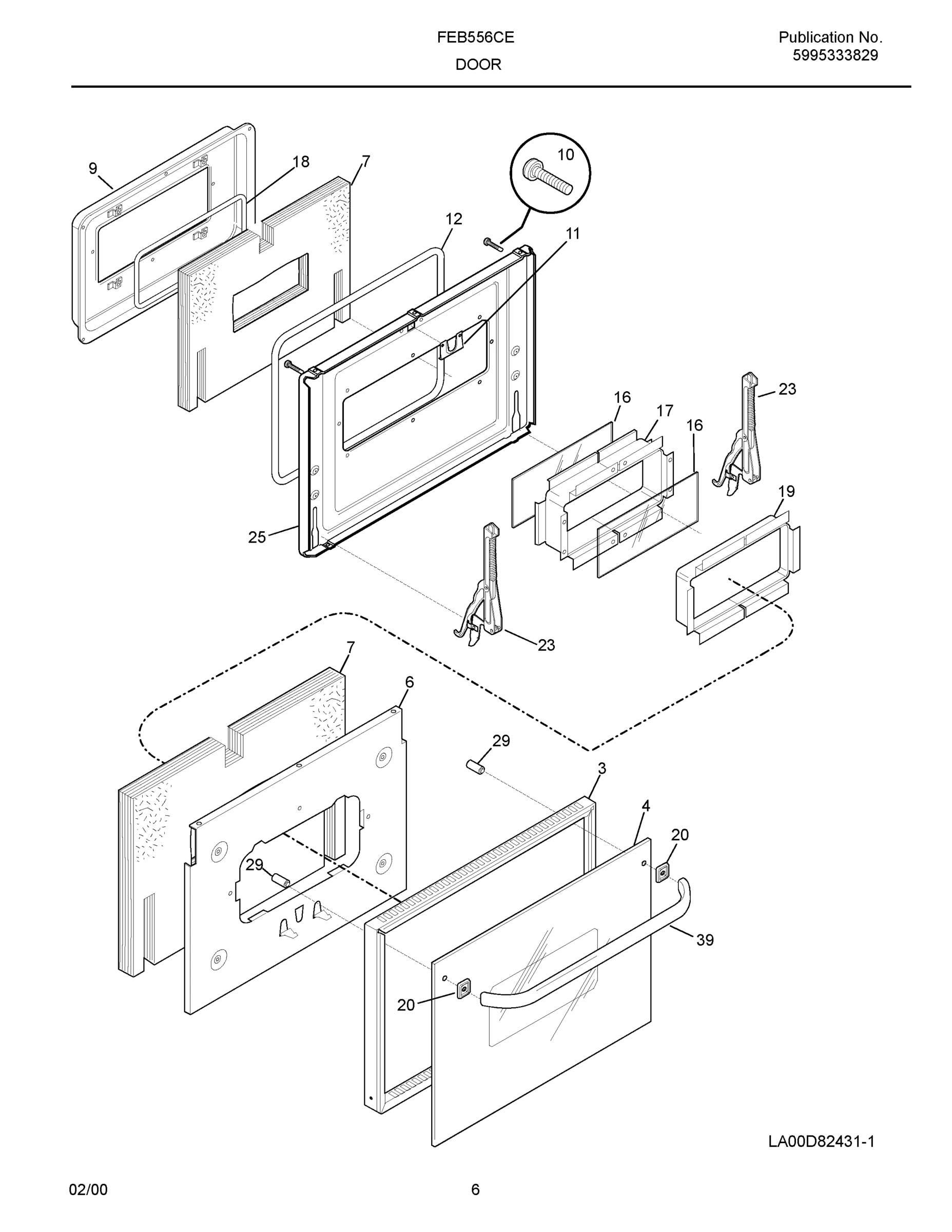

04 - DOOR

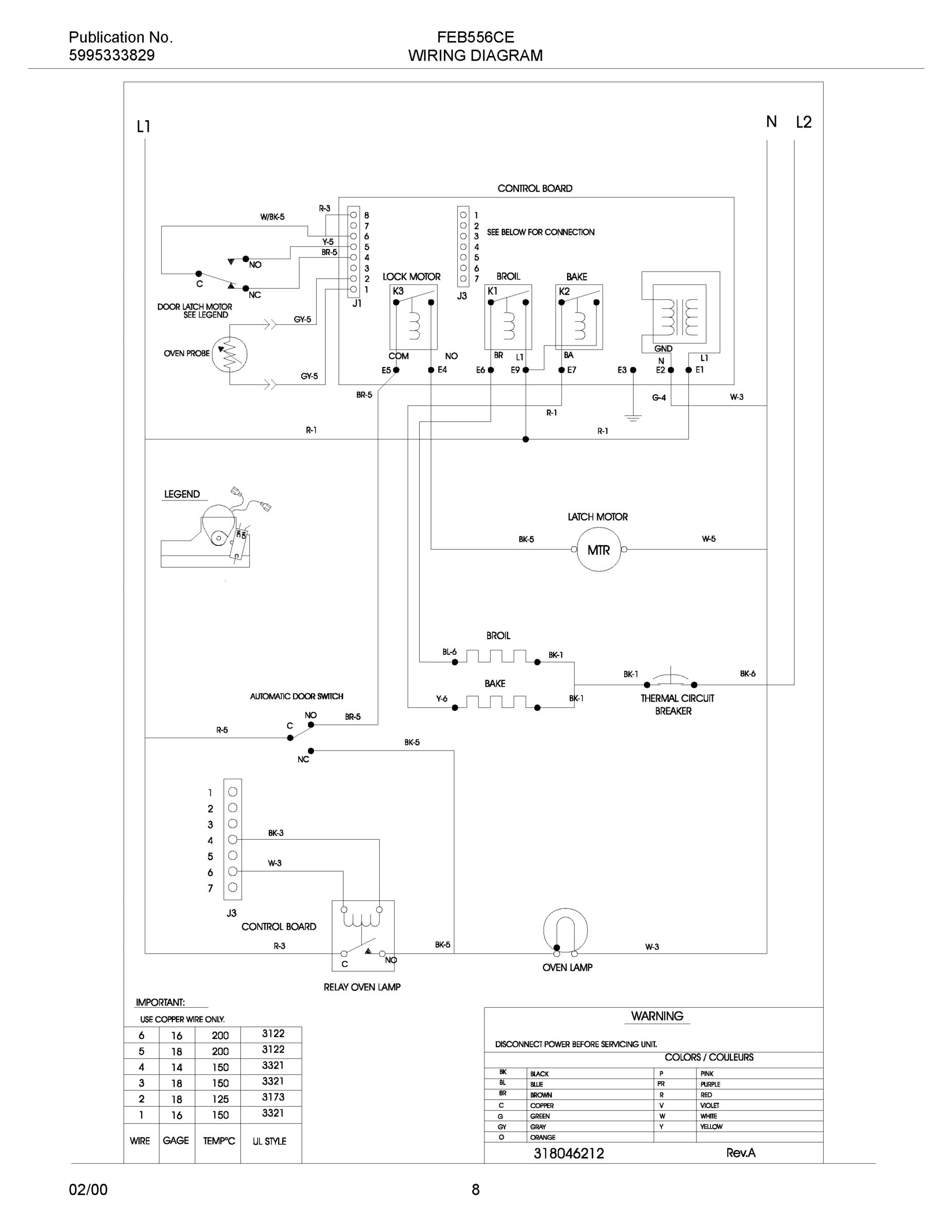

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB556CETH WALL OVEN, ELECTRIC
2
SHIELD OVEN-TOP WCI 5303298946 Contact Us For Availability
3
TRIM-OVEN DOOR ALMOND WCI 318026103 Contact Us For Availability
4
GLASS-OVEN DOOR ALMOND WCI 5303302708 Contact Us For Availability
6
WCI 5303299366 WCI 5303299366 Contact Us For Availability
6
WCI 318073600 WCI 318073600 Contact Us For Availability
6B
WCI 5303305676 WCI 5303305676 Contact Us For Availability
7
INSULATION OVEN DOOR WCI 5303308470 Contact Us For Availability
9
PAN-BROILER WCI 5303317977 Contact Us For Availability
9
LINER-OVEN DOOR WCI 318038600 Contact Us For Availability
10
SCREW, 10-24 X 2 3/16-HANDLE DOOR WCI 5303311217 Contact Us For Availability
10
INSERT BROILER PAN WCI 5303317976 Contact Us For Availability
11
STRIKE PLATE WCI 318065102 Contact Us For Availability
12
WCI 318178801 WCI 318178801 Contact Us For Availability
16
GLASS-OVEN DOOR WCI 5303324250 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
SPACER-GLASS UPPER WCI 318139100 Contact Us For Availability
18
SEAL-ROPE UPPER OVEN WCI 3016263 Contact Us For Availability
19
COLLAR GLASS MTG WCI 318139201 Contact Us For Availability
20
SPACER-HANDLE ALMOND WCI 318014302 Contact Us For Availability
23
HINGE-OVEN DOOR WCI 5303310506 Contact Us For Availability
25
LINER-DOOR BAFFLE WCI 318048309 Contact Us For Availability
29
SPACER-HANDLE MTG (2) WCI 5303210003 Contact Us For Availability
39
HANDLE-DOOR ALMOND WCI 316091105 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
TRIM-BODYSIDE ALMOND WCI 5303302712 Contact Us For Availability
58A
INSULATION WRAPPER WCI 5304409957 Contact Us For Availability
58B
INSULATION OVEN BACK WCI 3019048 Contact Us For Availability
58C
INSULATION OVEN VENT WCI 5303311220 Contact Us For Availability
59
TUBE-OVEN VENT WCI 318072507 Contact Us For Availability
71
SHIELD-WIRE WCI 318071111 Contact Us For Availability
76
WCI 318056139 WCI 318056139 Contact Us For Availability
80
SPRING-OVEN WCI 5303301261 Contact Us For Availability
81
WCI 5303323710 WCI 5303323710 Contact Us For Availability
82
SHIELD-INSULATION BOTTOM WCI 5303305035 Contact Us For Availability
83
WCI 318089508 WCI 318089508 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 318118903 WCI 318118903 Contact Us For Availability
89
WCI 318095903 WCI 318095903 Contact Us For Availability
97
WRAPPER-BACK & SIDES WCI 318066602 Contact Us For Availability
98
TRIM SIDE INNER RH WCI 318029322 Contact Us For Availability
98A
TRIM SIDE INNER LH WCI 318029323 Contact Us For Availability
99
SCREW, 6-32 X 3/8, ALMOND WCI 5303317307 Contact Us For Availability
101
WCI 5303302412 WCI 5303302412 Contact Us For Availability
101
BRACKET-TRIM (ALMOND) WCI 318039513 Contact Us For Availability
103
TRIM-BASE ALMOND WCI 318028712 Contact Us For Availability
121
WCI 318145001 WCI 318145001 Contact Us For Availability
123
WCI 318071433 WCI 318071433 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
187
TUBE (ROD-LATCH) WCI 318013501 Contact Us For Availability
189
RETAINER PLATE WCI 318042500 Contact Us For Availability
231
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
NI
SCREW, 10-24 X 1/2 WCI 08002868 Contact Us For Availability
NI
WCI 3018802 WCI 3018802 Contact Us For Availability
NI
BX & WIRES AY WCI 318078522 Contact Us For Availability
NI
LOCKWASHED WCI 3201881 Contact Us For Availability
NI
SCREW, 10-16 X 1 1/8, BLACK WCI 5303302745 Contact Us For Availability
NI
WCI 5303325188 WCI 5303325188 Contact Us For Availability
NI
BUTTON PLUG WCI 3202113 Contact Us For Availability
NIA
COVER-MOTOR WCI 318120710 Contact Us For Availability
× ![]()
