Model Electrolux FEB556CETC WALL OVEN – Common Parts & Diagrams

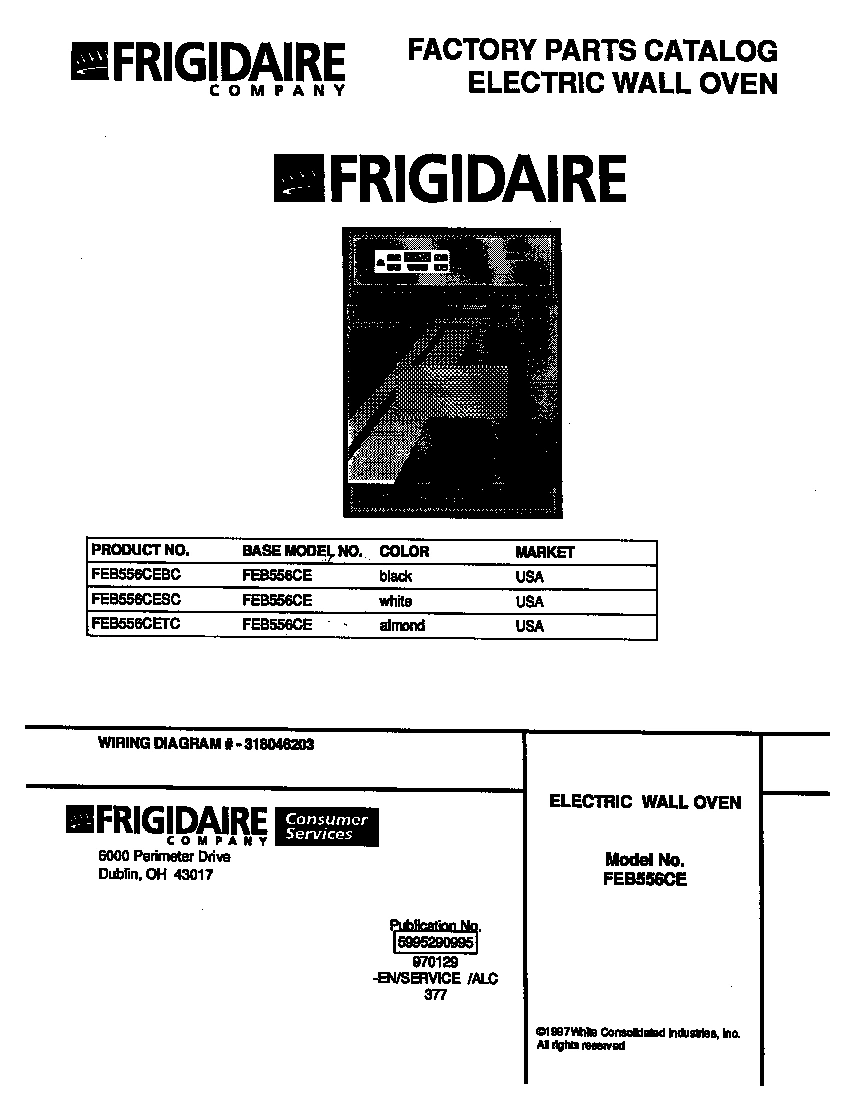

01 - COVER

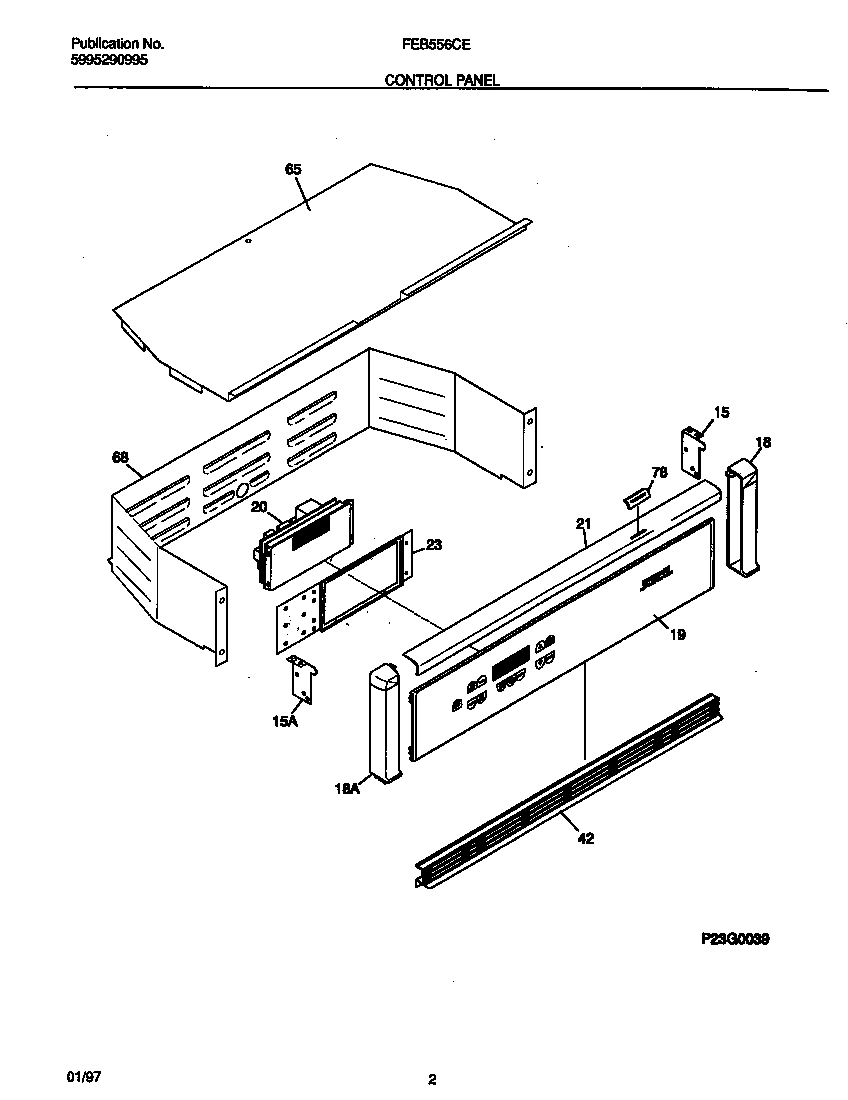

02 - CONTROL PANEL

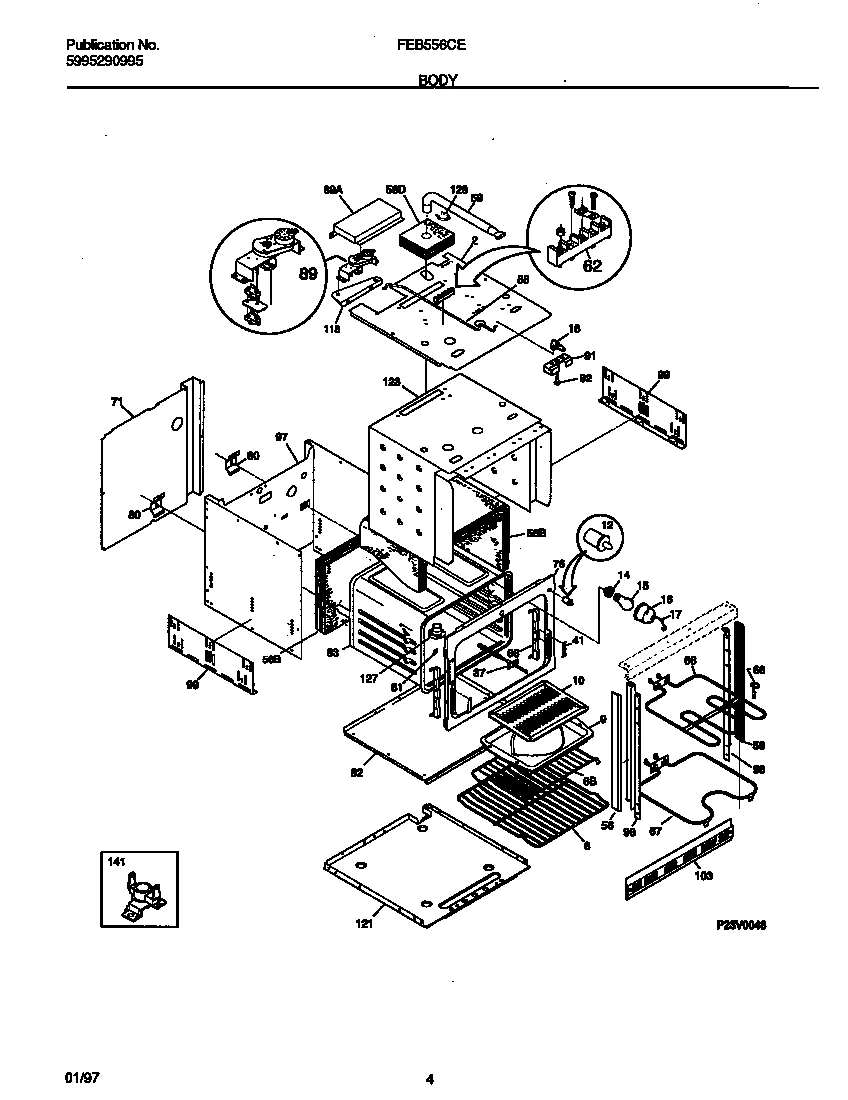

03 - BODY

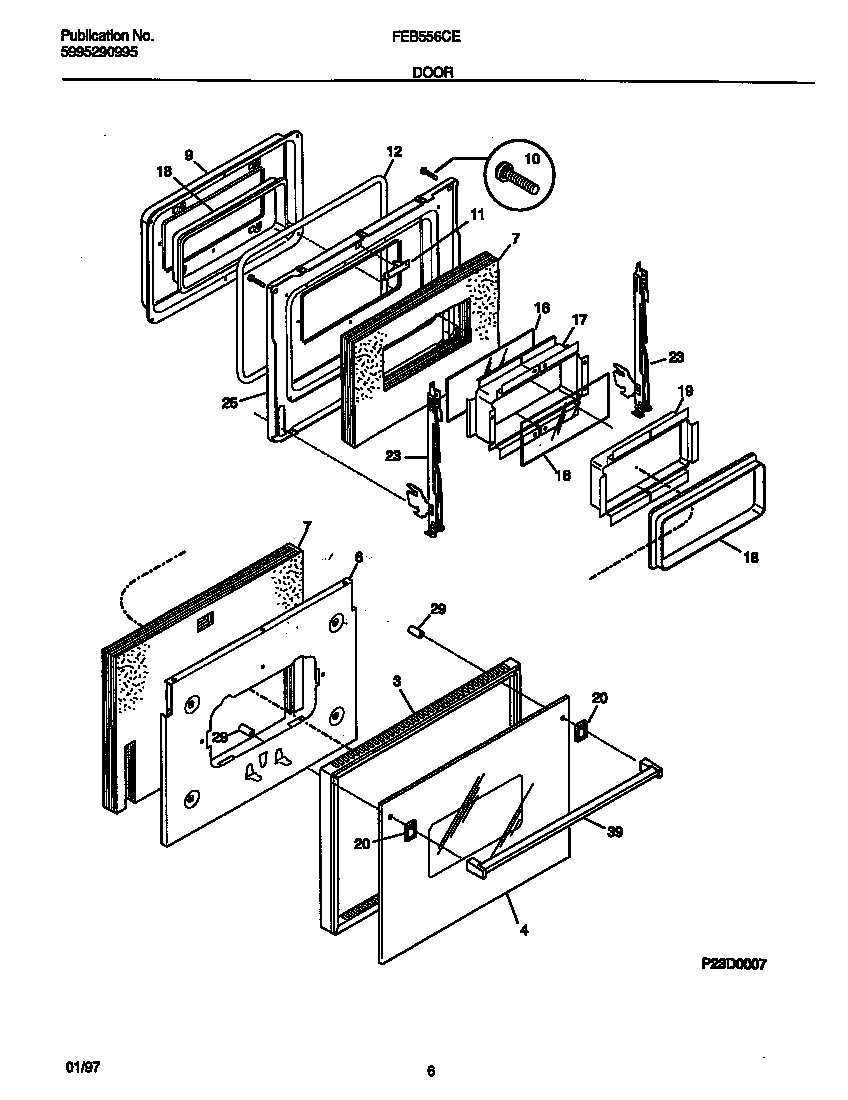

04 - DOOR

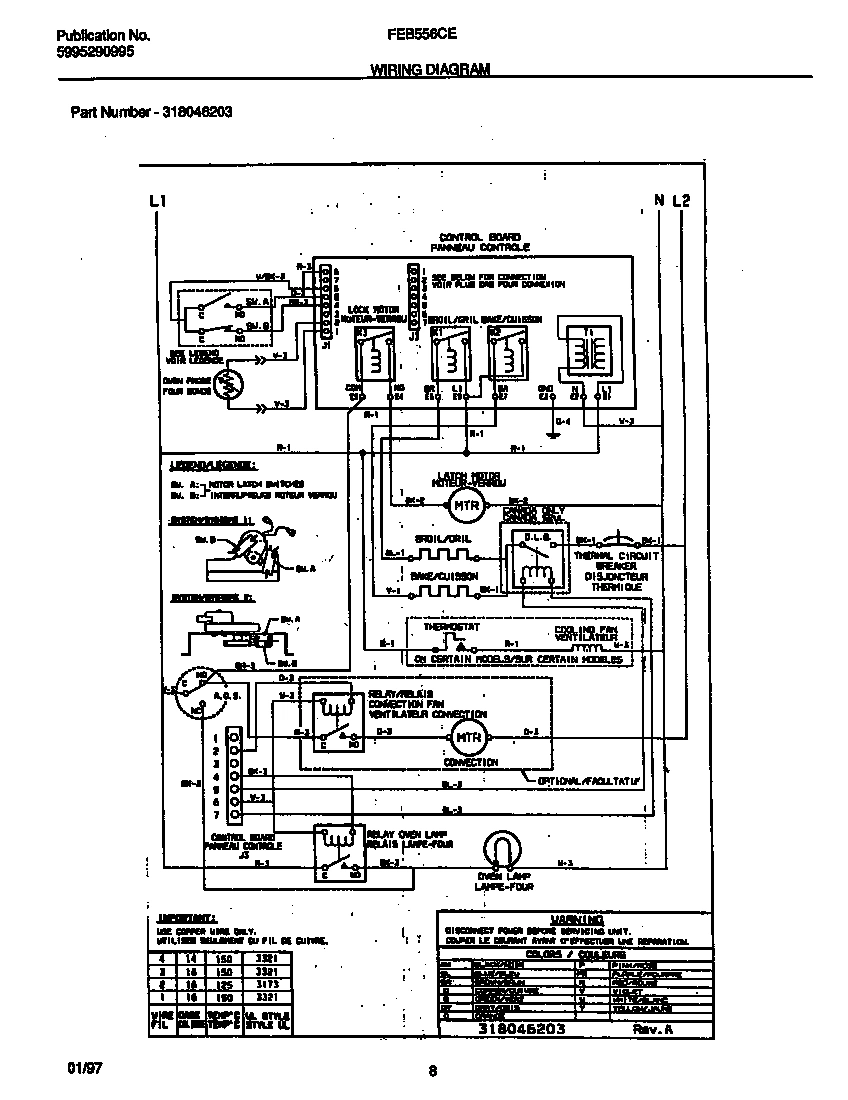

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB556CETC WALL OVEN
*01363
WCI 08002868 WCI 08002868 Contact Us For Availability
*01364
WCI 3018802 WCI 3018802 Contact Us For Availability
*01365
WCI 3201881 WCI 3201881 Contact Us For Availability
*01366
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*01368
WCI 5303319468 WCI 5303319468 Contact Us For Availability
*01369
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*01370
TAPE, SEAL, (3) WCI 5303316982 Contact Us For Availability
2
WCI 5303301263 WCI 5303301263 Contact Us For Availability
3
WCI 318026101 WCI 318026101 Contact Us For Availability
4
WCI 5303302708 WCI 5303302708 Contact Us For Availability
6
WCI 5303299366 WCI 5303299366 Contact Us For Availability
6
WCI 5303305676 WCI 5303305676 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318038600 WCI 318038600 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
WCI 5303299481 WCI 5303299481 Contact Us For Availability
11
STRIKE PLATE WCI 5301167830 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3205189 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303210001 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 5303210008 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE WCI 3016263 Contact Us For Availability
19
WCI 318030602 WCI 318030602 Contact Us For Availability
19
COLLAR-GLASS MTG WCI 5303210006 Contact Us For Availability
20
Spacer,handle ,almond ,(2) WCI 318014302 Contact Us For Availability
20A
WCI 318010900 WCI 318010900 Contact Us For Availability
20B
RELAY, CONVECTION, OVEN LIGHT, (2) (NOT ILLUS WCI 318111500 Contact Us For Availability
21
WCI 5303317307 WCI 5303317307 Contact Us For Availability
21
WCI 5303320658 WCI 5303320658 Contact Us For Availability
23
WCI 318111600 WCI 318111600 Contact Us For Availability
23A
HINGE-OVEN DOOR WCI 316009400 Contact Us For Availability
25
WCI 318048300 WCI 318048300 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
39
WCI 316091105 WCI 316091105 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
WCI 5303316650 WCI 5303316650 Contact Us For Availability
56
WCI 5303302712 WCI 5303302712 Contact Us For Availability
56
SCREW, 6-20 X 5/16, SIDE TRIM, (4) (NOT ILLUS WCI 5303320422 Contact Us For Availability
58
INSULATION,OVEN BACK ,WRAPPER WCI 3019048 Contact Us For Availability
58
WCI 5303311220 WCI 5303311220 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
62B
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303302390 WCI 5303302390 Contact Us For Availability
68
WCI 5303302397 WCI 5303302397 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305037 Contact Us For Availability
76
WCI 318056133 WCI 318056133 Contact Us For Availability
78
WCI 5303302395 WCI 5303302395 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 5303305035 Contact Us For Availability
83
WCI 318089508 WCI 318089508 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
WCI 3016296 WCI 3016296 Contact Us For Availability
89A
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
91
WCI 3019069 WCI 3019069 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
97
WCI 318066603 WCI 318066603 Contact Us For Availability
98A
WCI 5303298952 WCI 5303298952 Contact Us For Availability
98B
WCI 5303298953 WCI 5303298953 Contact Us For Availability
103
WCI 318028712 WCI 318028712 Contact Us For Availability
118
BRACKET-LATCH WCI 3016276 Contact Us For Availability
121
WCI 5303305036 WCI 5303305036 Contact Us For Availability
123
SHIELD-INSULATION, TOP & SIDES WCI 3202445 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
× ![]()
