Model Electrolux FEB500CESB WALL OVEN – Common Parts & Diagrams

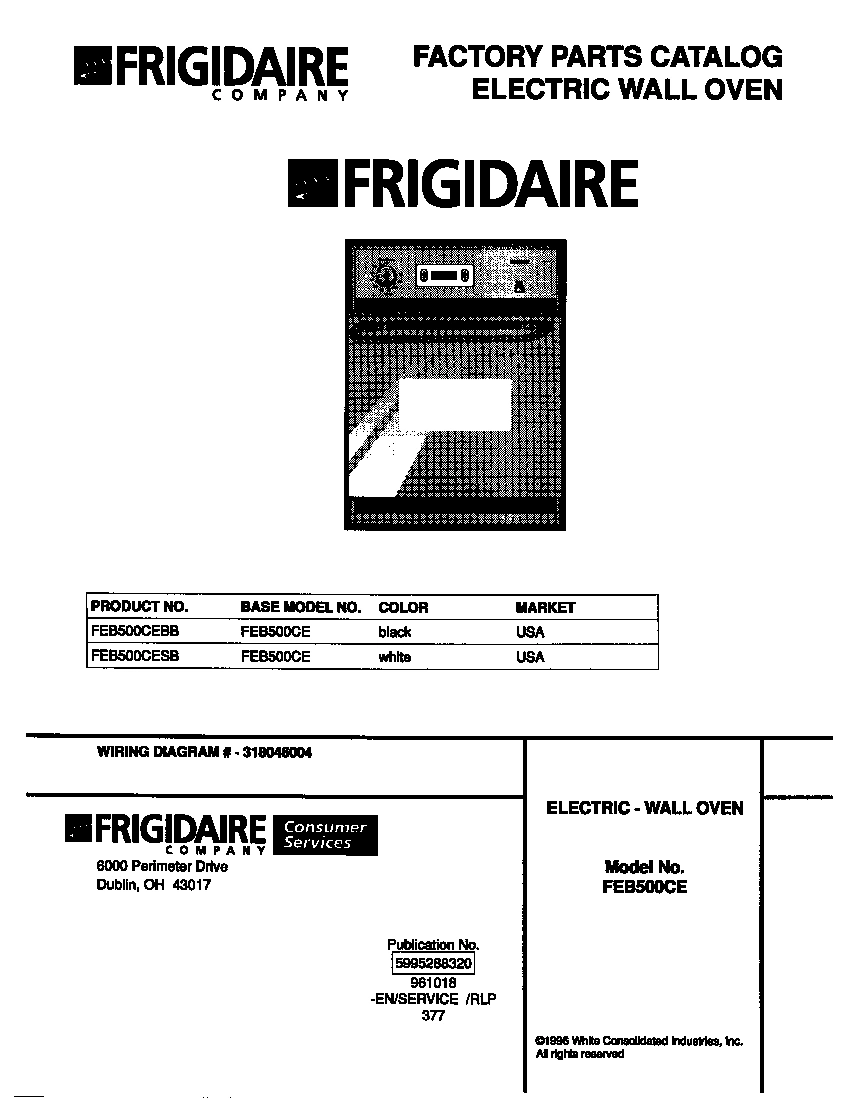

01 - COVER

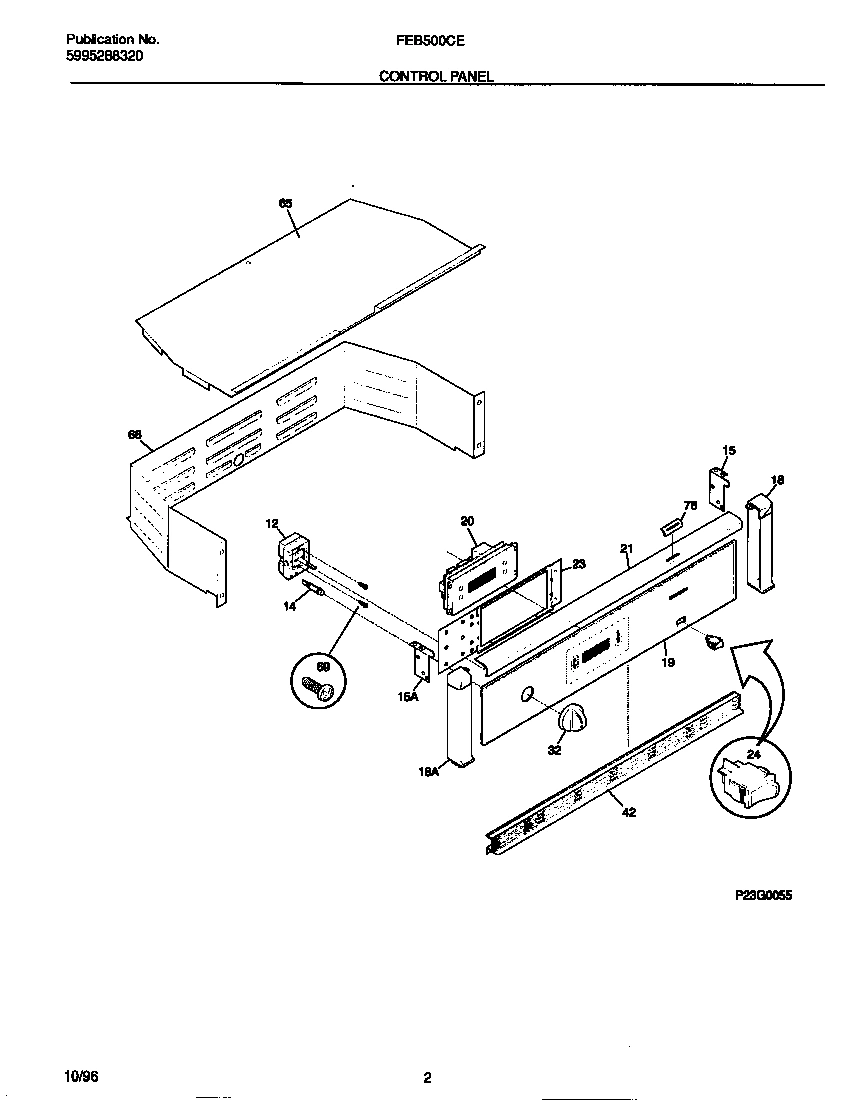

02 - CONTROL PANEL

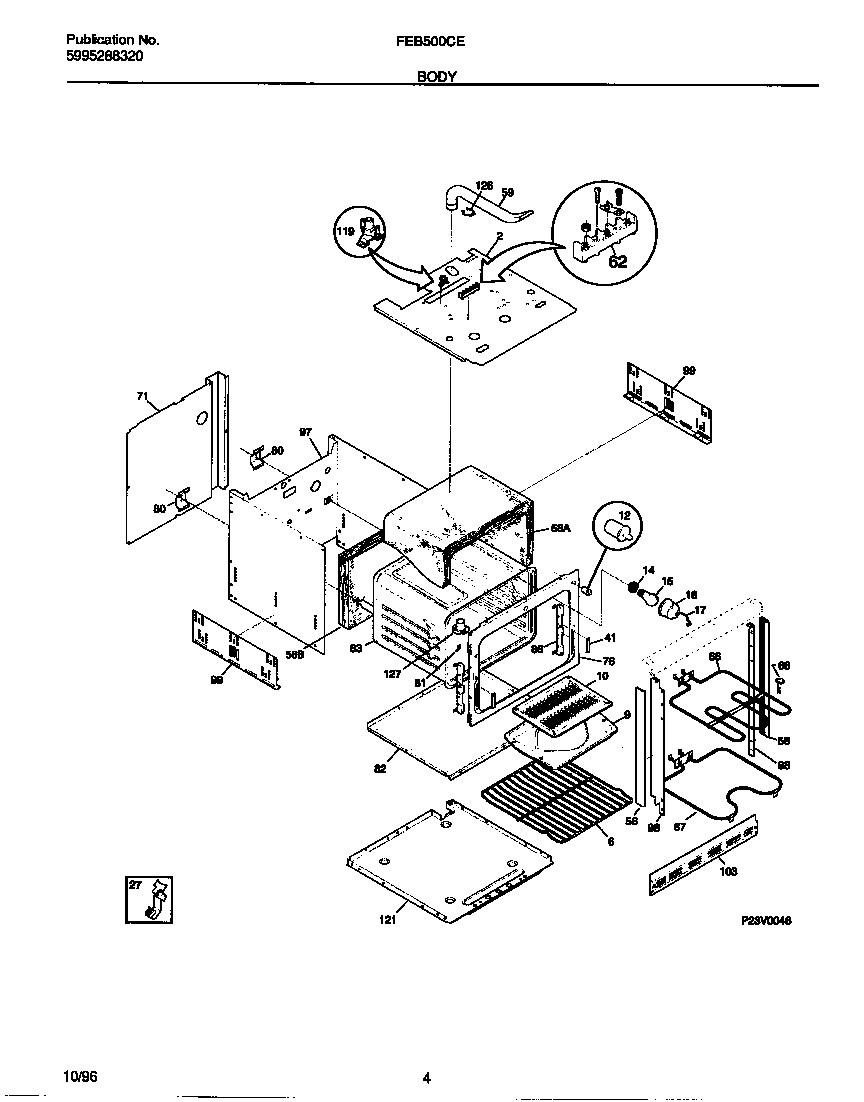

03 - BODY

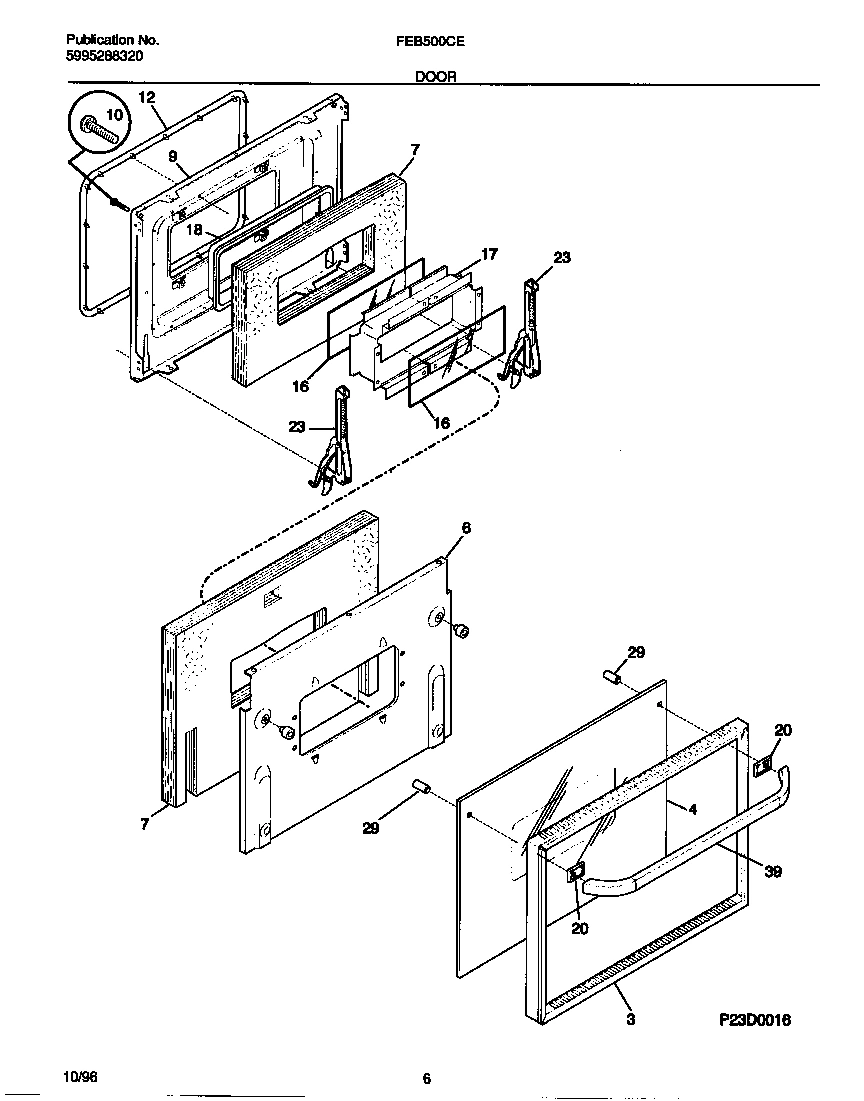

04 - DOOR

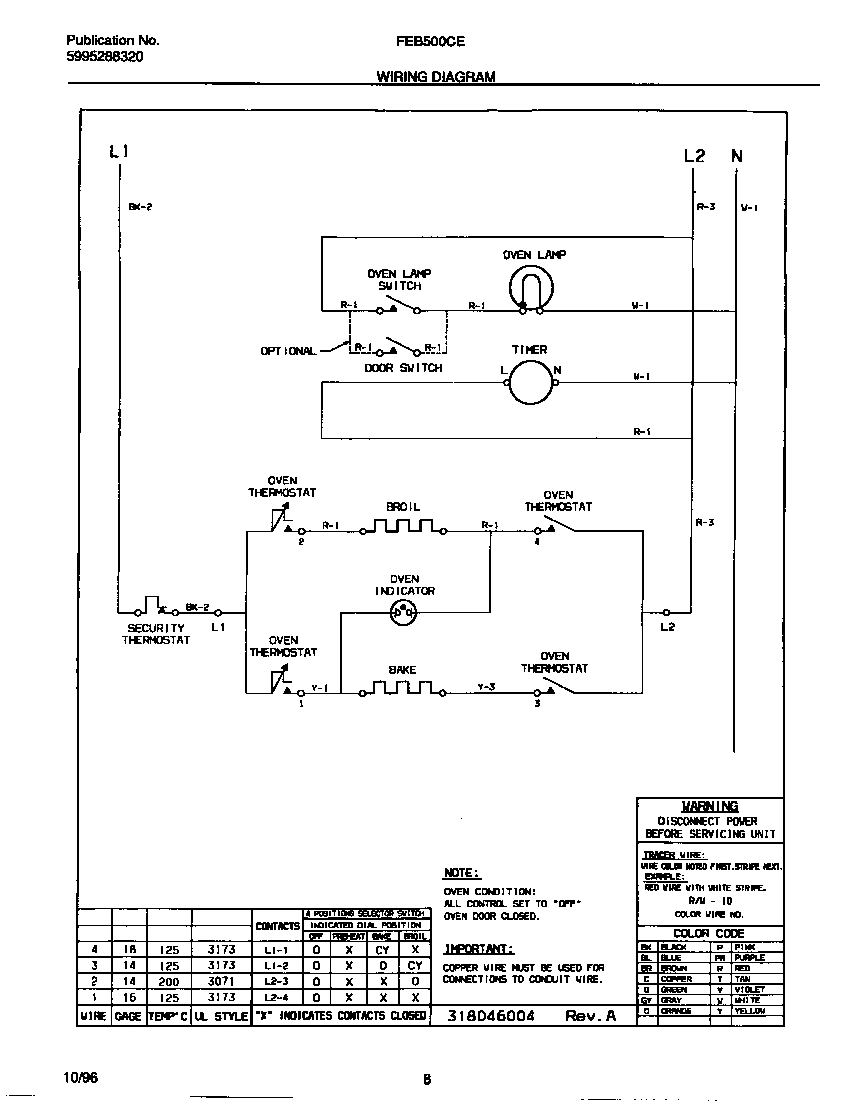

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB500CESB WALL OVEN
*74886
WCI 08002868 WCI 08002868 Contact Us For Availability
*74889
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*74890
WCI 5303316981 WCI 5303316981 Contact Us For Availability
*74891
WCI 5303319292 WCI 5303319292 Contact Us For Availability
*74892
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*74893
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*74894
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*74897
TAPE, SEAL, (3) WCI 5303316982 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 5303298946 Contact Us For Availability
3
WCI 318026100 WCI 318026100 Contact Us For Availability
4
WCI 5303302707 WCI 5303302707 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048400 WCI 318048400 Contact Us For Availability
10
SCREW-HANDLE WCI 5303311217 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
12
WCI 5303316768 WCI 5303316768 Contact Us For Availability
12
SWITCH-DOOR WCI 08015948 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303016336 Contact Us For Availability
17
RETAINER-LENS, LARGE/SMALL, OVEN WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 5303212864 Contact Us For Availability
18
SEAL-ROPE WCI 3016338 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
21
SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED) WCI 5303131766 Contact Us For Availability
21
SCREW, TOP TRIM, 6-32 X 3/8, WHITE, (2) (NOT WCI 5303316956 Contact Us For Availability
21
WCI 5303320425 WCI 5303320425 Contact Us For Availability
23
WCI 318015700 WCI 318015700 Contact Us For Availability
23
HINGE-OVEN DOOR, LOWER WCI 3202464 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
32
WCI 318017206 WCI 318017206 Contact Us For Availability
39
WCI 316091104 WCI 316091104 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
WCI 5303316649 WCI 5303316649 Contact Us For Availability
56
WCI 5303302711 WCI 5303302711 Contact Us For Availability
56
SCREW, 6-20 X 5/16, SIDE TRIM, (4) (NOT ILLUS WCI 5303320422 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
62B
SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILL WCI 08002848 Contact Us For Availability
65
WCI 5303302390 WCI 5303302390 Contact Us For Availability
68
WCI 5303302397 WCI 5303302397 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SCREW-SWITCH MTG, 8-32 X 5/32, (6) WCI 5303292005 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305037 Contact Us For Availability
76
WCI 318056120 WCI 318056120 Contact Us For Availability
78
WCI 5303302394 WCI 5303302394 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 5303305035 Contact Us For Availability
83
WCI 318089509 WCI 318089509 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
97
WCI 318066603 WCI 318066603 Contact Us For Availability
98A
WCI 5303298952 WCI 5303298952 Contact Us For Availability
98B
WCI 5303298953 WCI 5303298953 Contact Us For Availability
103
WCI 318028711 WCI 318028711 Contact Us For Availability
119
SWITCH-THERMAL WCI 3202388 Contact Us For Availability
121
WCI 5303305036 WCI 5303305036 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
× ![]()
