Model Electrolux FEB500BAB6 WALL OVEN – Common Parts & Diagrams

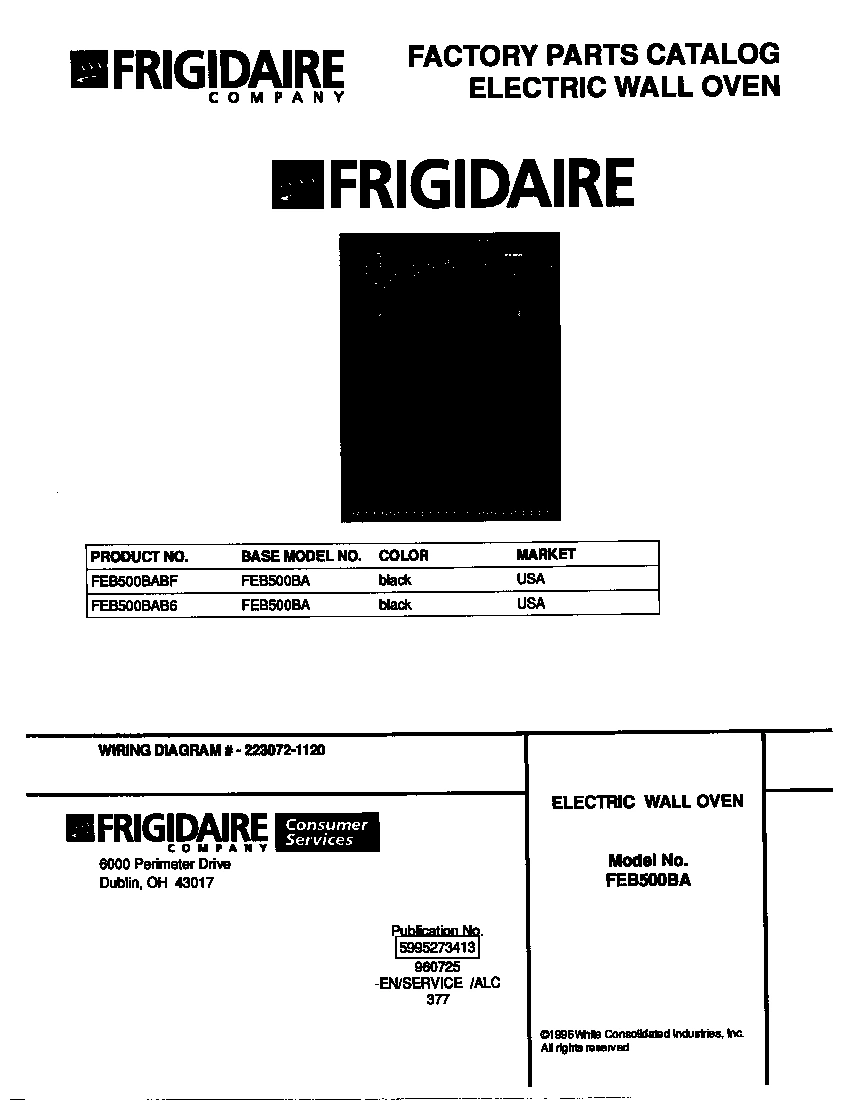

01 - COVER

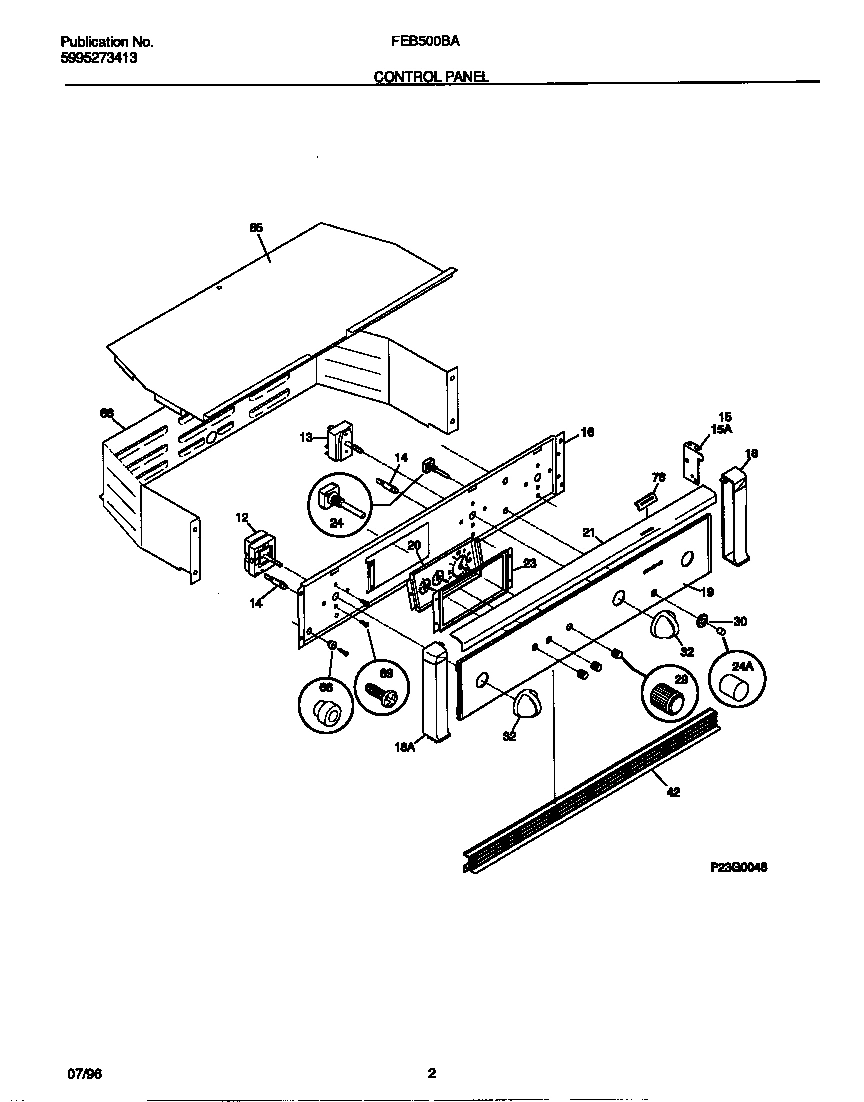

02 - CONTROL PANEL

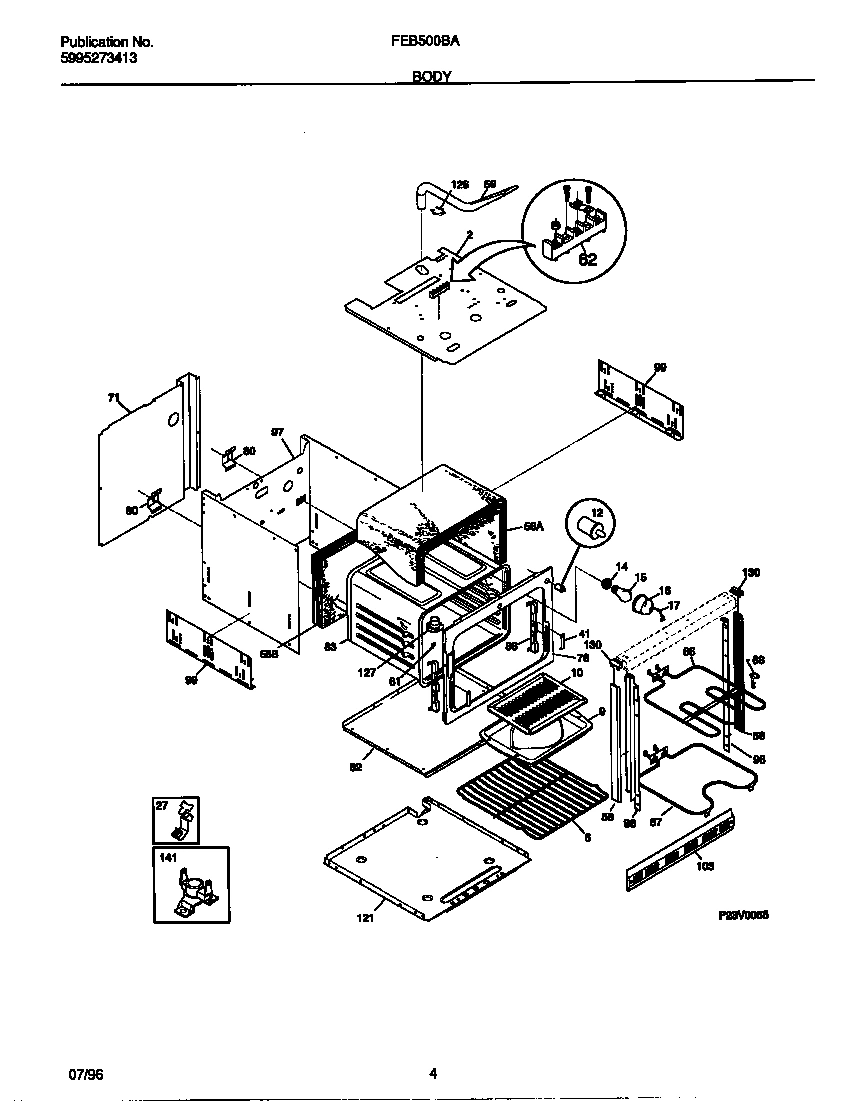

03 - BODY

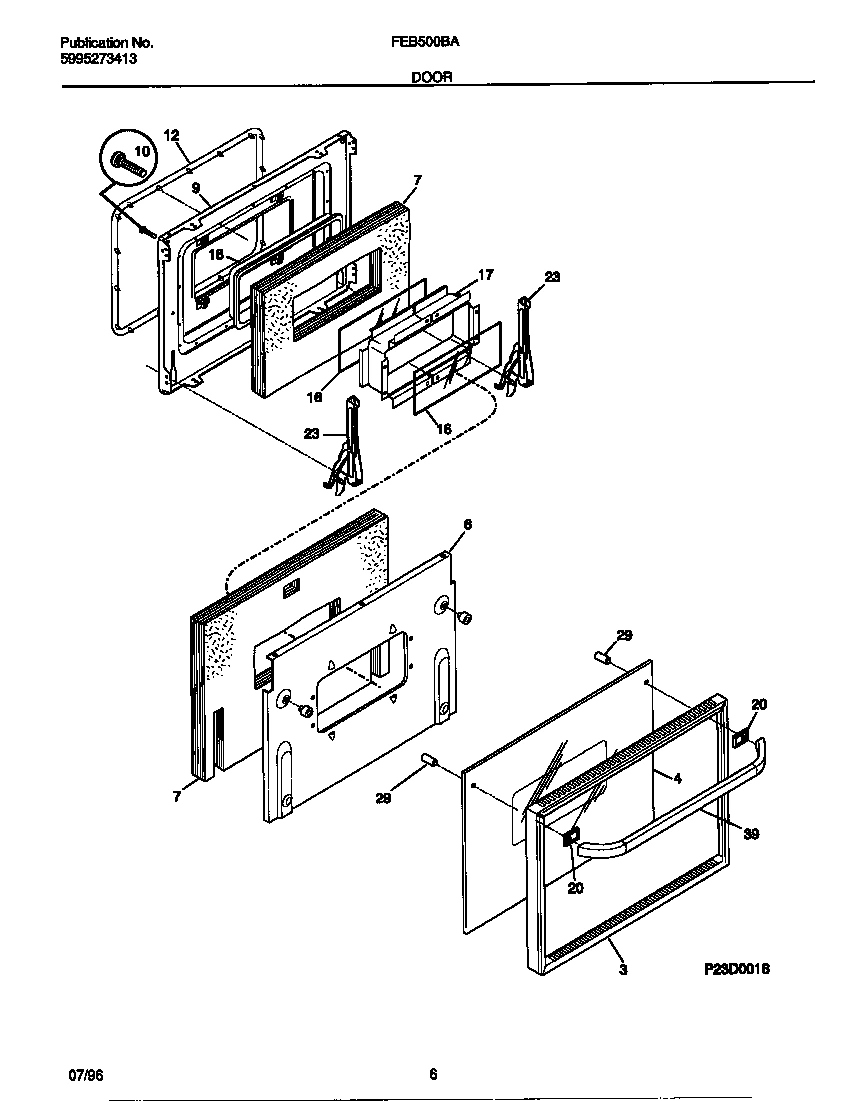

04 - DOOR

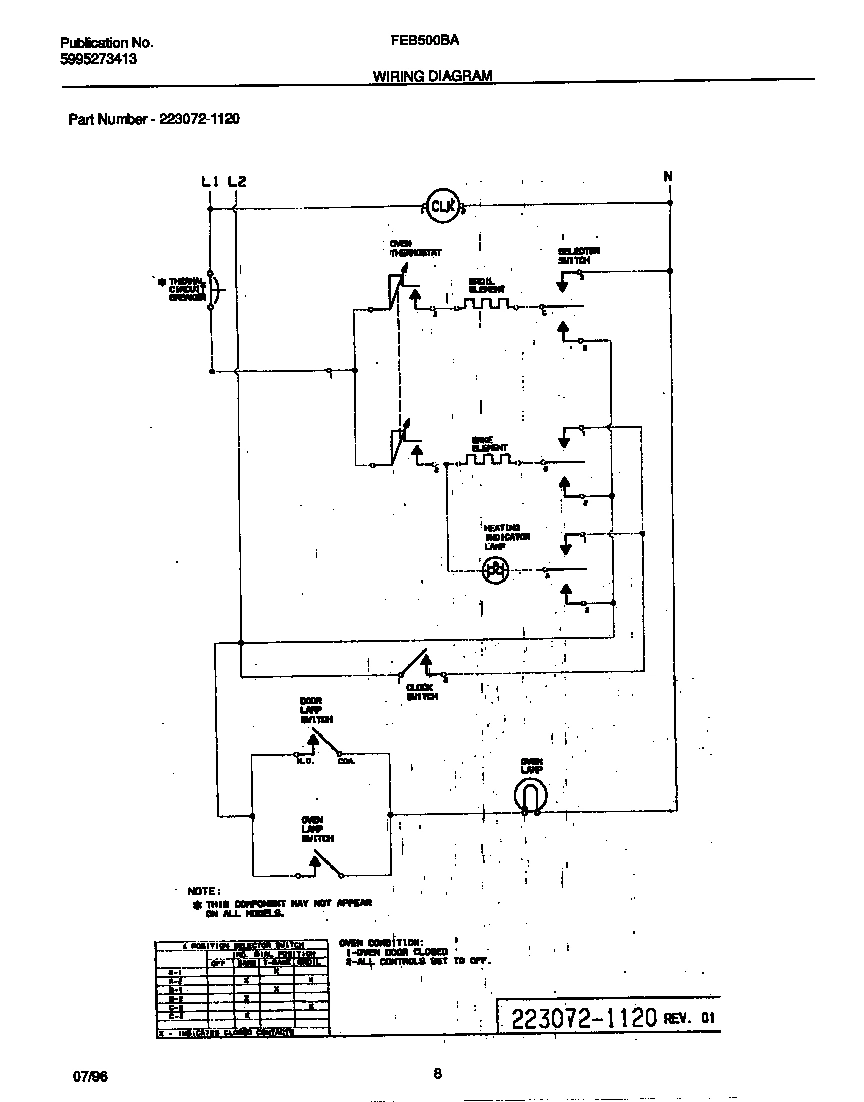

05 - WIRING DIAGRAM
Common parts from model Electrolux FEB500BAB6 WALL OVEN
*83406
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*83407
WCI 5303316981 WCI 5303316981 Contact Us For Availability
*83408
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*83409
WCI 5303269859 WCI 5303269859 Contact Us For Availability
*83411
TAPE, SEAL, (2) WCI 5303316982 Contact Us For Availability
*83412
WCI 5303300414 WCI 5303300414 Contact Us For Availability
2
SHIELD-OVEN TOP WCI 5303298946 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 5303212560 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 5303299478 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
9
WCI 5303310521 WCI 5303310521 Contact Us For Availability
9
LINER-DOOR BAFFLE WCI 5303296860 Contact Us For Availability
10
SCREW-HANDLE WCI 5303311217 Contact Us For Availability
10
WCI 5303310520 WCI 5303310520 Contact Us For Availability
12
WCI 5303316768 WCI 5303316768 Contact Us For Availability
12
SWITCH-DOOR WCI 08015948 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303016336 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 5303212864 Contact Us For Availability
18
SEAL-ROPE WCI 3016338 Contact Us For Availability
19
WCI 5303305034 WCI 5303305034 Contact Us For Availability
20
CLOCK/TIMER WCI 5303298961 Contact Us For Availability
20
WCI 5303300175 WCI 5303300175 Contact Us For Availability
21
TRIM-TOP WCI 5303300408 Contact Us For Availability
21
SCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT WCI 5303307406 Contact Us For Availability
23
BRACKET-CLOCK MTG WCI 3202088 Contact Us For Availability
23
HINGE-OVEN DOOR WCI 3202464 Contact Us For Availability
24
WCI 318090000 WCI 318090000 Contact Us For Availability
24
KNOB-LIGHT SWITCH, BLACK WCI 5303299474 Contact Us For Availability
24
WCI 5303302303 WCI 5303302303 Contact Us For Availability
29
WCI 316029000 WCI 316029000 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
30
WCI 5303316767 WCI 5303316767 Contact Us For Availability
32
WCI 5303304950 WCI 5303304950 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303300415 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
42
WCI 5303316651 WCI 5303316651 Contact Us For Availability
56
WCI 5303298951 WCI 5303298951 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 5303304702 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
59
WCI 5303300422 WCI 5303300422 Contact Us For Availability
65
WCI 5303302390 WCI 5303302390 Contact Us For Availability
66
WCI 5303304698 WCI 5303304698 Contact Us For Availability
68
WCI 5303302397 WCI 5303302397 Contact Us For Availability
68
WCI 5303307563 WCI 5303307563 Contact Us For Availability
69
SCREW-SWITCH MTG, 8-32 X 5/32, (2) WCI 5303292005 Contact Us For Availability
71
SHIELD-WIRE WCI 5303305037 Contact Us For Availability
76
FRONT-OVEN WCI 5303296866 Contact Us For Availability
78
WCI 5303302396 WCI 5303302396 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
SPACER-OVEN WCI 3201632 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 5303305035 Contact Us For Availability
83
WCI 5303305022 WCI 5303305022 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
97
WCI 318066603 WCI 318066603 Contact Us For Availability
98
WCI 5303298952 WCI 5303298952 Contact Us For Availability
98
WCI 5303298953 WCI 5303298953 Contact Us For Availability
103
WCI 318028710 WCI 318028710 Contact Us For Availability
121
WCI 5303305036 WCI 5303305036 Contact Us For Availability
126
WCI 3016303 WCI 3016303 Contact Us For Availability
127
ADAPTER ASSY WCI 5303206498 Contact Us For Availability
141
WCI 5303304704 WCI 5303304704 Contact Us For Availability
× ![]()
