Model Electrolux FEB398CEBC WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

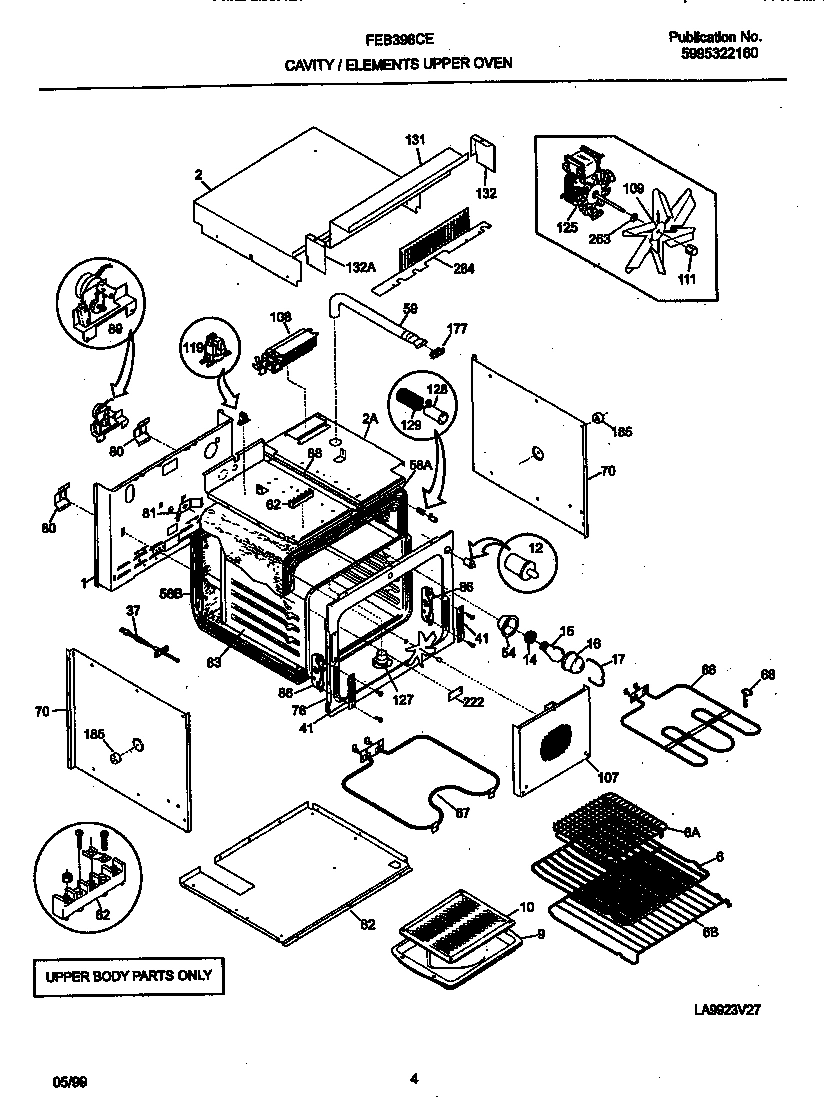

03 - UPPER BODY

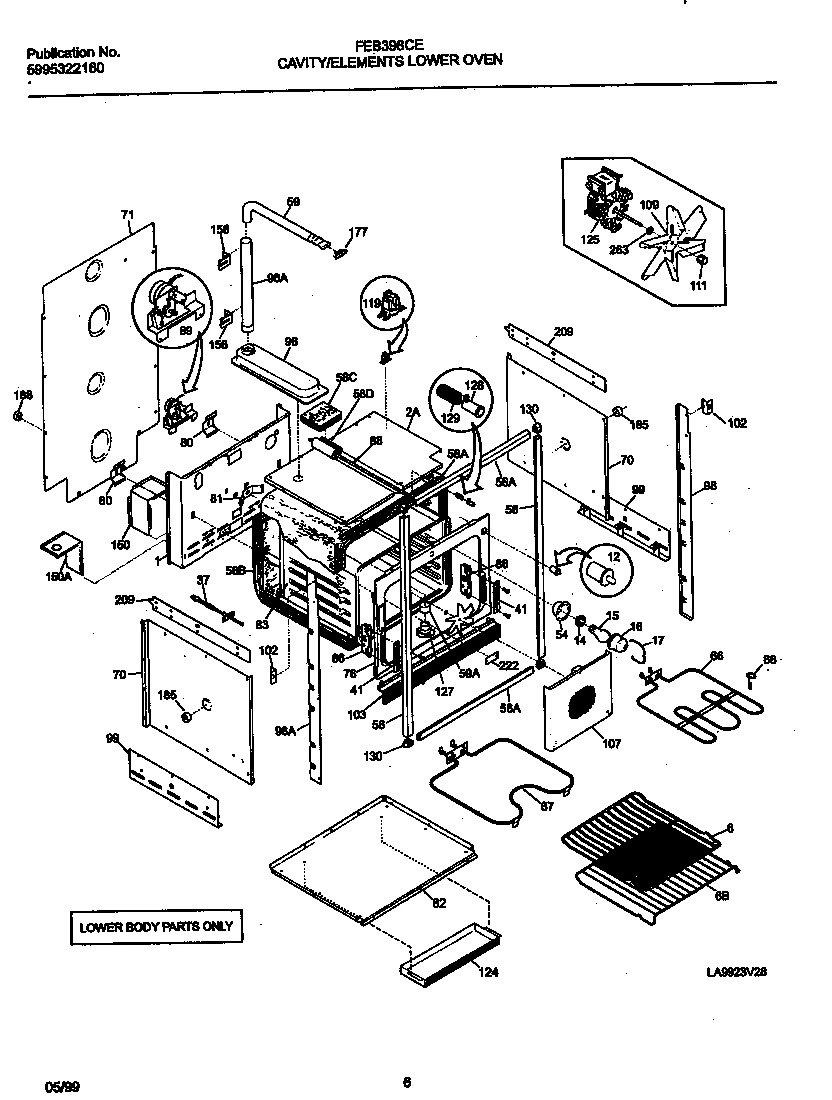

04 - LOWER BODY

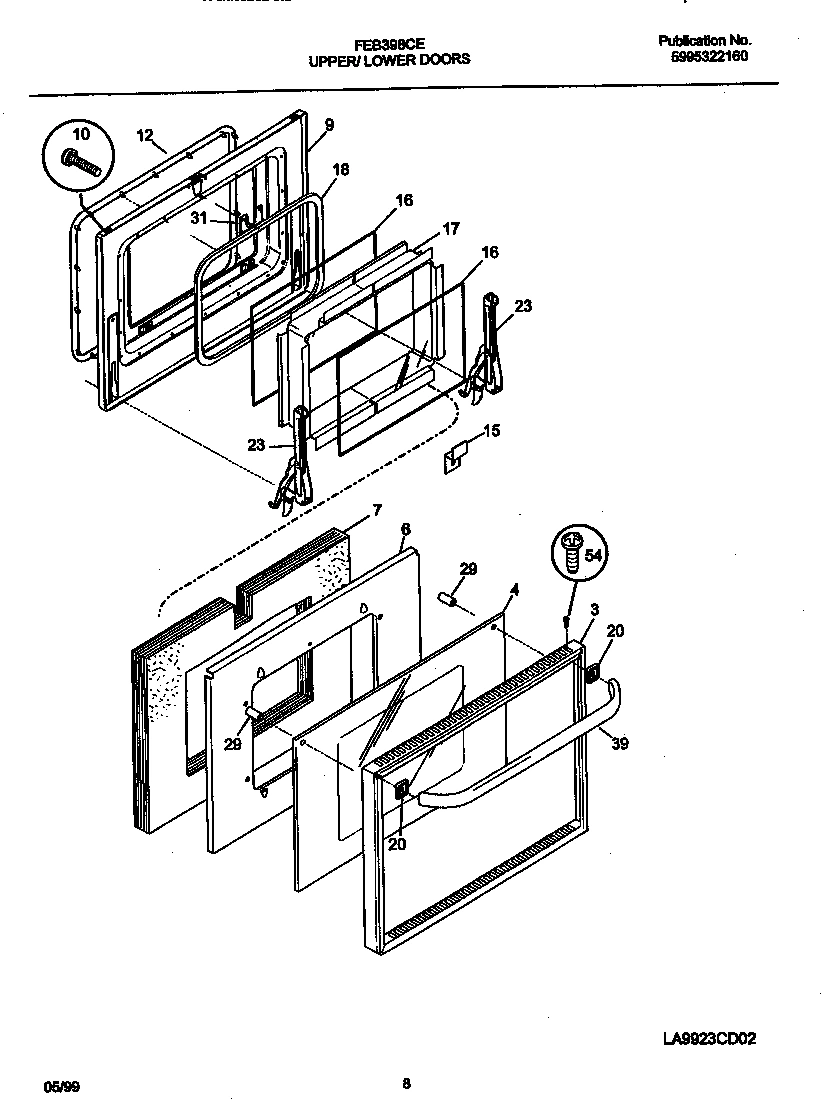

05 - DOOR

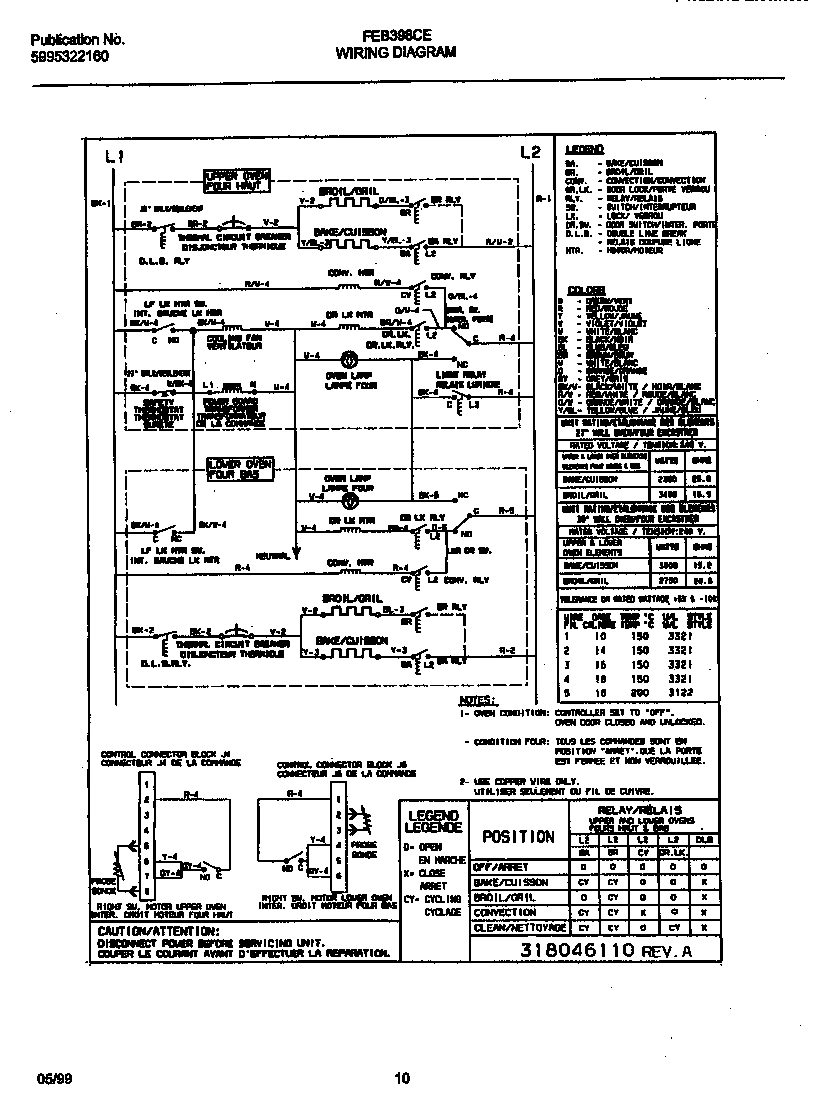

06 - WIRING DIAGRAM
Common parts from model Electrolux FEB398CEBC WALL OVEN
*19482
FOAM SEAL,SEAL ,(3) WCI 5303316982 Contact Us For Availability
*19485
WCI 5303300414 WCI 5303300414 Contact Us For Availability
*19486
WCI 318120701 WCI 318120701 Contact Us For Availability
*19489
WCI 318034403 WCI 318034403 Contact Us For Availability
*19491
WASHER-OVEN VENT WCI 5303320845 Contact Us For Availability
*19492
TAPE WCI 5303212886 Contact Us For Availability
*19495
WCI 318086200 WCI 318086200 Contact Us For Availability
*19496
SCREW 6-20X5/8 OVAL HD AB AQDR,OVAL HD ,6-20 WCI 5303311528 Contact Us For Availability
*19498
WCI 318120702 WCI 318120702 Contact Us For Availability
1
WCI 5303310527 WCI 5303310527 Contact Us For Availability
2
WCI 318071704 WCI 318071704 Contact Us For Availability
3
WCI 318026710 WCI 318026710 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 318041303 Contact Us For Availability
6
WCI 318056811 WCI 318056811 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 318048606 WCI 318048606 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
15
BRACKET-GLASS,(3) WCI 318091102 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER ,(2) WCI 318041603 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
WCI 318010501 WCI 318010501 Contact Us For Availability
20
WCI 318014300 WCI 318014300 Contact Us For Availability
23
WCI 5303310506 WCI 5303310506 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
31
WCI 318065100 WCI 318065100 Contact Us For Availability
39
HANDLE-DOOR,BLACK ,OVEN WCI 316091113 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
TOP TRIM,BLACK ,(4) WCI 318083500 Contact Us For Availability
56
WCI 318083503 WCI 318083503 Contact Us For Availability
58
WCI 318106002 WCI 318106002 Contact Us For Availability
58
WCI 5303310538 WCI 5303310538 Contact Us For Availability
58
INSULATION WRAPPER WCI 5303310539 Contact Us For Availability
58
INSULATION, OVEN VENT WCI 5303316994 Contact Us For Availability
59
WCI 318072504 WCI 318072504 Contact Us For Availability
59
WCI 5303320844 WCI 5303320844 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
WCI 318071211 WCI 318071211 Contact Us For Availability
76
WCI 318056202 WCI 318056202 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
BOARD-RELAY, TRANSFORMER WCI 318022002 No Longer Available
81
WCI 5303320846 WCI 5303320846 Contact Us For Availability
82
WCI 318072301 WCI 318072301 Contact Us For Availability
82
SHIELD-INSULATION WCI 318072302 Contact Us For Availability
83
LINER-OVEN ASSY,COMP. WCI 318089609 Contact Us For Availability
83
WCI 318089607 WCI 318089607 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 5303311222 WCI 5303311222 Contact Us For Availability
89
WCI 5304409801 WCI 5304409801 Contact Us For Availability
96
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96
WCI 5303317197 WCI 5303317197 Contact Us For Availability
98
WCI 318029211 WCI 318029211 Contact Us For Availability
98
WCI 318029213 WCI 318029213 Contact Us For Availability
99
WCI 318055410 WCI 318055410 Contact Us For Availability
102
WCI 318090900 WCI 318090900 Contact Us For Availability
103
WCI 318028500 WCI 318028500 Contact Us For Availability
107
WCI 318119600 WCI 318119600 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
109
FAN BLADE WCI 5303311203 Contact Us For Availability
124
WCI 318076903 WCI 318076903 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
130
WCI 318070800 WCI 318070800 Contact Us For Availability
131
WCI 318102301 WCI 318102301 Contact Us For Availability
132A
WCI 318101800 WCI 318101800 Contact Us For Availability
132B
WCI 318101801 WCI 318101801 Contact Us For Availability
150A
BRACKET-SUPPORT, RH WCI 318072205 Contact Us For Availability
150B
BRACKET-SUPPORT, LH WCI 318072204 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
177
WCI 318053800 WCI 318053800 Contact Us For Availability
222
WCI 318080000 WCI 318080000 Contact Us For Availability
264
WCI 318143815 WCI 318143815 Contact Us For Availability
270
WCI 318132500 WCI 318132500 Contact Us For Availability
× ![]()
