Model Electrolux FEB386CESG WALL OVEN – Common Parts & Diagrams
01 - COVER

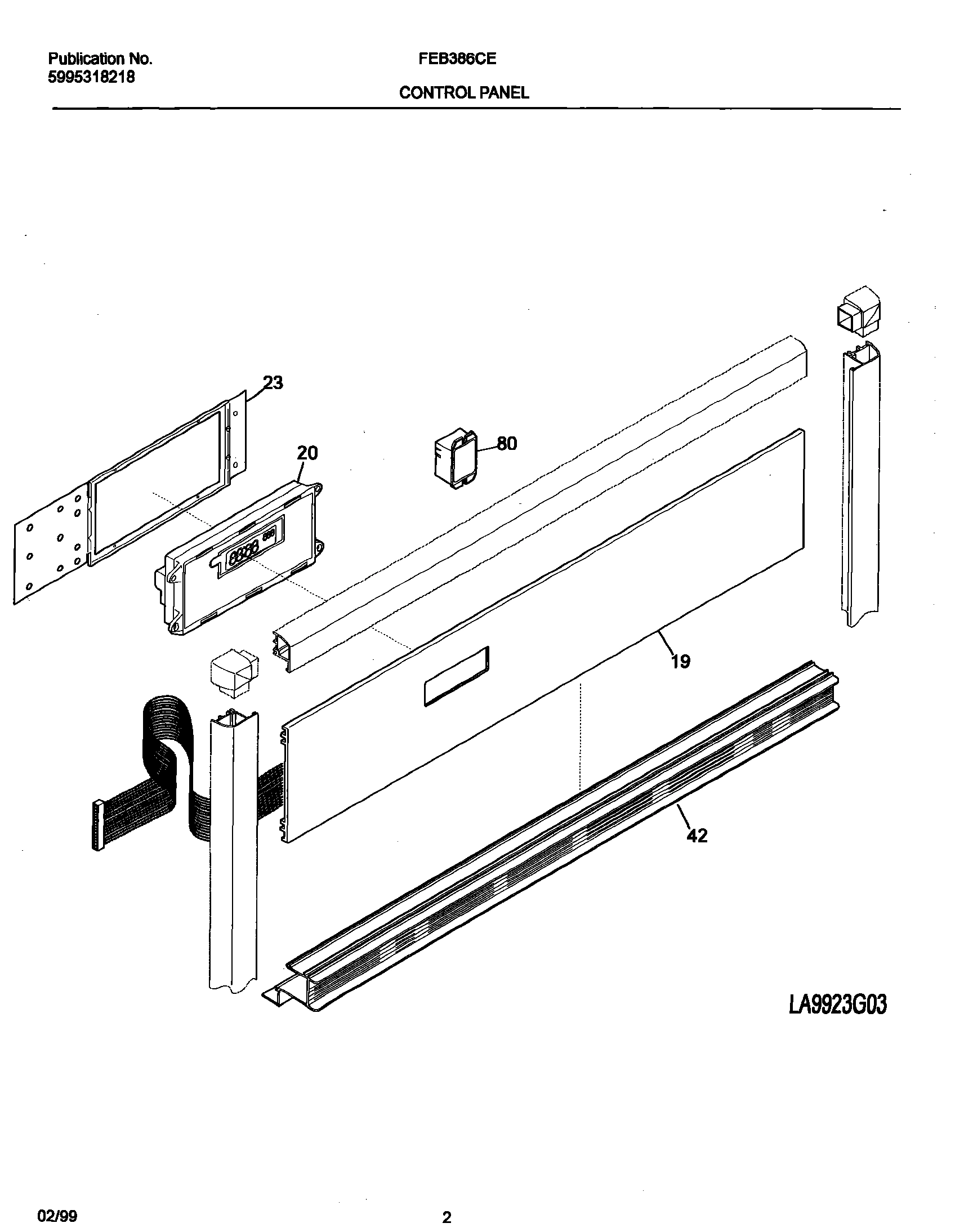

03 - CONTROL PANEL

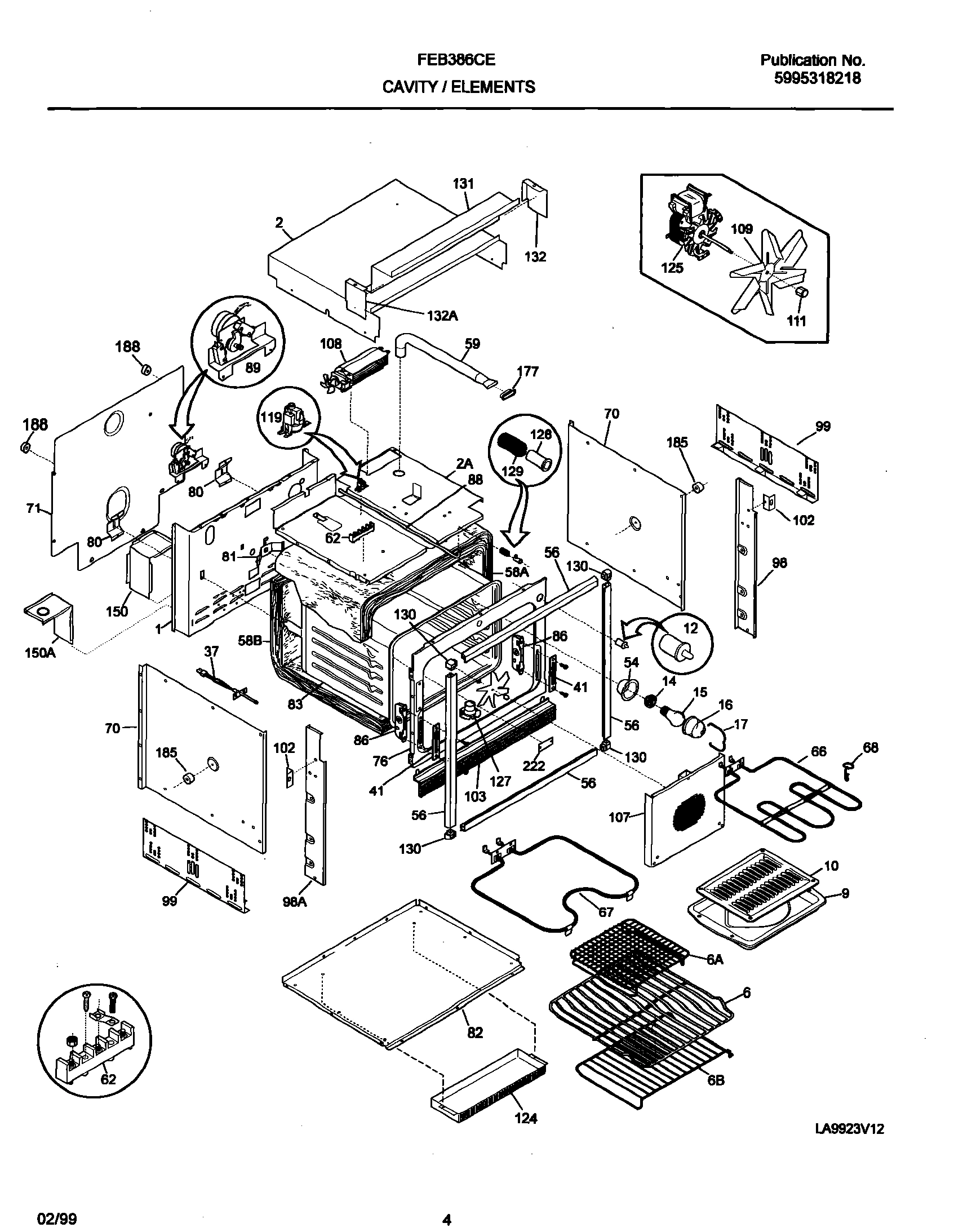

05 - CAVITY / ELEMENTS

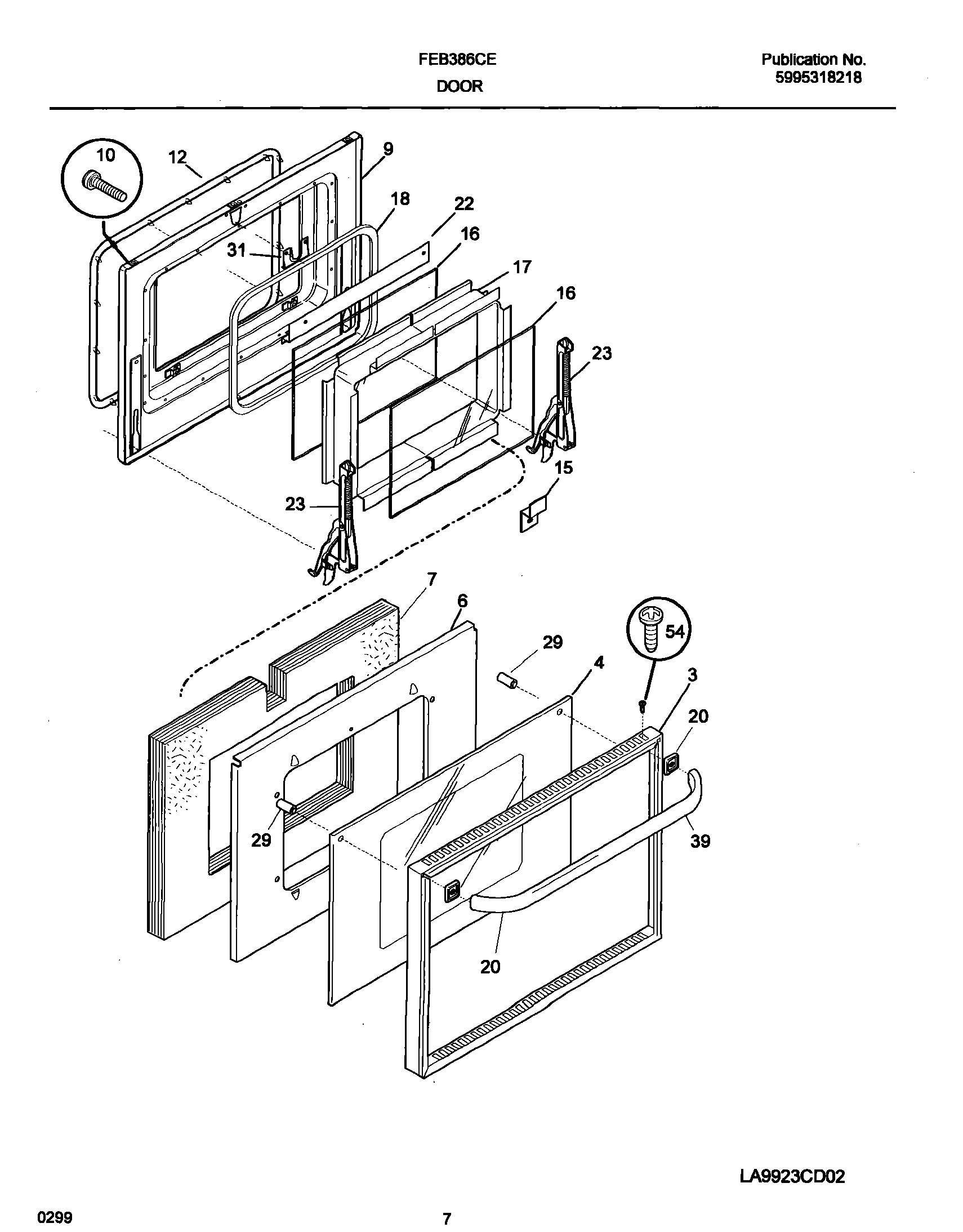

08 - DOOR

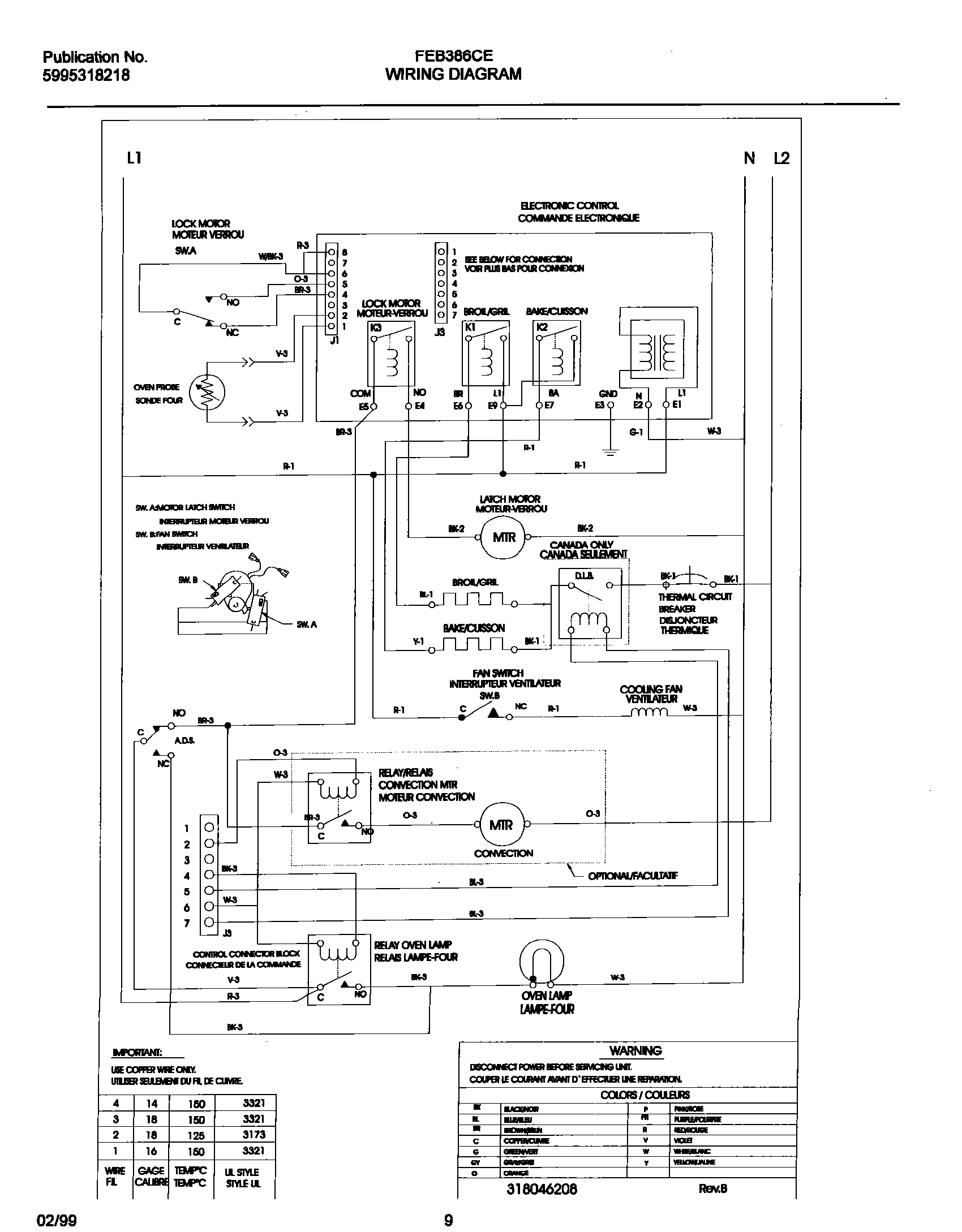

09 - WIRING DIAGRAM
Common parts from model Electrolux FEB386CESG WALL OVEN
3
WCI 318026125 WCI 318026125 Contact Us For Availability
4
WCI 318041304 WCI 318041304 Contact Us For Availability
6
BAFFLE-DOOR WCI 318056811 Contact Us For Availability
7
INSULATION WCI 318106001 Contact Us For Availability
9
WCI 318048606 WCI 318048606 Contact Us For Availability
10
SCREW-HANDLE 10-24 X 2-3/16 WCI 5303311217 Contact Us For Availability
15
BRACKET-GLASS WCI 318091102 Contact Us For Availability
16
GLASS-OVEN DOOR WCI 318041603 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
SPACER-HANDLE,WHITE WCI 318014301 Contact Us For Availability
23
HINGE-OVEN DOOR WCI 5303310506 Contact Us For Availability
29
SPACER-HANDLE MTG WCI 5303210003 Contact Us For Availability
31
WCI 318065100 WCI 318065100 Contact Us For Availability
39
HANDLE-DOOR,WHITE WCI 316091111 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
58A
WCI 5303310539 WCI 5303310539 Contact Us For Availability
58B
WCI 5303310538 WCI 5303310538 Contact Us For Availability
59
WCI 318072504 WCI 318072504 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
WCI 318071200 WCI 318071200 Contact Us For Availability
76
WCI 318056202 WCI 318056202 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
WCI 5303320846 WCI 5303320846 Contact Us For Availability
82
SHIELD WCI 318072300 Contact Us For Availability
83
WCI 318089609 WCI 318089609 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
88
WCI 5303311222 WCI 5303311222 Contact Us For Availability
89
WCI 318120702 WCI 318120702 Contact Us For Availability
89
WCI 5304404899 WCI 5304404899 Contact Us For Availability
98
TRIM-SIDE,RH WCI 318029201 Contact Us For Availability
98A
TRIM-SIDE,LH WCI 318029203 Contact Us For Availability
99
WCI 318055420 WCI 318055420 Contact Us For Availability
102
SUPPORT-FIXATION WCI 318090900 Contact Us For Availability
103
WCI 318028501 WCI 318028501 Contact Us For Availability
107
WCI 318119600 WCI 318119600 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
109
FAN BLADE WCI 5303311203 Contact Us For Availability
124
WCI 318076903 WCI 318076903 Contact Us For Availability
125
WASHER,CONV. MOTOR WCI 5303320346 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
130
WCI 318070801 WCI 318070801 Contact Us For Availability
131
WCI 318102301 WCI 318102301 Contact Us For Availability
132
END-COVER, RH WCI 318101800 Contact Us For Availability
132A
END-COVER, LH WCI 318101801 Contact Us For Availability
150
BRACKET-SUPPORT, RH WCI 318072205 Contact Us For Availability
150A
BRACKET-SUPPORT, LH WCI 318072204 Contact Us For Availability
177
WCI 318053800 WCI 318053800 Contact Us For Availability
222
PLATE HOLE CONVECTION ELEMENT WCI 318080000 Contact Us For Availability
NI
CLIP-WIRE WCI 3015722 Contact Us For Availability
NI
SCREW, 8 X 5/8 WCI 3131048 Contact Us For Availability
NI
WCI 318078511 WCI 318078511 Contact Us For Availability
NI
SCREW <10-16X-1-1/8> WCI 5303302745 Contact Us For Availability
NI
WCI 5304407813 WCI 5304407813 Contact Us For Availability
NI
TAPE SEAL WCI 5303316982 Contact Us For Availability
× ![]()
