Model Electrolux FEB27T5ASA WALL OVEN – Common Parts & Diagrams

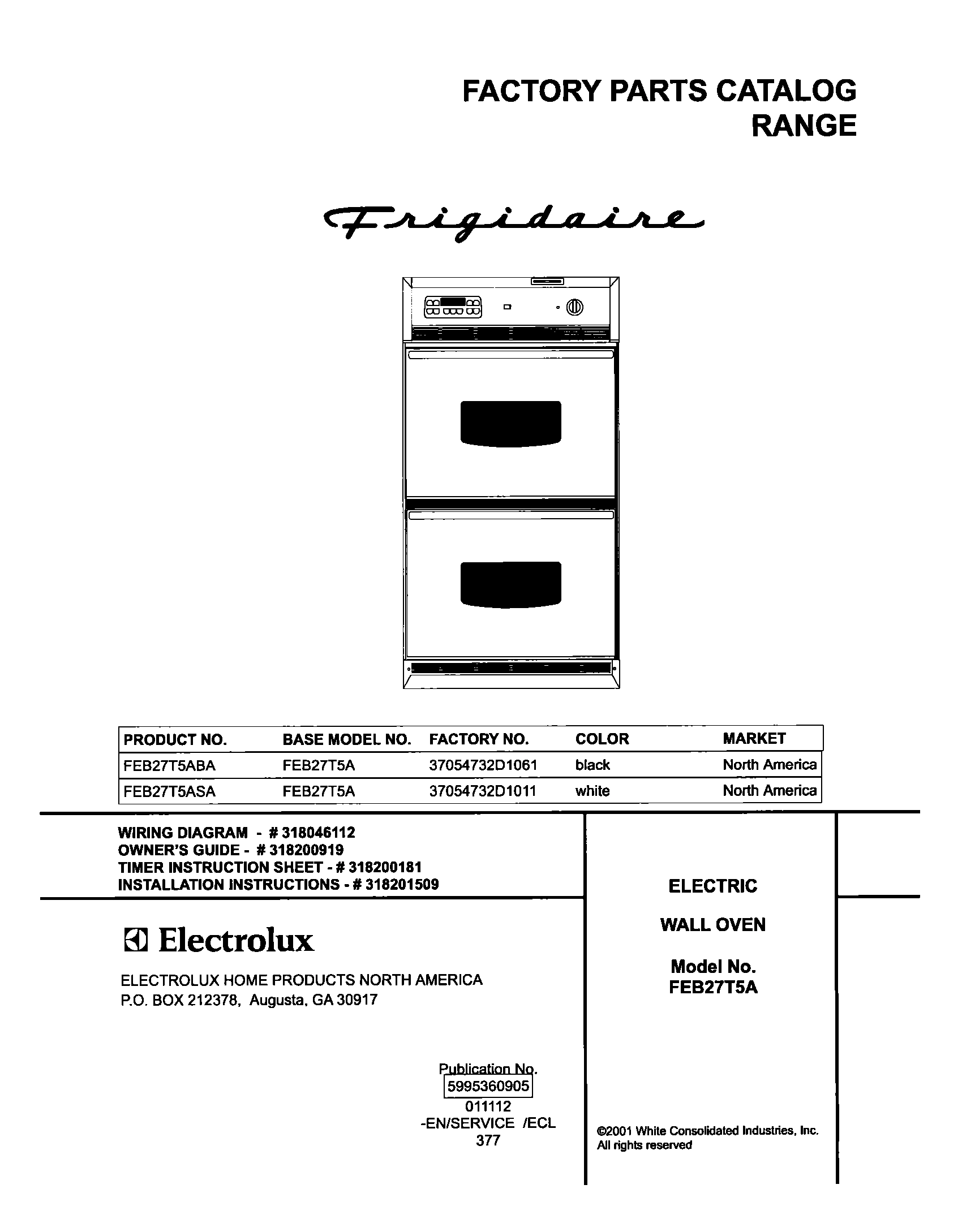

01 - COVER

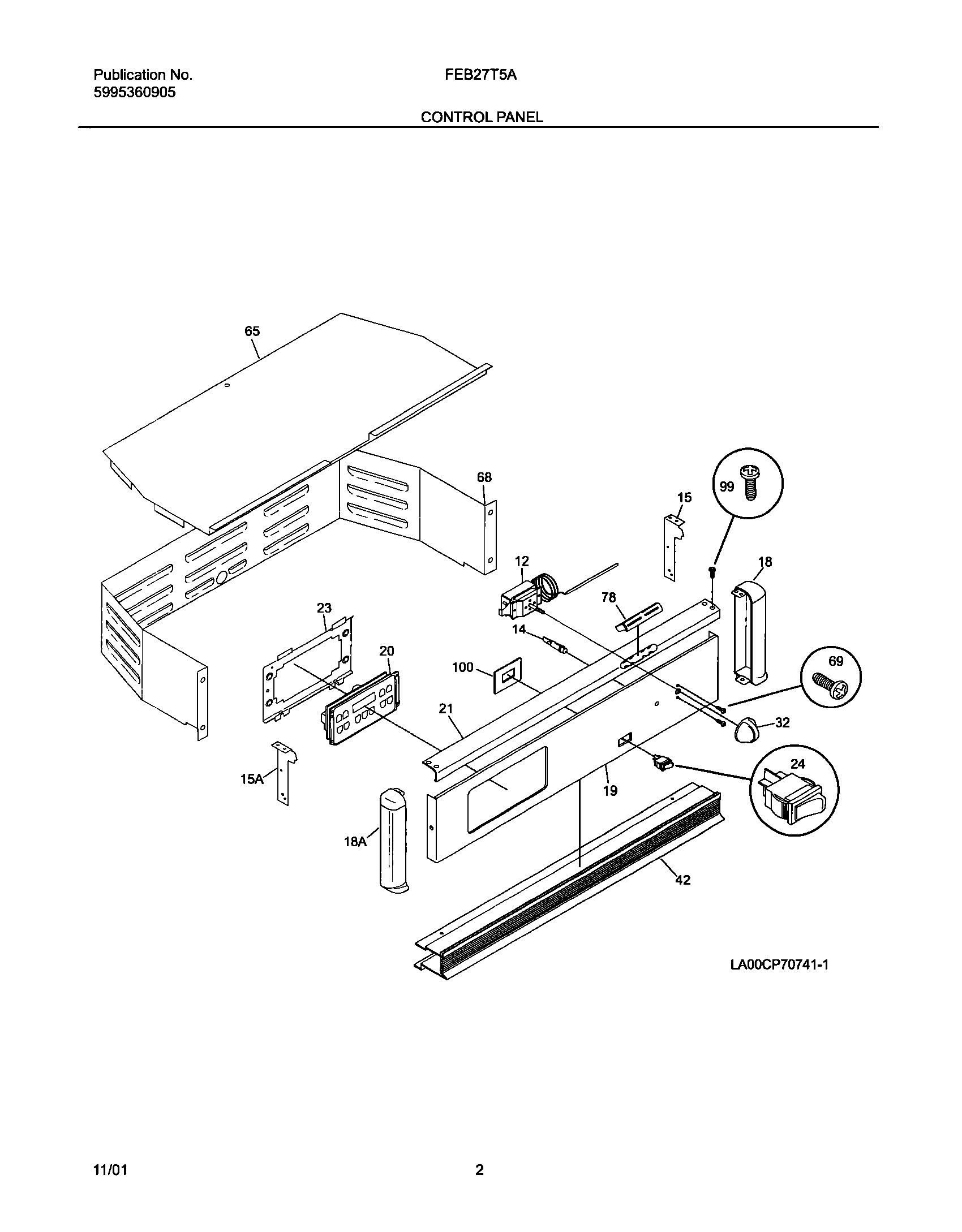

03 - CONTROL PANEL

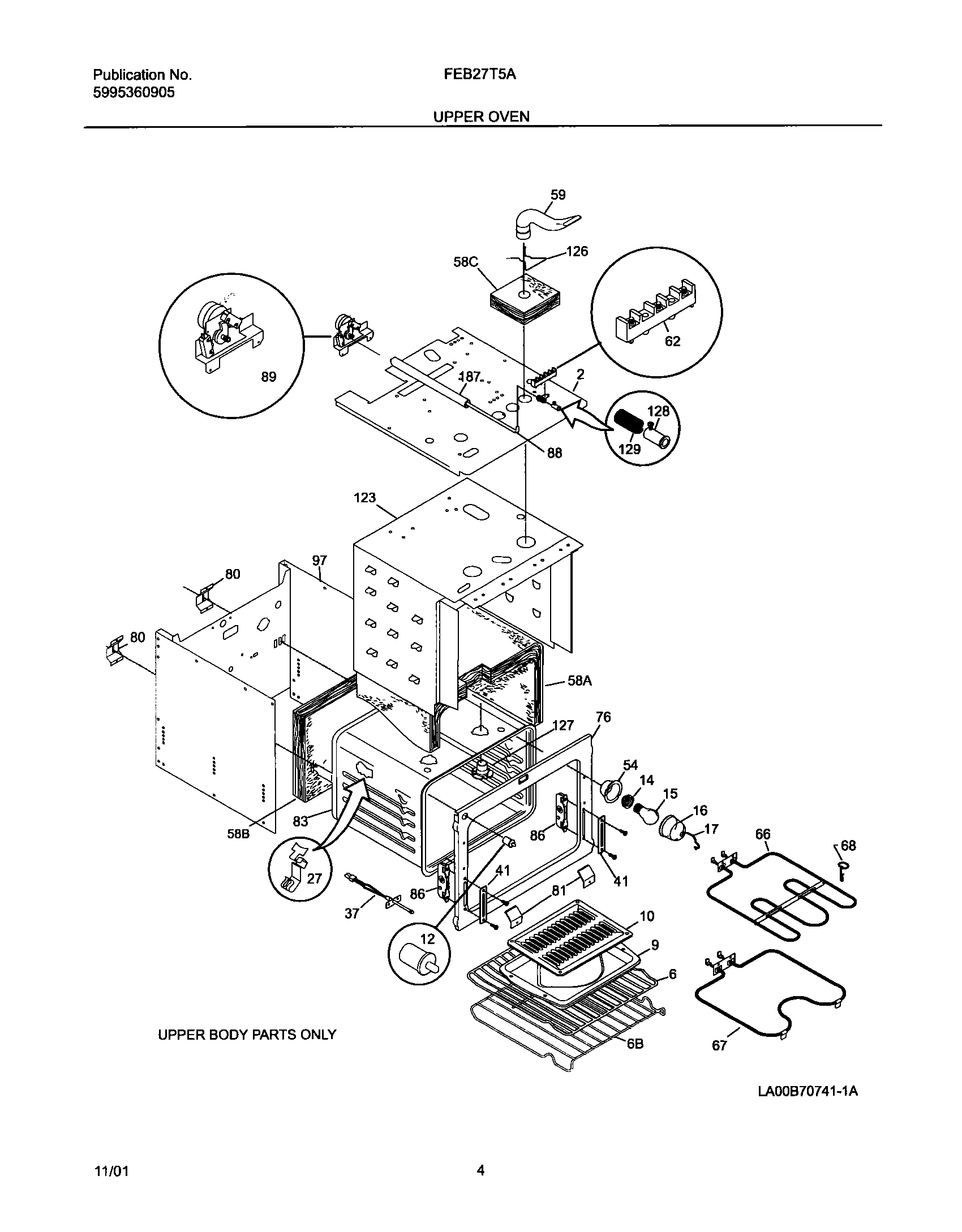

05 - UPPER OVEN

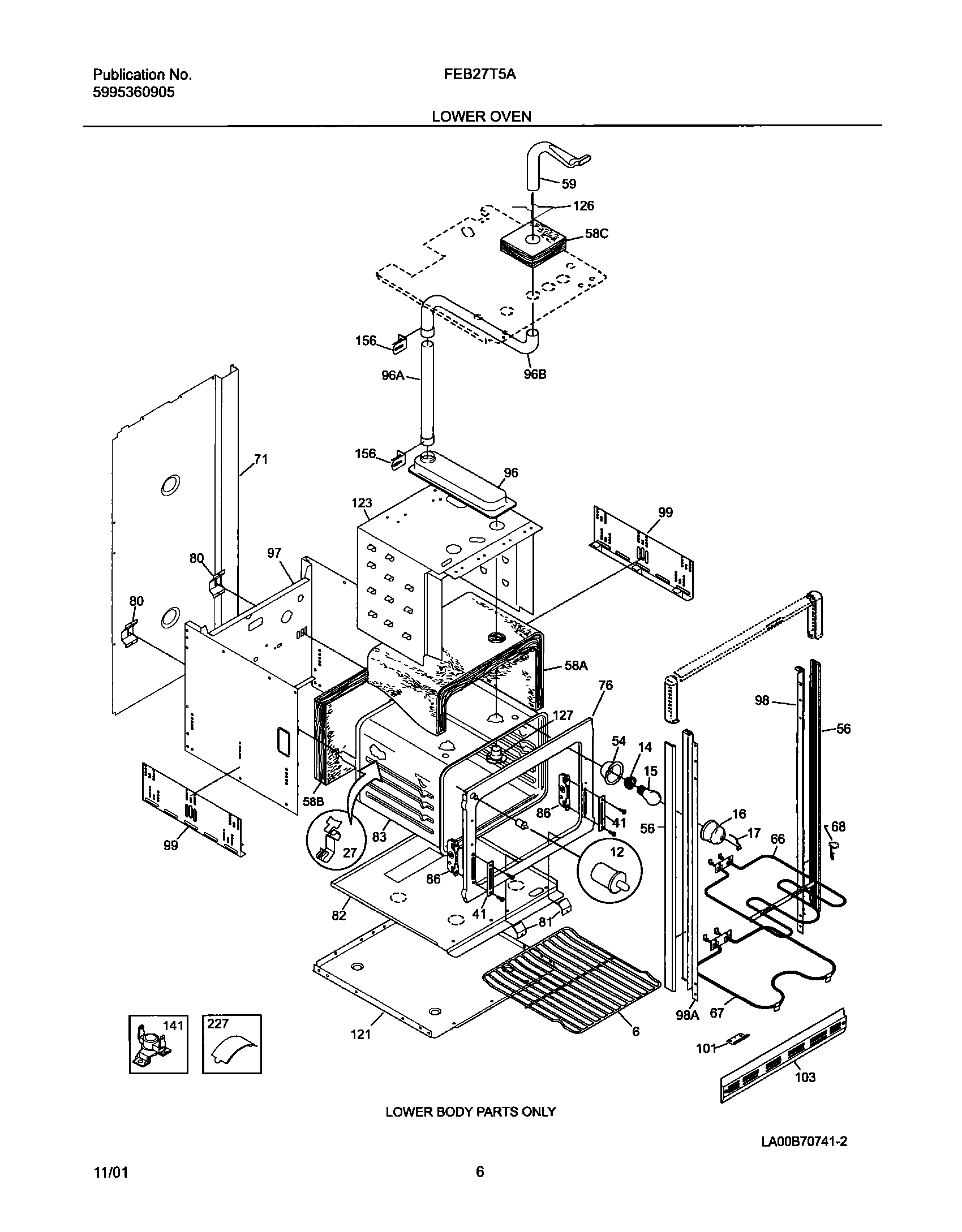

07 - LOWER OVEN

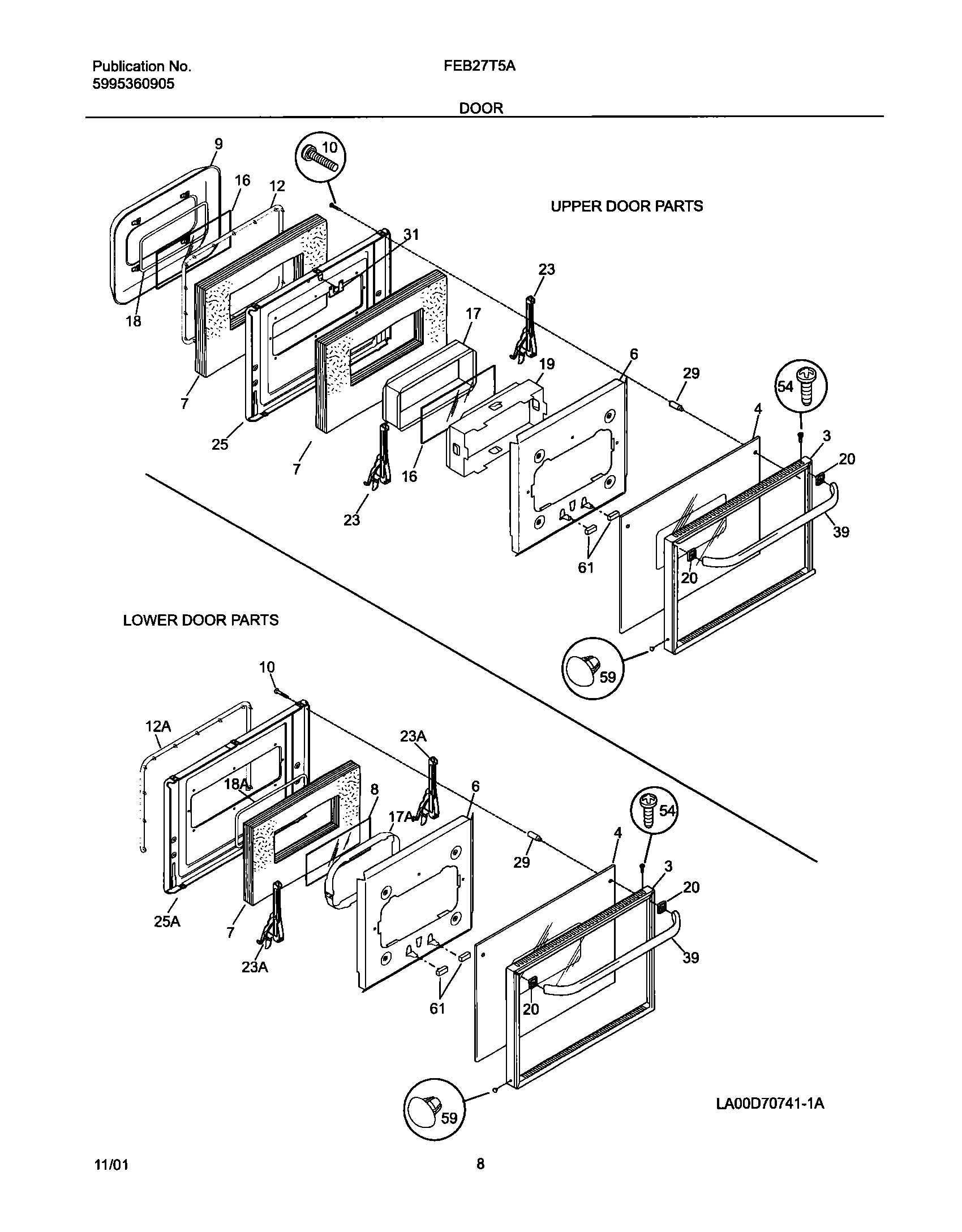

09 - DOORS

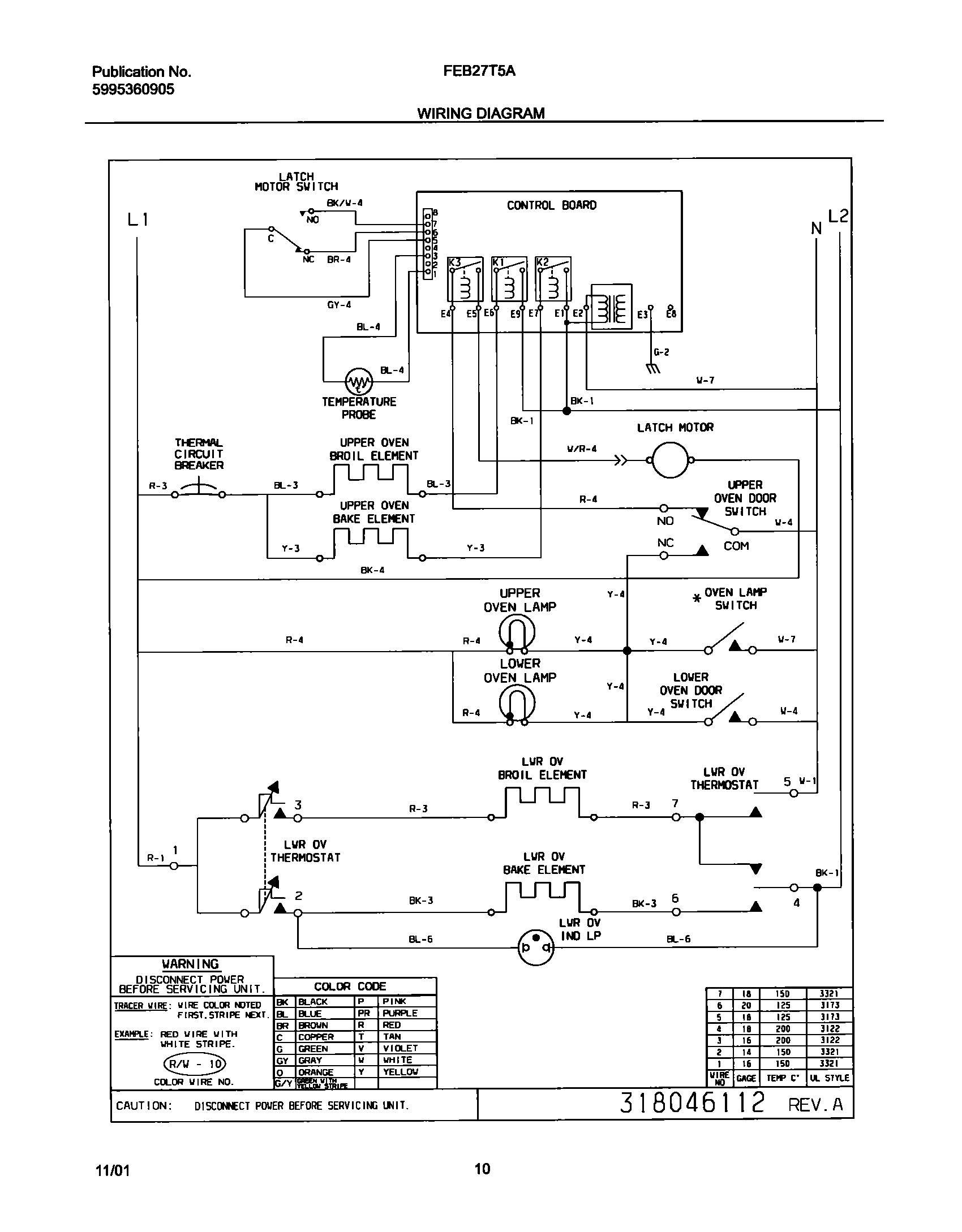

10 - WIRING DIAGRAM
Common parts from model Electrolux FEB27T5ASA WALL OVEN
3
WCI 318026110 WCI 318026110 Contact Us For Availability
4
WCI 318210502 WCI 318210502 Contact Us For Availability
6
WCI 318073600 WCI 318073600 Contact Us For Availability
7
WCI 318133740 WCI 318133740 Contact Us For Availability
8
WCI 318211700 WCI 318211700 Contact Us For Availability
9
WCI 318038601 WCI 318038601 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
12
Switch,oven light ,sm door frame WCI 5301314211 Contact Us For Availability
12
WCI 318178800 WCI 318178800 Contact Us For Availability
12A
WCI 5303316768 WCI 5303316768 Contact Us For Availability
16
WCI 5303324250 WCI 5303324250 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
WCI 318139100 WCI 318139100 Contact Us For Availability
17A
WCI 318162601 WCI 318162601 Contact Us For Availability
18
SEAL-ROPE, UPPER OVEN WCI 3016263 Contact Us For Availability
18A
WCI 318053204 WCI 318053204 Contact Us For Availability
19
WCI 318139201 WCI 318139201 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
23
WCI 5303311259 WCI 5303311259 Contact Us For Availability
23A
Hinge,oven door WCI 318024702 Contact Us For Availability
25
WCI 318048308 WCI 318048308 Contact Us For Availability
25A
WCI 318156606 WCI 318156606 Contact Us For Availability
29
WCI 318014400 WCI 318014400 Contact Us For Availability
31
WCI 318065102 WCI 318065102 Contact Us For Availability
39
WCI 316091107 WCI 316091107 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 5303302282 WCI 5303302282 Contact Us For Availability
58A
WCI 318133738 WCI 318133738 Contact Us For Availability
58A
WCI 318133710 WCI 318133710 Contact Us For Availability
58B
WCI 318133737 WCI 318133737 Contact Us For Availability
58B
WCI 318133704 WCI 318133704 Contact Us For Availability
58C
WCI 5303317714 WCI 5303317714 Contact Us For Availability
59
WCI 5303300951 WCI 5303300951 Contact Us For Availability
59
WCI 318072507 WCI 318072507 Contact Us For Availability
59
Plug,button WCI 3202113 Contact Us For Availability
61
WCI 5303300414 WCI 5303300414 Contact Us For Availability
71
WCI 318071120 WCI 318071120 Contact Us For Availability
76
WCI 318124212 WCI 318124212 Contact Us For Availability
76
WCI 318124206 WCI 318124206 Contact Us For Availability
80
WCI 318192400 WCI 318192400 Contact Us For Availability
81
WCI 5303323710 WCI 5303323710 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 318089520 WCI 318089520 Contact Us For Availability
83
WCI 318089522 WCI 318089522 Contact Us For Availability
86
WCI 5303310524 WCI 5303310524 Contact Us For Availability
88
WCI 5303311222 WCI 5303311222 Contact Us For Availability
89
WCI 318095932 WCI 318095932 Contact Us For Availability
96
WCI 5303317197 WCI 5303317197 Contact Us For Availability
96A
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96B
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
97
WCI 318066500 WCI 318066500 Contact Us For Availability
97
WCI 318066702 WCI 318066702 Contact Us For Availability
98
WCI 318029332 WCI 318029332 Contact Us For Availability
98A
WCI 318029333 WCI 318029333 Contact Us For Availability
101
WCI 318039512 WCI 318039512 Contact Us For Availability
103
WCI 318028701 WCI 318028701 Contact Us For Availability
121
WCI 318145002 WCI 318145002 Contact Us For Availability
123
WCI 318071442 WCI 318071442 Contact Us For Availability
126
Clip,insulator WCI 3016303 Contact Us For Availability
127
WCI 318072800 WCI 318072800 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
187
WCI 318013501 WCI 318013501 Contact Us For Availability
227
WCI 5303323955 WCI 5303323955 Contact Us For Availability
NI
WCI 08002868 WCI 08002868 Contact Us For Availability
NI
Switch,cooktop shutoff WCI 318120710 Contact Us For Availability
NI
WCI 5303302745 WCI 5303302745 Contact Us For Availability
NI
WCI 5303320505 WCI 5303320505 Contact Us For Availability
NI
Foam seal,(3) WCI 5303316982 Contact Us For Availability
× ![]()
