Model Whirlpool FDU146 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

HANDLE, DRAWER WPL 0052329 Contact Us For Availability

1

SWITCH, CLEAN, PRIMARY INTERL WPL Y0042052 Contact Us For Availability

1

SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability

1

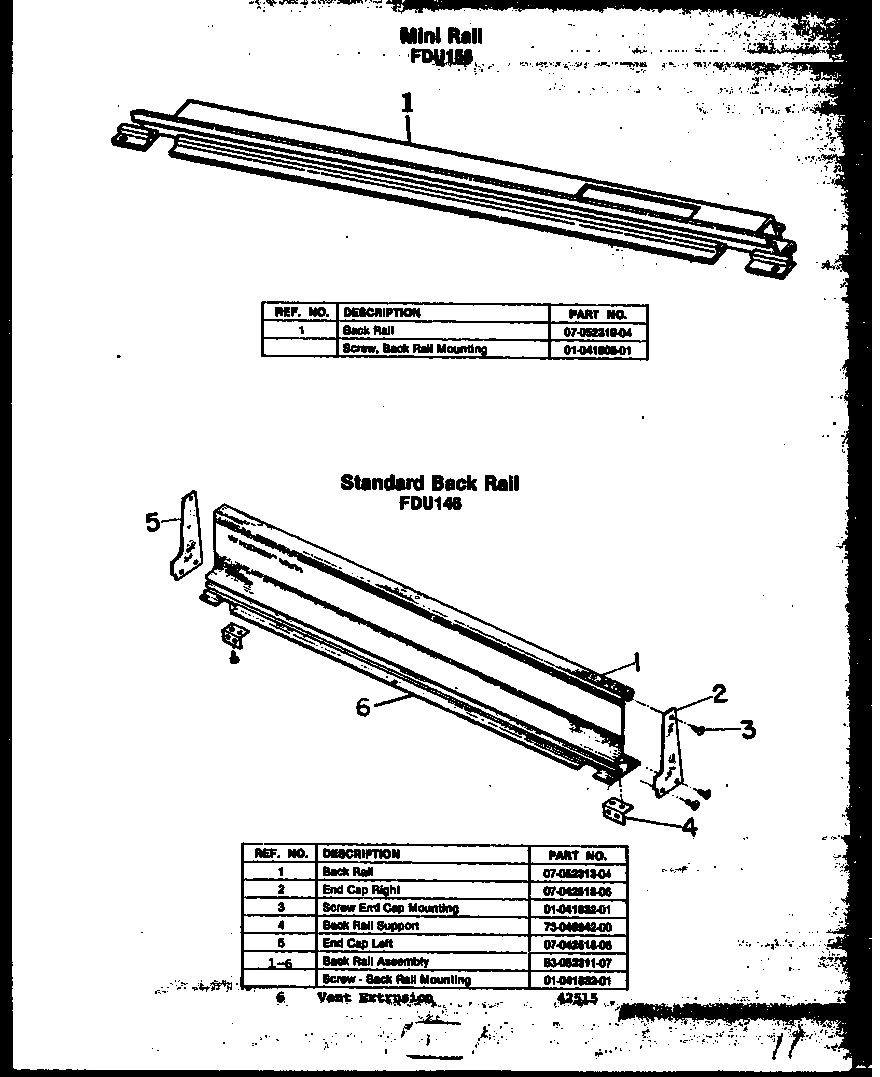

BACKRAIL ASSY. WPL Y0052311 Contact Us For Availability

1

BACKRAIL WPL Y0052313 Contact Us For Availability

1

REAR WIRE SHIELD WPL Y0040771 Contact Us For Availability

1

HANDLE WPL Y0052324 Contact Us For Availability

1

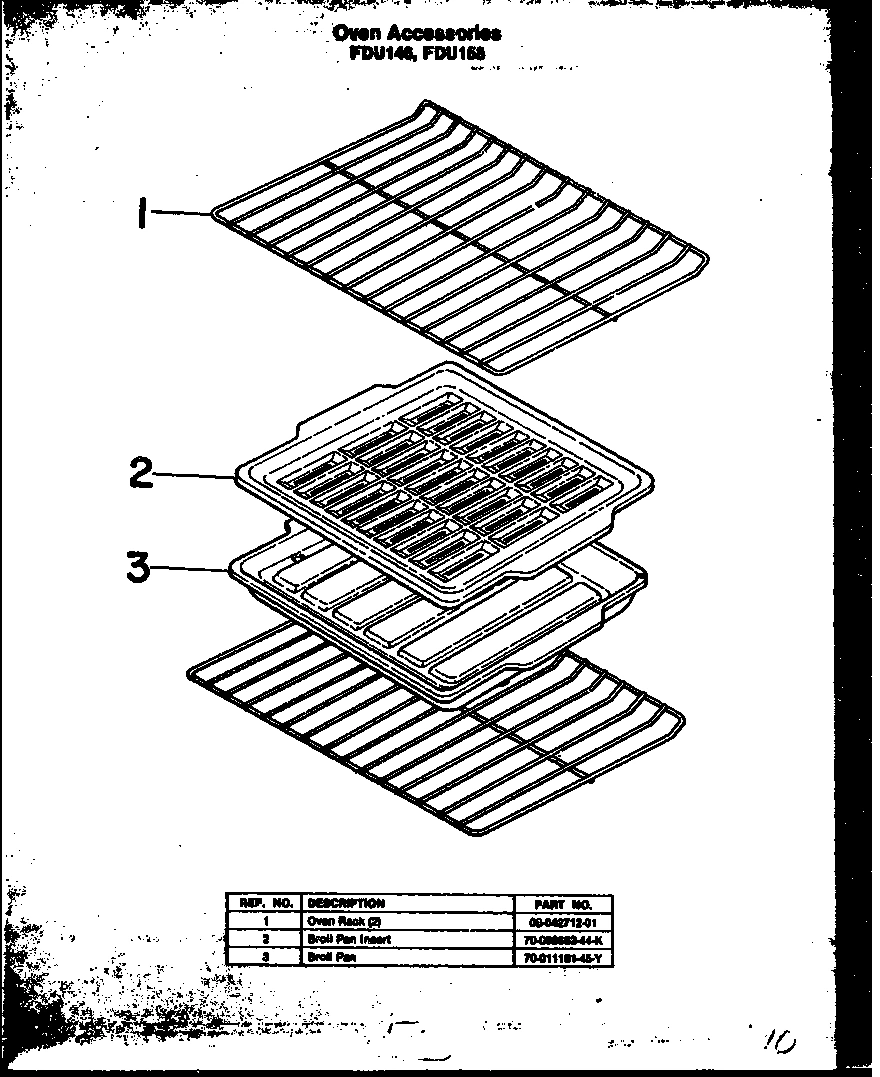

RACK WPL Y0042712 Contact Us For Availability

1

PYRO THERMOSTAT WITH TOP HEAT WPL 0042076 Contact Us For Availability

2

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

2

W11121639 Whirlpool Infinite Switch Backorder WPL W11121639 $76.69

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.48

2

MAIN CONTACT SWITCH WPL 0042051 Contact Us For Availability

2

FRAME, DOOR WPL 0052323 Contact Us For Availability

3

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $6.31

3

DRAWER PANEL LINER WPL W10124617 Contact Us For Availability

3

SCREW 4 X 40X.500 DYRO T (BLK) WPL Y0041826 Contact Us For Availability

3

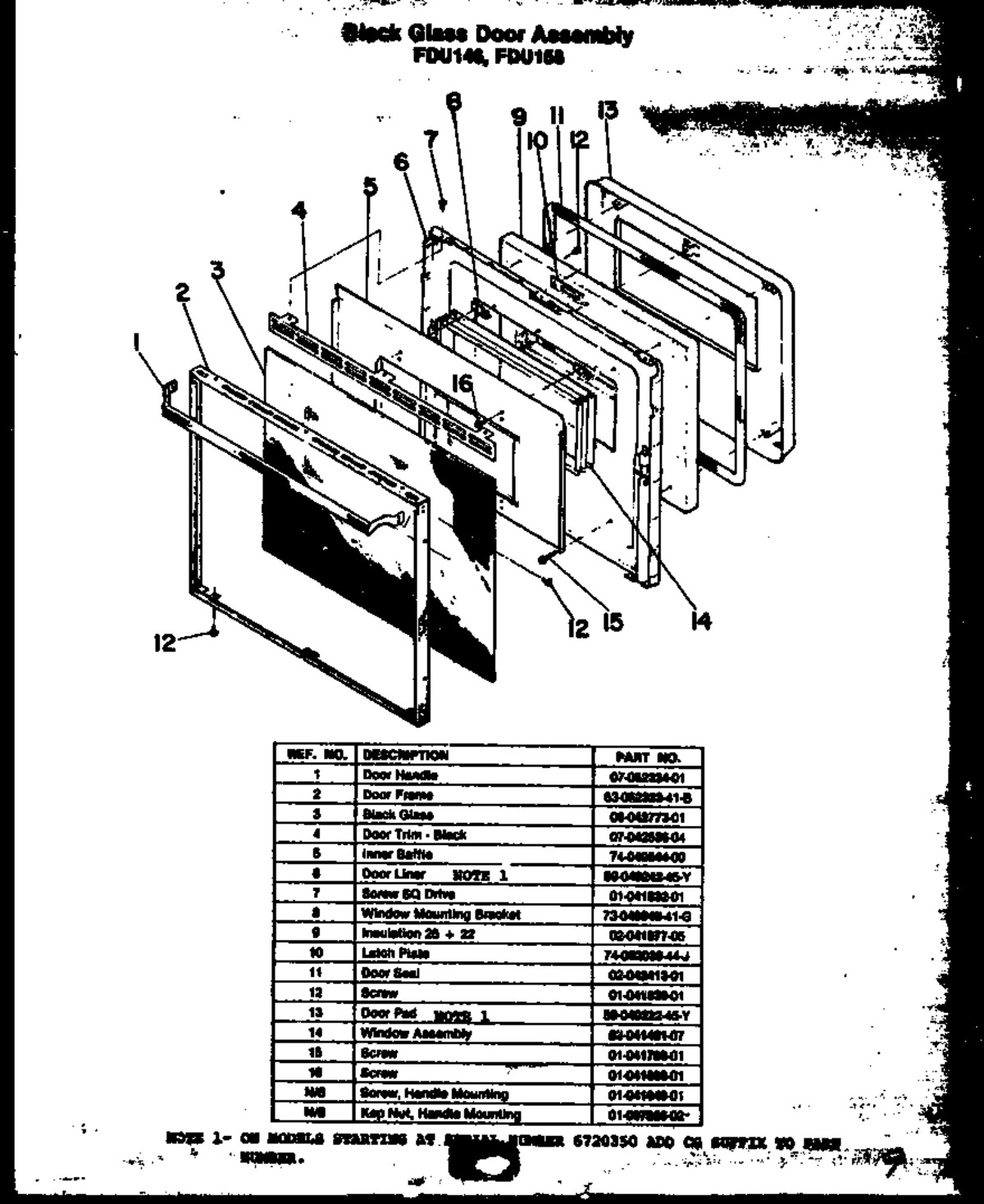

BLACK GLASS DOOR GLASS PYRO TH WPL 0042773 Contact Us For Availability

3

SUB 11161CG, BROILER PAN WPL Y0011161 Contact Us For Availability

3

PUSH SWITCH TAB TERMINALS WPL 0042032 Contact Us For Availability

4

BLACK SCREW 8-18X.500 WPL 0041839 Contact Us For Availability

4

DRAWER PANEL DARK GLASS WPL 0040263 Contact Us For Availability

4

SCREW 4-40X15/16`` WPL Y0041821 Contact Us For Availability

4

BACKRAIL SUPPORT BRKT PYRO TH WPL Y0040942 Contact Us For Availability

4

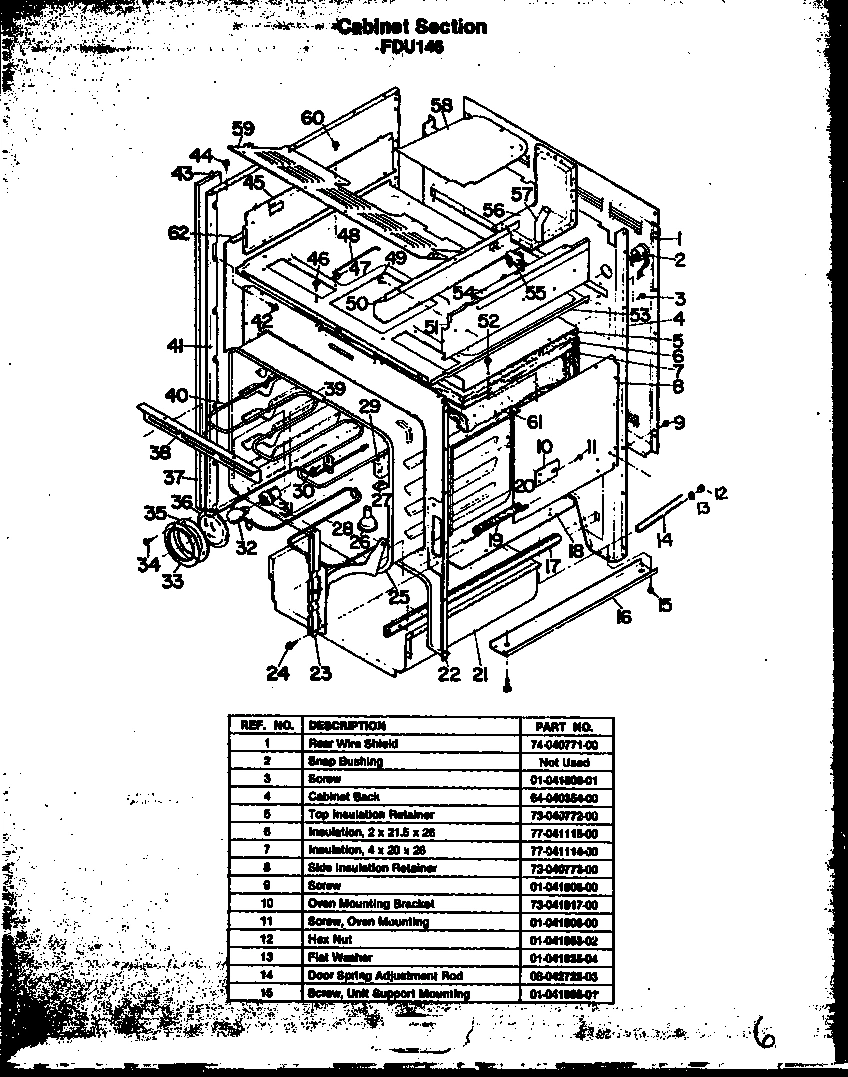

CABINET BACK DU976 966 WPL Y0040354 Contact Us For Availability

4

TOP DOOR TRIM PYRO TH WPL 0042536 Contact Us For Availability

4

SURFACE ELEMENT, 6`` 240 V. 125 WPL Y0051575 Contact Us For Availability

5

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.20

5

FRAME, DRAWER WPL Y0052328 Contact Us For Availability

5

INSULATION, ESM WPL Y0091523 Contact Us For Availability

5

END CAPS 4`` PYRO TH WPL Y0042518 Contact Us For Availability

5

TOP INSULATION RETAIN PYRO TH WPL Y0040772 Contact Us For Availability

5

INNER BAFFLE TH PYRO DOOR WPL Y0040844 Contact Us For Availability

5

END CAP, CONTROL PANEL, RT WPL Y0052301 Contact Us For Availability

5

END CAP, CONTROL PANEL, LT WPL Y0052302 Contact Us For Availability

6

VENT EXTRUSION PYRO TH WPL 0042515 Contact Us For Availability

6

INSULATION 2X20X26 WPL Y0041115 Contact Us For Availability

6

DOOR LINER WPL W10124798 Contact Us For Availability

6

EXTRUSION, CONTROL PANEL WPL 0052305 Contact Us For Availability

7

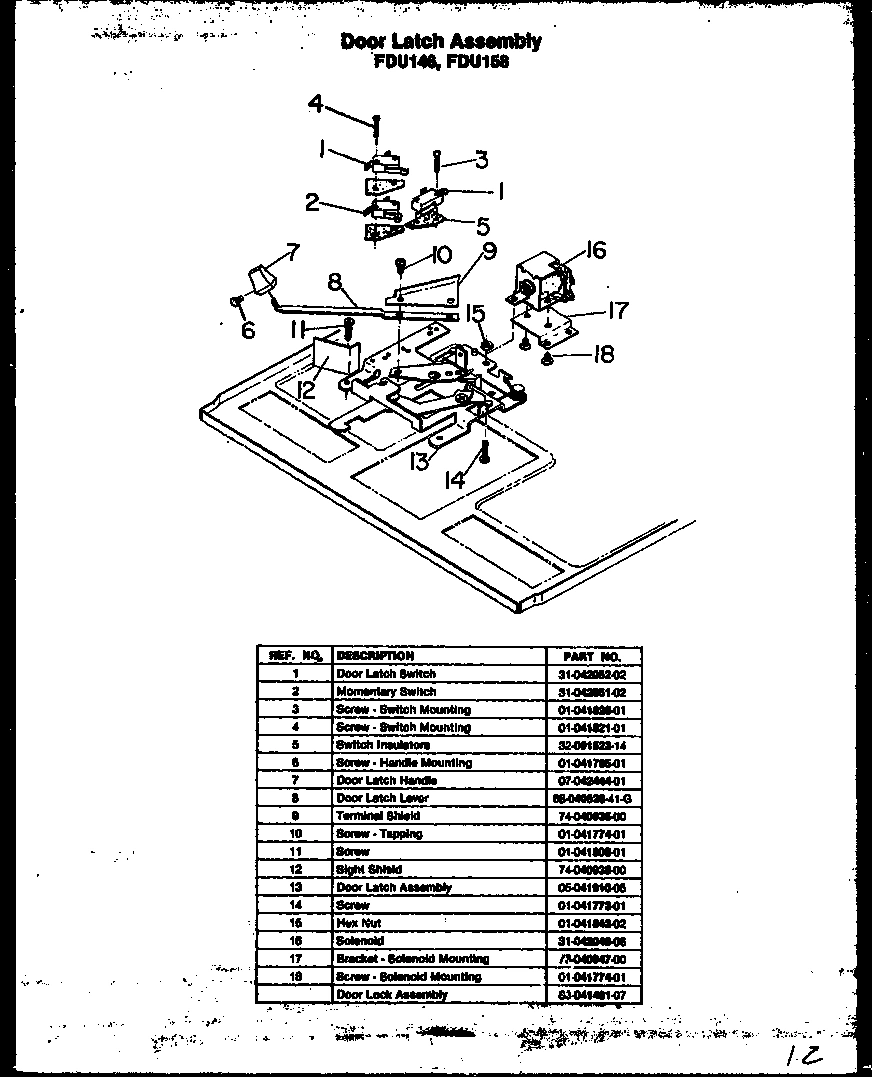

DOOR LATCH HANDLE WPL 0042444 Contact Us For Availability

7

SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability

7

INSULATION 26X4X20 AWX HITEMP WPL Y0041114 Contact Us For Availability

7

METAL SCREW 6X3/8 PHIL PAN HD WPL Y0041796 Contact Us For Availability

7

x INLAY, CONTROL PANEL WPL 0052272 Contact Us For Availability

8

DOOR LATCH LEVER PYRO TH WPL 0040536 Contact Us For Availability

8

WINDOW MTG BRKT PYRO TH DR WPL Y0040949 Contact Us For Availability

8

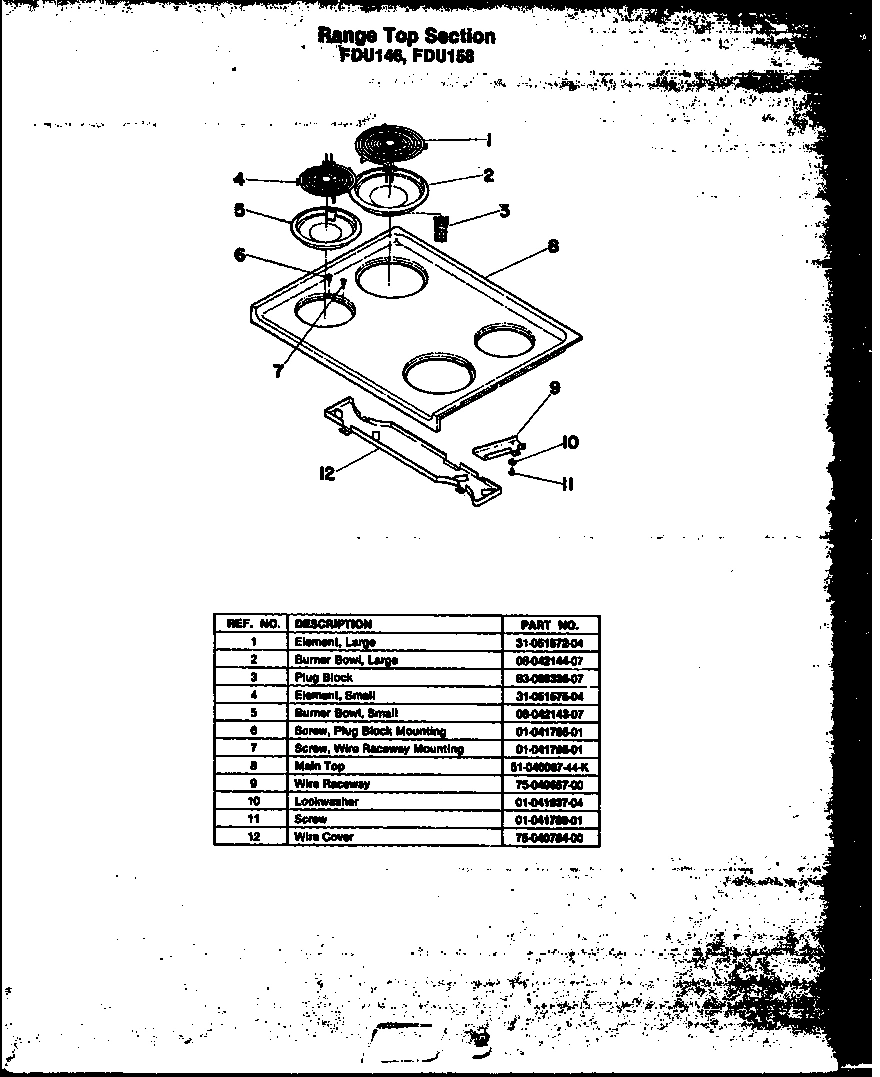

MAIN TOP, CHROME WPL 0040067 Contact Us For Availability

8

KNURL NUT WPL 0041850 Contact Us For Availability

9

TERMINAL SHIELD PYRO TH WPL Y0040935 Contact Us For Availability

9

SUB 95197 WPL Y0041977 Contact Us For Availability

9

WIRE RACEWAY WPL Y0040657 Contact Us For Availability

9

LIGHT, INDICATOR WPL 0052597 Contact Us For Availability

BRACKET, OVEN MOUNTING-PYRO WPL Y0041017 Contact Us For Availability

LATCH PLATE WPL Y0052039 Contact Us For Availability

WASHER HANDLE MOUNTING WPL 0041937 Contact Us For Availability

KNOB, INFINITE SWITCH WPL Y0052310 Contact Us For Availability

GASKET, DOOR (76``) WPL Y0042413 Contact Us For Availability

SCREW, No.8-32 X 5/16 PPH (BLK) WPL Y0041789 Contact Us For Availability

CLOCK, AUTOMATIC WPL 0052299 Contact Us For Availability

KNOB, CLOCK W/O SPRING WPL Y0042633 Contact Us For Availability

12

SIGHT SHIELD PYRO TH WPL Y0040936 Contact Us For Availability

12

MAIN TOP WIRE COVER WPL 0040784 Contact Us For Availability

12

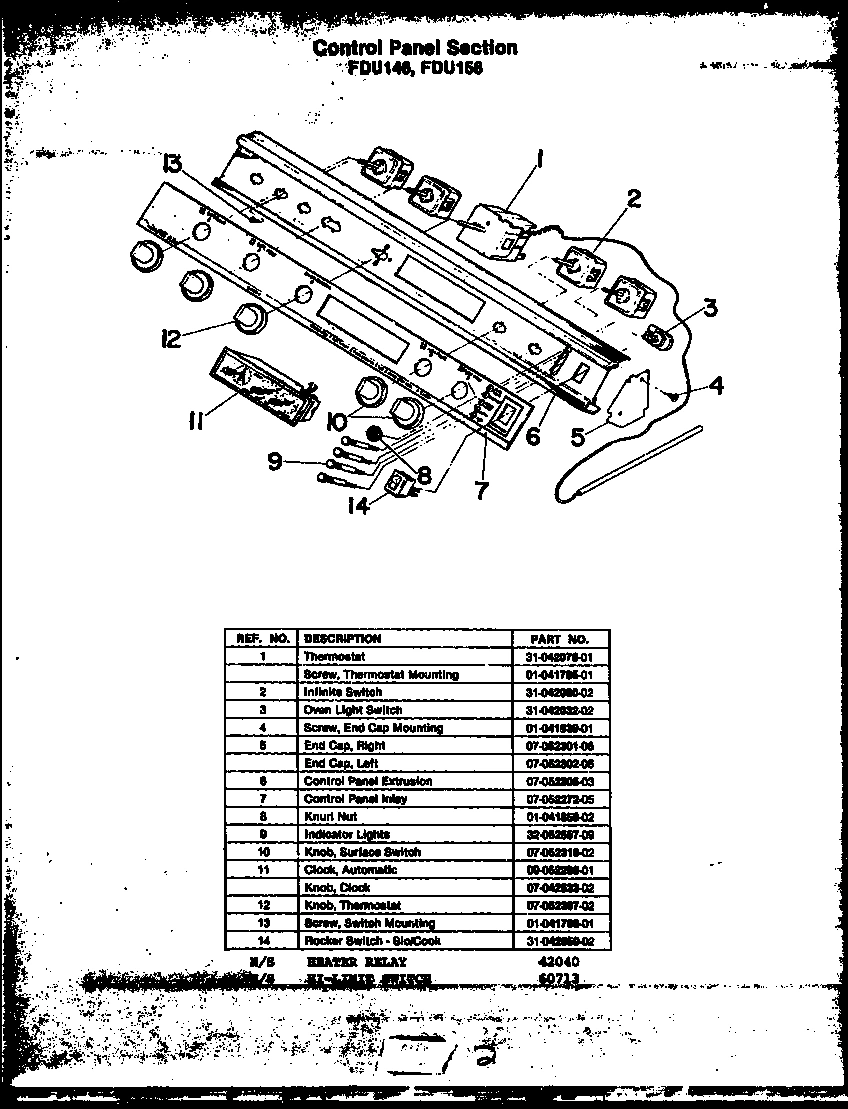

KNOB, OVEN CONTROL WPL 0052307 Contact Us For Availability

DOOR LATCH ASSY TH WPL 0041910 Contact Us For Availability

WASHER 3/4X5/16X 080 E L HOODS WPL 0041935 Contact Us For Availability

DOOR PAD WPL W10124795 Contact Us For Availability

METAL SCR 8AX1/4 PH PN HD BLK WPL 0041788 Contact Us For Availability

SCREW 6 32X1 SLOTTED RN BRASS WPL 0041773 Contact Us For Availability

SPRING ADJUSTMENT ROD WPL 0042725 Contact Us For Availability

WINDOW ASSY WPL 0041491 Contact Us For Availability

ROCKER SWITCH PYRO TH SLO/CK WPL 0042050 Contact Us For Availability

15

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

15

SCREW, NO. 8A X 1/4 WPL Y0041799 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

SOLENOID EATON PYRO TH WO WPL Y0042049 Contact Us For Availability

SUPPORT, BOTTOM WPL Y0041023 Contact Us For Availability

LEG LEVELER WPL Y0041772 Contact Us For Availability

17

SOLENOID MTG. BRKT PYRO WPL 0040947 Contact Us For Availability

17

CORD SET (J) WPL 0042028 Contact Us For Availability

18

SCREW 10-32 X.250 HEX WPL 0041774 Contact Us For Availability

18

DOOR LOCK ASSY WPL 0041481 Contact Us For Availability

18

BOT INSUL RETAIN PYRO TH WPL Y0040774 Contact Us For Availability

19

SPRING, OVEN DOOR-PYRO W/O WPL Y0042740 Contact Us For Availability

21

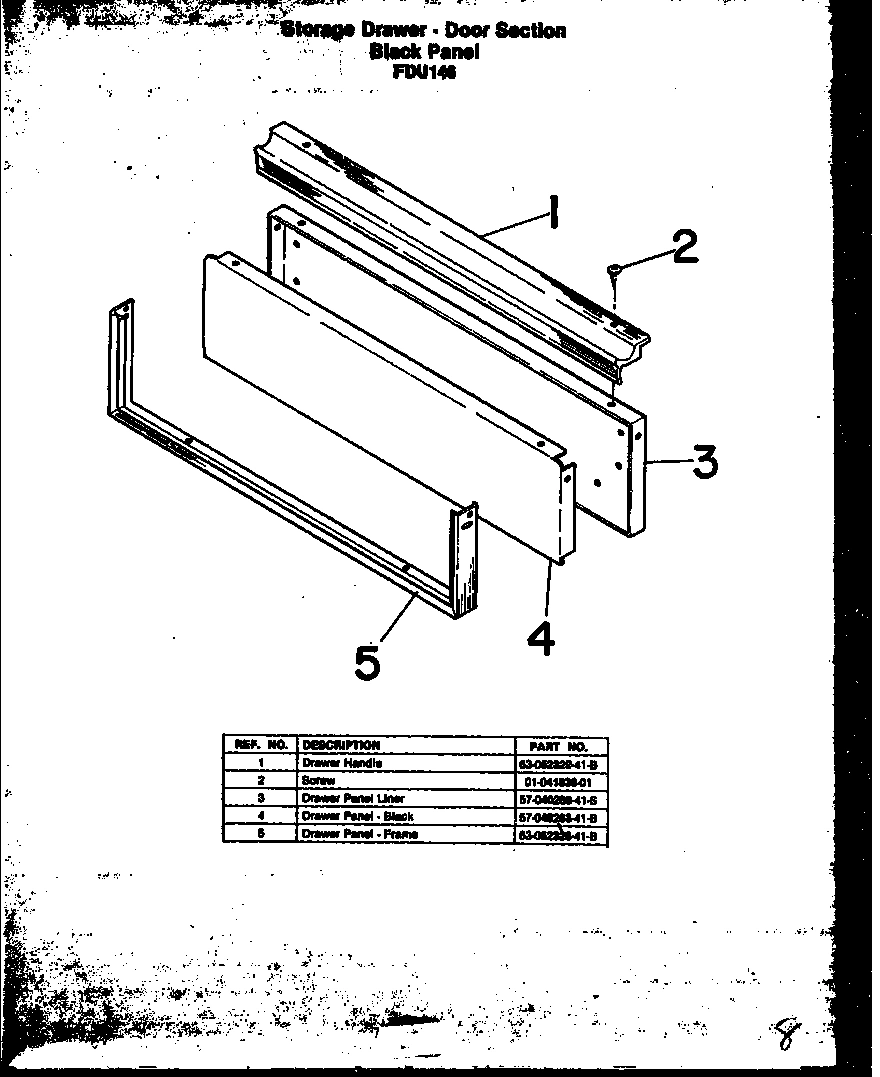

STORAGE DRAWER WPL 0040270 Contact Us For Availability

23

HINGE ASSY WPL Y0052095 Contact Us For Availability

25

OVEN LINER WPL Y0040175 Contact Us For Availability

26

SMOKE ELIMINATOR UCINITE WPL 0042230 Contact Us For Availability

27

CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability

28

BAKE ELEMENT PYRO TH WPL Y0042146 Contact Us For Availability

29

OVEN PROBE BRKT PYRO TH WPL Y0040924 Contact Us For Availability

30

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

31

SUB 90264,KIT LIGHT SOCKET WPL 0073028 Contact Us For Availability

32

BULB, LIGHT WPL Y0042175 Contact Us For Availability

33

LENS RETAINER STAINLESS STEEL WPL 0040995 Contact Us For Availability

35

CLIP No.C410-632-27 WPL 0041887 Contact Us For Availability

36

LENS, OVEN LIGHT WPL 0052276 Contact Us For Availability

37

SIDE TRIM WPL 0042512 Contact Us For Availability

37

SIDE TRIM WPL Y0042511 Contact Us For Availability

38

BROIL ELEMENT SUPPORT PYRO WPL Y0040902 Contact Us For Availability

39

CHIP COVER PYRO W.O. WPL 0040398 Contact Us For Availability

40

BROIL UNIT FOR PYRO T.H. RANGE WPL 0042145 Contact Us For Availability

41

CABINET SIDE WPL Y040306L Contact Us For Availability

43

TOP SPACER WPL Y0042007 Contact Us For Availability

45

BURNER BOX SIDE, LEFT WPL W10124654 Contact Us For Availability

47

TIMERMAN WPL Y0041869 Contact Us For Availability

48

TOP SUPPORT ROD WPL 0042734 Contact Us For Availability

50

WIRE CHANNEL DU976 966 WPL Y0040830 Contact Us For Availability

51

BURNER BOX SIDE RT PYRO TH WPL Y0040466 Contact Us For Availability

53

BURNER BOX BOTTOM DU976 9 WPL 0040478 Contact Us For Availability

54

WPL 0041024 WPL 0041024 Contact Us For Availability

55

WPL 0043511 WPL 0043511 Contact Us For Availability

56

WPL Y00000000 WPL Y00000000 Contact Us For Availability

57

WPL Y0804240706 WPL Y0804240706 Contact Us For Availability

58

WPL Y0040775 WPL Y0040775 Contact Us For Availability

58

WPL Y0040799 WPL Y0040799 Contact Us For Availability

59

WPL Y0040776 WPL Y0040776 Contact Us For Availability

61

WPL Y0041976 WPL Y0041976 Contact Us For Availability

62

WPL Y0040773 WPL Y0040773 Contact Us For Availability

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.14

WPL 0042155 WPL 0042155 Contact Us For Availability

WPL Y0040777 WPL Y0040777 Contact Us For Availability

SCREW 8-32X.375 DK GL DR HDL WPL 0041840 Contact Us For Availability

HI-LIMIT THERMOSTAT WPL 60713 Contact Us For Availability

SUB 91669, RELAY WPL Y0042040 Contact Us For Availability
