Model Electrolux FDPC4314AB0A DISHWASHER, BUILT-IN, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET

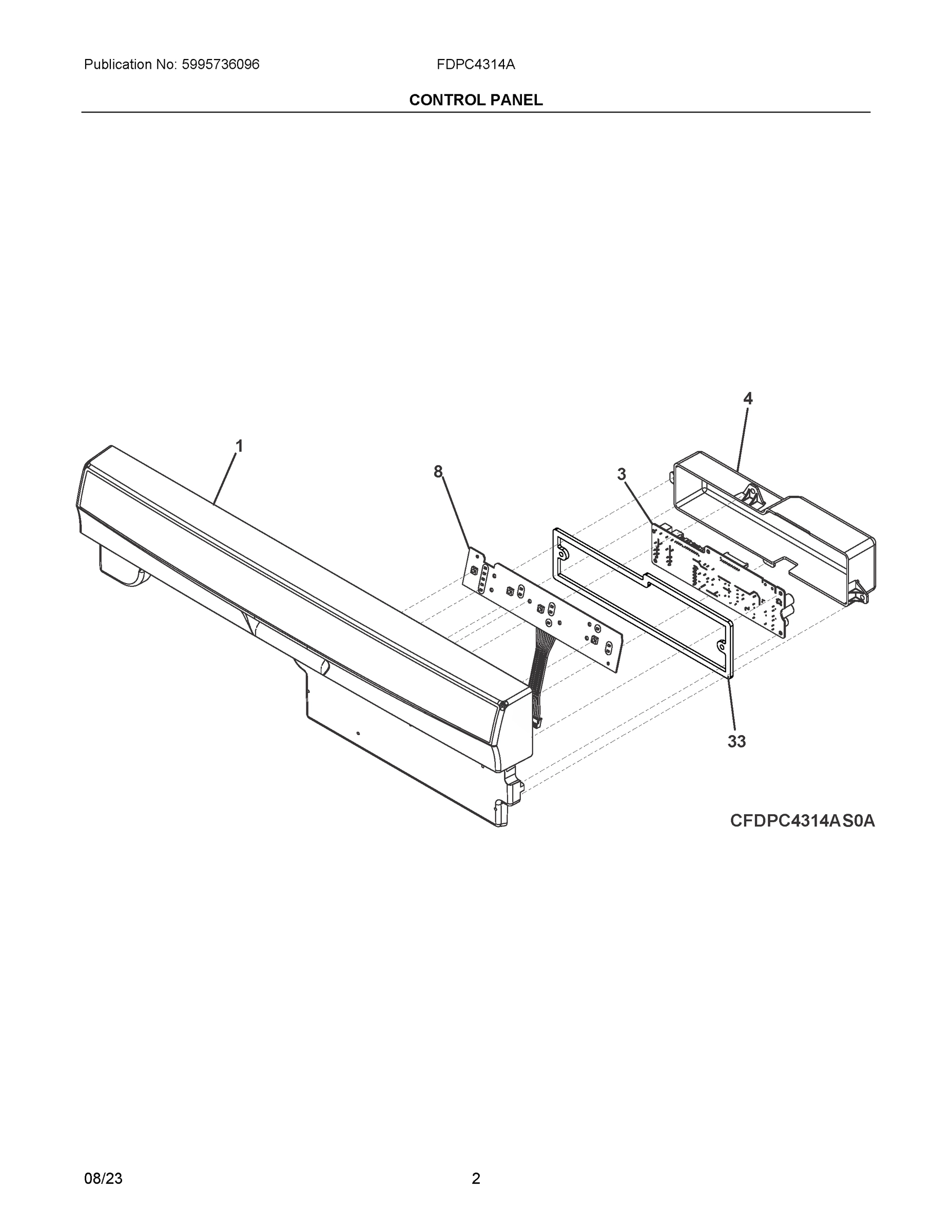

02 - CONTROL PANEL
03 - DOOR
04 - TUB
05 - MOTOR & PUMP
06 - FRAME
07 - RACKS
08 - WIRING DIAGRAM
Common parts from model Electrolux FDPC4314AB0A DISHWASHER, BUILT-IN, 24 INCH
1
HEATER, ROUND WCI 154825001 Contact Us For Availability
1
SPRING, DOOR, (2) WCI 154430501 Contact Us For Availability
1A
LINKAGE, DOOR SPRING, (2) WCI 154325201 Contact Us For Availability
2
BRACKET, HEATER, (2) WCI 154465101 Contact Us For Availability
2
SCREW, ARM ASSY, (4) WCI 154093301 Contact Us For Availability
3
GASKET, TUB WCI 154827601 Contact Us For Availability
3
COUNTERBALANCE ARM, KIT, LH & RH, W/SCREWS-NU WCI 5304513274 Contact Us For Availability
3
VALVE, WATER INLET WCI 5304525044 Contact Us For Availability
4
SCREW, HEX HEAD, 8-18 X .400, (2) WCI 808326801 Contact Us For Availability
4
BRACE, FRONT FRAME WCI 5304508587 Contact Us For Availability
6
SCREW, W/WASHER, (8) WCI 5303943103 Contact Us For Availability
8
TOEPLATE, ADJUSTABLE, BLACK WCI 154745503 Contact Us For Availability
10
COVER, VOLUTE WCI 807145201 Contact Us For Availability
10
SCREW, TOEPLATE MTG, 8-18 AB HEX HD, BLACK, ( WCI 154754801 Contact Us For Availability
10
SCREW, LATCH MTG, (2) WCI 154103702 Contact Us For Availability
11
PLATE, PUMP INLET WCI 807111601 Contact Us For Availability
13
GASKET, SUMP WCI 154246801 Contact Us For Availability
13
SLEEVE, BRAKE, LH, C-ARM WCI 5304519910 Contact Us For Availability
13A
SLEEVE, BRAKE, RH, C-ARM WCI 5304519911 Contact Us For Availability
14
SUMP ASSEMBLY WCI 154723801 Contact Us For Availability
15
LEG, LEVELING, 1/4-20 WCI 5304506540 Contact Us For Availability
16
RETAINER, SUMP WCI 154246502 Contact Us For Availability
20
COVER, JUNCTION BOX, W/LABEL WCI 154758501 Contact Us For Availability
22
TUBING, INLET WATER WCI 5304523457 Contact Us For Availability
24
HOSE, DRAIN WCI 807117001 Contact Us For Availability
28
SWITCH ASSY, FLOAT WCI 154773201 Contact Us For Availability
29
THERMOSTAT, SERVICE KIT, HIGH LIMIT, W/CONNEC WCI 5304525221 Contact Us For Availability
30
RETAINER, THERMOSTAT WCI 154241101 Contact Us For Availability
32A
GASKET, DELIVERY TUBE WCI 154406401 Contact Us For Availability
33
GASKET, CONTROL COVER WCI 5304506894 Contact Us For Availability
51
CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability
58
CHECK BALL WCI 154246402 Contact Us For Availability
70
MOTOR & PUMP ASSY, LEILI, W/O-RINGS WCI 5304519906 Contact Us For Availability
71
SENSOR, TURBIDITY, SNAP-IN, W/SEAL WCI 154762601 Contact Us For Availability
NI
CLAMP, HOSE, 1.5" OPEN, WORM GEAR, (5) WCI 154380601 Contact Us For Availability
NI
BRACKET KIT, COUNTERTOP MTG, W/SCRWS & INSTR WCI 154406801 Contact Us For Availability
NI
SCREW, PLT, 8-10 WCI 154783101 Contact Us For Availability
NI
SCREW, #10-32 X 3/8 WCI 154200701 Contact Us For Availability
NI
BEARING, HINGE PIN WCI 154686401 Contact Us For Availability
NI
INSULATION, BLANKET WCI 5304525043 Contact Us For Availability
NI
SCREW, #7 PLAS .375, (6), DISP. ASSY. WCI 154294701 Contact Us For Availability
NI
HINGE PIN, ARM ASSY WCI 154647101 Contact Us For Availability
NIA
NUT, HEATER, (2) WCI 154106202 Contact Us For Availability
NIA
FLAPPER, VALVE WCI 807048001 Contact Us For Availability
NIA
SCREW, SUMP MTG, 8-16, (4) WCI 154754901 Contact Us For Availability
NIA
SCREW, PH, 8-10, (2) WCI 154779601 Contact Us For Availability
NIA
SCREW, RETAINER-THERMO WCI 154297701 Contact Us For Availability
NIB
SCREW, DRAIN MOTOR MTG, (3) WCI 154741501 Contact Us For Availability
NIB
SHIELD, HEATER TERMINAL WCI 154289801 Contact Us For Availability
NIB
SCREW, DELIVERY TUBE WCI 154491101 Contact Us For Availability
× ![]()
