Model Electrolux FCWD3027ASC WALL OVEN, ELECTRIC, DOUBLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

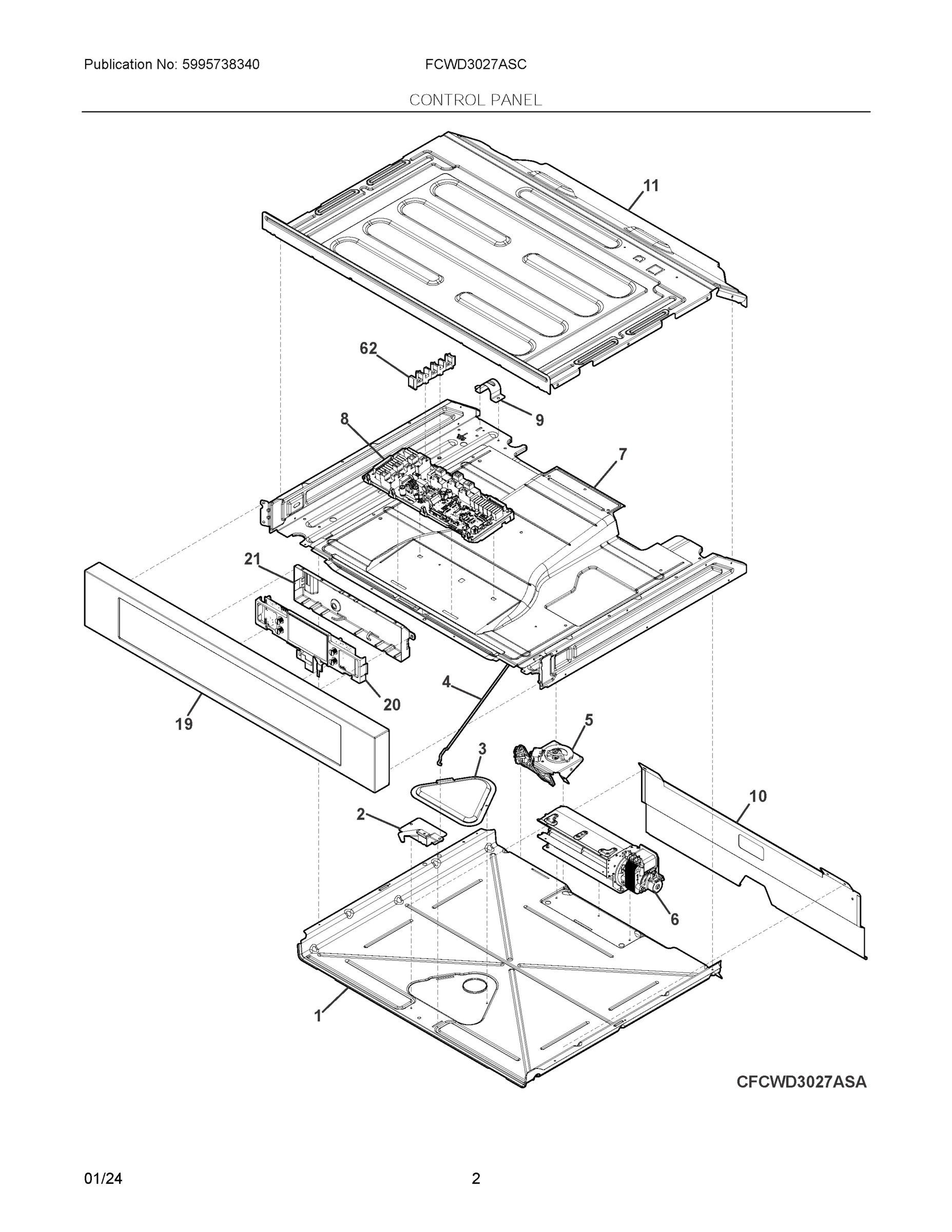

02 - CONTROL PANEL
03 - UPPER OVEN
04 - LOWER OVEN
05 - DOORS
Common parts from model Electrolux FCWD3027ASC WALL OVEN, ELECTRIC, DOUBLE, 30 INCH
2
LATCH, DOOR WCI 5304526367 Contact Us For Availability
3
COVER, VENT WCI 5304526366 Contact Us For Availability
4
ROD, LATCH WCI 5304526368 Contact Us For Availability
4
DOOR ASSEMBLY, OUTER, STEEL/GLASS, STAINLESS/ WCI 5304526643 Contact Us For Availability
4A
DOOR ASSEMBLY, OUTER, STEEL/GLASS, STAINLESS, WCI 5304526646 Contact Us For Availability
5
PANEL, CARRIER MID, LOWER DWO, COOLING WCI 5304526313 Contact Us For Availability
5
BRACKET, DOOR PROTECTION, LOWER WCI 5304530443 Contact Us For Availability
6
SHIELD, WOOL, DOOR WCI 5304526282 Contact Us For Availability
7
CARRIER PLATE, ASSEMBLY, W/DUCT WCI 5304526538 Contact Us For Availability
7
TRAY, HIDDEN BAKE WCI 5304528326 Contact Us For Availability
7
INSULATION, DOOR, TOP WCI 5304526656 Contact Us For Availability
7A
INSULATION, DOOR, BOTTOM WCI 5304526655 Contact Us For Availability
7B
INSULATION, FOIL, DOOR WCI 5304526530 Contact Us For Availability
8
BOARD ASSEMBLY, OVC CONTROL, W/BRACKET WCI 5304525432 Contact Us For Availability
8
SHIELD, BOTTOM DUCT WCI 5304526320 Contact Us For Availability
8
GLASS, DOOR, SHR, INNER, 2 SIDE COATING WCI 5304526387 Contact Us For Availability
8A
GLASS, DOOR, EVS COATING, INNER, ONE SIDE WCI 5304536639 Contact Us For Availability
9
BRACKET, CONDUIT MTG. WCI 5304530364 Contact Us For Availability
9
BLOWER ASSEMBLY, LOWER OVEN WCI 5304530369 Contact Us For Availability
9
LINER, OVEN DOOR, MIDNIGHT BLACK WCI 5304530464 Contact Us For Availability
10
SHIELD, INSULATION, REAR, UPPER WCI 5304530427 Contact Us For Availability
10
SHIELD, INSULATION, LOWER OVEN, DWO WCI 5304530426 Contact Us For Availability
10
SCREW, TRUS T20, 10-44 X 1.870, BLACK, HANDLE WCI 316433305 Contact Us For Availability
11
SHIELD, TOP COVER WCI 5304532474 Contact Us For Availability
11
SEAL, OVEN DOOR, CHARCOAL WCI 5304526242 Contact Us For Availability
13
SHIELD, BAFFLE, LOWER DWO, COOLING WCI 5304526495 Contact Us For Availability
14
MOTOR ASSEMBLY, DOOR LATCH/LOCK WCI 5304526552 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V WCI 5304530343 Contact Us For Availability
17
BRACKET, GLASS PACK, VERTICLE WCI 5304526284 Contact Us For Availability
17A
BRACKET, GLASS PACK, HORIZONTAL WCI 5304526285 Contact Us For Availability
19
CONTROL PANEL, ASSEMBLY, STEEL/GLASS, STAINLE WCI 5304526473 Contact Us For Availability
21
HOUSING, CONTROLLER WCI 5304523582 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
37
PROBE, OVEN SENSOR WCI 5304526310 Contact Us For Availability
56
SCREW, M4, 2 X 10, SHEET METAL, BLACK WCI 5304526234 Contact Us For Availability
58
INSULATION, OVEN, WRAPPER WCI 5304530429 Contact Us For Availability
58A
INSULATION, OVEN, REAR WCI 5304530428 Contact Us For Availability
59
TUBE, VENT CATALYST WCI 5304526450 Contact Us For Availability
70
PANEL, SIDE, EXTERIOR WCI 5304526314 Contact Us For Availability
71
SHIELD, REAR WIRE WCI 5304526329 Contact Us For Availability
71
SHIELD, REAR WIRE, LOWER DWO WCI 5304526330 Contact Us For Availability
72
COVER, CONVECTION MTR WCI 5304526588 Contact Us For Availability
73
COVER, ANTI VIBRATION WCI 5304526551 Contact Us For Availability
82
PANEL, EXTERIOR, BOTTOM, UPPER OVEN WCI 5304530352 Contact Us For Availability
83
BRACKET, BASE PANEL, MOUNT WCI 5304530453 Contact Us For Availability
86
HINGE, DOOR, PINK, 2 SPRING WCI 5304526280 Contact Us For Availability
109
BLADE, FAN, CONVECTION WCI 5304525455 Contact Us For Availability
111
NUT, FAN BLADE WCI 561231207 Contact Us For Availability
125
MOTOR, CONVECTION FAN WCI 5304526375 Contact Us For Availability
NI
SCREW, M4, 2 X 10, BLACK, W/WASHER WCI 387872717 Contact Us For Availability
NI
WCI 5304526515 WCI 5304526515 Contact Us For Availability
NI
SCREW, 4.2 X 10 WCI 387856311 Contact Us For Availability
NI
WCI 5304530450 WCI 5304530450 Contact Us For Availability
NI
WCI 5304526513 WCI 5304526513 Contact Us For Availability
NI
WCI 5304526527 WCI 5304526527 Contact Us For Availability
NI
WCI 5304530448 WCI 5304530448 Contact Us For Availability
NIA
SCREW, GROUNDING, 10-24 X 1.835, GREEN WCI 316001017 Contact Us For Availability
NIA
WCI 5304526532 WCI 5304526532 Contact Us For Availability
NIB
NUT, HEX FLANGE, 3/8 10-32 WCI 316205500 Contact Us For Availability
NIC
SCREW, T20, 8-18 X .79 WCI 5304528293 Contact Us For Availability
× ![]()
