Model Whirlpool FCU146 ELECTRIC WALL OVEN – Common Parts & Diagrams

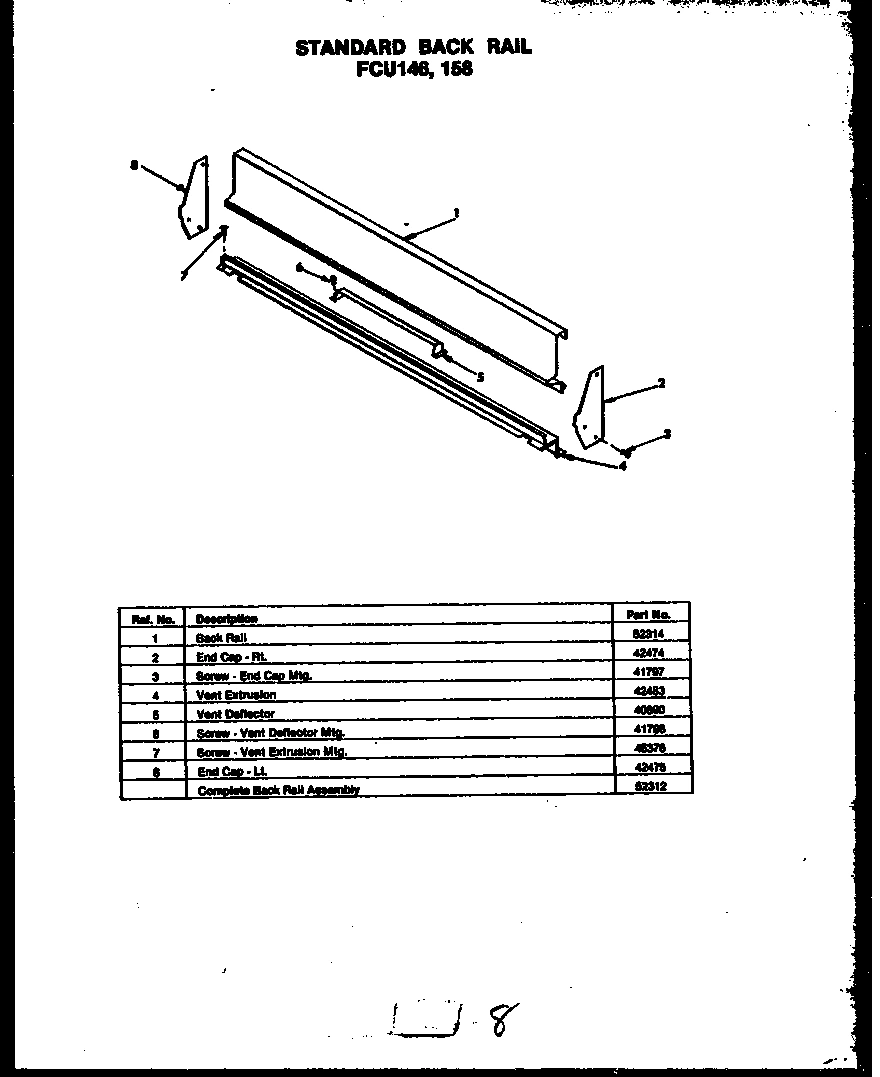

06 - STANDARD BACK RAIL
02 - CABINET SECTION

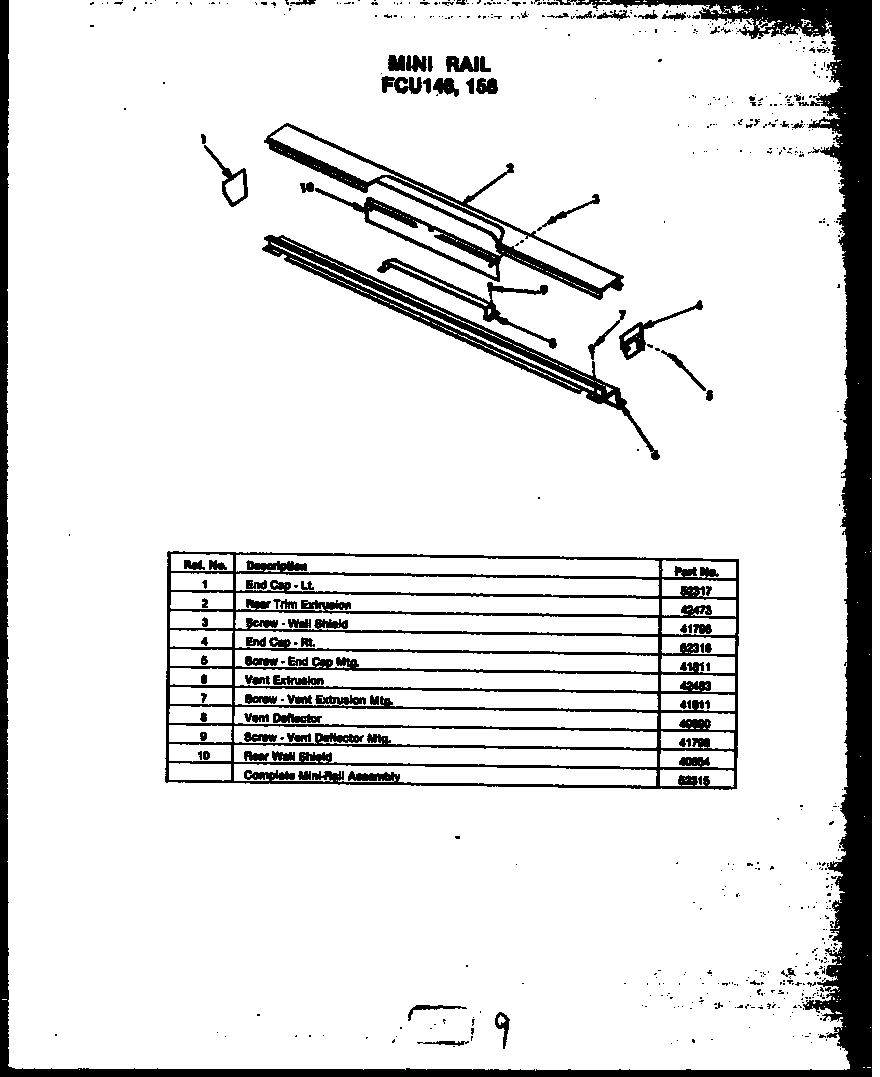

03 - MINI RAIL

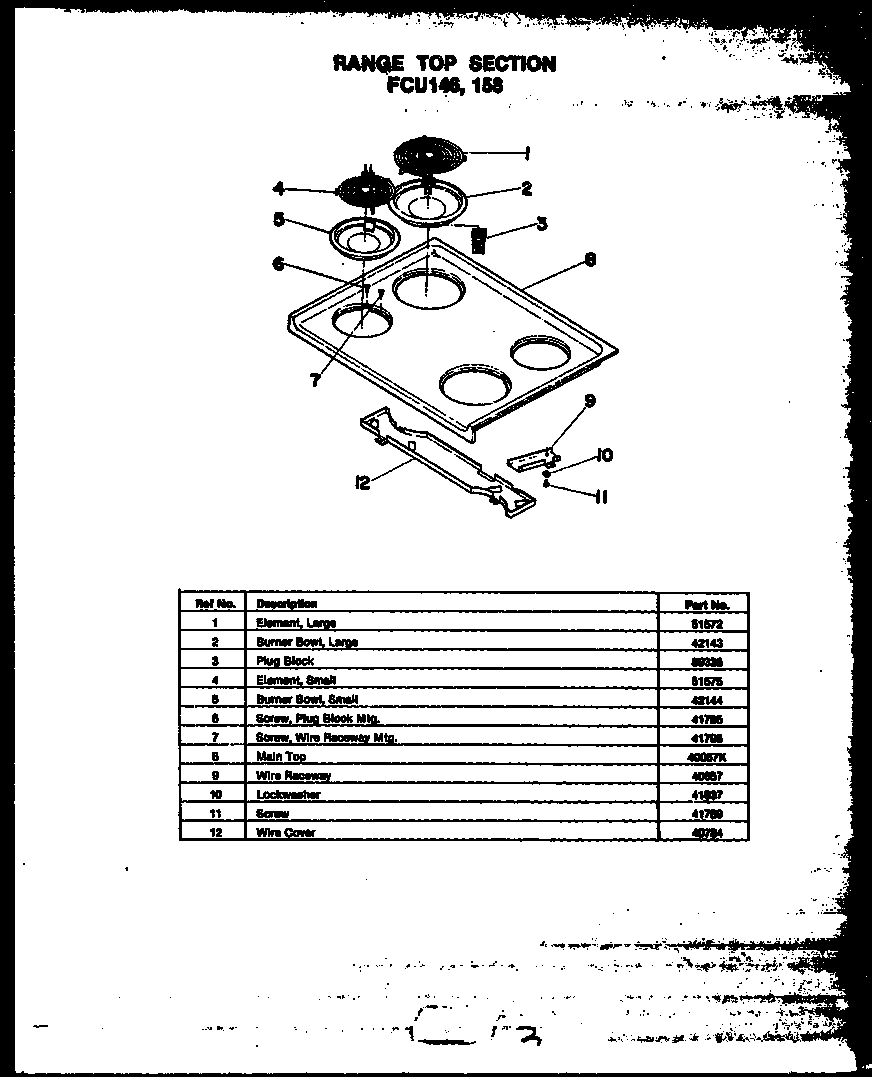

05 - RANGE TOP SECTION
01 - BLACK GLASS DOOR

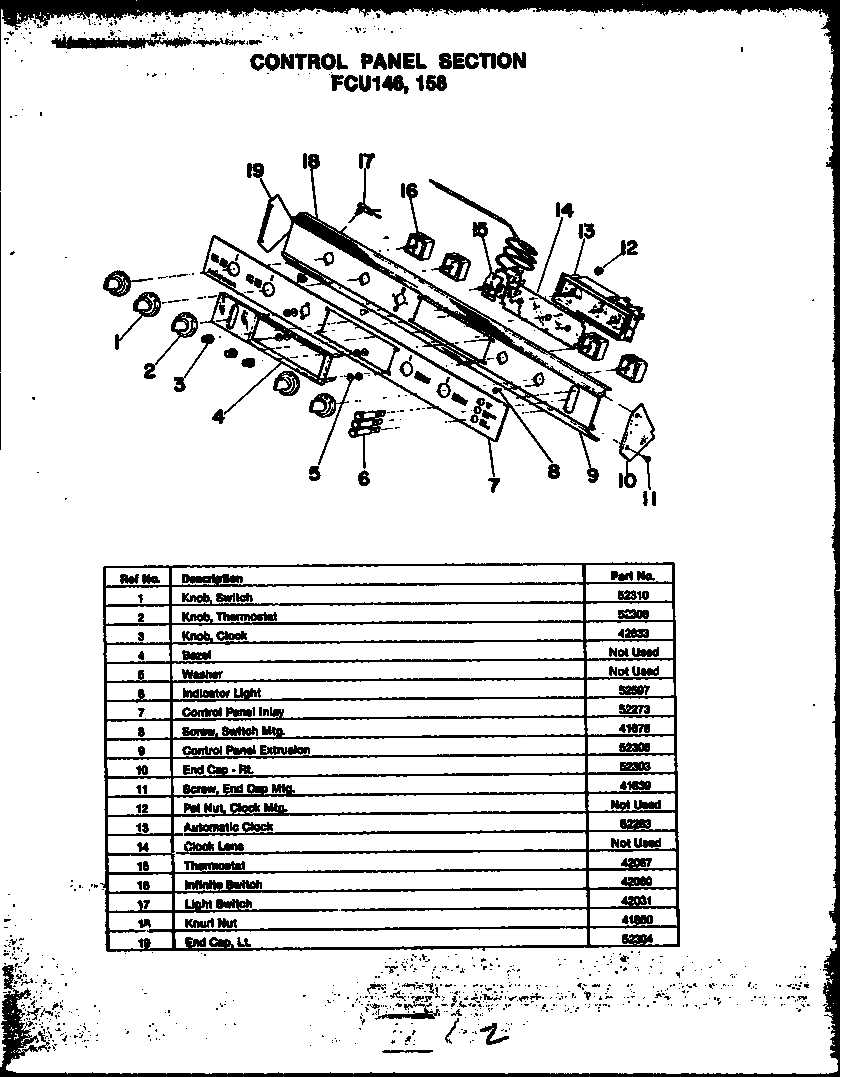

04 - Page 1
Common parts from model Whirlpool FCU146 ELECTRIC WALL OVEN
1
BACKRAIL WPL Y0052314 Contact Us For Availability
1
BROIL ELEMENT RETAINER EU, EO WPL 0040888 Contact Us For Availability
1
SCREW 8-18X.875 B HX HD WPL 0041798 Contact Us For Availability
1
SMOKE ELIMINATOR ASSY CAN WO WPL Y0041428 Contact Us For Availability
1
END CAP, LO TRIM, LT WPL Y0052317 Contact Us For Availability
1
HANDLE WPL Y0052324 Contact Us For Availability
1
SPRING WPL 52310 Contact Us For Availability
2
CODE J WPL 42474 Contact Us For Availability
2
REAR TRIM 2000 SPLIT WPL Y0042473 Contact Us For Availability
2
FRAME, DOOR WPL Y0052325 Contact Us For Availability
2
FRAME, DOOR WPL Y0052331 Contact Us For Availability
3
TAPPING SCREW 6 20X3/4 UC FH WPL Y0041797 Contact Us For Availability
3
OVEN DOOR GLASS TH MH WPL 0042764 Contact Us For Availability
3
KNOB, CLOCK W/O SPRING WPL Y0042633 Contact Us For Availability
4
FASTENER WPL 73028 Contact Us For Availability
4
END CAP, LO TRIM, RT WPL Y0052316 Contact Us For Availability
4
SURFACE ELEMENT, 6`` 240 V. 125 WPL Y0051575 Contact Us For Availability
4
DOOR BAFFLE WPL 40733 Contact Us For Availability
4
TINNERMAN WPL Y0041870 Contact Us For Availability
5
BULB, LIGHT WPL Y0042175 Contact Us For Availability
5
PANEL WPL Y0040252 Contact Us For Availability
5
SUB 41966 INSULATION 2X20X65 WPL Y0041973 Contact Us For Availability
6
SUB 73090 WPL 42483 Contact Us For Availability
6
INSULATION COVER EU&EI JAPAN WPL Y0040638 Contact Us For Availability
6
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
6
WINDOW FRAME 30`` TH DK GL. WPL Y0040272 Contact Us For Availability
6
LIGHT, INDICATOR WPL 0052597 Contact Us For Availability
7
METAL SCREW 6X3/8 PHIL PAN HD WPL Y0041796 Contact Us For Availability
7
WIRE,12GA-BLK xREPLACE WPL 45376 Contact Us For Availability
7
SUB 40119CG, OVEN BOTTOM WPL 0040119 Contact Us For Availability
7
GLASS, DOOR INSIDE WO TH MH WPL 0042763 Contact Us For Availability
7
CONTROL PANEL INLAY WPL Y52273 Contact Us For Availability
8
DEFLECTOR VENT WPL Y0040690 Contact Us For Availability
8
COMPLETE BACK RAIL ASSEMBLY WPL 52312 Contact Us For Availability
8
END CAP COMB 172 5000 MIN WPL Y0042475 Contact Us For Availability
8
BAKE ELEMENT 1976 REQ WPL 0042136 Contact Us For Availability
8
MAIN TOP WPL 40067K Contact Us For Availability
8
STRIKE WPL 40238 Contact Us For Availability
8
THERMOSTAT WPL 41678 Contact Us For Availability
9
OVEN WIRE RACK WPL 40183 Contact Us For Availability
9
WIRE RACEWAY WPL Y0040657 Contact Us For Availability
9
CONTROL PANEL EXTRUSION WPL 52308 Contact Us For Availability
10
SCREW WPL Y0041802 Contact Us For Availability
10
REAR WALL SHIELD WPL Y0040654 Contact Us For Availability
10
TRIM ASSY., LOWER REAR WPL Y0052315 Contact Us For Availability
10
WASHER HANDLE MOUNTING WPL 0041937 Contact Us For Availability
10
END CAP, RT. WPL 52303 Contact Us For Availability
11
HINGE 1972 OVENS WPL Y0041907 Contact Us For Availability
11
SCREW, No.8-32 X 5/16 PPH (BLK) WPL Y0041789 Contact Us For Availability
11
BLACK SCREW 8-18X.500 WPL 0041839 Contact Us For Availability
12
COMPARTMENT BOTTOM WPL 40132 Contact Us For Availability
12
MAIN TOP WIRE COVER WPL 0040784 Contact Us For Availability
13
BOTTOM INSULATION COVER WPL 40661 Contact Us For Availability
13
SCREW 8-32X.375 DK GL DR HDL WPL 0041840 Contact Us For Availability
13
CLOCK WPL 0052283 Contact Us For Availability
14
CABINET BACK W/A KU-617 647 WPL Y0040352 Contact Us For Availability
14
SEE NOTE CLOCK LENS WPL Y00000000 Contact Us For Availability
15
CABINET BACK, UPPER WPL 40340 Contact Us For Availability
15
THERMOSTAT CHG OCT 1 ON PTH WPL 0042067 Contact Us For Availability
16
INSULATION,WRAPPER WPL Y0041966 Contact Us For Availability
17
SUB 41966, INSULATION 2X20X65 WPL Y0041963 Contact Us For Availability
17
PUSH SWITCH 1000 MIN WPL 0042031 Contact Us For Availability
18
BURNER BOX WPL 40459 Contact Us For Availability
18
KNURL NUT WPL 0041850 Contact Us For Availability
19
FLUE BOX CRIMP WPL 0040570 Contact Us For Availability
19
END CAP, LH WPL Y0052304 Contact Us For Availability
20
TOP SPACER WPL Y0042007 Contact Us For Availability
21
CABINET SIDE, RT. ALMOND WPL 40288L Contact Us For Availability
21
CABINET SIDE, LT. ALMOND WPL 40289L Contact Us For Availability
22
DOOR SEAL ASSY TH&MH ODOOR WPL 0042399 Contact Us For Availability
NI
BRACKET CONDUIT MTG QCO454 WPL 0040877 Contact Us For Availability
NI
UNIT SUPPORT BRKT WPL 0041024 Contact Us For Availability
NI
DOOR SEAL CLIPS WPL 0041876 Contact Us For Availability
NI
OVEN BOTTOM PLATE CLIP EU EI WPL 0041879 Contact Us For Availability
NI
TERM BLK 1M-MIN WPL 0042185 Contact Us For Availability
NI
RT SIDE TRIM ANNL CONTRACT WPL 0042470 Contact Us For Availability
NI
PLUG BUTTON FOR 7/32 HOLE WPL 0042662 Contact Us For Availability
NI
SPRING WPL 0042739 Contact Us For Availability
NI
BROIL DOOR LINER WPL 40266 Contact Us For Availability
NI
CONTROL WPL 41513 Contact Us For Availability
NI
BROIL DOOR HINGE - LT. WPL 41514 Contact Us For Availability
NI
THERMOSTAT BULB CLIP, LOWER OV WPL 41874 Contact Us For Availability
NI
ORIFICE ACCESS COVER WPL Y0040644 Contact Us For Availability
NI
REAR WIRE SHIELD-EU`S JAP WPL Y0040655 Contact Us For Availability
NI
TERMINAL BLOCK COVER EU`S WPL Y0040698 Contact Us For Availability
NI
LEG LEVELER ASSY WPL Y0041322 Contact Us For Availability
NI
SUB 63661, BUMPER OVEN DOOR WPL Y0042005 Contact Us For Availability
NI
LT SIDE TRIM ANNL CONTRACT WPL Y0042471 Contact Us For Availability
NI
PLUG BUTTON BLACK 1/2`` WPL Y0042660 Contact Us For Availability
NI
SCREW, No.10 X 3/8`` WPL Y0041783 Contact Us For Availability
NI
METL SCRW 10AX3/4 PH PAN HD BK WPL 0041791 Contact Us For Availability
× ![]()
