Model Electrolux FCS367CHBC DUAL FUEL RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

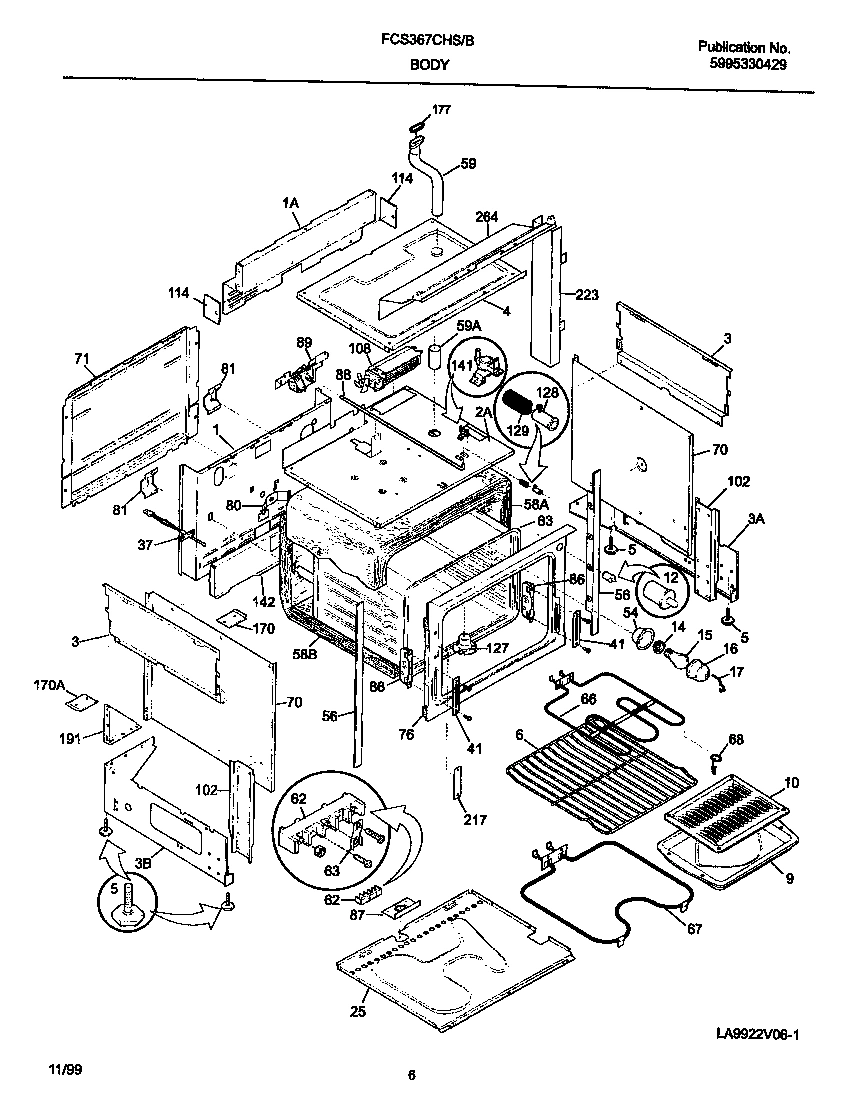

03 - BODY

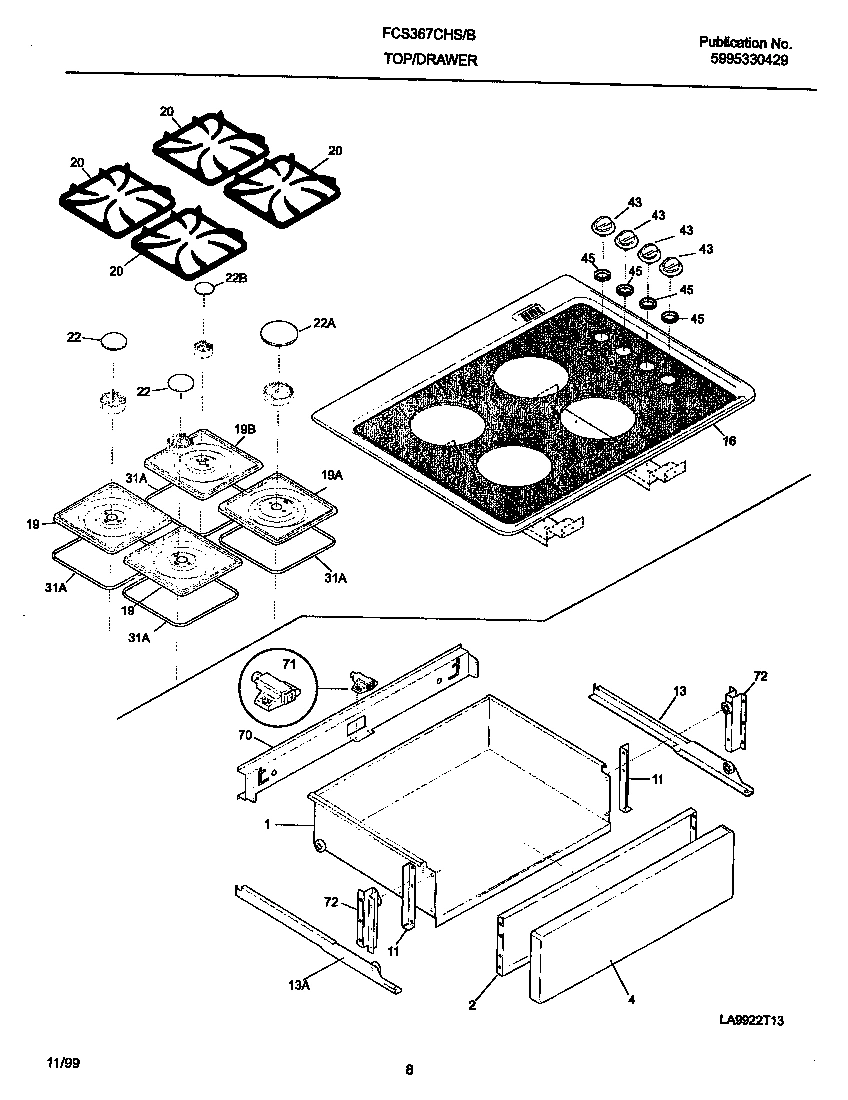

04 - TOP/DRAWER

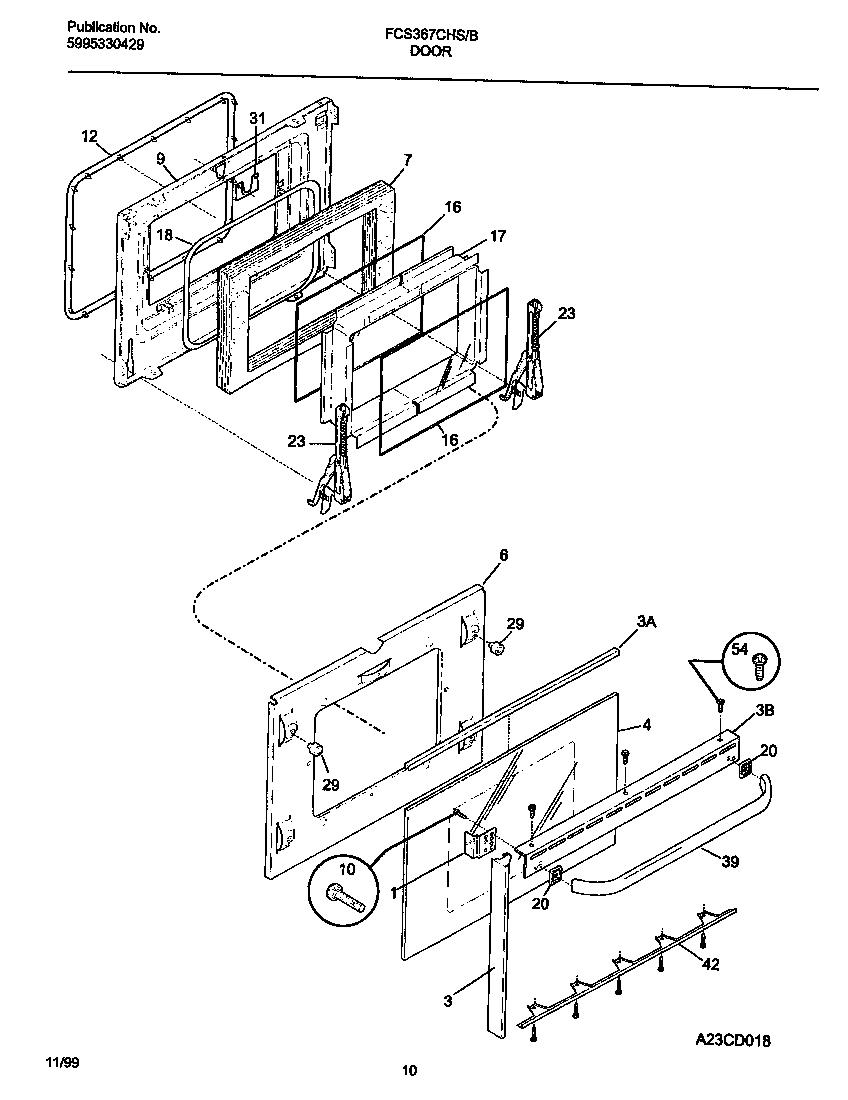

05 - DOOR

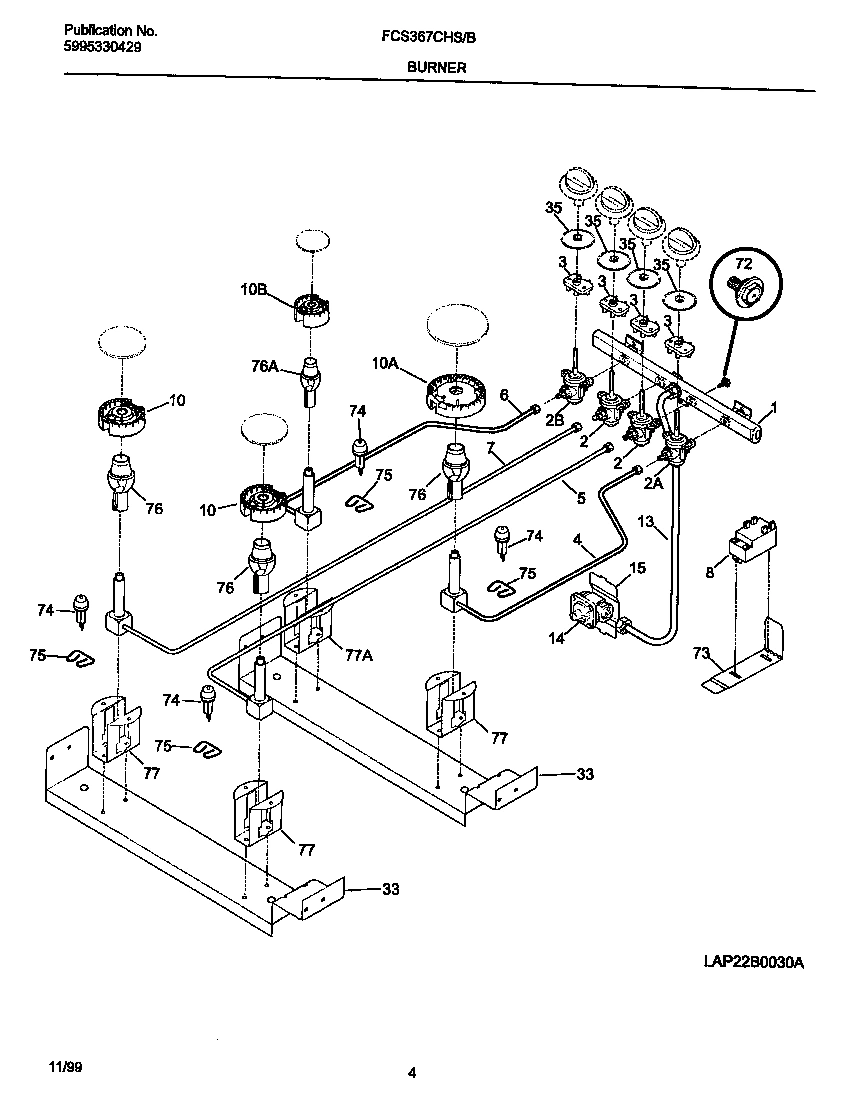

06 - BURNER

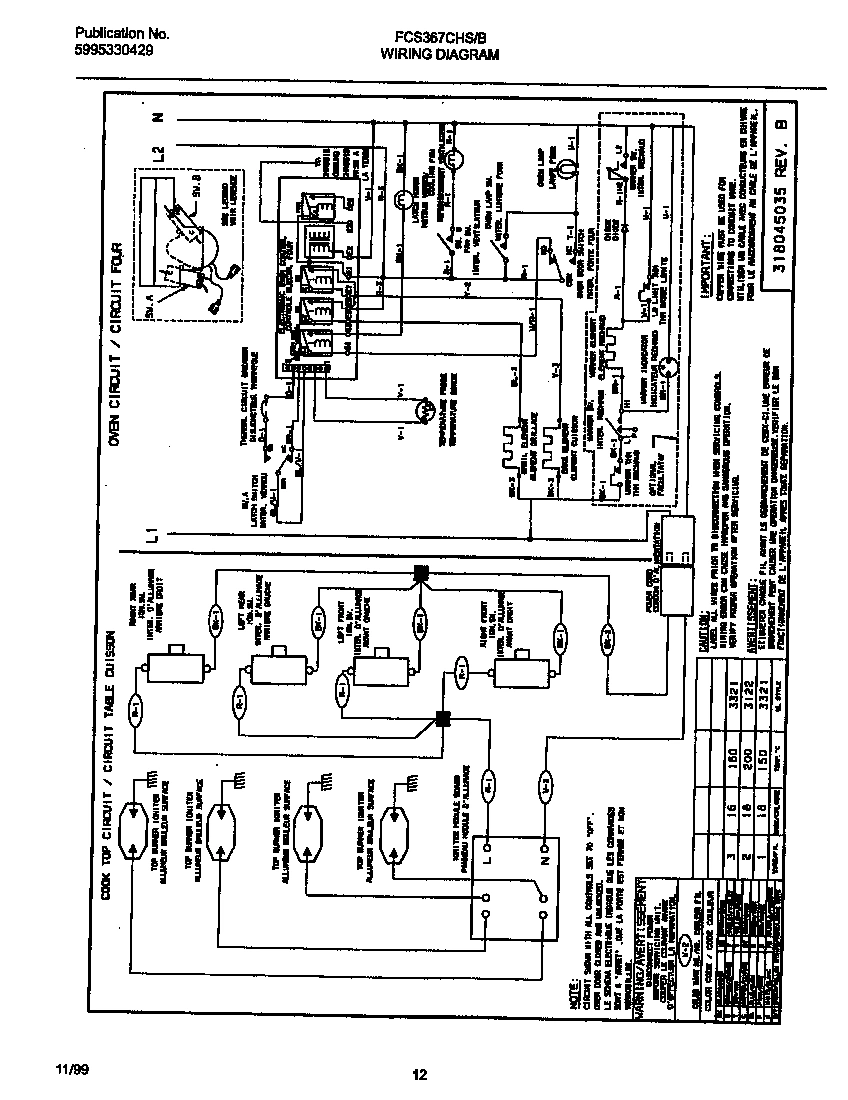

07 - WIRING DIAGRAM
Common parts from model Electrolux FCS367CHBC DUAL FUEL RANGE
*67364
SCREW,TRUSS HEAD ,8-18 X 0.375 ,(4) WCI 08016432 Contact Us For Availability
*67368
WCI 318127407 WCI 318127407 Contact Us For Availability
1
WCI 318043100 WCI 318043100 Contact Us For Availability
1
WCI 318177301 WCI 318177301 Contact Us For Availability
2
VALVE-TOP BURNER WCI 318087001 Contact Us For Availability
2
VALVE-TOP BURNER, 2-POSITION, (3) WCI 5303935042 Contact Us For Availability
2
VALVE-TOP BURNER WCI 318087040 Contact Us For Availability
2
WCI 318108000 WCI 318108000 Contact Us For Availability
3
WCI 316032002 WCI 316032002 Contact Us For Availability
3
TRIM-OVEN DOOR,UPPER WCI 318028900 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 318049019 Contact Us For Availability
3
TRIM-OVEN DOOR,BLACK ,SIDE ,(2) WCI 318049205 Contact Us For Availability
4
WCI 5303311178 WCI 5303311178 Contact Us For Availability
4
WCI 318041105 WCI 318041105 Contact Us For Availability
4
Tube,burner ,RF WCI 318167703 Contact Us For Availability
5
Tube,burner ,LF WCI 318167700 Contact Us For Availability
6
Tube,burner ,RR WCI 318167702 Contact Us For Availability
6
SHIELD-INSULATION WCI 318056802 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
7
Tube,burner ,LR WCI 318167701 Contact Us For Availability
9
WCI 318048802 WCI 318048802 Contact Us For Availability
10
BURNER-TOP,LARGE ,13000 BTU ,LARGE RF WCI 318148002 Contact Us For Availability
10
BURNER-TOP MID,9100BTU ,LF & LR WCI 318148001 Contact Us For Availability
10
BURNER-TOP SMALL,5000BTU ,RR WCI 318148000 Contact Us For Availability
10
WCI 5303324305 WCI 5303324305 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
13
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13
WCI 5303311130 WCI 5303311130 Contact Us For Availability
13
WCI 318054503 WCI 318054503 Contact Us For Availability
14
WCI 318122700 WCI 318122700 Contact Us For Availability
15
WCI 318122900 WCI 318122900 Contact Us For Availability
16
GLASS-OVEN DOOR,INNER ,(2) WCI 318041603 Contact Us For Availability
16
WCI 318079201 WCI 318079201 Contact Us For Availability
17
RETAINER LENZ WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
WCI 318014300 WCI 318014300 Contact Us For Availability
20
GRATE,(4) WCI 318120105 Contact Us For Availability
22
CAP-BURNER,BLACK ,SMALL RR & LR WCI 318076400 Contact Us For Availability
22
WCI 318076420 WCI 318076420 Contact Us For Availability
23
HINGE-OVEN DOOR, ASSY WCI 5303311215 Contact Us For Availability
29
WCI 5303310535 WCI 5303310535 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
33
WCI 318171500 WCI 318171500 Contact Us For Availability
35
WCI 318146300 WCI 318146300 Contact Us For Availability
36
WCI 318164720 WCI 318164720 Contact Us For Availability
39
WCI 316091118 WCI 316091118 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
WCI 5303311200 WCI 5303311200 Contact Us For Availability
45
BUSHING WCI 318146200 Contact Us For Availability
58
WCI 5303310538 WCI 5303310538 Contact Us For Availability
58
INSULATION WRAPPER WCI 5303310539 Contact Us For Availability
59
WCI 318072519 WCI 318072519 Contact Us For Availability
59
WCI 318072520 WCI 318072520 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
64
MTG ROCKER SWITCH WCI 318112200 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
70
BRACKET-SLIDE WCI 5303311143 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
71A
COVER-WIRING WCI 5303310515 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
72
SCREW VALVE <1/4-20X 5/16 WCI 5303323141 Contact Us For Availability
73
WCI 318080100 WCI 318080100 Contact Us For Availability
75
WCI 318148800 WCI 318148800 Contact Us For Availability
76
SMALL MIXING TUBE,SMALL RR & LR WCI 318167800 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
77
BRACKET-BURNER MTG,MID & LARGE WCI 318112010 Contact Us For Availability
77
BRACKET-BURNER MTG WCI 318112000 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN,COMP. WCI 318089608 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
WCI 318111803 WCI 318111803 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89A
WCI 318120702 WCI 318120702 Contact Us For Availability
89B
WCI 5304404899 WCI 5304404899 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
SWITCH, THERMAL CUTOUT WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170A
WCI 318175700 WCI 318175700 Contact Us For Availability
170B
WCI 318175701 WCI 318175701 Contact Us For Availability
177
WCI 318053800 WCI 318053800 Contact Us For Availability
191
BRACKET CORNER WCI 5303304030 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
223
WCI 318038400 WCI 318038400 Contact Us For Availability
264
