Model Electrolux FCS367CHBA RANGE – Common Parts & Diagrams

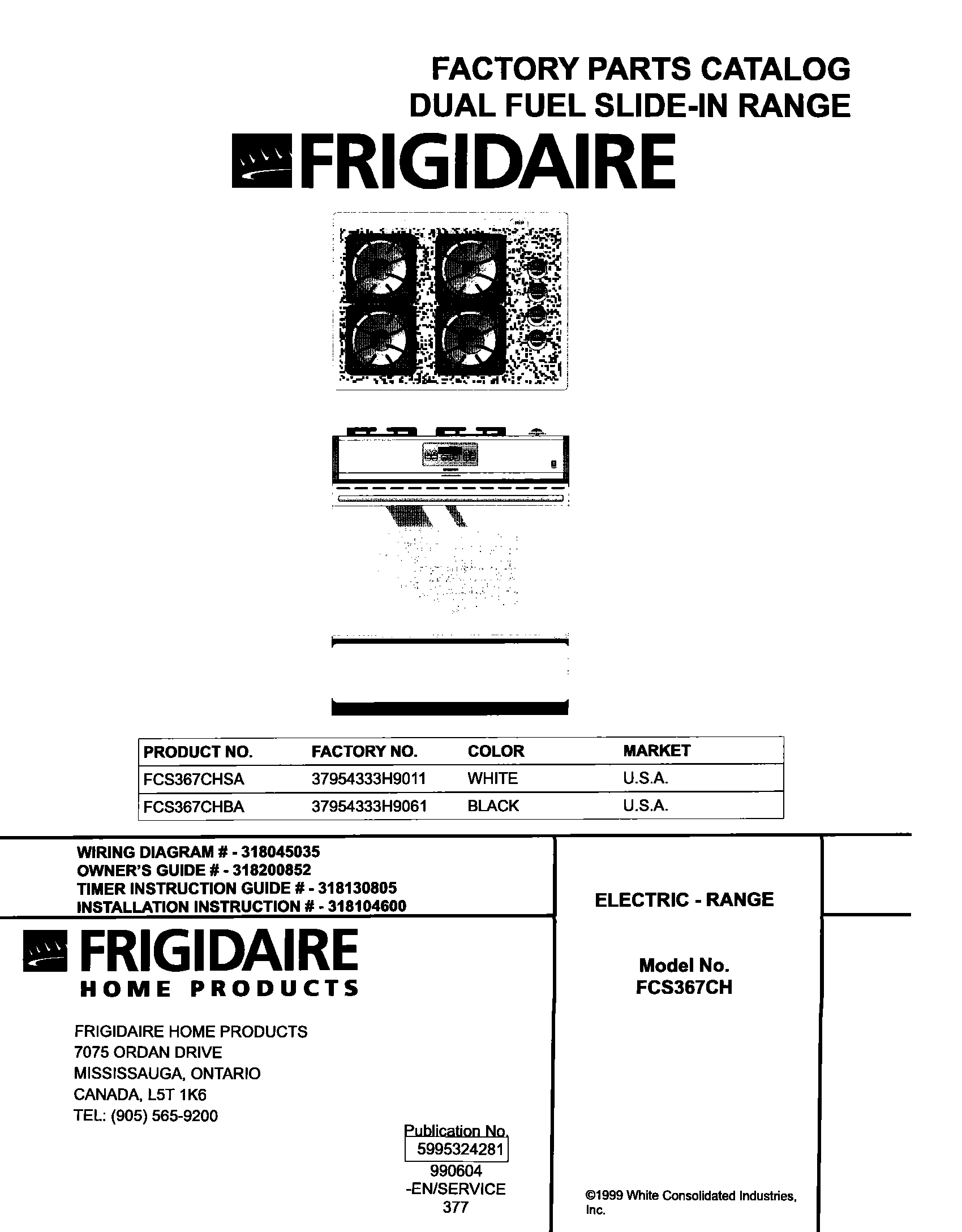

01 - COVER

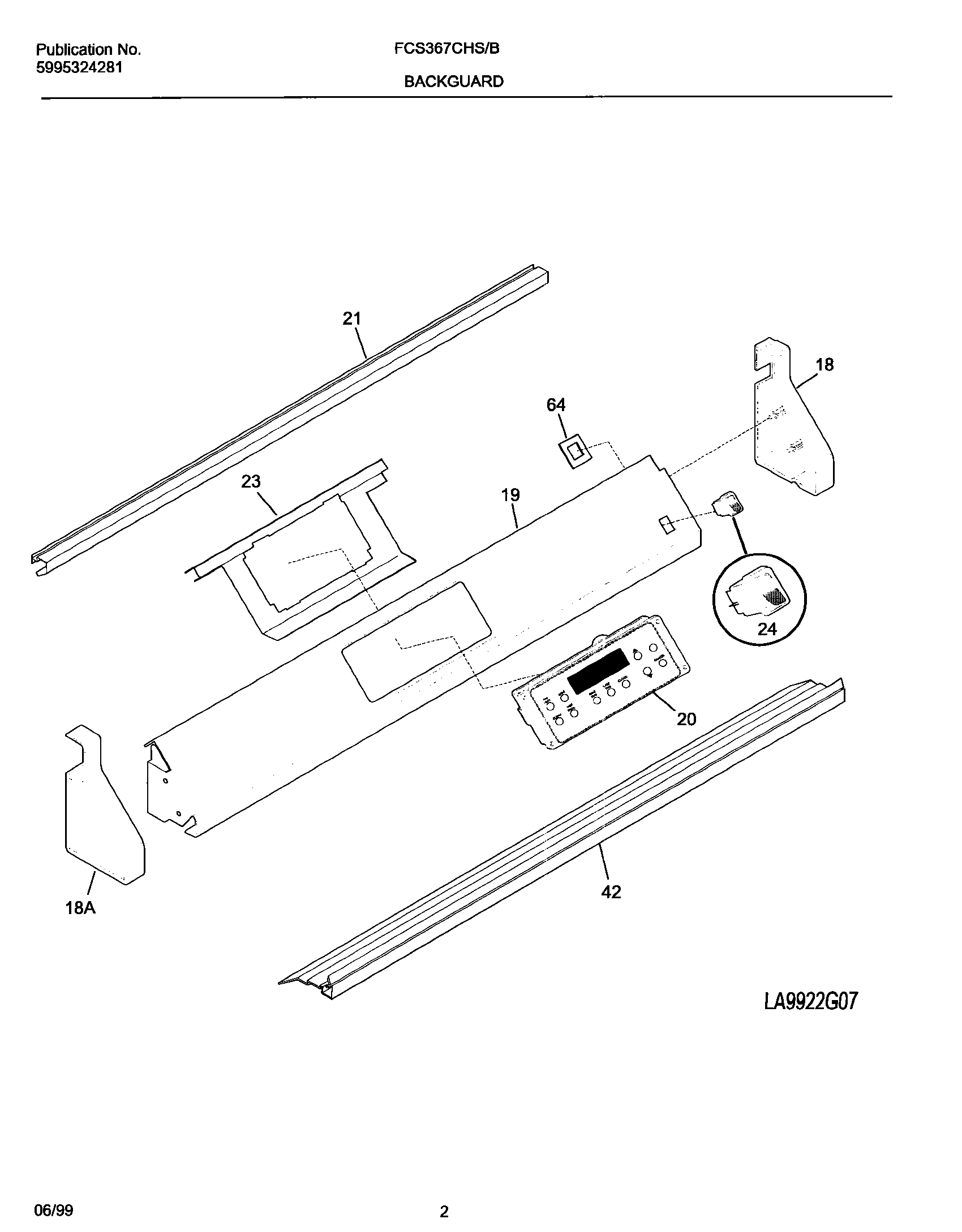

03 - BACKGUARD

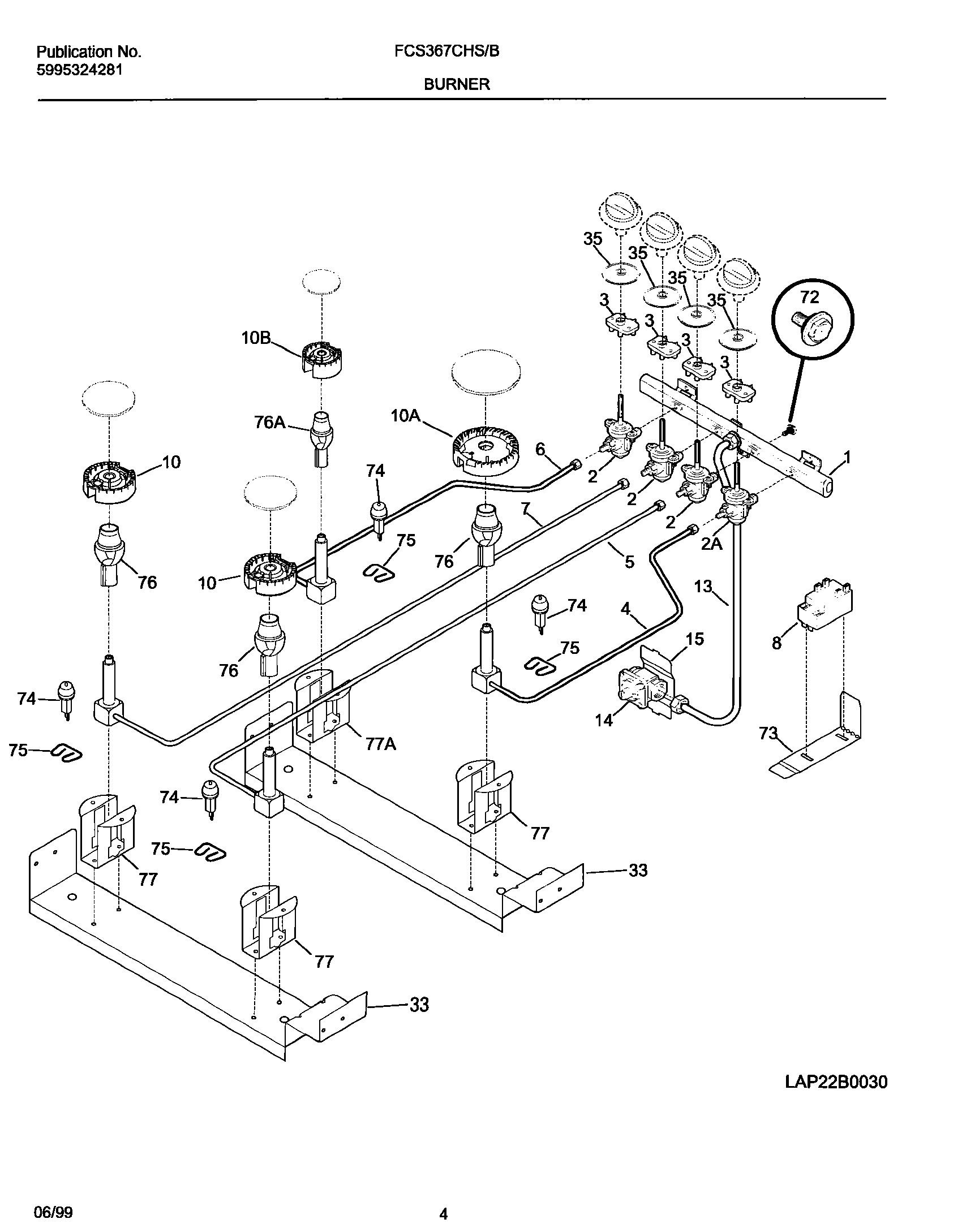

05 - BURNER

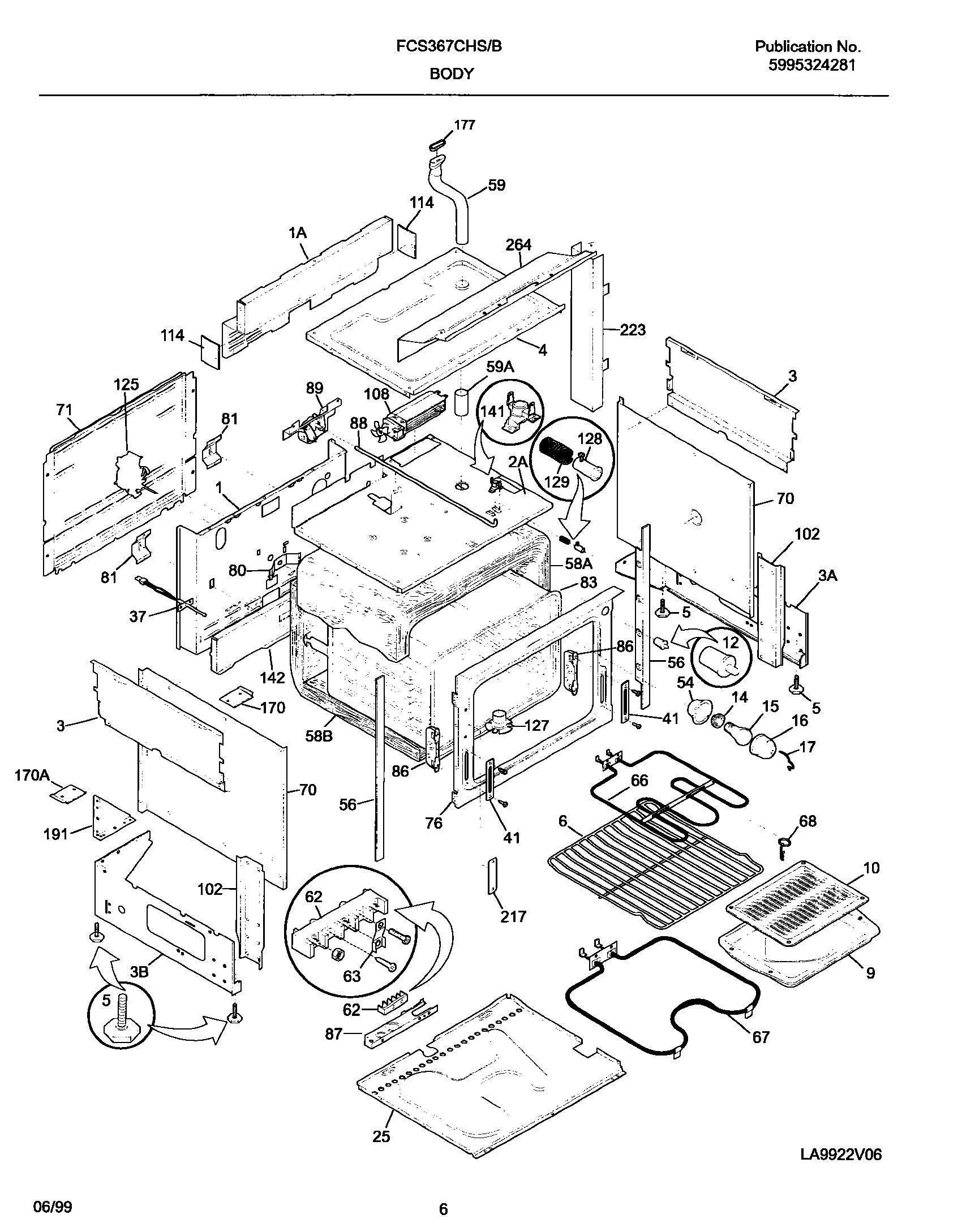

07 - BODY

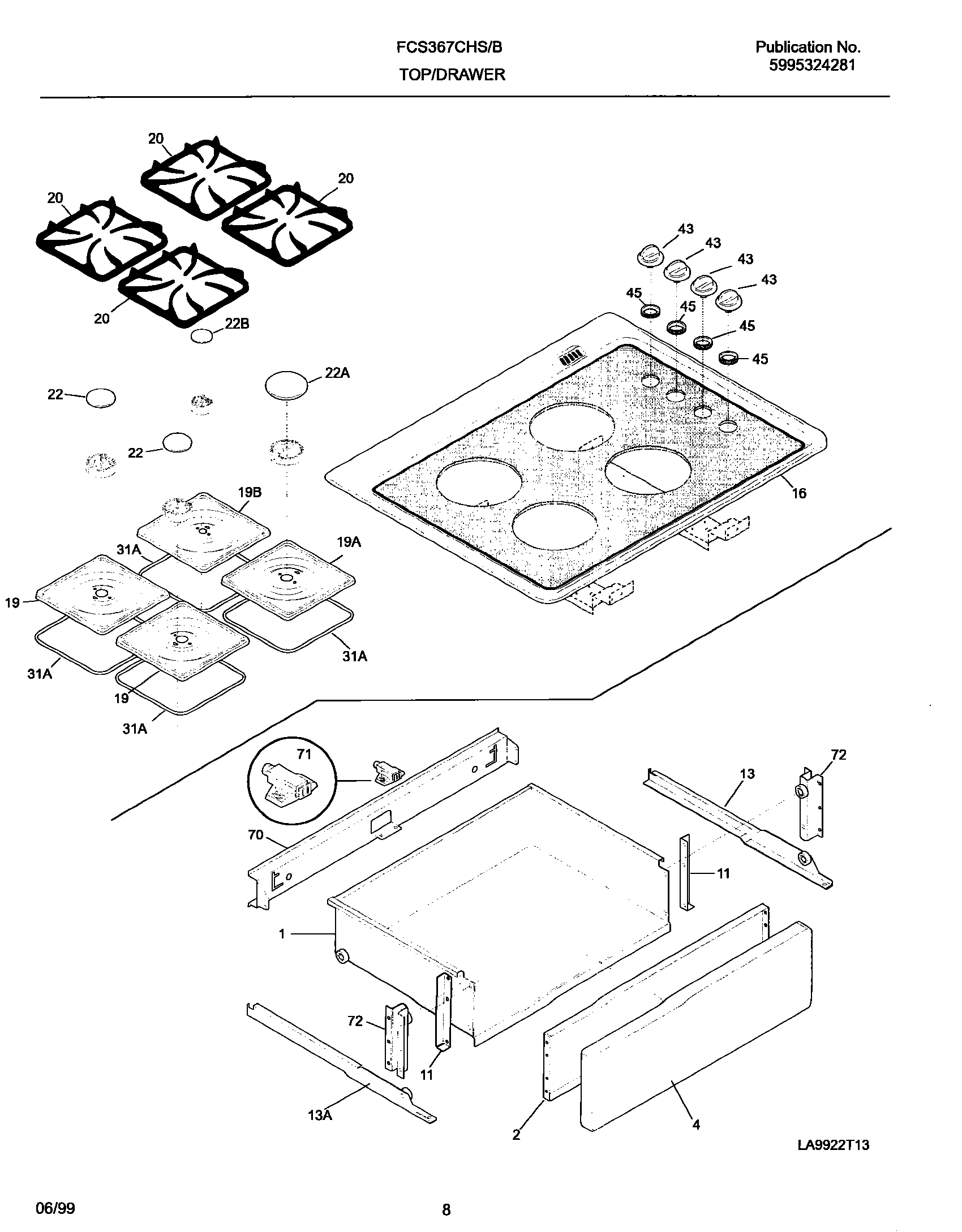

09 - TOP/DRAWER

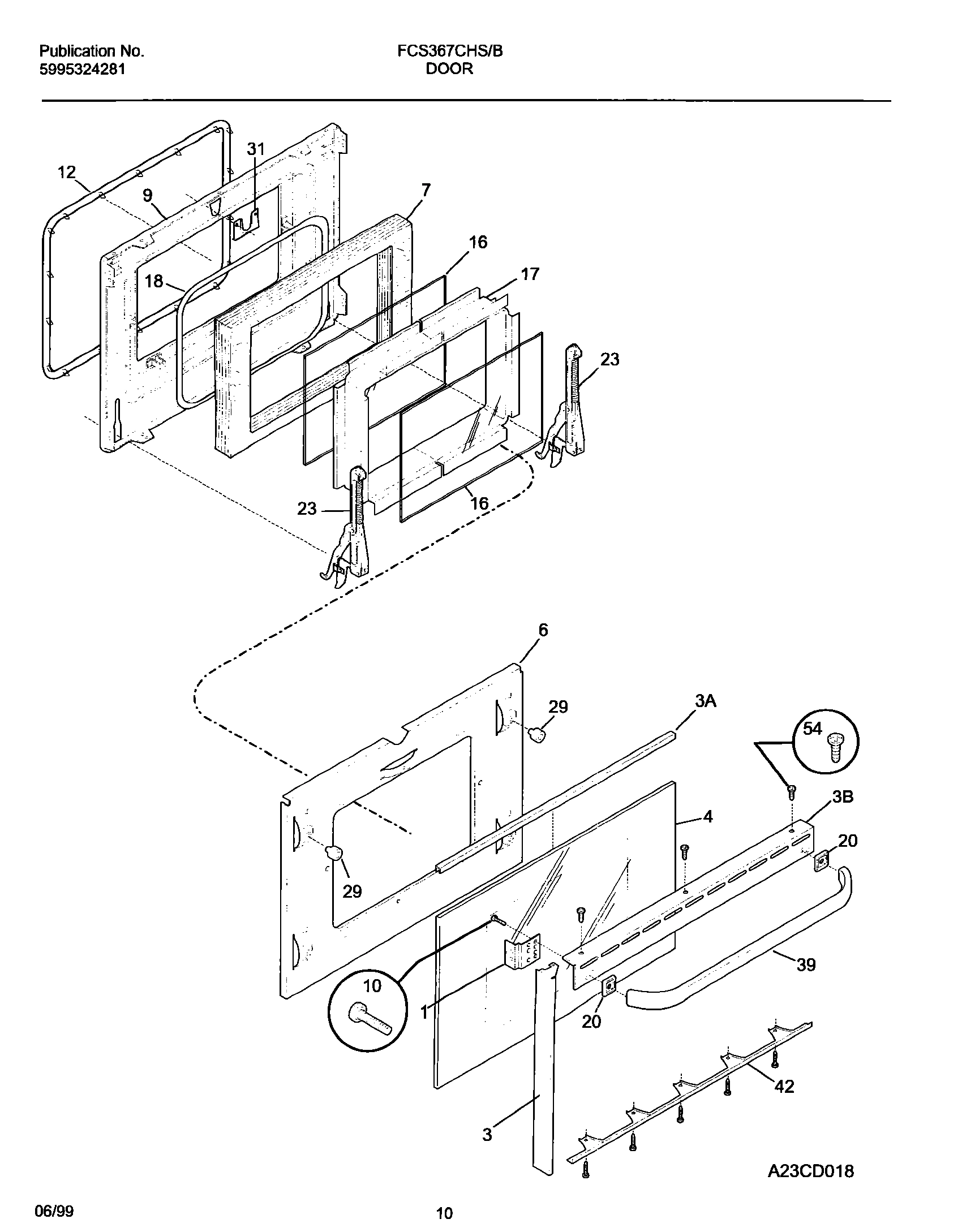

11 - DOOR

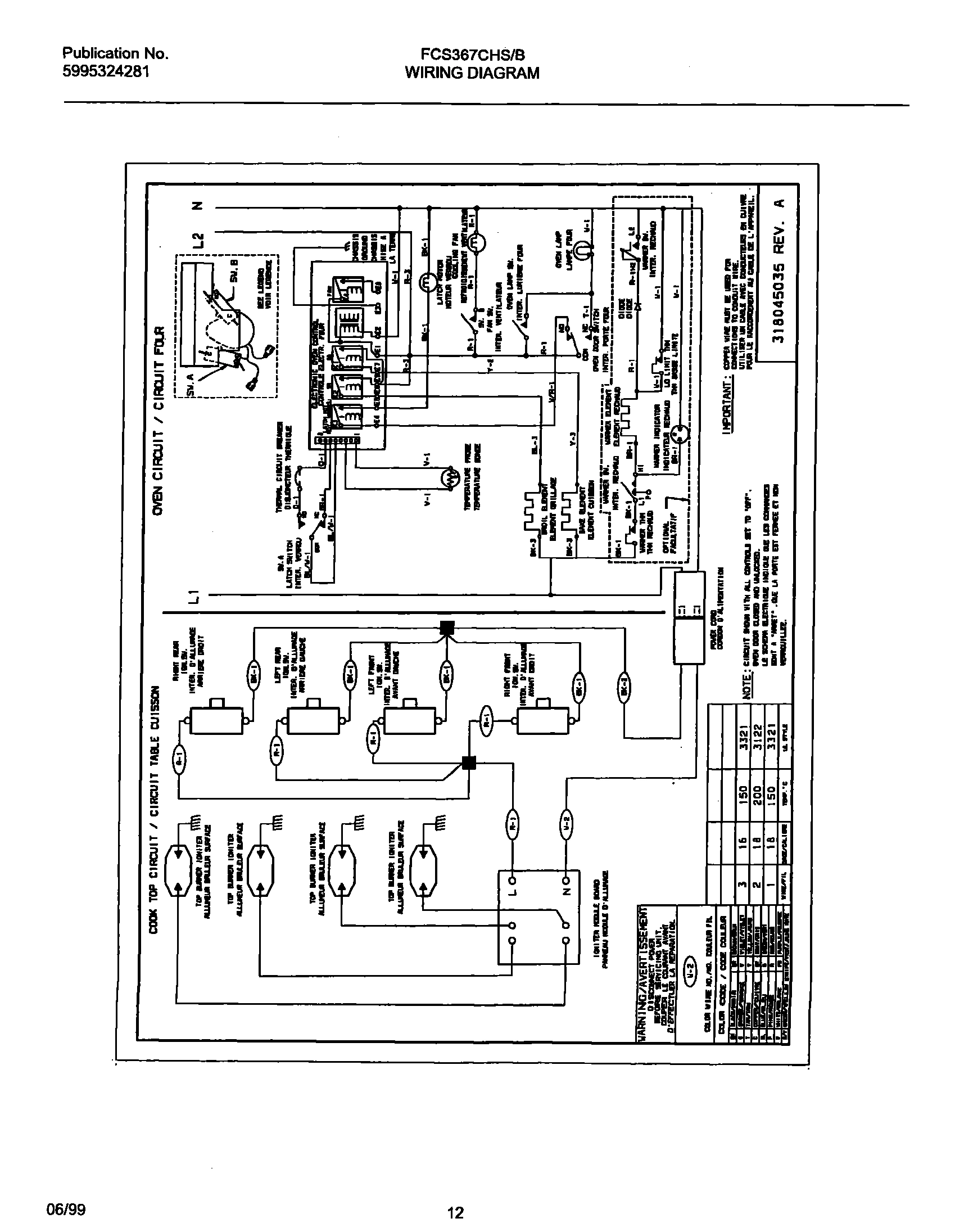

12 - WIRING DIAGRAM
Common parts from model Electrolux FCS367CHBA RANGE
1
BRACKET-TRIM,HANDLE WCI 318043100 Contact Us For Availability
2
VALVE-TOP BURNER WCI 5303935042 Contact Us For Availability
2
WCI 318108000 WCI 318108000 Contact Us For Availability
2A
VALVE-TOP BURNER WCI 318087001 Contact Us For Availability
3
SWITCH-IGNITOR WCI 316032002 Contact Us For Availability
3
WCI 318049205 WCI 318049205 Contact Us For Availability
3A
WCI 318028900 WCI 318028900 Contact Us For Availability
3B
WCI 318049019 WCI 318049019 Contact Us For Availability
4
WCI 5303311178 WCI 5303311178 Contact Us For Availability
4
WCI 318041105 WCI 318041105 Contact Us For Availability
6
WCI 318167702 WCI 318167702 Contact Us For Availability
6
WCI 318056802 WCI 318056802 Contact Us For Availability
7
WCI 318106001 WCI 318106001 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
9
WCI 318048802 WCI 318048802 Contact Us For Availability
10
BURNER-TOP,CENTER WCI 318148001 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
10
SCREW, 10-24 X 5/8 WCI 5303324305 Contact Us For Availability
10A
BURNER-TOP,LARGE WCI 318148002 Contact Us For Availability
10B
BURNER-TOP,SMALL WCI 318148000 Contact Us For Availability
11
WCI 5303311125 WCI 5303311125 Contact Us For Availability
13
WCI 5303311129 WCI 5303311129 Contact Us For Availability
13A
WCI 5303311130 WCI 5303311130 Contact Us For Availability
14
WCI 318122700 WCI 318122700 Contact Us For Availability
16
GLASS-OVEN DOOR WCI 318041603 Contact Us For Availability
16
WCI 318079201 WCI 318079201 Contact Us For Availability
17
RETAINER-LENS WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
SPACER-HANDLE,BLACK WCI 318014300 Contact Us For Availability
20
WCI 318120105 WCI 318120105 Contact Us For Availability
22A
CAP-BURNER LARGE BLACK WCI 318076420 Contact Us For Availability
22B
CAP-BURNER SMALL BLACK WCI 318076400 Contact Us For Availability
23
WCI 5303311215 WCI 5303311215 Contact Us For Availability
25
WCI 318179102 WCI 318179102 Contact Us For Availability
29
WCI 5303310535 WCI 5303310535 Contact Us For Availability
31
LATCH-DOOR WCI 5303310536 Contact Us For Availability
39
WCI 316091118 WCI 316091118 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
42
WCI 5303311200 WCI 5303311200 Contact Us For Availability
43
WCI 318016501 WCI 318016501 Contact Us For Availability
45
WCI 318146200 WCI 318146200 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318002601 WCI 318002601 Contact Us For Availability
58A
WCI 5303310539 WCI 5303310539 Contact Us For Availability
58B
WCI 5303310538 WCI 5303310538 Contact Us For Availability
59
WCI 318072519 WCI 318072519 Contact Us For Availability
59A
WCI 318072520 WCI 318072520 Contact Us For Availability
63
WCI 5303310517 WCI 5303310517 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
70
BRACKET-SLIDE WCI 5303311143 Contact Us For Availability
71
COVER-WIRING WCI 5303310515 Contact Us For Availability
71
WCI 5303311144 WCI 5303311144 Contact Us For Availability
72
WCI 5303311145 WCI 5303311145 Contact Us For Availability
76
WCI 318124100 WCI 318124100 Contact Us For Availability
76A
SMALL MIXING TUBE WCI 318167800 Contact Us For Availability
77
BRACKET-BURNER MTG WCI 318112010 Contact Us For Availability
81
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089608 WCI 318089608 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
PLATE-MOUNTING WCI 318111800 Contact Us For Availability
88
WCI 5303311160 WCI 5303311160 Contact Us For Availability
89
WCI 318120702 WCI 318120702 Contact Us For Availability
89
WCI 5304404899 WCI 5304404899 Contact Us For Availability
102
WCI 5303311142 WCI 5303311142 Contact Us For Availability
108
WCI 318073001 WCI 318073001 Contact Us For Availability
114
PLATE-FILLER WCI 3051827 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
141
WCI 5303284446 WCI 5303284446 Contact Us For Availability
142
WCI 318123901 WCI 318123901 Contact Us For Availability
170
WCI 318175700 WCI 318175700 Contact Us For Availability
170A
WCI 318175701 WCI 318175701 Contact Us For Availability
177
WCI 318053800 WCI 318053800 Contact Us For Availability
191
BRACKET WCI 5303304030 Contact Us For Availability
217
WCI 316042300 WCI 316042300 Contact Us For Availability
223
WCI 318038400 WCI 318038400 Contact Us For Availability
264
WCI 318077601 WCI 318077601 Contact Us For Availability
NI
SCREW,8-18 X 3/8 WCI 08016432 Contact Us For Availability
× ![]()
