Model Electrolux FCRG3052AWC RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

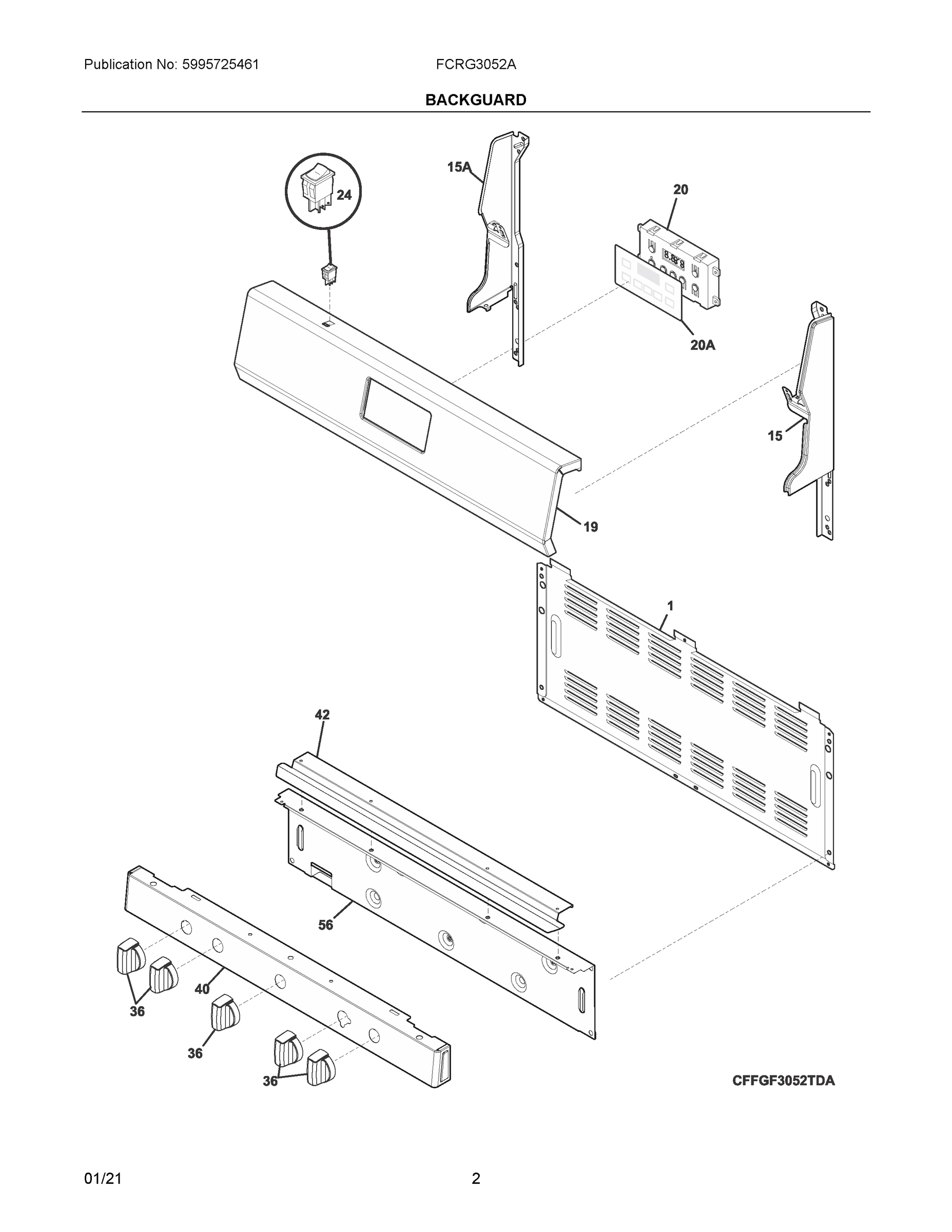

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
Common parts from model Electrolux FCRG3052AWC RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
SHIELD, BACKGUARD, REAR WALL WCI 316281802 Contact Us For Availability
1
MANIFOLD, PIPE WCI 5304513540 Contact Us For Availability
2
VALVE, TOP BURNER, BLUE STEM, 1125BTU WCI 5304506549 Contact Us For Availability
2A
VALVE, TOP BURNER, BLACK STEM, 500BTU WCI 5304506547 Contact Us For Availability
2B
VALVE, TOP BURNER, WHITE STEM, 1500BTU WCI 5304506550 Contact Us For Availability
2C
VALVE, TOP BURNER, GREEN STEM, 850BTU WCI 5304506548 Contact Us For Availability
2D
VALVE, TOP BURNER, PINK STEM, 2500BTU WCI 5304506551 Contact Us For Availability
3
HARNESS, IGNITION WCI 5304527991 Contact Us For Availability
3
PANEL, BODYSIDE, WHITE, RH WCI 316400142 Contact Us For Availability
3A
PANEL, BODYSIDE, WHITE, LH WCI 316400143 Contact Us For Availability
4
GLASS, OVEN DOOR, WHITE, OUTER WCI 316558905 Contact Us For Availability
4
PANEL, DRAWER, WHITE WCI 5304513124 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316402316 Contact Us For Availability
8
SPARK MODULE WCI 808608804 Contact Us For Availability
8
GLASS, OVEN DOOR, INNER WCI 5304503232 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400603 Contact Us For Availability
9
LINER-OVEN DOOR WCI 316423807 Contact Us For Availability
10
SCREW, 10-14 X 2.125", HANDLE MTG. WCI 316433300 Contact Us For Availability
10
BURNER, SEALED, 17K WCI 316438400 Contact Us For Availability
10A
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10B
BURNER, SEALED, 12K WCI 316438000 Contact Us For Availability
10C
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
10D
BURNER, SEALED, 9.5K, OVAL WCI 316559300 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY .,, TOP BURNER, RIGHT FR WCI 316536621 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, RIGHT REAR WCI 316536610 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT REAR, WCI 316536612 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, LEFT FRONT WCI 316536602 Contact Us For Availability
11D
IGNITOR/ORIFICE ASSY., TOP BURNER, CENTER, 9. WCI 316536623 Contact Us For Availability
12
SCREW, BURNER, HEAD MTG, (8) WCI 316540900 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13
TUBE-MANIFOLD SUPPLY WCI 316489101 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
15
CAP, END, WHITE, RH WCI 808754505 Contact Us For Availability
15
BRACKET, REGULATOR WCI 316091600 Contact Us For Availability
15A
CAP, END, WHITE, LH WCI 808754506 Contact Us For Availability
16
MAIN TOP, WHITE WCI 316610005 Contact Us For Availability
17
VALVE, SAFETY WCI 316572800 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
BURNER, OVEN WCI 316404400 Contact Us For Availability
20
CONTROL, ELECTRONIC, ES100 WCI 5304521341 Contact Us For Availability
20
GRATE, BURNER, BLACK, SIDE, (2) WCI 807327101 Contact Us For Availability
20
BAFFLE, OVEN BURNER WCI 5304519024 Contact Us For Availability
20A
OVERLAY, CLOCK, WHITE WCI 316220728 Contact Us For Availability
20A
GRATE, BURNER, BLACK, CENTER WCI 807412601 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
22
CAP-BURNER, 17K, BLACK, MATTE, 3MM WCI 5304527846 Contact Us For Availability
22A
CAP-BURNER, 5A, BLACK, MATTE, 3MM WCI 5304524590 Contact Us For Availability
22B
CAP-BURNER, 12K, BLACK, MATTE, 3MM WCI 5304527844 Contact Us For Availability
22C
CAP-BURNER, 9.5K, BLACK, MATTE, 3MM WCI 5304527843 Contact Us For Availability
22D
CAP, 9.5K BURNER, BLACK, OVAL WCI 316559604 Contact Us For Availability
25
SHIELD, HEAT, LOWER WCI 316406200 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
33
SHIELD, REAR WALL WCI 316405900 Contact Us For Availability
35
GASKET-FLUE WCI 316542102 Contact Us For Availability
36
KNOB, TOP VALVE, WHITE WCI 5304507387 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
37
SCREW, ASSY MTG, (8), IGNITOR/ORIFICE WCI 316240600 Contact Us For Availability
39
HANDLE, DOOR WCI 5304522047 Contact Us For Availability
44
ORIFICE, BURNER, 12K WCI 316527502 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
44A
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44B
ORIFICE, TOP BURNER, 16K WCI 316527508 Contact Us For Availability
44C
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
52
CAP, DOOR TRIM, WHITE WCI 316575500 Contact Us For Availability
56
SHIELD, BACKGUARD, INNER WCI 316230708 Contact Us For Availability
66
ELEMENT, BROIL WCI 5304521340 Contact Us For Availability
82
SHIELD, BAKE BURNER WCI 316400801 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
NI
WCI 5304494425 WCI 5304494425 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
NI
SCREW, WCI 316089500 Contact Us For Availability
NI
WCI 316215600 WCI 316215600 Contact Us For Availability
NI
SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability
NI
WCI 316418901 WCI 316418901 Contact Us For Availability
NI
PLUG, HOLE, LIGHT SWITCH WCI 316210800 Contact Us For Availability
NI
WCI 5303288566 WCI 5303288566 Contact Us For Availability
NIA
WCI 316021109 WCI 316021109 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
WCI 316021104 WCI 316021104 Contact Us For Availability
NIB
WCI 5304505563 WCI 5304505563 Contact Us For Availability
× ![]()
