Model Electrolux FCRE3052ASH RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

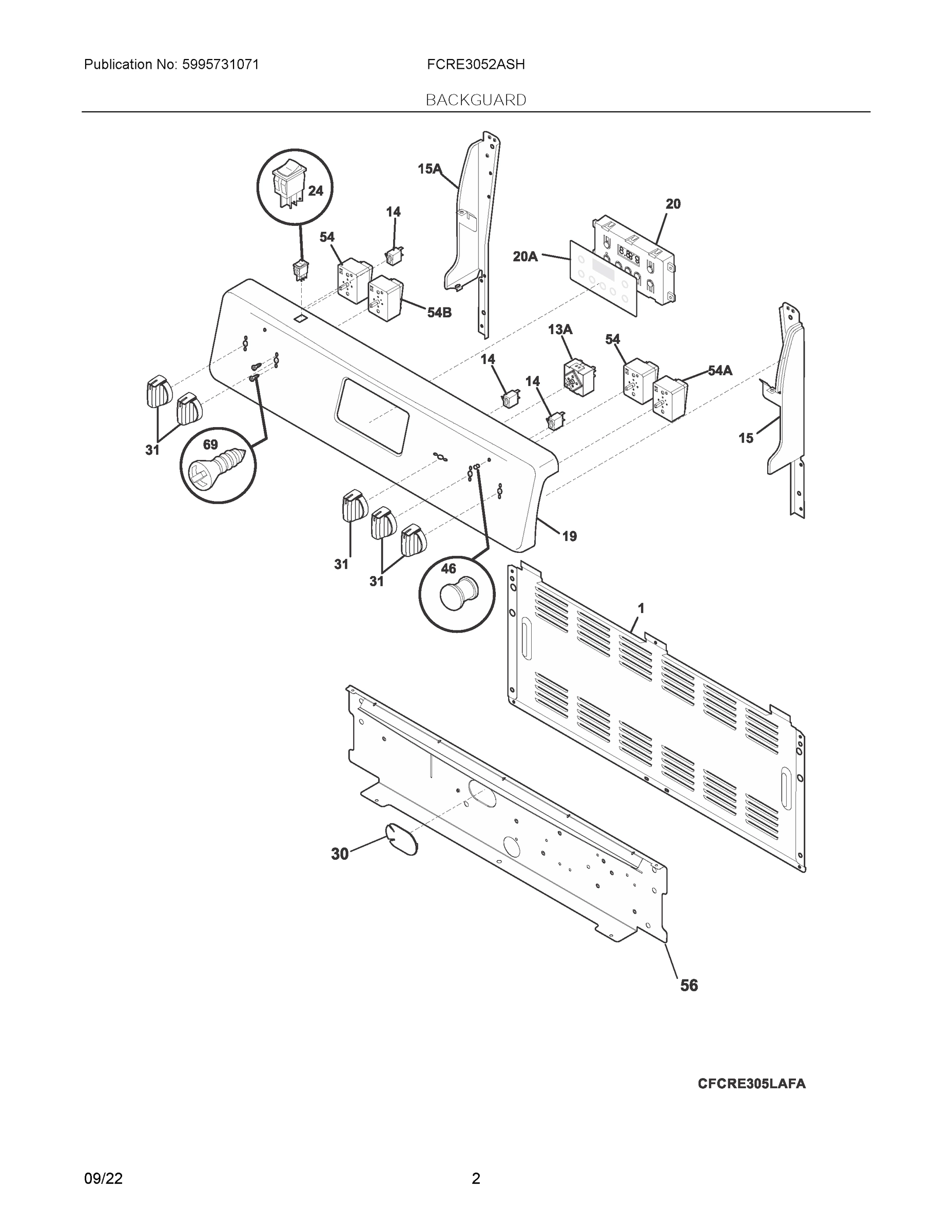

02 - BACKGUARD
03 - BODY
04 - TOP/DRAWER
05 - DOOR
Common parts from model Electrolux FCRE3052ASH RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, UTILITY WCI 316408706 Contact Us For Availability
1
SHIELD, BACKGUARD, REAR WALL WCI 316281802 Contact Us For Availability
2
LINER, DRAWER WCI 5304527989 Contact Us For Availability
3
PANEL, BODYSIDE, BLACK, RH WCI 316400144 Contact Us For Availability
3A
PANEL, BODYSIDE, BLACK, LH WCI 316400145 Contact Us For Availability
4
GLASS, OVEN DOOR, BLACK, W/FOIL WCI 316452758 Contact Us For Availability
4
PANEL, DRAWER, STAINLESS WCI 5304510525 Contact Us For Availability
5
SCREW, LEVELING, PLASTIC, REAR, (2) WCI 316272900 Contact Us For Availability
5A
LEVELING LEG ASSY, METAL, FRONT, (2), BRACKET WCI 5304509869 Contact Us For Availability
6
SHIELD, WOOL WCI 316406328 Contact Us For Availability
8
PANEL, OVEN BOTTOM WCI 316400601 Contact Us For Availability
8
GLASS, OVEN DOOR, INNER WCI 5304503232 Contact Us For Availability
9
PAN, BROILER WCI 316081900 Contact Us For Availability
10
SCREW, HANDLE MTG., 10-24 X 1.75", (2) WCI 316439500 Contact Us For Availability
10
INSERT, BROILER PAN WCI 316082000 Contact Us For Availability
11
BRACKET, REAR SUPPORT, (2) WCI 5304517906 Contact Us For Availability
13
GLIDE, DRAWER, BLACK, RH INNER WCI 5304517905 Contact Us For Availability
13A
GLIDE, DRAWER, BLACK, LH INNER WCI 5304517903 Contact Us For Availability
13A
SWITCH, INFINITE, WARMER WCI 5304522964 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WCI 316116400 Contact Us For Availability
14
GLIDE, DRAWER, BLACK, RH OUTER WCI 5304517904 Contact Us For Availability
14A
GLIDE, DRAWER, BLACK, LH OUTER WCI 5304517902 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
LAMP, OVEN LIGHT WCI 316538904 Contact Us For Availability
15
CAP, END, BLACK, RH WCI 5304493644 Contact Us For Availability
15A
CAP, END, BLACK, LH WCI 5304493646 Contact Us For Availability
15C
ELEMENT, WARMER, 100 W WCI 5304521951 Contact Us For Availability
16
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK WCI 5304513835 Contact Us For Availability
17
RETAINER, LENS WCI 316087500 Contact Us For Availability
17
SPACER, GLASS WCI 5304504811 Contact Us For Availability
18
BRACKET-HINGE, MAIN TOP WCI 316580800 Contact Us For Availability
19
PANEL, BACKGUARD, STAINLESS WCI 5304509173 Contact Us For Availability
20
CONTROL, ELECTRONIC, ES100 WCI 5304521889 Contact Us For Availability
20
SPACER, DOOR HANDLE, (2) WCI 316284100 Contact Us For Availability
20A
OVERLAY, CLOCK, BLACK WCI 316220729 Contact Us For Availability
21
CLIP, BODYSIDE WCI 316408000 Contact Us For Availability
22
BRACKET-BODYSIDE, (2) WCI 316286300 Contact Us For Availability
23
HINGE, OVEN DOOR, BLACK WCI 316575909 Contact Us For Availability
24
SWITCH, ROCKER, BLACK WCI 5304527841 Contact Us For Availability
26A
BRACKET-SUPPORT, CHASSIS, ALUMINUM WCI 316498200 Contact Us For Availability
31
KNOB, CONTROL, BLACK WCI 5304508956 Contact Us For Availability
37
PROBE, OVEN TEMP WCI 316490000 Contact Us For Availability
39
HANDLE, DRAWER, GREY, INSERT WCI 5304511565 Contact Us For Availability
42
SHIELD, WOOL, LOWER WCI 316400701 Contact Us For Availability
43
SCREW, WAFER HEAD, 8-32T X 0.500, BLACK, 44* WCI 5303285179 Contact Us For Availability
44
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54A
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE, RADIANT DUAL WCI 5304522918 Contact Us For Availability
55
BRACKET, GLASS SUPPORT, (4) WCI 316408300 Contact Us For Availability
56
SHIELD, BACKGUARD, BLACK, INNER WCI 316234045 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
59A
TUBE, OVEN VENT, UPPER WCI 316208304 Contact Us For Availability
62
TERMINAL BLOCK KIT WCI 5303935271 Contact Us For Availability
63
PLATE, GROUNDING STRAP WCI 316278800 Contact Us For Availability
66
ELEMENT, BROIL, 4 PASS WCI 316203200 Contact Us For Availability
68
SUPPORT, ELEMENT, BROIL WCI 316404002 Contact Us For Availability
71
SHIELD, REAR WALL WCI 316283204 Contact Us For Availability
86
RECEPTACLE, HINGE WCI 316441300 Contact Us For Availability
87
BRACKET, CABLE MTG WCI 316081200 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NI
SCREW, W/WASHER, WCI 316282700 Contact Us For Availability
NI
SCREW, TRILOBE, 10-32 X 5/16", BLACK WCI 316418901 Contact Us For Availability
NI
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NI
WCI 316506000 WCI 316506000 Contact Us For Availability
NI
PLUG, HOLE, LIGHT SWITCH WCI 316210800 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
× ![]()
